Audac PRE126 2 Zone 6-Channel Stereo Preamplifier
Audac PRE126 2 Zone 6-Channel Stereo Preamplifier
Unleash Audio Flexibility: The Audac PRE126 2 Zone 6-Channel Stereo Preamplifier
The Audac PRE126 2 Zone-6 Channel Stereo Preamplifier is a powerful and versatile preamplifier designed to elevate audio experiences in small to medium-sized installations. Its unique two-zone functionality empowers you to control audio in separate areas, perfect for restaurants, bars, retail stores, offices, or educational institutions.
With a total of 6 channels and a diverse range of input options, the PRE126 caters to various audio sources. Balanced and unbalanced inputs ensure compatibility with microphones, music players, and other line-level devices. For professional microphone setups, the preamplifier boasts phantom power for seamless operation.
The Audac PRE126 2 Zone-6 Channel Stereo Preamplifier goes beyond traditional wired connections. An integrated Bluetooth receiver allows for wireless music streaming from smartphones or tablets, while a 3.5mm jack input provides a wired playback option for laptops, tablets, or other portable devices.

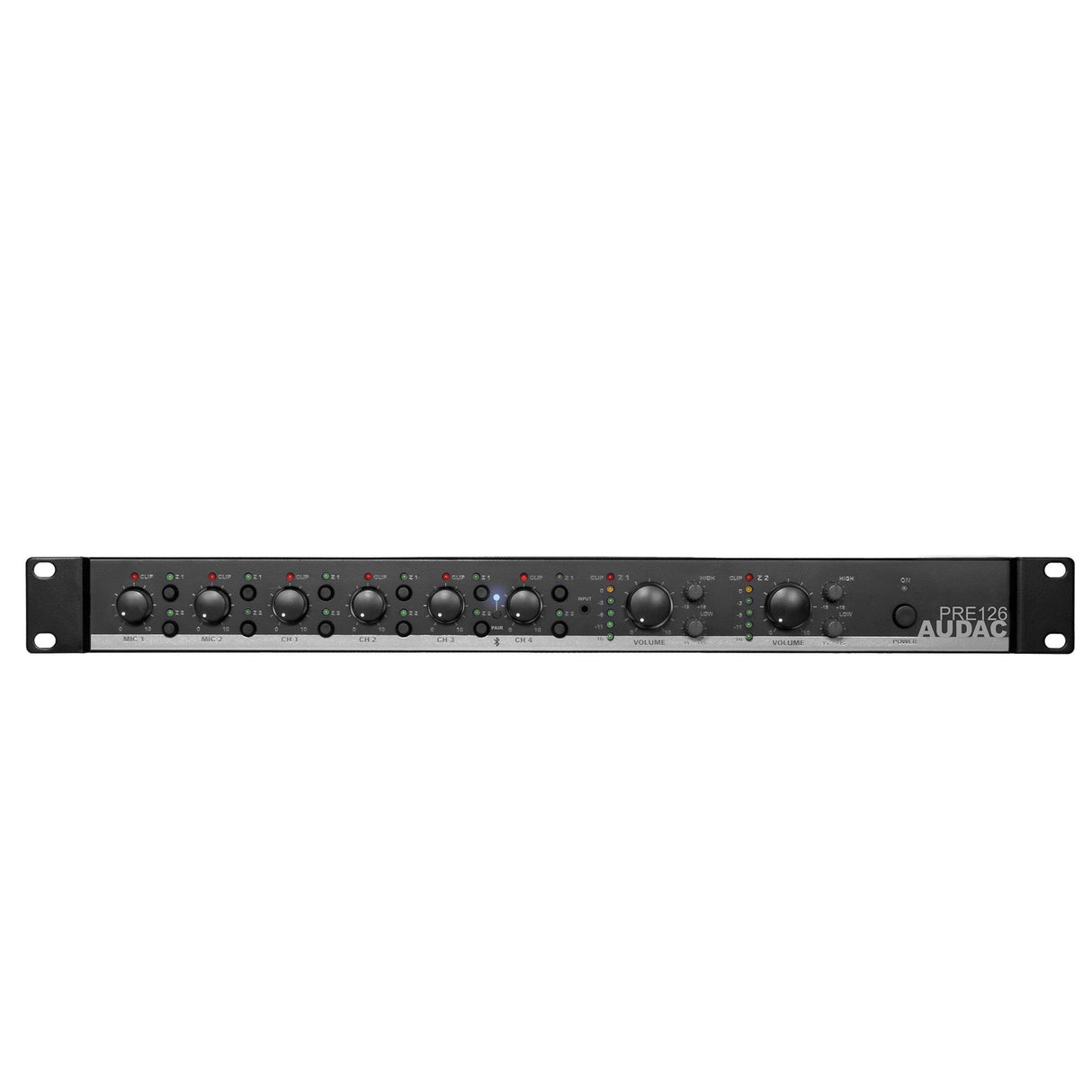

Maintaining clear communication and immersive listening experiences is paramount. The PRE126 prioritizes announcements or alarms over background music with its talkover function. Intuitive controls with dedicated knobs and buttons make volume, tone, and routing adjustments a breeze. Each output section features a comprehensive 6-segment LED display for vital signal level monitoring.

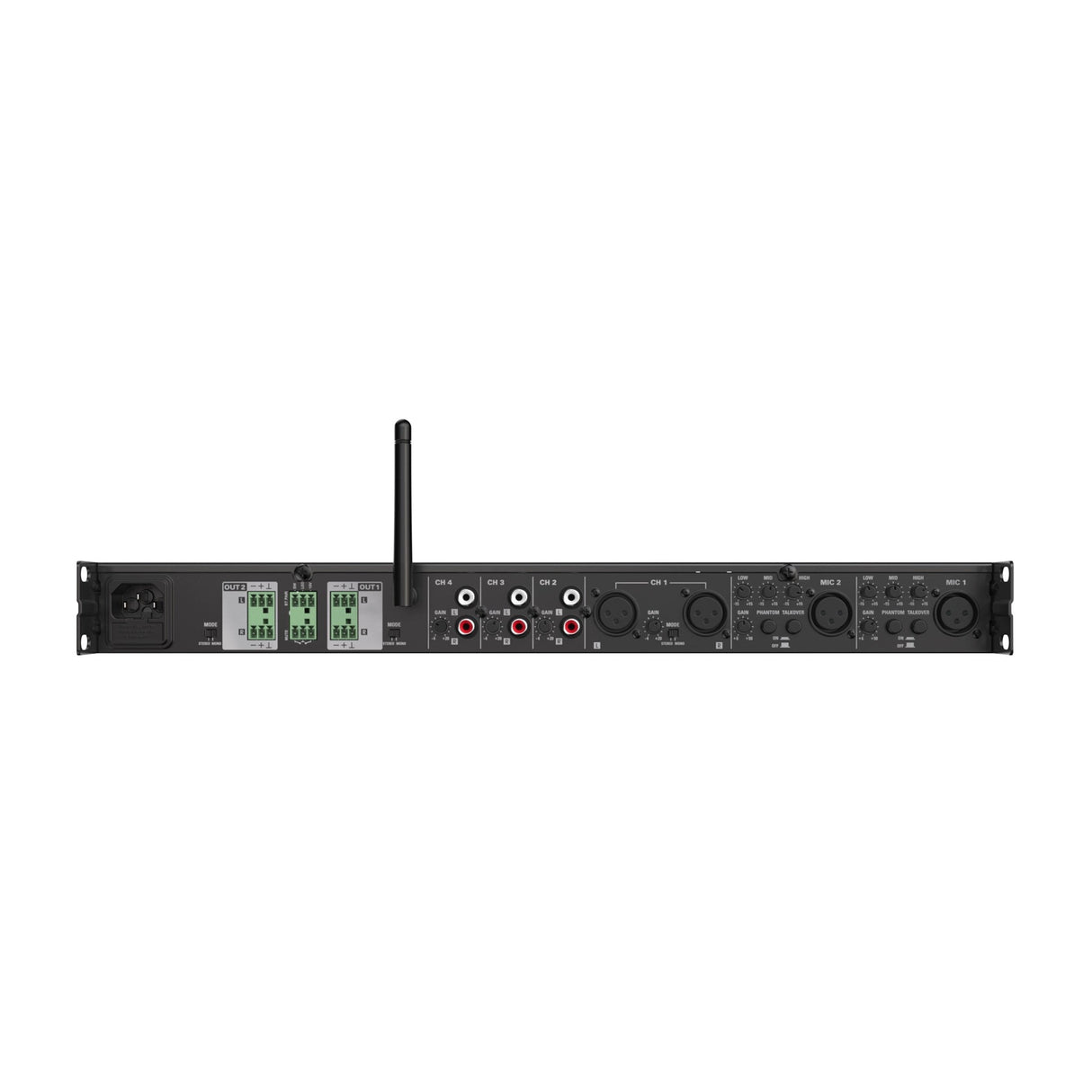

The Audac PRE126 2 Zone-6 Channel Stereo Preamplifier doesn't stop at user-friendly operation. The rear panel offers additional configuration options, including gain adjustment and mono/stereo switching, for installers and experienced users. This comprehensive feature set makes the Audac PRE126 2 Zone-6 Channel Stereo Preamplifier ideal for background music systems, paging announcements, and public address systems.
Key Features
- Two stereo line outputs with balanced connection
- Three stereo line inputs with unbalanced connection
- One stereo line input with balanced connection
- Two microphone inputs
- Audio inputs with priority and phantom power for microphones
- One priority mute contact
- Front 3.5mm Jack that is mixed with Channel 4
- Integrated Bluetooth receiver for wireless audio streaming
Technical Specifications
Available models
PRE126
Regular
System Information
Inputs
Balanced Microphone Type
2 x Balanced Microphone
Balanced Stereo Type
1 x Stereo Balanced Line
Unbalanced Stereo Type
3 x Stereo Unbalanced Line
Bluetooth receiver (mixed with Ch 3)
Front 3.5mm Jack (mixed with Ch )
Priority mute contact
Outputs
Balanced Stereo Type
2 x Balanced Stereo outputs
Inputs
Balanced Microphone Sensitivity
-6 dB ~ -50 dB
Line Sensitivity
-20 dB ~ +4 dB
Balanced Microphone EQ
High
15 dB (12.5 kHz)
Mid
15 dB (2.5 kHz)
Low
15 dB (80 Hz)
Microphone
Phantom Power
15 V DC
Outputs EQ
Treble
15 dB (2.5~20 kHz)
Bass
15 dB (100 Hz)
Frequency Response (Ā± 3 dB)
20 Hz - 20 kHz
Signal / Noise
> 90 dB
THD+N (@ 1 kHz)
< 0.05%
Crosstalk (@ 1 kHz)
> 70 dB
Power Supply
100 ~ 240 V AC / 50 ~ 60 Hz
Power Consumption
12 W
Product Features
Dimensions
18.98 x 1.73 x 13.19 " (W x H x D)
Weight
90.39 lb
Unit height
1 HE
Recommended applications
Education
Hotels
Corporate
Bars & Restaurants
Retail
