Audac PRE220 2 Zone 10-Channel Stereo Preamplifier
Audac PRE220 2 Zone 10-Channel Stereo Preamplifier
The Audac PRE220 2 Zone 10-Channel Stereo Preamplifier is a feature-rich stereo preamplifier designed for installations requiring comprehensive audio mixing and multi-zone control. This versatile unit caters to various applications, making it ideal for conference rooms, live music venues, restaurants, retail stores, educational facilities, and houses of worship.
The Audac PRE220 2 Zone 10-Channel Stereo Preamplifier boasts eight microphone inputs, each with individually switchable 48V phantom power, perfect for studio recording, podcasting, or live performances. Two balanced stereo line inputs and two unbalanced stereo line inputs provide additional connectivity for various audio sources, while the integrated Bluetooth receiver allows for wireless music streaming from smartphones, tablets, or laptops.
For enhanced audio control, the Audac PRE220 2 Zone 10-Channel Stereo Preamplifier features a 3-band tone control for fine-tuning sound characteristics. Additionally, the talk-over function prioritizes announcements over background music, ensuring clear communication. Dual zone outputs enable independent audio management for separate areas within your space.

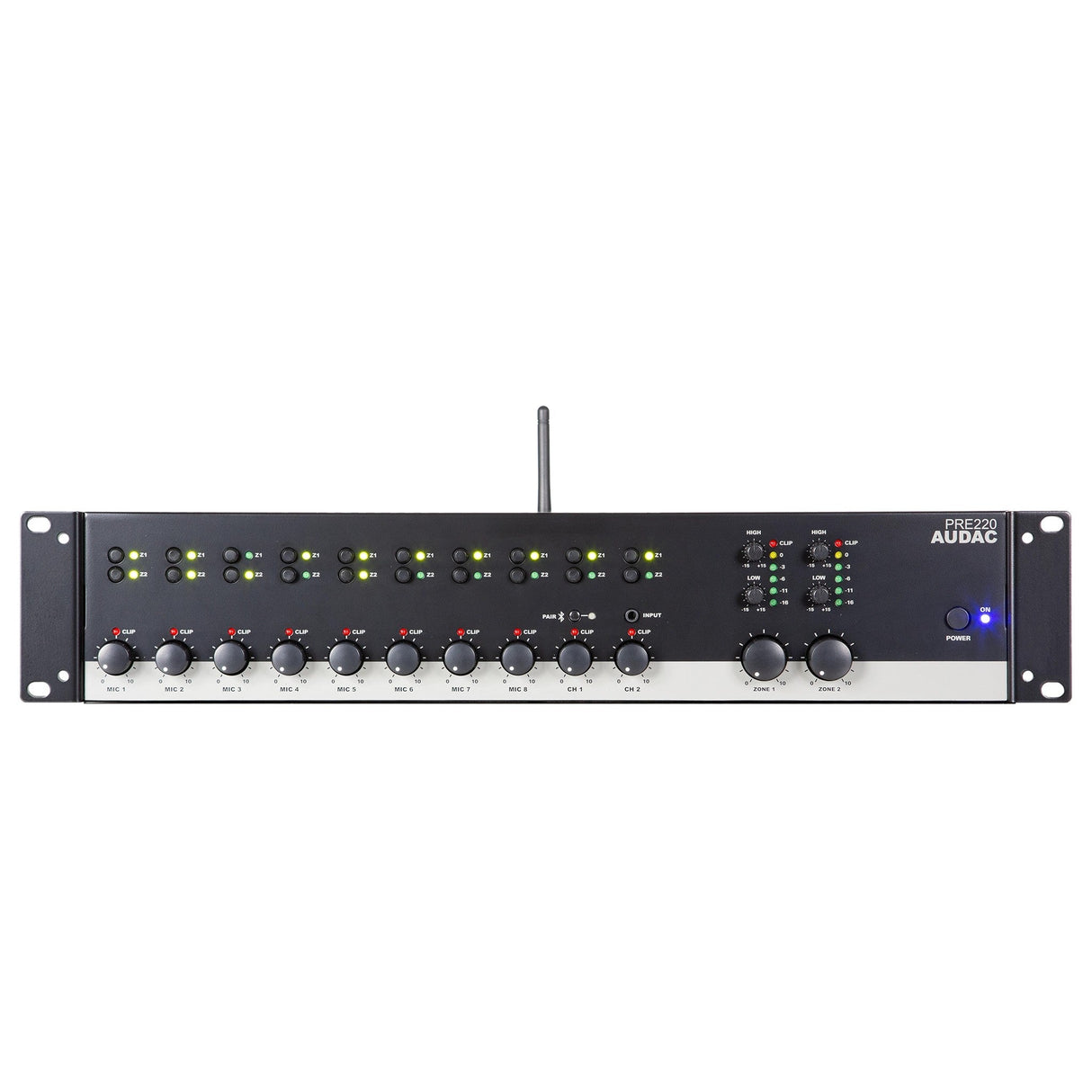

The front panel also includes a 3.5mm jack for convenient wired connection of portable devices. A master volume control with LED VU meters facilitates effortless monitoring and adjustment of audio levels. Finally, a priority mute function allows you to silence background music for important announcements or alarms, ensuring clear and uninterrupted communication.
The Audac PRE220 2 Zone 10-Channel Stereo Preamplifier provides exceptional versatility and control for professional audio installations, streamlining audio mixing and management across various environments.
Key Features
- Two stereo line outputs with balanced connection
- Two stereo line inputs with unbalanced connection
- Eight microphone inputs available
- Two priority mute contacts for easy control
- Front 3.5mm Jack, which is mixed with Channel 2, for convenient connectivity
- Integrated Bluetooth receiver for seamless wireless audio reception
Technical Specifications
System Information
Inputs
Bluetooth receiver
Front 3.5mm Jack (mixed with Ch 2)
Priority mute contact
Microphone Signal / Noise
> 80 dB
Line Signal / Noise
> 100 dB
Balanced Microphone THD+N (@ 1 kHz)
< 0.05 dB
Line
THD+N (@ 1 kHz)
< 0.01 dB
Frequency Response (Ā± 3 dB)
20 Hz - 20 kHz
Power Supply
100 ~ 240 V AC / 50 ~ 60 Hz
Inputs
Balanced Microphone Type
8 x Balanced Microphone
Unbalanced Stereo Type
2 x Stereo Unbalanced Line
Outputs: Balanced Stereo Type
2 x Balanced Stereo outputs
Inputs: Microphone Phantom Power
48 V DC
Product Features
Dimensions
18.98 x 3.46 x 13.19 " (W x H x D)
Unit height
2 HE
Recommended applications
Bars & Restaurants
Corporate
Education
