Audac SMA350 WaveDynamics Dual-Channel Power Amplifier 2 x 350W
Description
Description
Audac SMA350 WaveDynamics Dual-Channel Power Amplifier 2 x 350W
The SMA Series are dual channel (stereo) power amplifiers providing a new standard for affordable audio amplification in both fixed and mobile audio installations. Their advanced features and availability in different output powers for 350 Watt, 500 Watt and 750 Watt provide an enormous flexibility for numerous applications. The WaveDynamics DSP processor in combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration. Acoustics can be optimized using Butterworth, Bessel and Linkwitz-Riley filters with selectable rolloff which can be configured as Low / High & Band Pass and the 7-Band equalizer which has adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded with an USB flash drive. This ensures the best acoustical performance with a bullet-proof loudspeaker protection.
Key Features
- Scroll-Push control
- WaveDynamics DSP and loudspeaker management
- 2.5” LCD display
- Individual channel selectors & indicators (2x)
- USB connection for preset or settings loading / storage

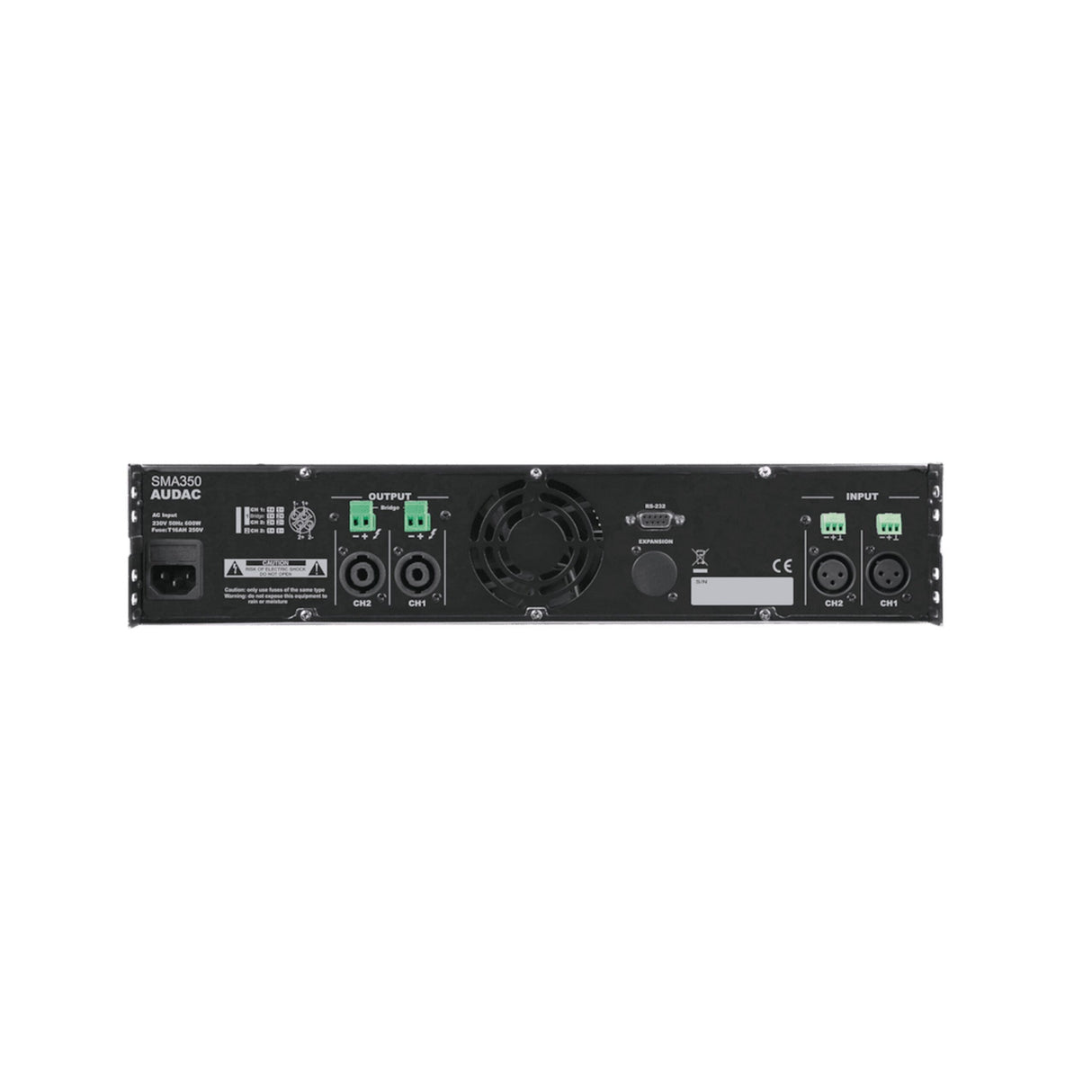

- Speakon compatible & terminal block output connections
- RS-232 remote control connection
- XLR & terminal block input & linkthrough connections
- Dante expansion port for optional ANI44XT
- Temperature controlled fan
Technical Specifications
Signal / Noise
> 95 dB
THD+N (@ 1 kHz)
< 0.05% (1/2 Rated Power)
Crosstalk (@ 1 kHz)
> 70 dB
Technology
Class-D
Common mode rejection ratio
70 dB
Damping factor
> 200
Cooling Temperature controlled
FAN
Operating temperature
0 ~ 40 @ 95% Humidity
Dimensions
18.98 x 3.46 x 16.54 “ (W x H x D)
Weight
16.31 lb
Mounting
19”
Unit height
2 HE
Construction
Steel
Colors
Black
