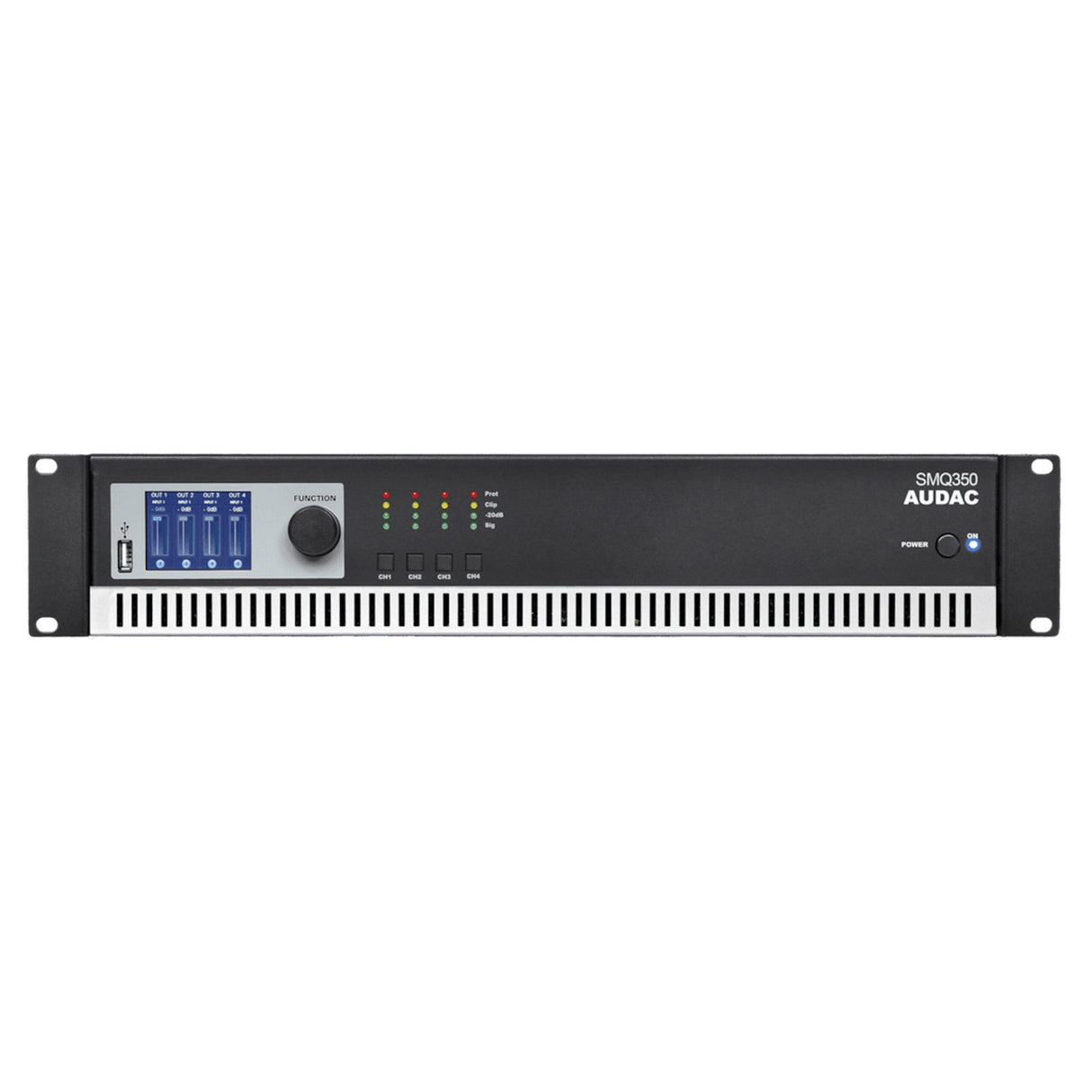

Audac SMQ350 WaveDynamics Quad-Channel Power Amplifier 4 x 350W
Description
Description
Audac SMQ350 WaveDynamics Quad-Channel Power Amplifier 4 x 350W
The SMQ series are quad-channel power amplifiers providing a new standard for affordable audio amplification in fixed and mobile audio installations. Their advanced features and availability in different output powers for 350 Watt, 500 Watt, 750 Watt, and 1250 Watt provide enormous flexibility for numerous applications. The WaveDynamics DSP processor in combination with the 2.5” LCD gives an unmatched user experience with intuitive functions overview for easy configuration. Acoustics can be optimized using Butterworth, Bessel, and Linkwitz-Riley filters with selectable roll-off configuring as Low / High & Band Pass, and the 7-Band equalizer with adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. All SMQ models feature switched-mode power supply (SMPS), so they will work with 120V to 240V currents.
Key Features
- Scroll-Push control
- WaveDynamics DSP and loudspeaker management
- 2.5” LCD
- Individual channel selectors & indicators (2x)
- USB connection for preset or settings loading / storage

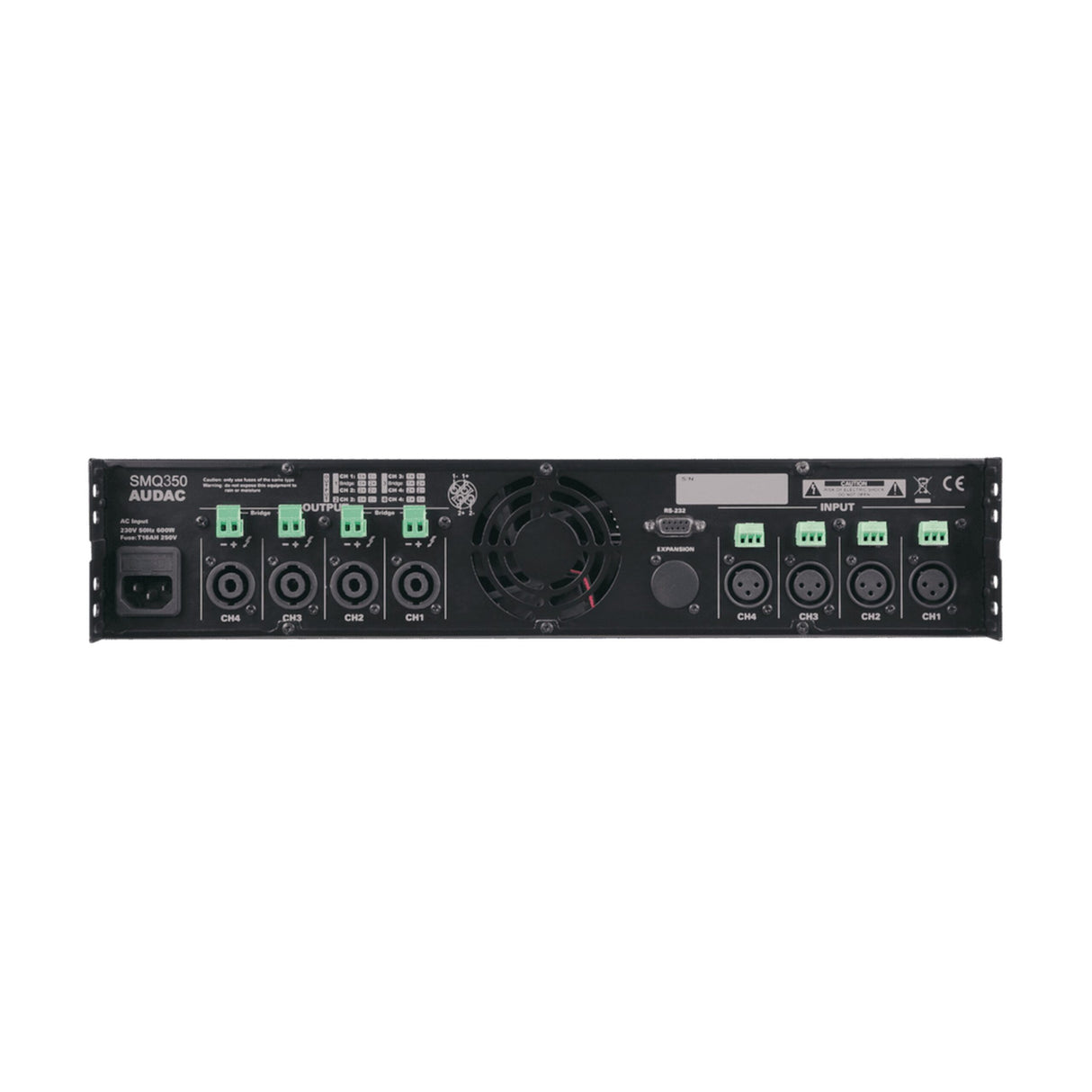

- Speakon compatible & terminal block output connections
- RS-232 remote control connection
- XLR & terminal block input & link through connections
- Dante expansion port for optional ANI44XT
- Temperature controlled fan
Technical Specifications
Signal / Noise
> 95 dB
THD+N (@ 1 kHz)
< 0.05% (1/2 Rated Power)
Crosstalk (@ 1 kHz)
> 70 dB
Technology
Class-D
Common mode rejection ratio
70 dB
Damping factor
> 200
Cooling
Temperature controlled FAN
Operating temperature
0 ~ 40 @ 95% Humidity
Dimensions
18.98 x 3.46 x 16.54 “ (W x H x D)
Weight
17.86 lb
Mounting
19”
Unit height
2 HE
Construction
Steel
AC Input: 100-120V/220-240V~ 50/60Hz
