Audac WP205 ARES5A Wall Panel with Microphone and Line Input, 80 x 80 mm - Black
Audac WP205 ARES5A Wall Panel with Microphone and Line Input, 80 x ...
The Audac WP205 ARES5A Wall Panel with Microphone and Line Input, 80 x 80 mm is a remote wall mixer designed to seamlessly integrate with the ARES5A active speaker system. It offers microphone and line level inputs, allowing connection of various audio sources like tuners, mobile devices, or balanced microphones. The WP205 converts these signals for optimal compatibility with the ARES5A (RJ45) for high-fidelity audio transmission over long distances using affordable CAT5e or better cabling.
Designed for discretion, the Audac WP205 ARES5A Wall Panel with Microphone and Line Input, 80 x 80 mm comes in black and white (RAL9003 & RAL9005) and features an elegant ABS front panel with an acrylic glass finish that complements any setting. It also fits standard EU (80x80mm) in-wall boxes for both solid and hollow walls.
The Audac WP205 ARES5A Wall Panel with Microphone and Line Input, 80 x 80 mm provides flexible connectivity with both front and rear-mounted line inputs. This allows for concealed fixed installations, ideal for classrooms with dedicated desktop computers. Crafted with high-grade materials, including hardened glass in black and white finishes, the WP205 ensures exceptional durability while maintaining a sleek aesthetic.
Installation is further simplified with the surface mountable WB200 wall boxes, allowing for easy installation of the Audac WP205 ARES5A Wall Panel with Microphone and Line Input, 80 x 80 mm alongside other compatible 80x80mm wall panels. The Audac WP205 ARES5A Wall Panel with Microphone and Line Input, 80 x 80 mm goes beyond a simple mixer, functioning as a complete audio solution. Its remote input connection (RJ45) enables connection of additional wall panels, providing control over up to 4 ARES5A sets (8 speakers) for multi-zone audio control.
Key Features
- Sleek design that seamlessly integrates into any setting
- Supports EU (80x80 mm) installation components
- Reliable signal transmission through twisted pair (CAT5E) or superior cabling, resistant to interference and noise
Technical Specifications
Available models
WP205/B
Black version
WP205/W
White version
System specifications
Output Levels
+12 dB
Input Type - Wall Panel
3.5 mm jack stereo line input connection
XLR microphone input connection
Connection
3.5 mm jack input (Stereo line input)
Female XLR input connector (Microphone input)

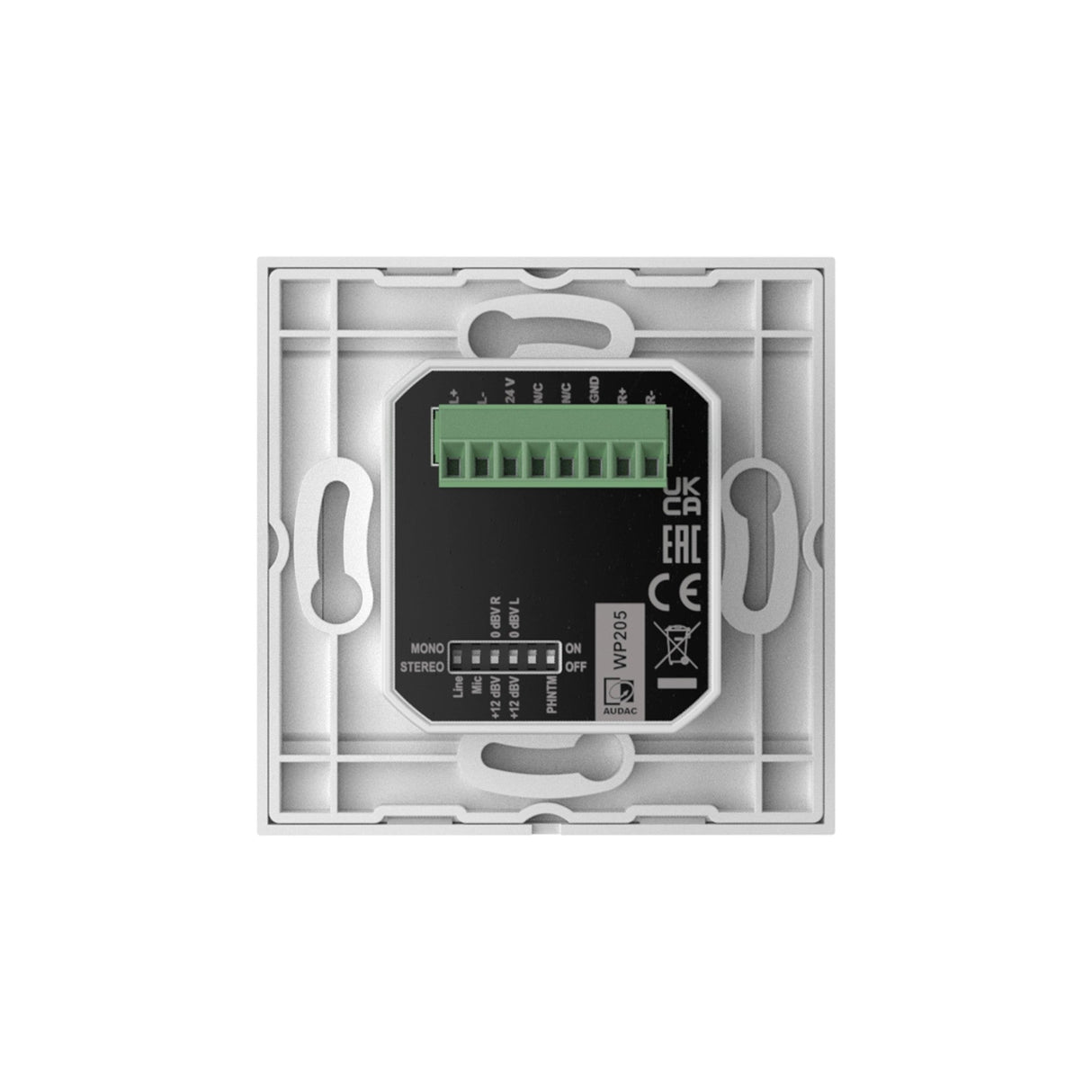

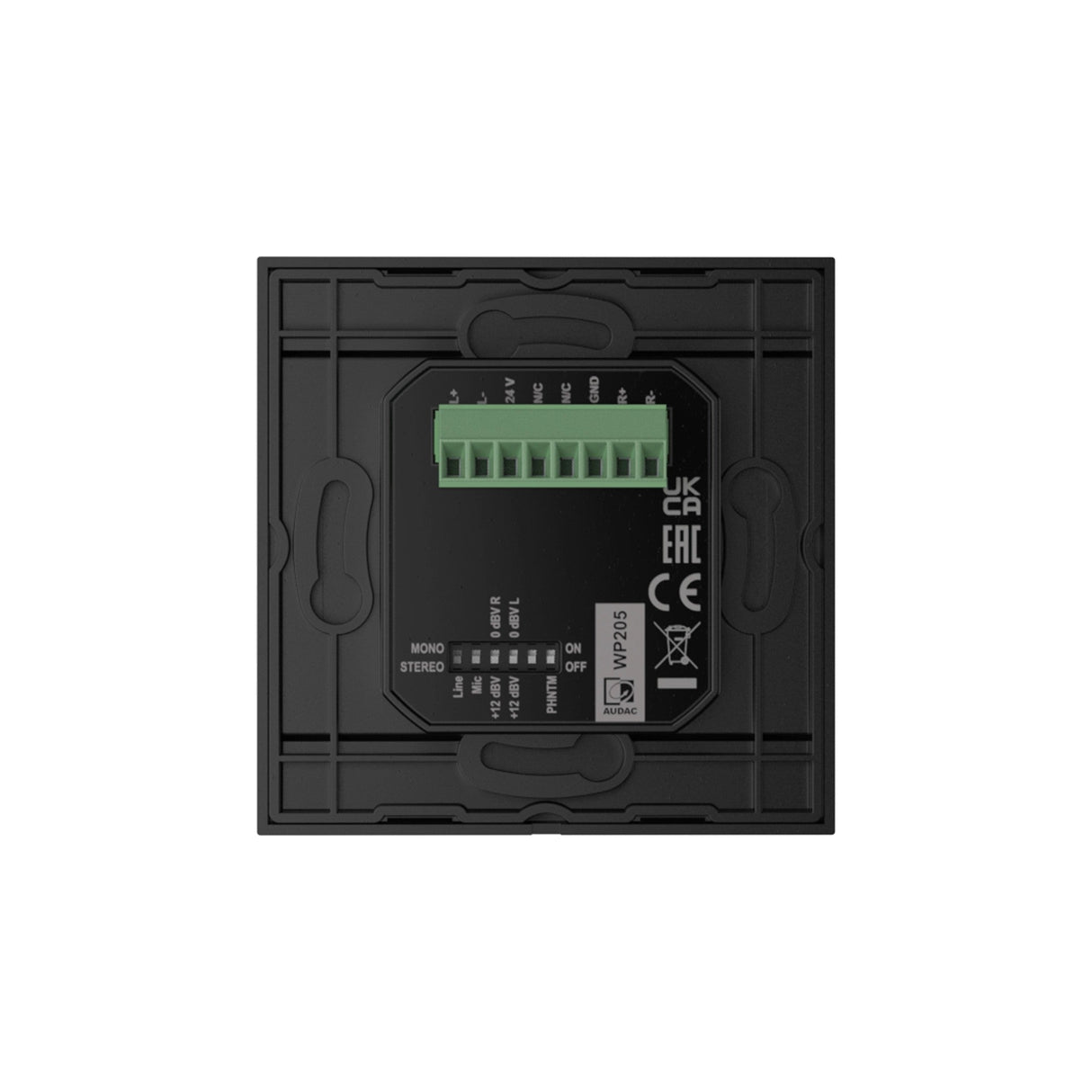

8-pin terminal block (3.81 mm pitch) output connection
Control
Individual input level control for Mic & Line
Phantom power (DIP switch on rear)
Low-cut (Mic) enable / disable (DIP switch on rear)
Mono / Stereo (DIP switch on rear)
Product Features
Dimensions
3.15 x 3.15 " (W x H) (Remote wall panel)
Colours
Black (RAL9005) (WP205/B)
White (RAL9003) (WP205/W)
Front finish
Elegant ABS front panel with Acrylic (PMMA) glass finish
Accessories (Optional ā NOT included)
Surface mount Installation boxes
WB200 - Surface mount wall box for WP & DWP series
Flush mount Installation boxes
Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS
Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG
Recommended applications
Education
Retail
Bars & Restaurants
Corporate
