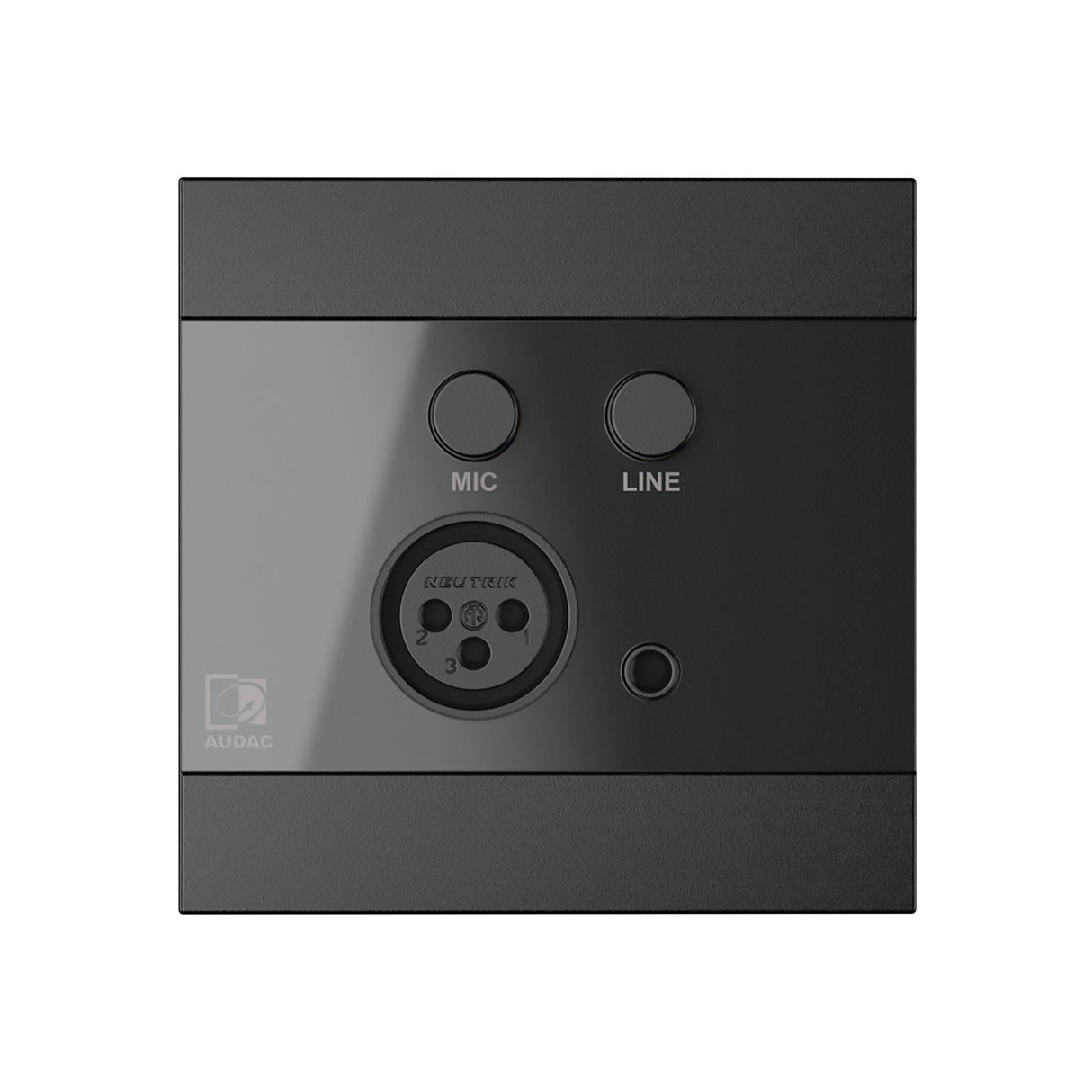

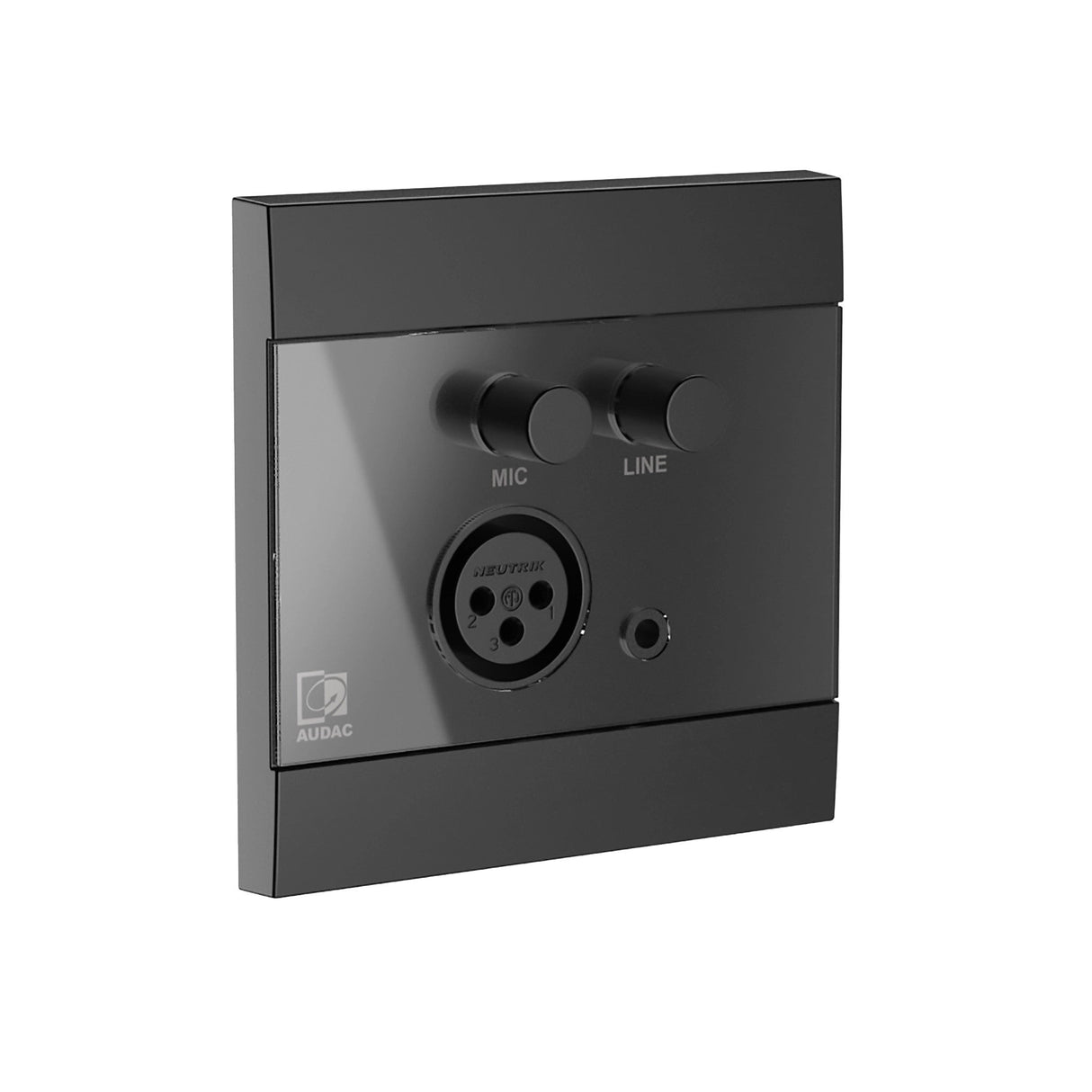

Audac WP210 Universal Wall Panel with Microphone and Line Input, 80 x 80 mm - Black

Audac | SKU: AUDA-WP210B-AUWP210B
$18999

Estimated Shipping Widget will be displayed here!

Color: Black

Condition: New


The Audac WP210 Universal Wall Panel with Microphone and Line Input, 80 x 80 mm elevates your sound system with microphone and line input capabilities, ensuring seamless audio control. This versatile solution integrates effortlessly with various AUDAC hardware, including the ARES5A, MTX series, and AMP523, for a truly adaptable audio setup.

The Audac WP210 Universal Wall Panel with Microphone and Line Input, 80 x 80 mm prioritizes crystal-clear audio. It efficiently converts microphone and line-level audio from sources like tuners and mobile devices into a high-quality signal, even over long distances. Installation is a breeze thanks to the use of inexpensive CAT5e or better cabling. The panel boasts dual inputs: a 3.5mm jack stereo line input and a balanced XLR microphone input, each equipped with individual knobs for precise audio mixing.

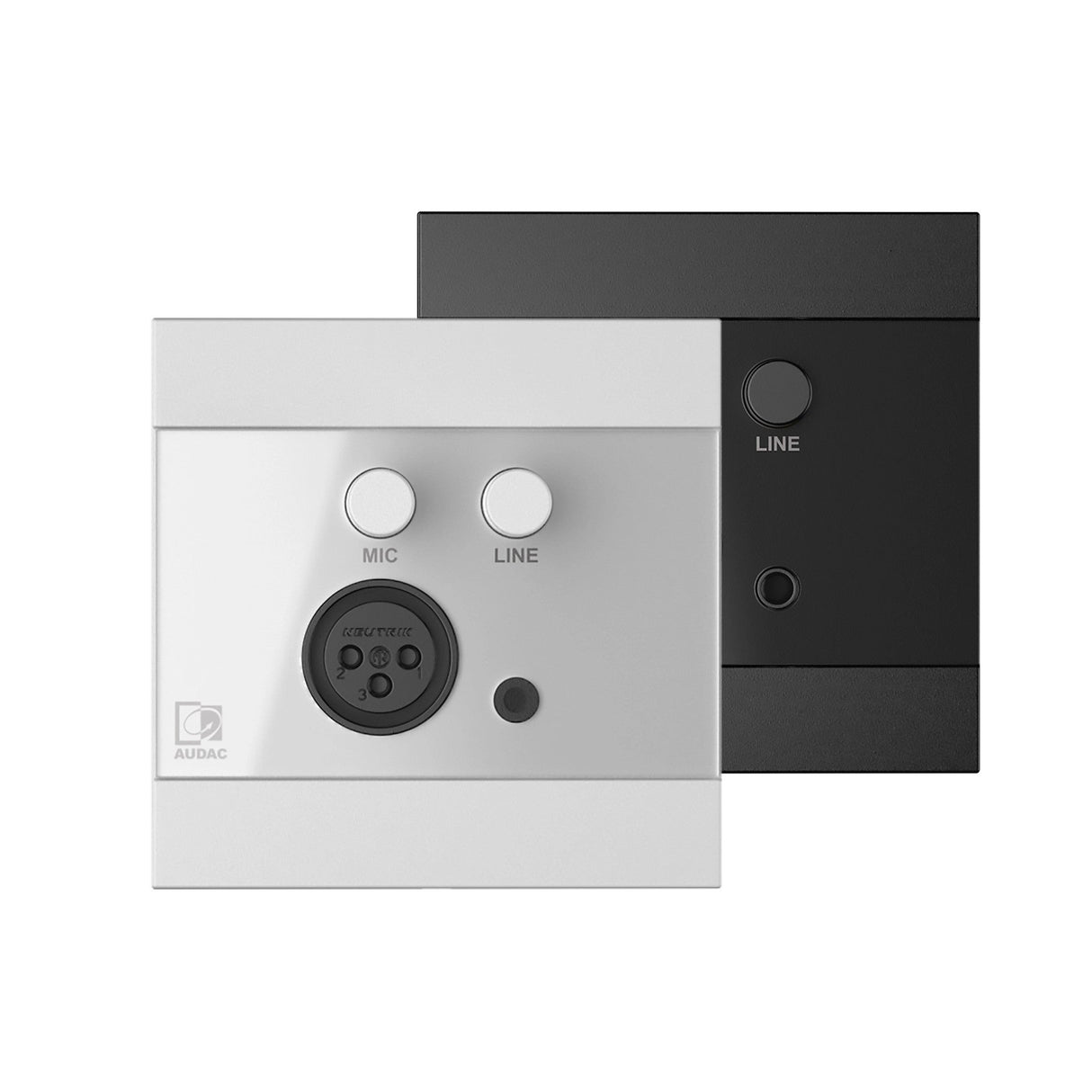

Designed with aesthetics in mind, the Audac WP210 Universal Wall Panel with Microphone and Line Input, 80 x 80 mm comes in two elegant colors, white and black. The stylish ABS front panel with a glass finish adds a modern touch that complements any environment. Fixed line input connections on the back panel allow for discreet integration, making it ideal for classrooms or conference rooms where you want to conceal specific connections.

Superior build quality is a hallmark of the Audac WP210 Universal Wall Panel with Microphone and Line Input, 80 x 80 mm. Crafted from high-grade materials, the panel features hardened glass in both black and white finishes, ensuring lasting durability. Compatibility is another strong suit, as the WP210 fits standard EU (80x80mm) in-wall boxes for solid or hollow walls. For added versatility, the Audac WP210 Universal Wall Panel with Microphone and Line Input, 80 x 80 mm is also compatible with WB200 wall boxes, enabling surface mount installation – a perfect option for WP2xx and DWP series panels.

By incorporating the Audac WP210 Universal Wall Panel with Microphone and Line Input, 80 x 80 mm into your sound system, you gain a powerful solution for integrating microphones and line-level audio sources. Exceptional audio quality, sleek aesthetics, and adaptable installation options make the Audac WP210 Universal Wall Panel with Microphone and Line Input, 80 x 80 mm a standout choice.

Key Features

  • Seamlessly integrates into any setting with its sophisticated design
  • Supports EU (80x80 mm) installation materials for easy installation
  • Ensures reliable signal transmission over twisted pair (CAT5E) or superior cabling, unaffected by interference and noise

Technical Specifications

Available models
WP210/B
Black version
WP210/W
White version

System specifications
Output Levels
+12 dB
0 dB
Input Type - Wall Panel
3.5 mm jack stereo line input connection
XLR microphone input connection
Mic & Line inputs on rear for permanent connections
Connection
3.5 mm jack input (Stereo line input)
Female XLR input connector (Microphone input)

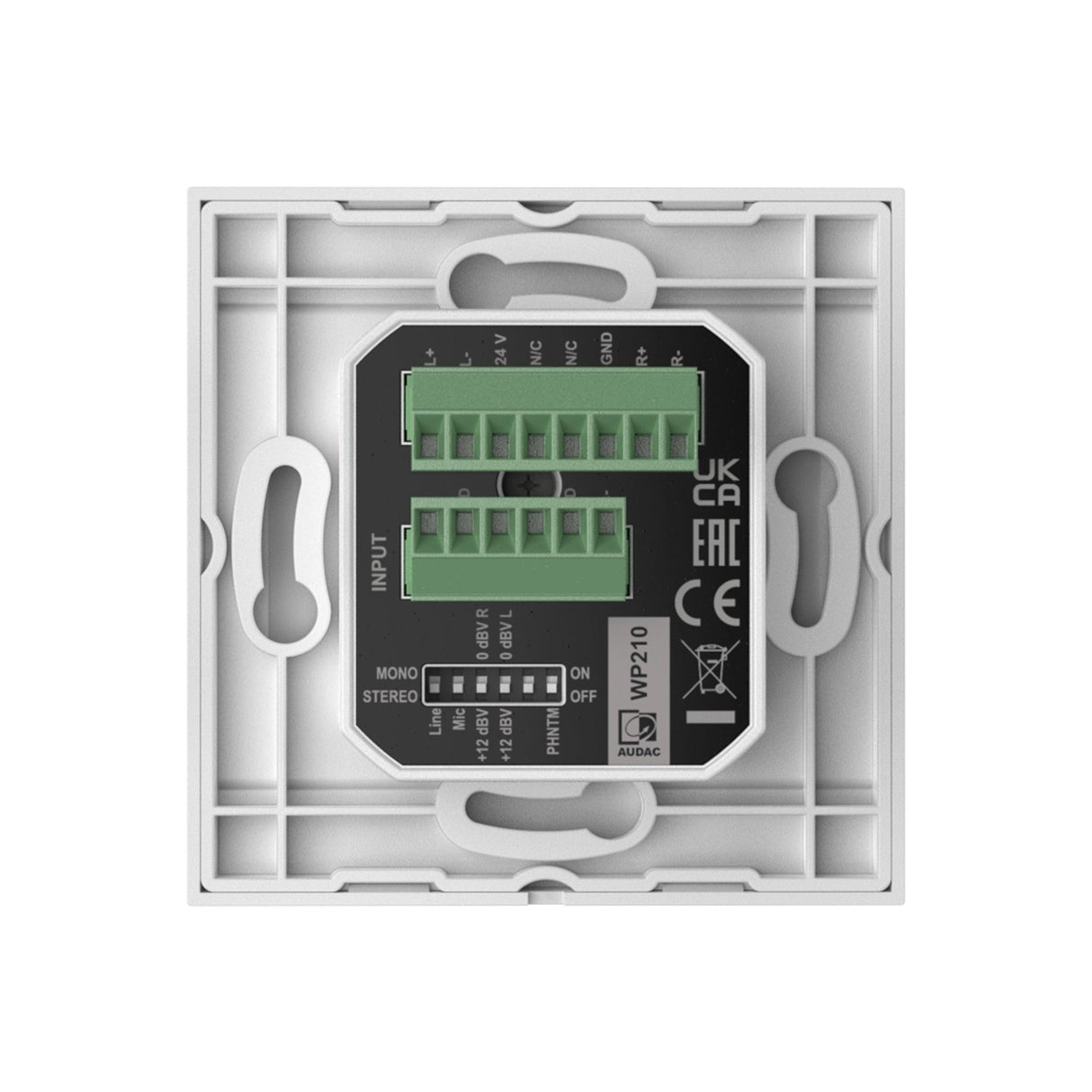

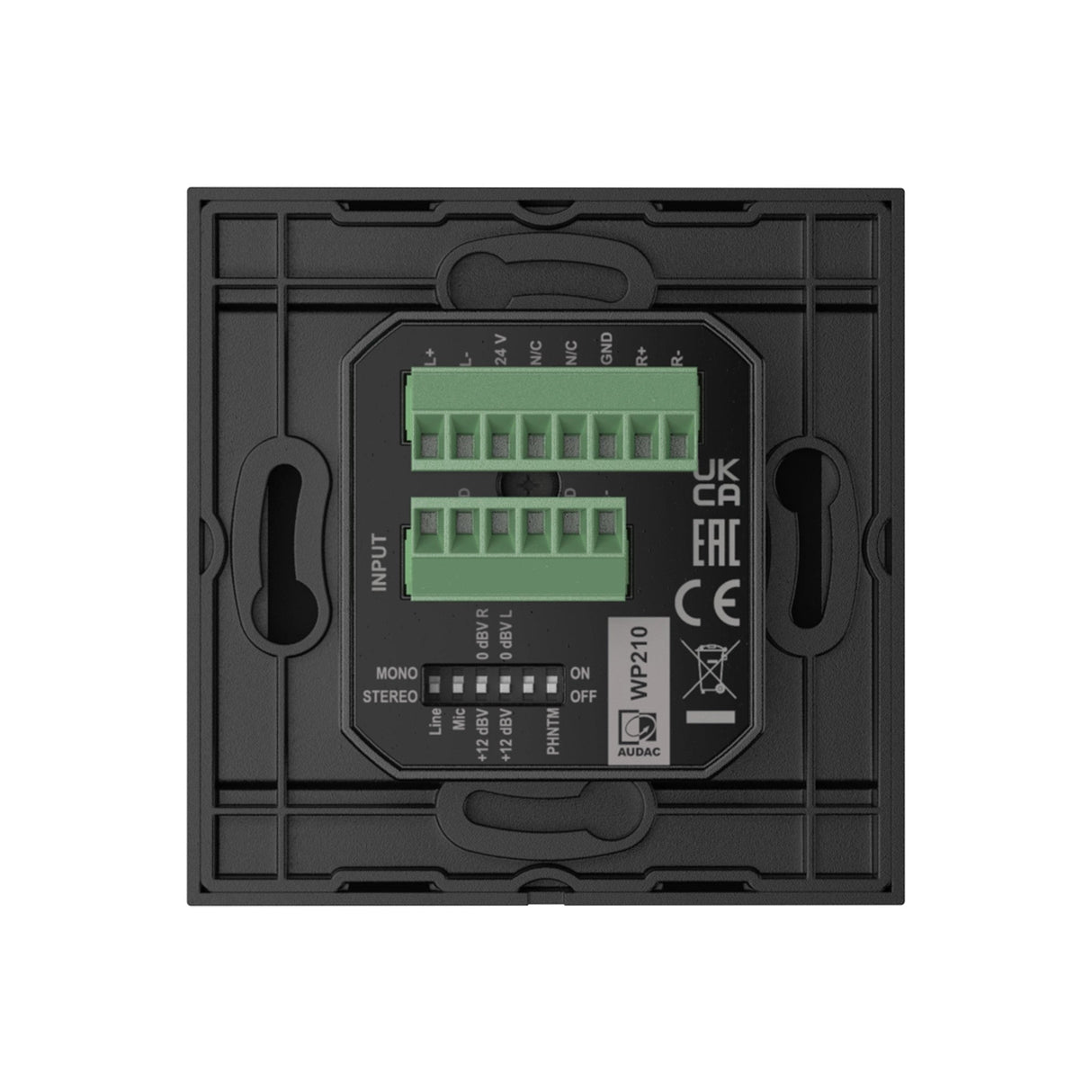

6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs)
8-pin terminal block (3.81 mm pitch) output connection
Control
Individual input level control for Mic & Line
Phantom power (DIP switch on rear)
Low-cut (Mic) enable / disable (DIP switch on rear)
Mono / Stereo (DIP switch on rear)
Product Features
Dimensions
3.15 x 3.15 " (W x H) (Remote wall panel)
Colours
Black (RAL9005) (WP210/B)

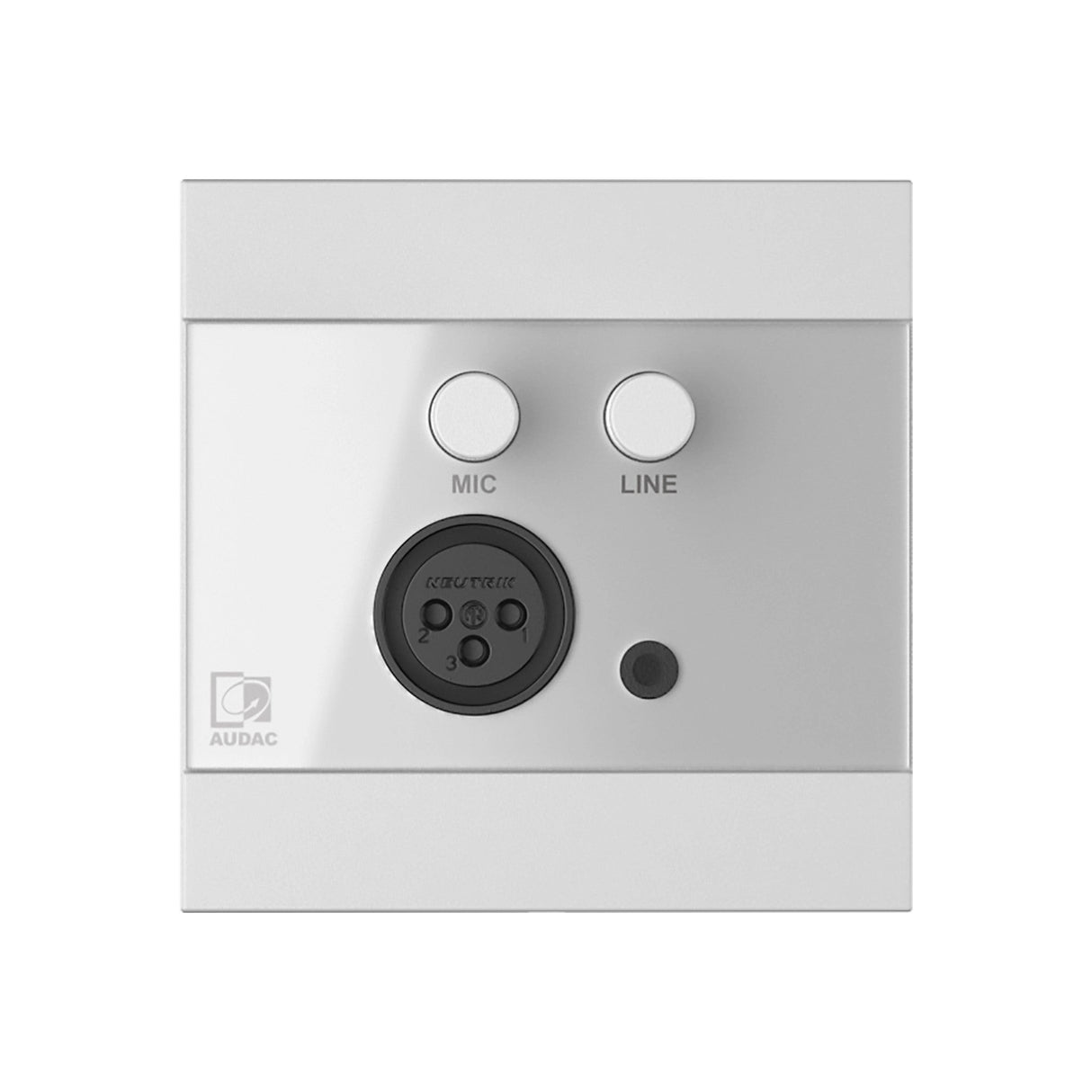

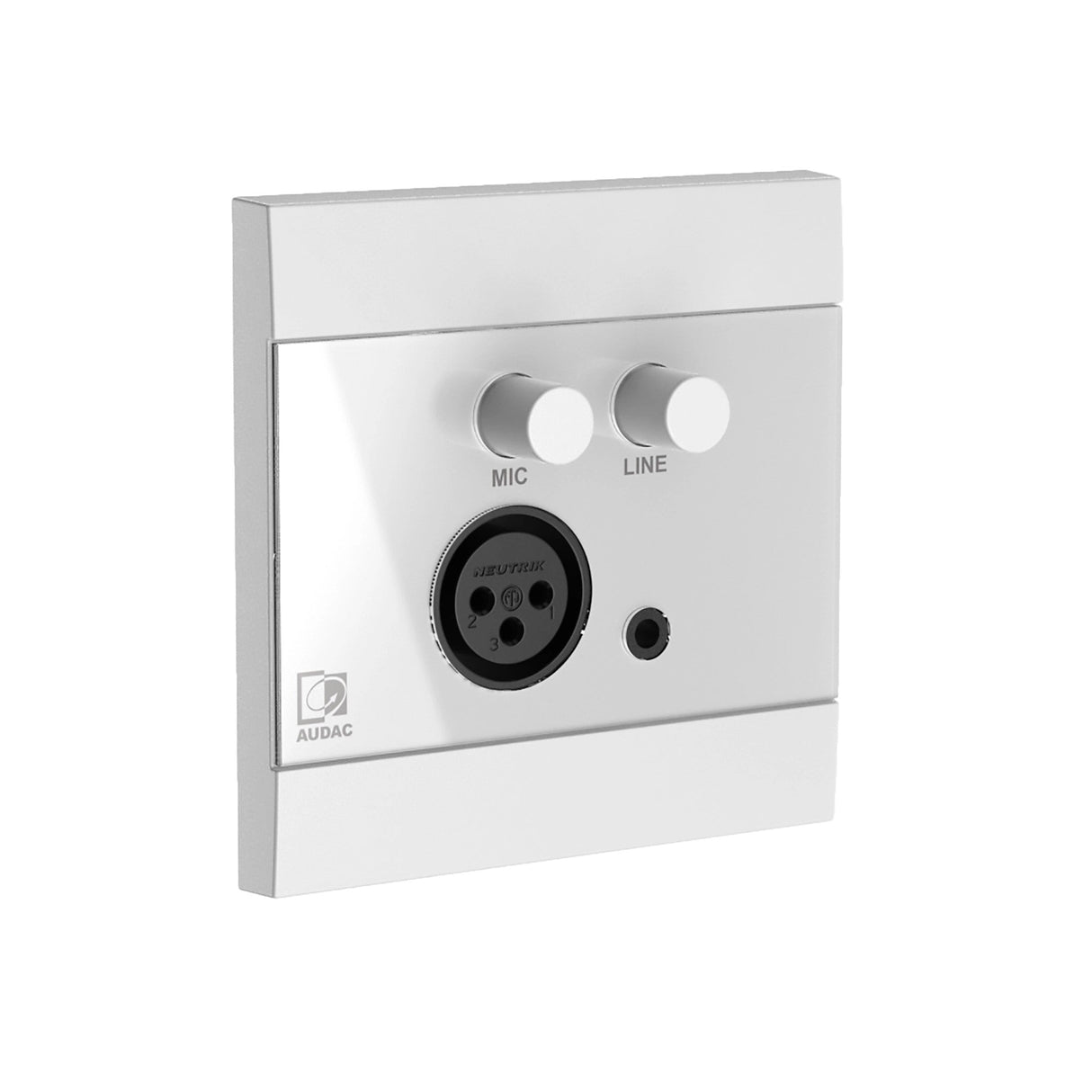

White (RAL9003) (WP210/W)
Front finish
Elegant ABS front panel with glass
Accessories (Optional – NOT included)
Surface mount Installation boxes
WB200 - Surface mount wall box for WP & DWP series
Flush mount Installation boxes
Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS
Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG

Recommended applications
Education
Retail
Bars & Restaurants
Corporate
