The Audac WP220 Universal Wall Panel with Bluetooth Receiver Input, 80 x 80 mm is a sleek and versatile in-wall Bluetooth receiver panel designed to seamlessly integrate with your existing sound system. Wirelessly stream high-fidelity audio from your smartphone, tablet, or computer directly to your AUDAC equipment (ARES5A, MTX series, AMP523, etc.) using the built-in Bluetooth receiver.

Effortless control and pristine audio quality are hallmarks of the Audac WP220 Universal Wall Panel with Bluetooth Receiver Input, 80 x 80 mm. Enjoy a dedicated button for simple Bluetooth pairing, along with an LED indicator that keeps you informed on the connection status. Customize the Bluetooth name for easy remote control of your music selection. The Audac WP220 Universal Wall Panel with Bluetooth Receiver Input, 80 x 80 mm utilizes CAT5e cabling (or better) to maintain crystal-clear audio quality even over longer distances.

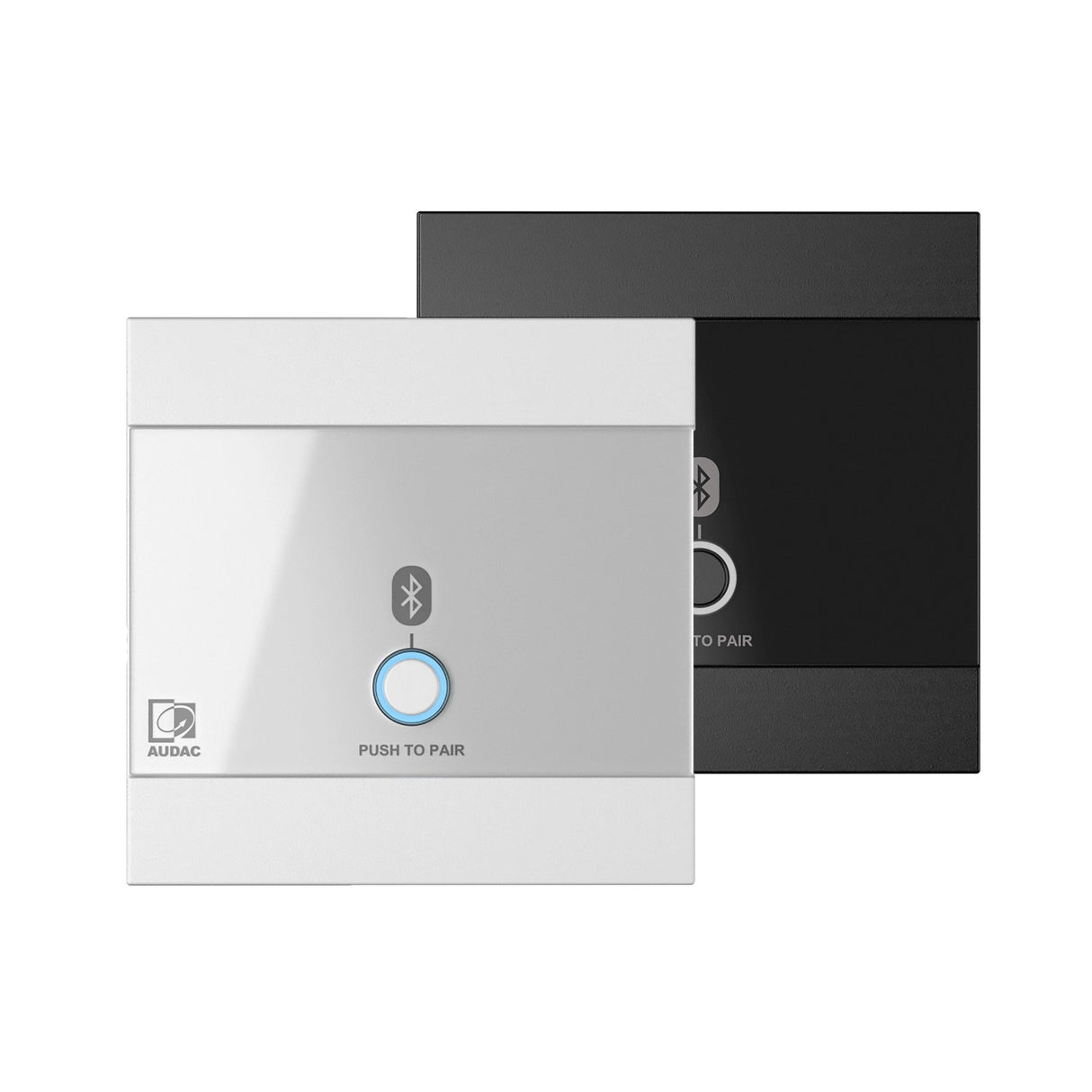

The Audac WP220 Universal Wall Panel with Bluetooth Receiver Input, 80 x 80 mm boasts an elegant design built for easy installation. Available in classic black and white (RAL9003 & RAL9005) finishes, the panel seamlessly complements any décor. It fits snugly into standard EU (80x80mm) in-wall boxes for both solid and hollow walls. The stylish ABS front panel with tempered glass adds a touch of sophistication to any room.

For a clean and uncluttered aesthetic, the Audac WP220 Universal Wall Panel with Bluetooth Receiver Input, 80 x 80 mm allows you to discreetly hide cables behind the wall panel, keeping fixed inputs concealed. The unit is crafted from high-grade materials, ensuring long-lasting durability. For even greater flexibility, the WP220 can also be surface mounted using optional WB200 wall boxes.

Managing multi-room audio is a breeze with the Audac WP220 Universal Wall Panel with Bluetooth Receiver Input, 80 x 80 mm. In larger installations, simply assign unique Bluetooth IDs to each panel using the free "AUDAC Bluetooth rename ID" app. This ensures clear identification and effortless control of your entire audio system.

Key Features

• Sleek design that seamlessly integrates into any setting

• Supports EU (80x80 mm) installation components

• Reliable signal transmission through twisted pair (CAT5E) or superior cabling, resistant to interference and noise

Technical Specifications

Available models

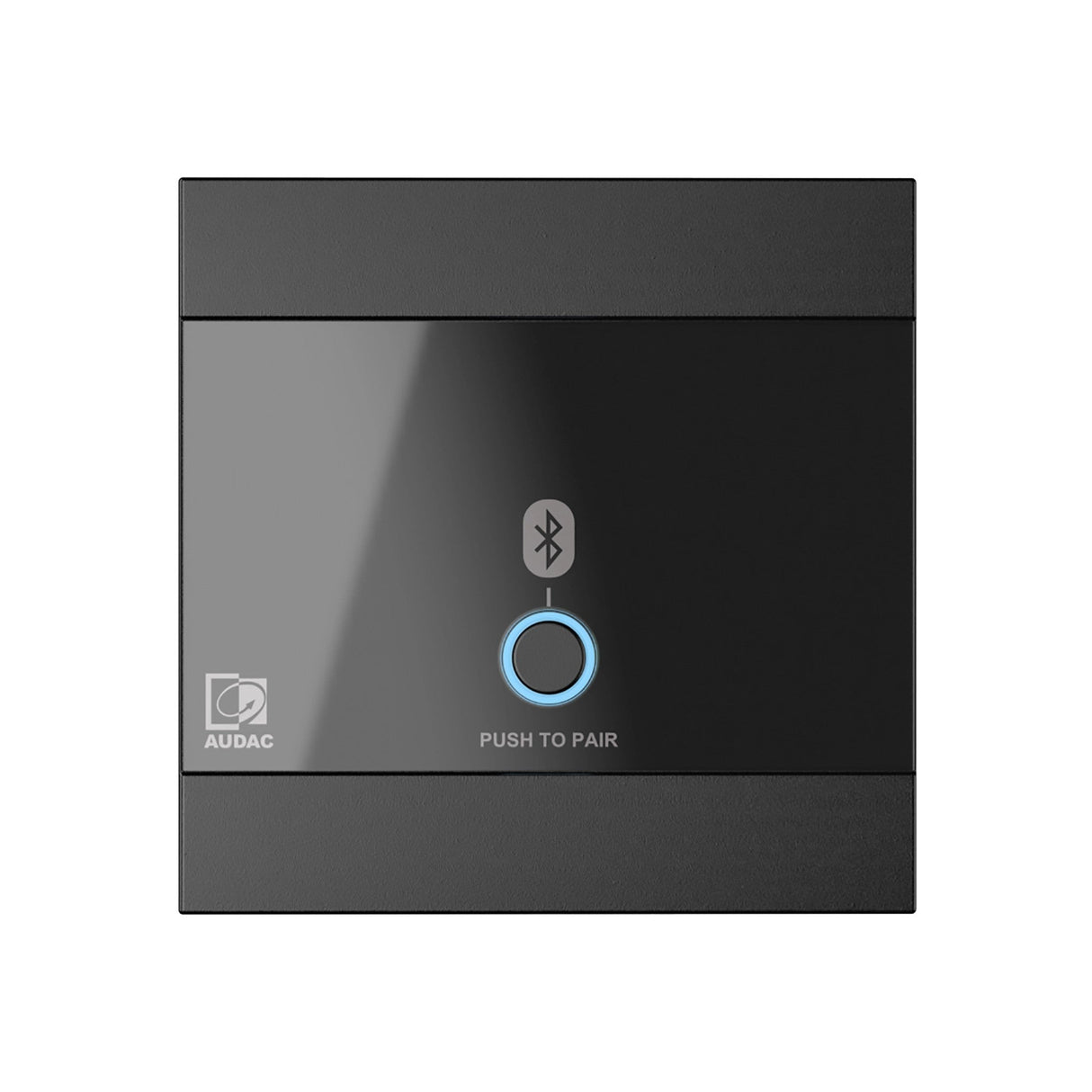

WP220/B
Black version

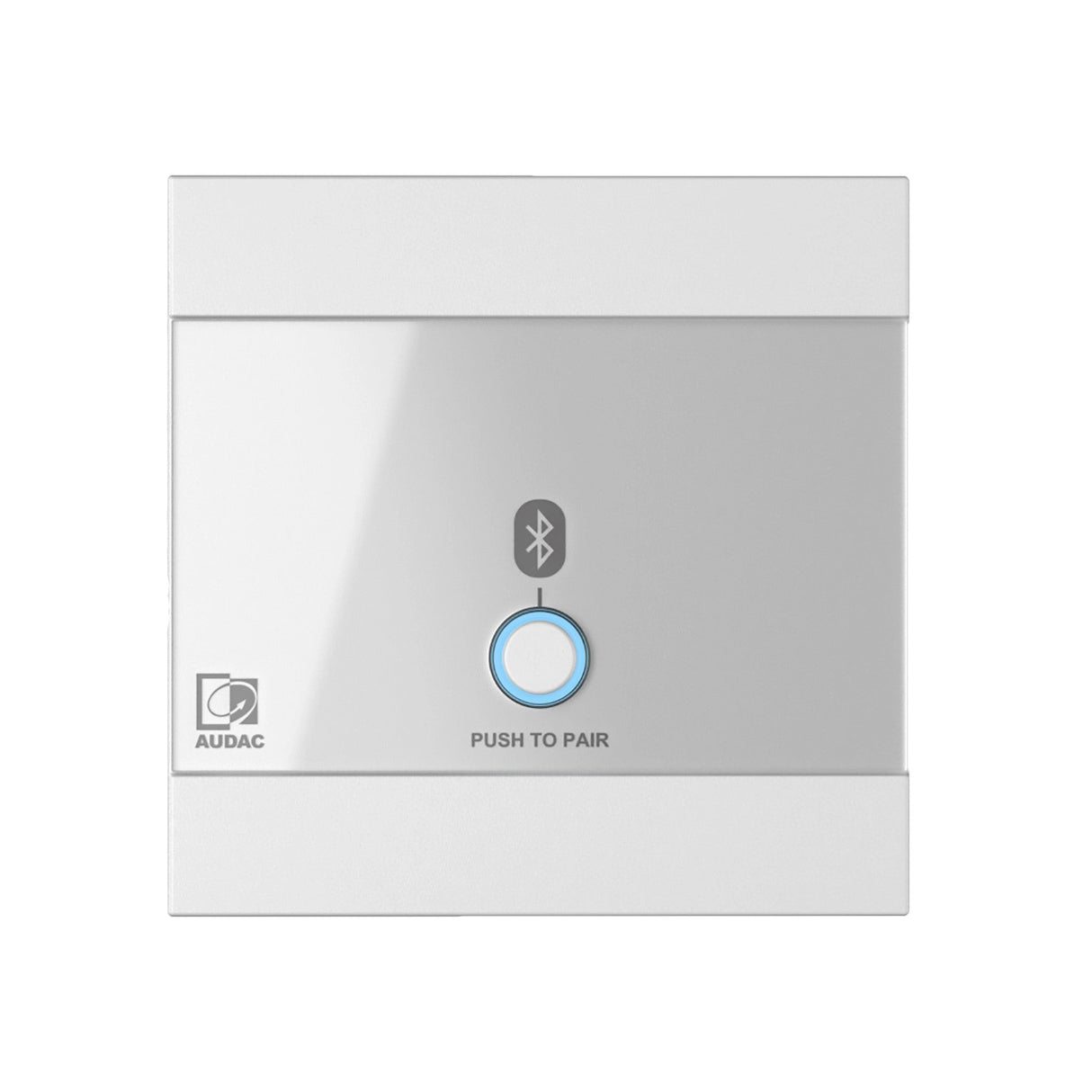

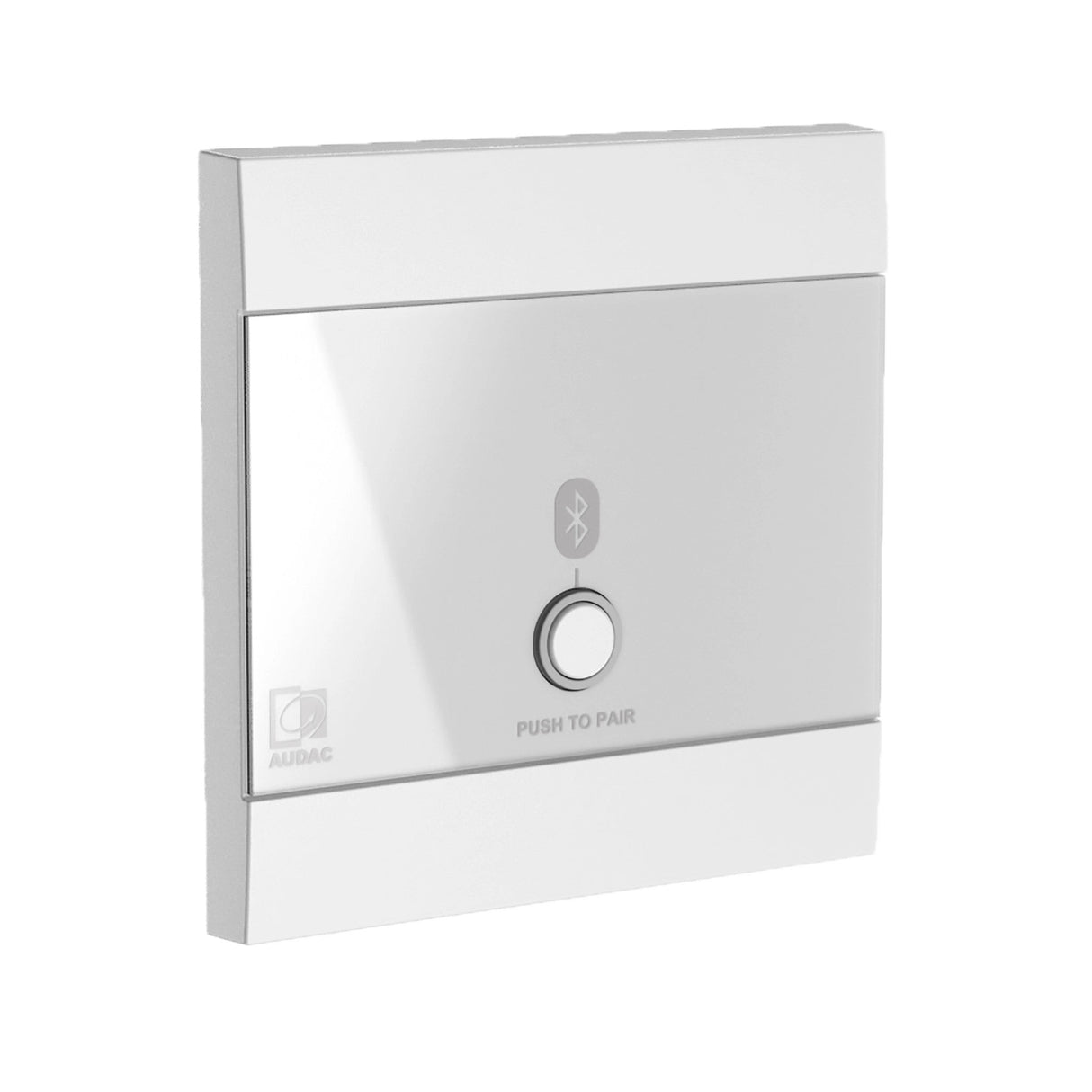

WP220/W
White version

System specifications
Control
Bluetooth pairing button with LED

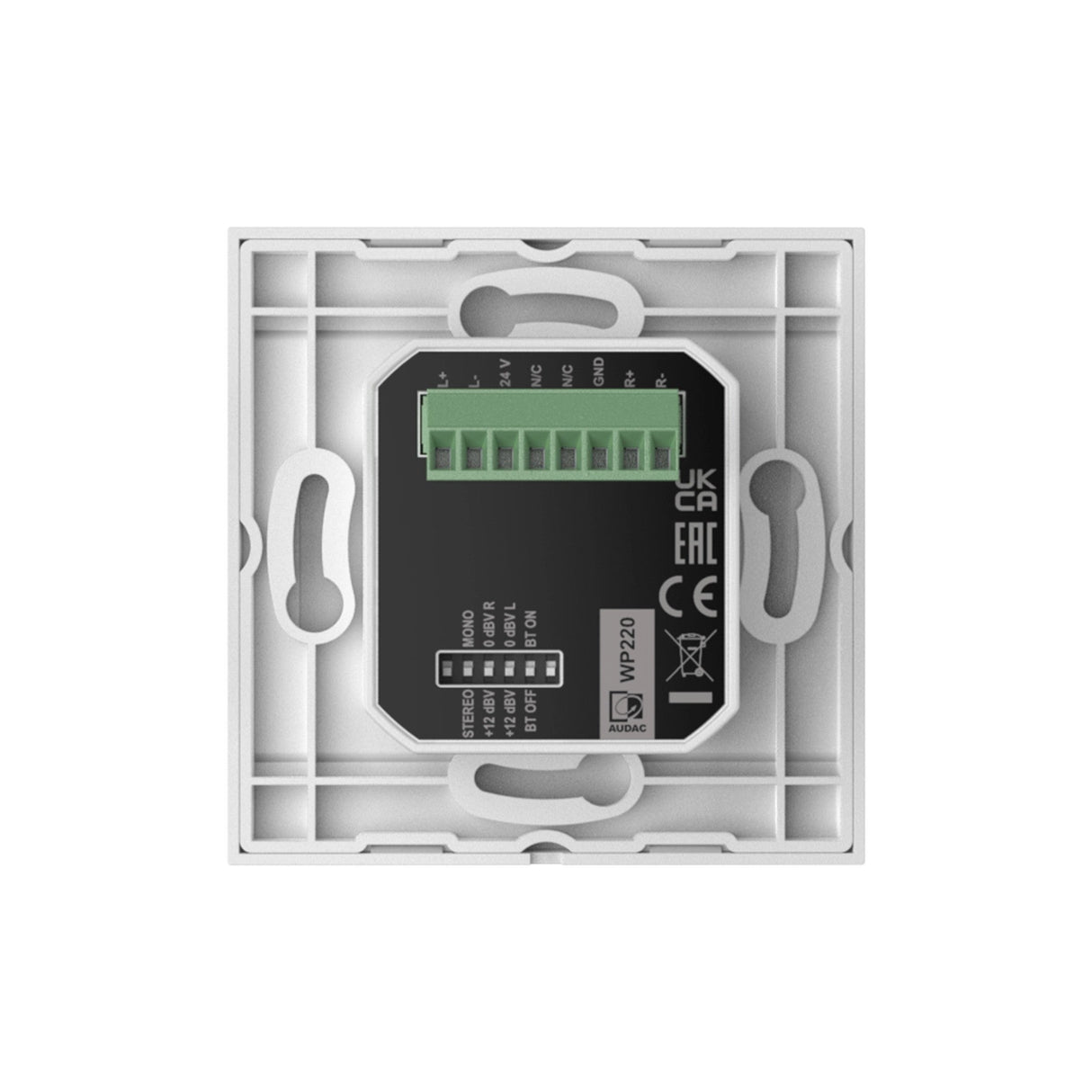

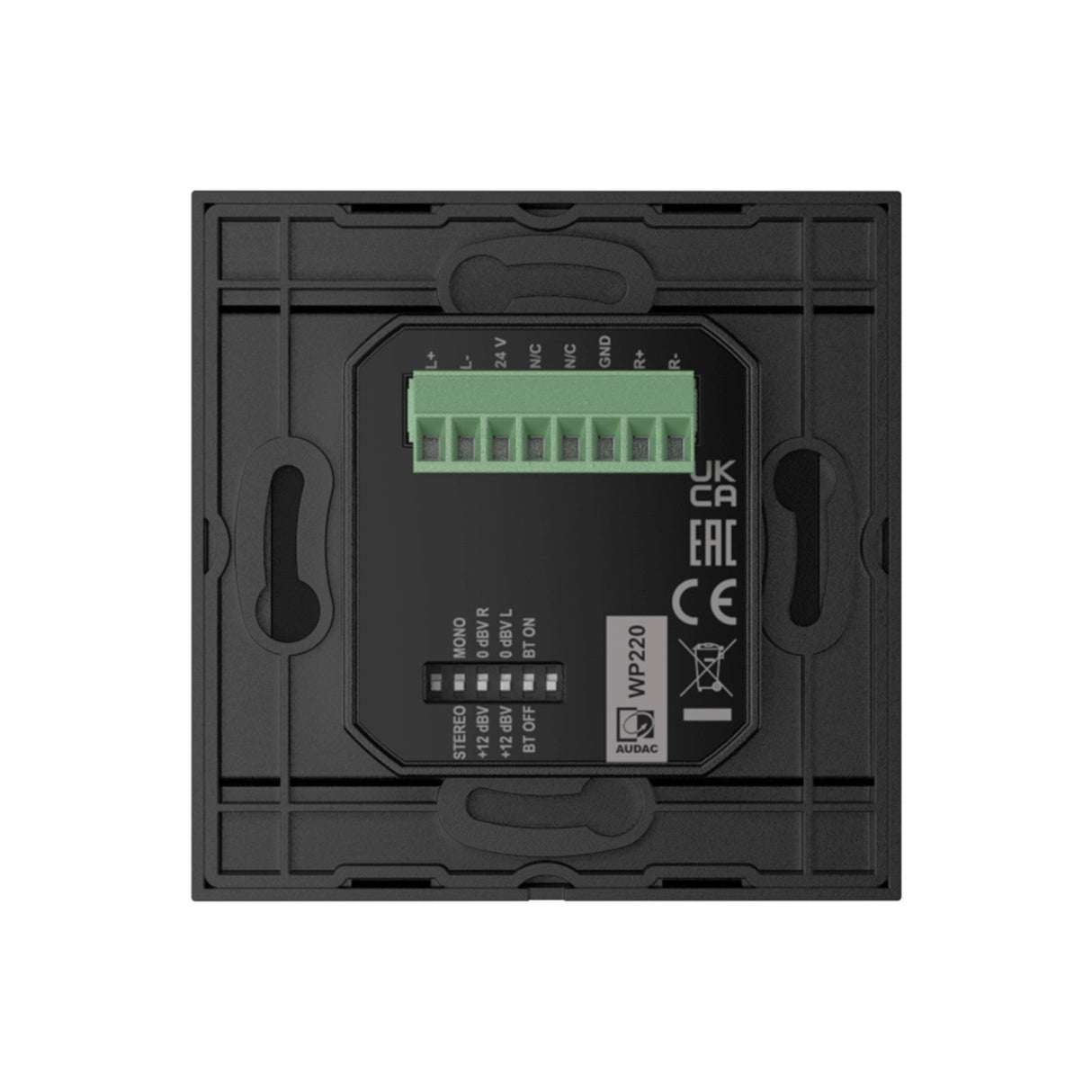

Output level +12 dBV enable / disable (DIP switch on rear)
Bluetooth enable / disable (DIP switch on rear)
Mono / Stereo (DIP switch on rear)
Input Type - Wall Panel
Bluetooth receiver (Version 5.0)
Output Levels
+12 dB
0 dB
Connection
8-pin terminal block (3.81 mm pitch) output connection

Product Features
Dimensions
3.15 x 3.15 " (W x H) (Remote wall panel)
Colours
Black (RAL9005) (WP220/B)
White (RAL9003) (WP220/W)
Front finish
Elegant ABS front panel with glass
Accessories (Optional – NOT included)
Surface mount Installation boxes
WB200 - Surface mount wall box for WP & DWP series
Flush mount Installation boxes
Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS
Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG

Recommended applications
Education
Retail
Bars & Restaurants
Corporate
