The Audac WP225 Universal Wall Panel with Microphone, Line and Bluetooth Receiver, 80 x 80 mm is a remote wall mixer designed to seamlessly integrate with AUDAC hardware like ARES5A, MTX series, and AMP523. It functions as a central hub for both microphone and line-level audio sources, such as tuners and mobile devices. This versatile unit ensures high-quality, long-distance audio transmission through cost-effective CAT5e cabling.

The Audac WP225 Universal Wall Panel with Microphone, Line and Bluetooth Receiver, 80 x 80 mm boasts a user-friendly interface with independent knobs for controlling both the 3.5mm jack and balanced XLR microphone inputs. It also incorporates Bluetooth connectivity, allowing for wireless music streaming from a wide range of devices including smartphones, tablets, and laptops.

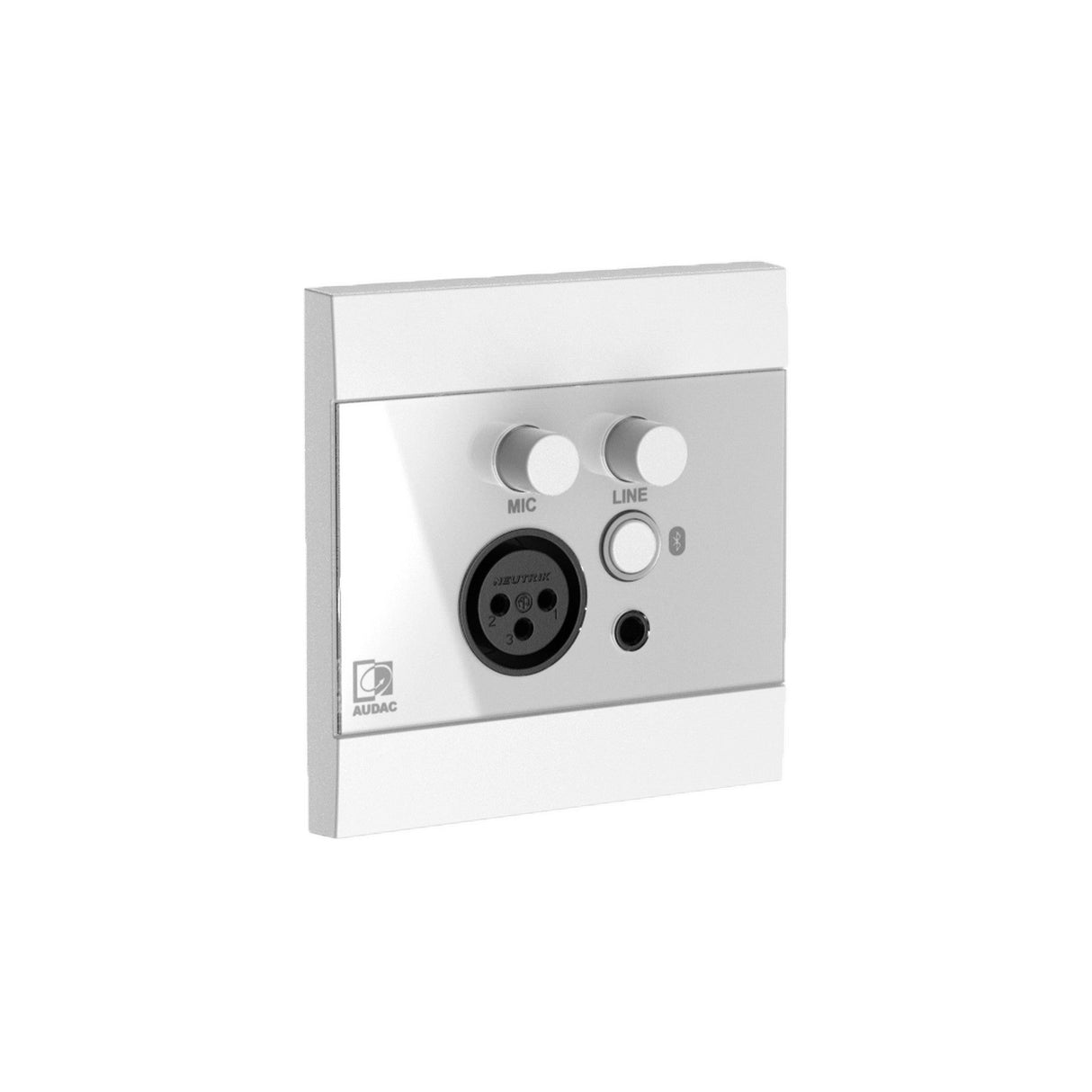

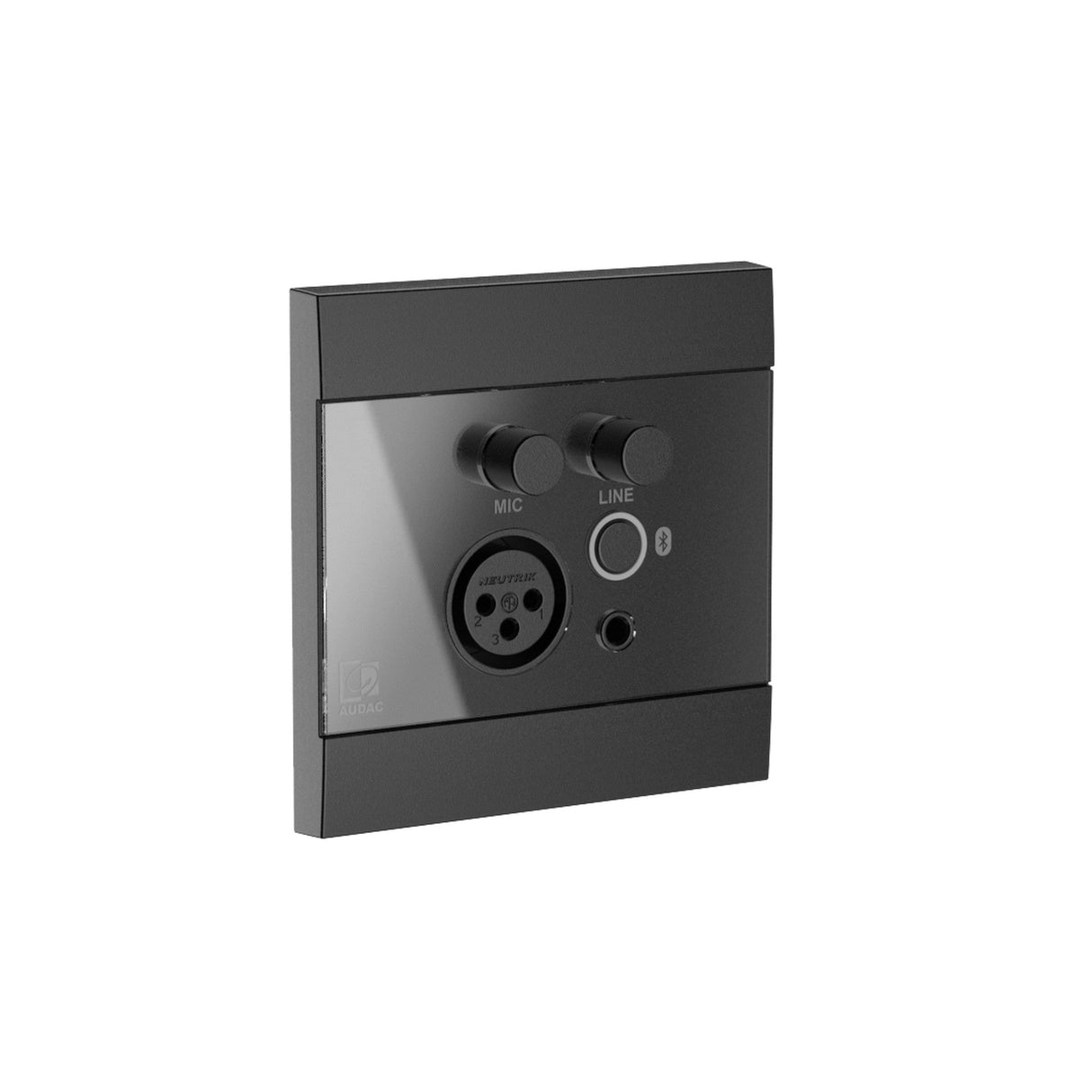

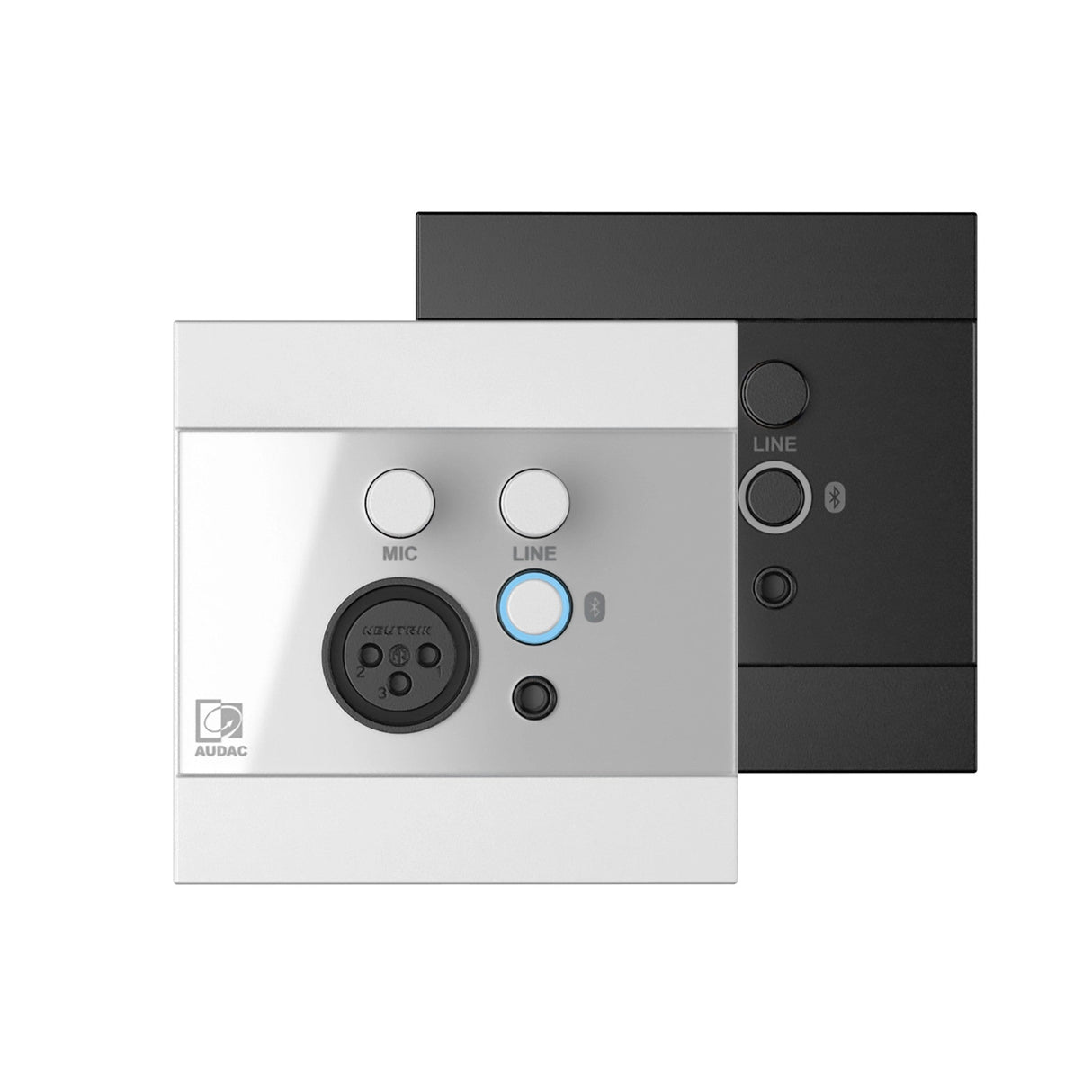

The Audac WP225 Universal Wall Panel with Microphone, Line and Bluetooth Receiver, 80 x 80 mm prioritizes aesthetics and adaptability. Available in classic black (RAL9005) and white (RAL9003) finishes, it complements any décor. The sleek ABS front panel with a hardened glass finish ensures a modern and elegant look that blends effortlessly into various environments.

For installation flexibility, the Audac WP225 Universal Wall Panel with Microphone, Line and Bluetooth Receiver, 80 x 80 mm accommodates both flush and surface mounting options. It integrates seamlessly with standard EU (80x80mm) in-wall boxes for solid or hollow walls. Alternatively, users can opt for surface mounting using the dedicated WB200 wall box.

The Audac WP225 Universal Wall Panel with Microphone, Line and Bluetooth Receiver, 80 x 80 mm caters to multi-panel setups by offering customizable Bluetooth functionality. Each unit's Bluetooth ID can be easily renamed using the free "AUDAC Bluetooth rename ID" app, ensuring clear identification within extensive installations.

Key Features

• Sleek design that seamlessly integrates into any setting

• Supports EU (80x80 mm) installation components

• Reliable signal transmission through twisted pair (CAT5E) or superior cabling, resistant to interference and noise

Technical Specifications

Available models
WP225/B
Black version
WP225/W
White version

System specifications
Output Levels
+12 dB
0 dB
Input Type - Wall Panel
3.5 mm jack stereo line input connection
XLR microphone input connection
Mic & Line inputs on rear for permanent connections
Bluetooth receiver (Version 5.0)
Control
Individual input level control for Mic & Line
Bluetooth pairing button with LED
Phantom power (DIP switch on rear)
Low-cut (Mic) enable / disable (DIP switch on rear)
Output level +12 dBV enable / disable (DIP switch on rear)
Bluetooth enable / disable (DIP switch on rear)
Mono / Stereo (DIP switch on rear)
Connection
3.5 mm jack input (Stereo line input)
Female XLR input connector (Microphone input)

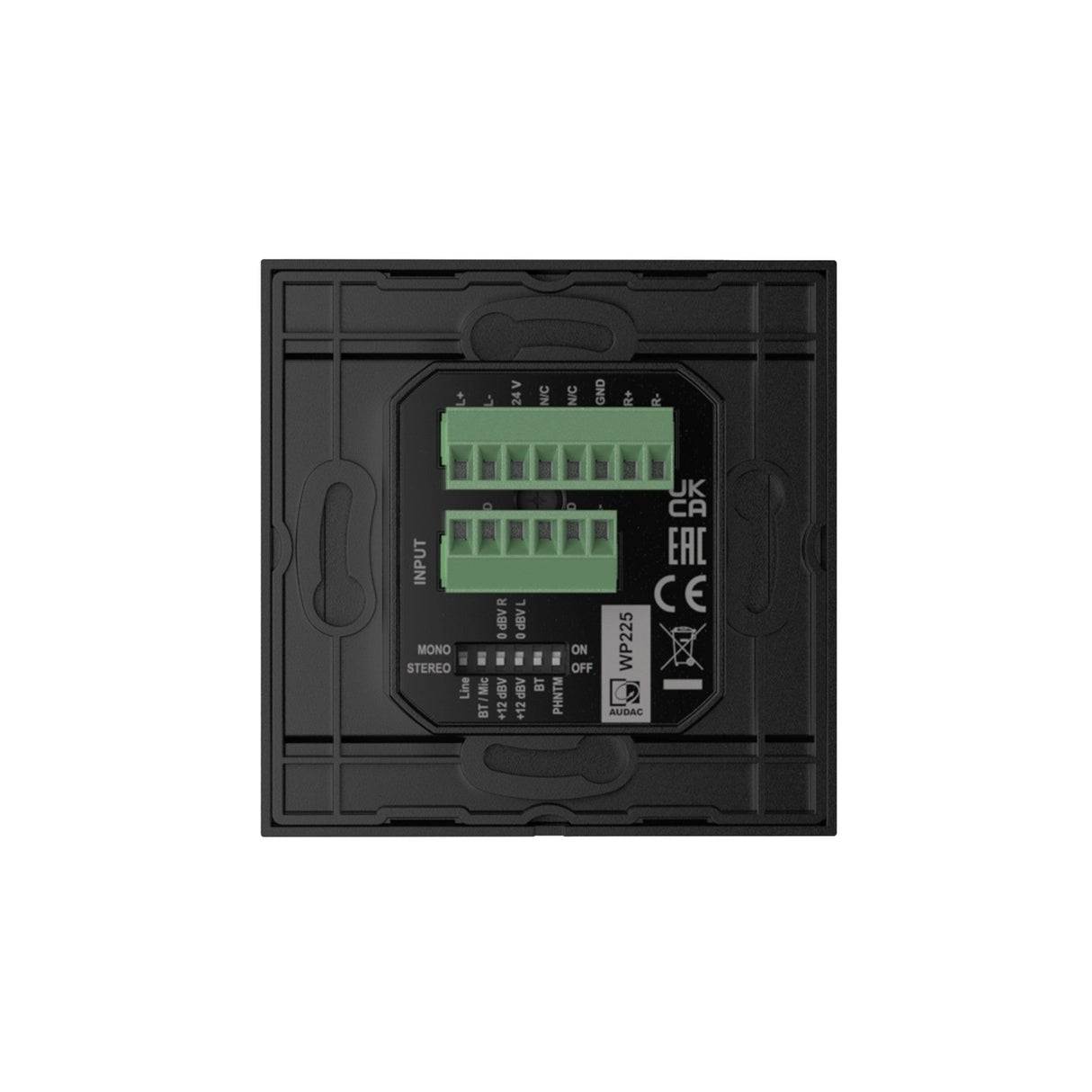

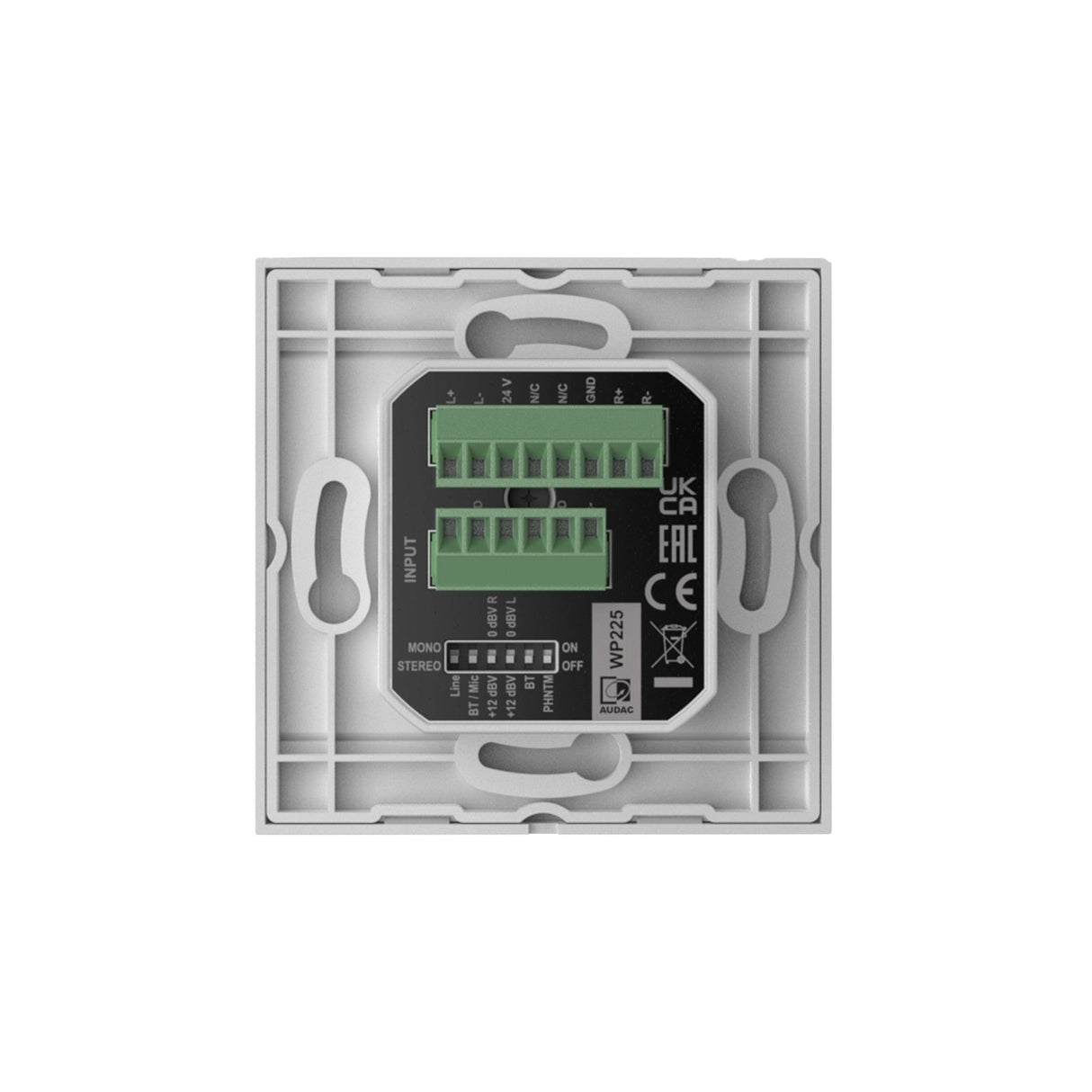

6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs)
8-pin terminal block (3.81 mm pitch) output connection

Product Features
Dimensions
3.15 x 3.15 " (W x H) (Remote wall panel)
Colours

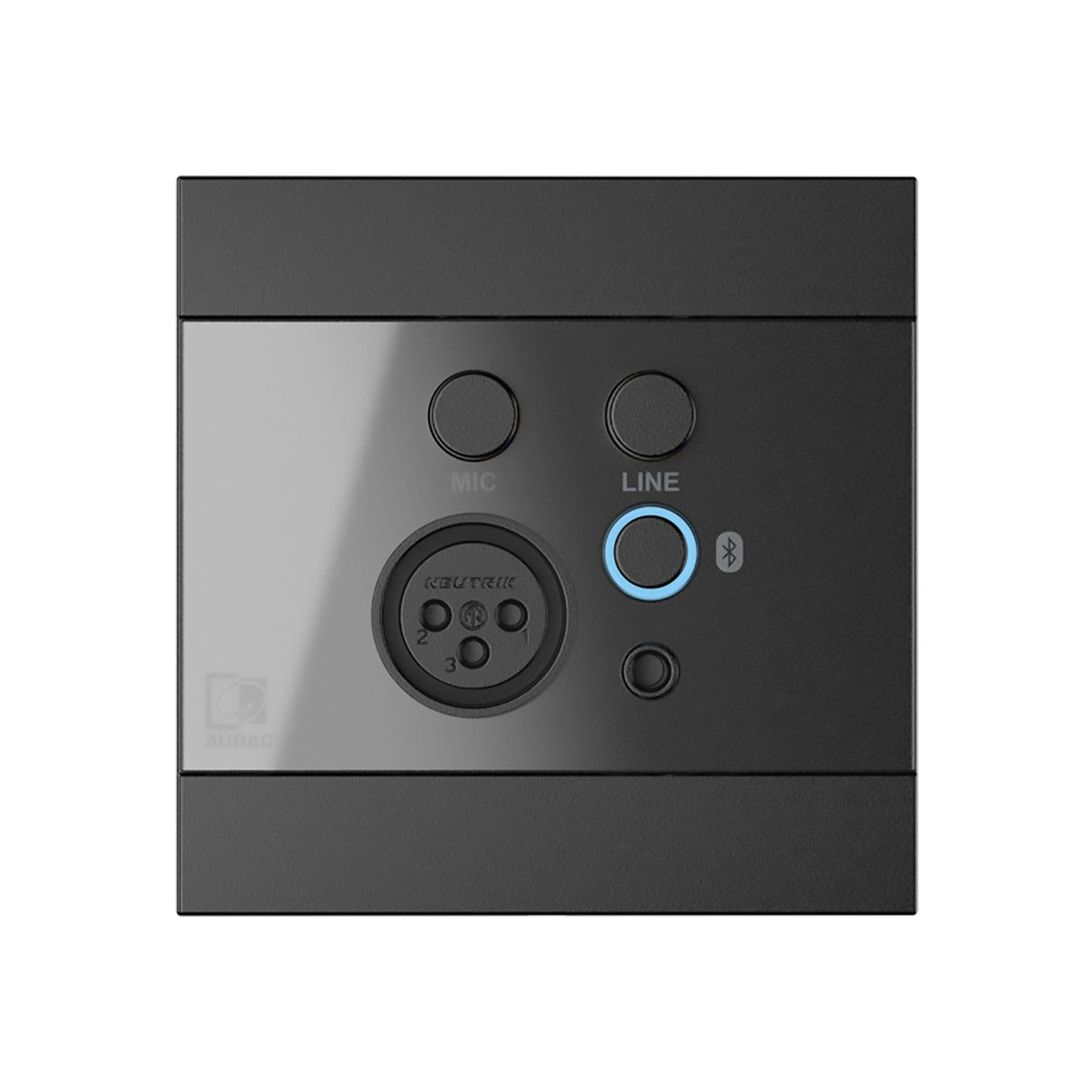

Black (RAL9005) (WP225/B)

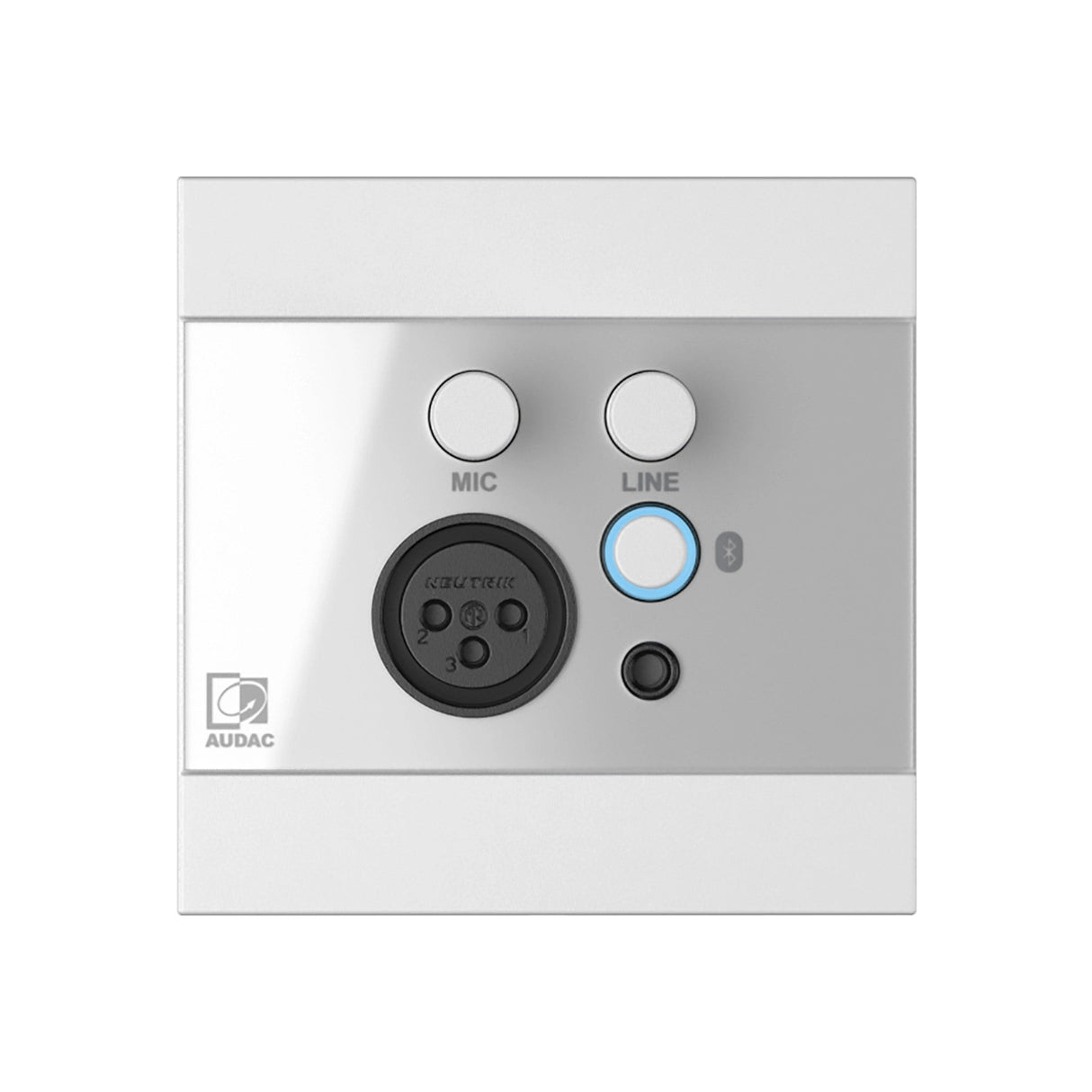

White (RAL9003) (WP225/W)
Front finish
Elegant ABS front panel with glass
Accessories (Optional – NOT included)
Surface mount Installation boxes
WB200 - Surface mount wall box for WP & DWP series
Flush mount Installation boxes
Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS
Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG

Recommended applications
Education
Retail
Bars & Restaurants
Corporate
