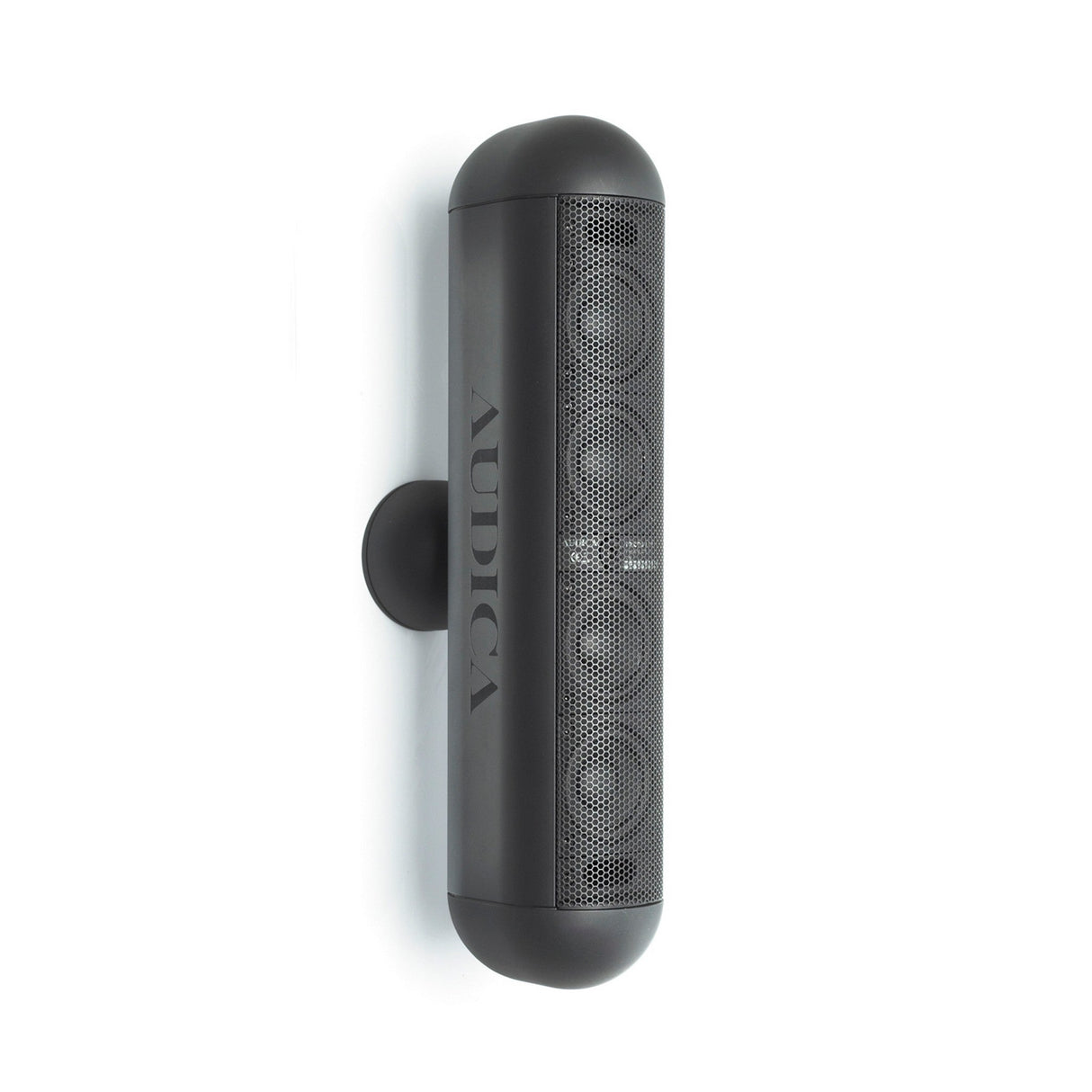

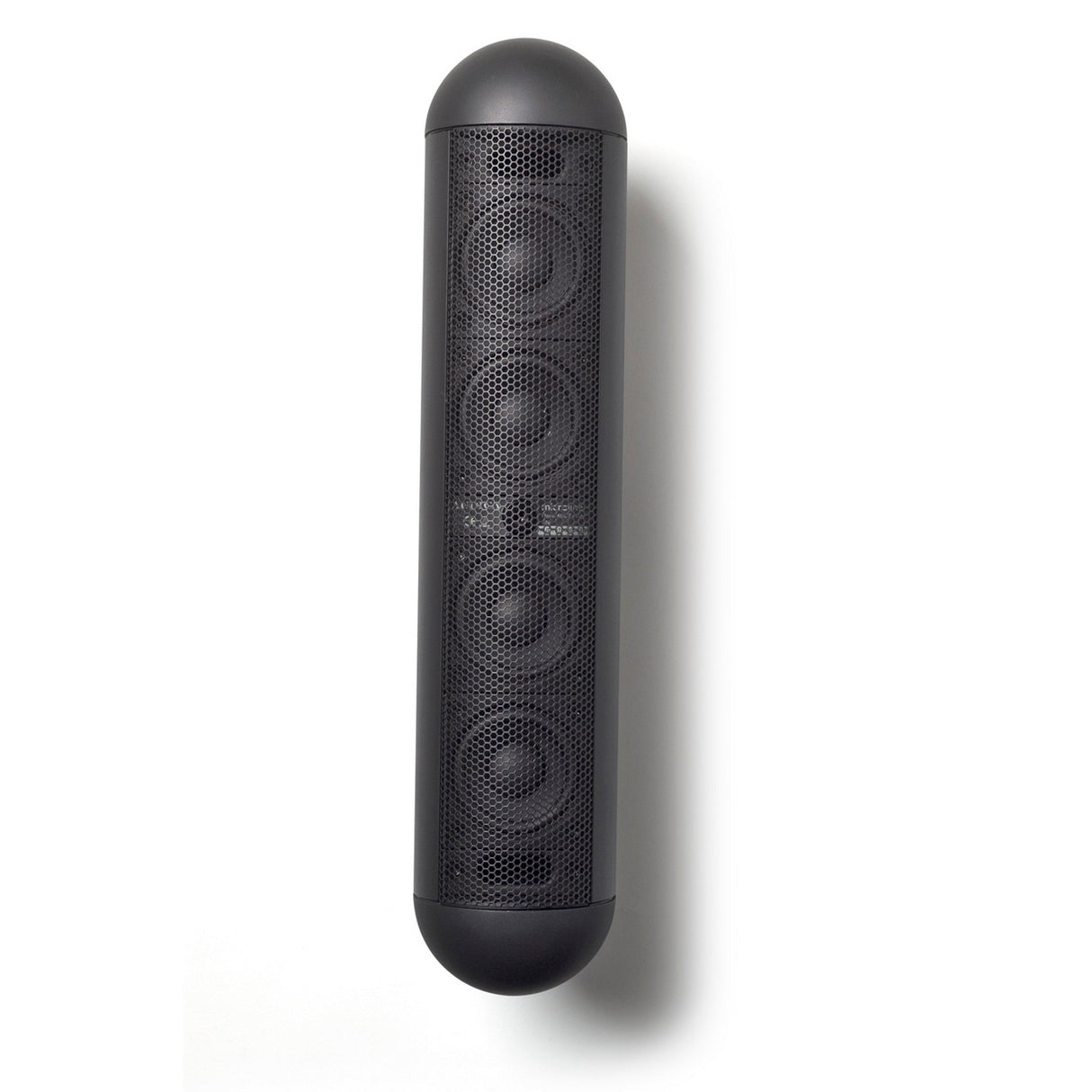

Audica MICROline Wall-Mount Column Speaker, Black

Traditional design of loudspeakers for these applications has either been large boxes that give full-range audio, but which are inherently less attractive or more visible, or sub-sat systems that use tiny satellite loudspeakers for mid/high frequencies and a subwoofer for mid/bass. The main problem with sub-sat systems in public spaces is that people are often listening close to thin sounding satellites with the mid/bass rumbling away in the distance, disconnected in bringing the critical mid-band together for audio quality.

With the MICROline we've designed the smallest possible loudspeakers to give high quality over a wide audio band so that, no matter where you are in the room, the sound from the main loudspeakers remains coherent and pleasing. For most applications no additional bass loudspeakers are required.

For applications requiring extended, higher level bass performance, such as an Audio-Visual system playing back film material, the MICROsub 3 can be used to augment the output of the MICROline and carefully tuned just to add extended bass and not confuse the mid-band.

With all of the MICROseries loudspeakers, aesthetics has been a prime consideration. This starts with the family look, which is softly shaped to merge into the environment. Secondly with the selection of materials, which have to be acoustically excellent but also provide for flexibility of design and quality of appearance. The MICROline uses aluminum extrusions with moulded aluminum end-caps. Grilles are micro-perf steel for acoustic transparency with durability.

Equally important for aesthetics, and speed and quality of installation, are the fixings and brackets. The MICROline has a unique and secure integral bracket, merging the design of loudspeaker and bracket. Only the bracket needs to be fixed and connected during first-fix. Fitting the loudspeaker, with pre-wired cable management through the bracket, is then done as required and the position locking screw is hidden behind the loudspeaker grille. A high degree of tilt and pan are catered for, allowing for wall or ceiling mounting with the required angle of coverage.

Key Features

• 2 x 50mm full range drive unit
• 2 x 50mm low frequency drive unit
• Frequency response: 70Hz to 20kHz
• Power Handling: 50W
• Impedance: 8 Ohm
• Dispersion: 120 degrees Horizontal x 30 degrees Vertical -6dB at 4kHz

Technical Specifications

Drive units
2 x 50mm full range drive unit
2 x 50mm low frequency drive unit
Frequency response
70Hz to 20kHz
Power Handling
50W
Impedance
8 Ohm
Dispersion
120 degrees Horizontal x 30 degrees Vertical -6dB at 4kHz
Finish
Black or White
Fixing
Integral bracket allowing 360º rotation, 120º pan and 60º tilt
Dimensions (mm)
H 378 x W 80 x D 151 (including bracket)
Weight
1.8Kg
