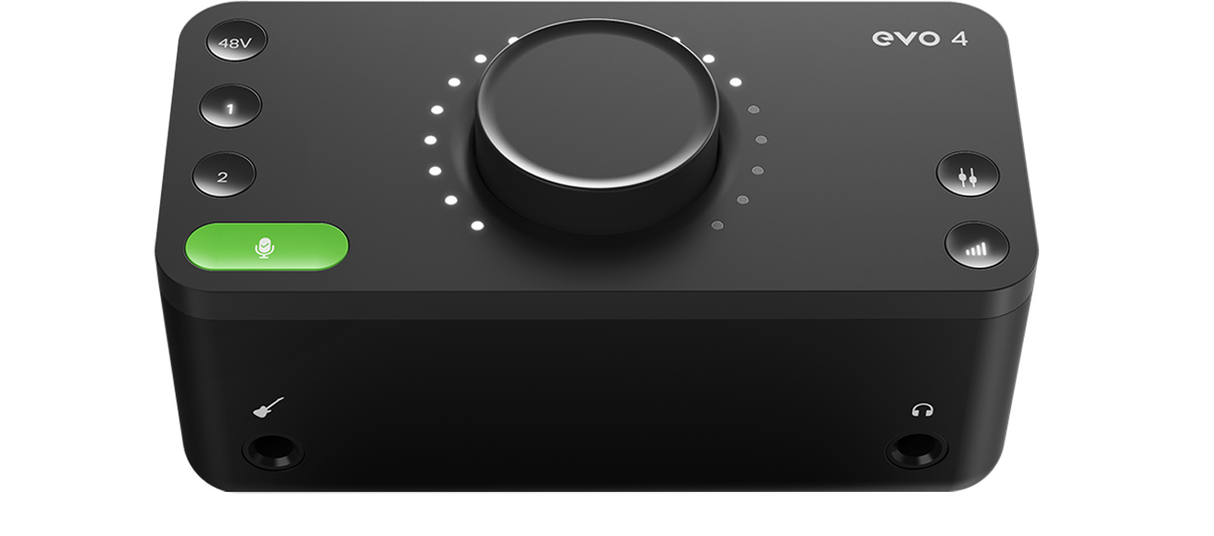

Audient EVO 4 2 x 2 USB Audio Interface

Audient EVO 4 2 x 2 USB Audio Interface

Capture your microphones and instruments and start recording audio directly to your computer with EVO 4’s intuitive feature set. Combining leading tech specs with incredible performance and sound quality, EVO 4 is the perfect interface for beginners and pros alike.

Made for you
Made for the smart creative, EVO 4 will deliver a powerful recording solution no matter your artform.

Capture creativity fast
Whether recording your latest track, producing a beat, or creating a podcast, get your ideas down fast with EVO 4’s advanced and versatile feature set.

Unrivalled audio performance
Building on Audient’s 20+ years of audio design experience, EVO 4 gives you unrivalled audio quality on your desktop.

Key Features

• 2 x EVO Mic Pres
  Designed to sound clean, detailed and accurate
• Class Leading Converters
  AKM converters (AD/DA)
• Smartgain
  Dial in your channels automatically
• Smart Touchpoints
  Intuitive and fast control at your fingertips
• JFET Instrument Input
  Plug in guitars, basses, keyboards and more
• Speaker Outputs
  Plug in your speakers
• Headphone Output
  High performance headphone output
• Platform Compatible
  Compatible with Mac, Windows and iOS
• Monitor Mix
  Ultra-low latency when recording
• Monitor Pan
  Create better headphone mixes
• Audio Loop-back
  Record your computer audio simultaneously
• USB2.0 Bus Powered
  Power from your computer
• Phantom Power
  True Bus Powered +48v
• DAW Controlled Mic Pres
  Set levels using compatible software
• 24bit / 96kHz
  Stunning audio quality

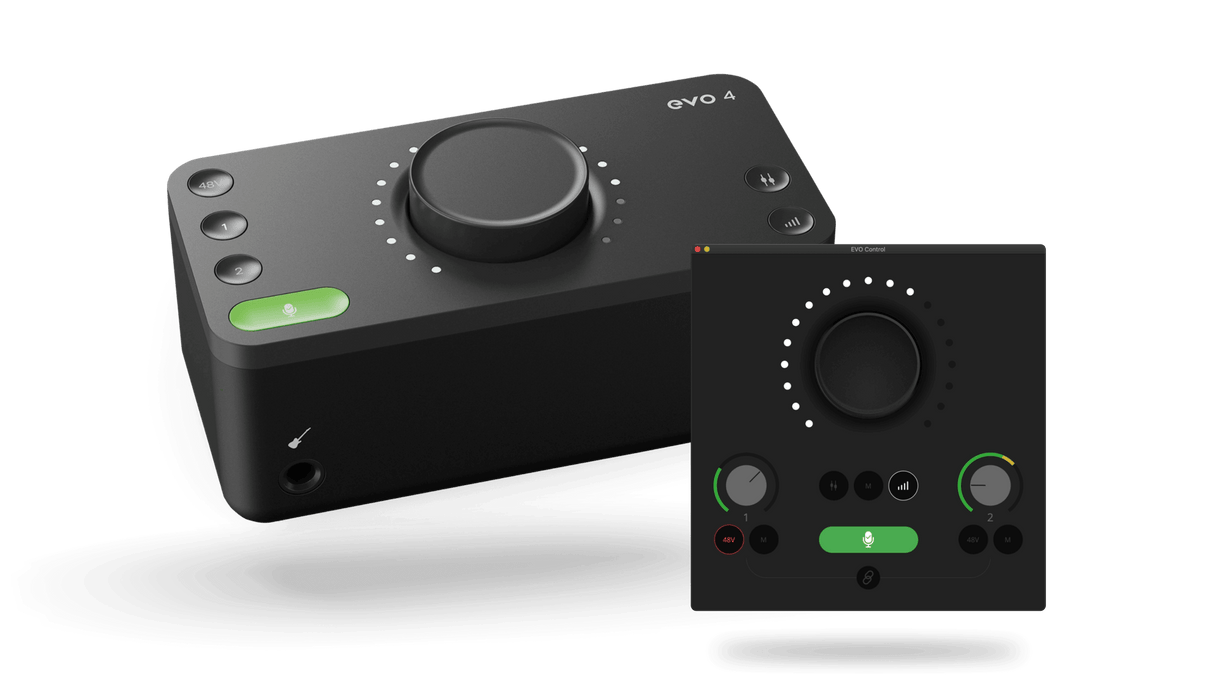

• Free Software + Plugins
  All you need to start

Technical Specifications

• Microphone Preamplifier
  • Mic Gain Range: 58dB
  • Line Gain Range: 58dB (-10dB pad)
  • Phantom Power: 48V ±4V @ 10mA/Channel
  • Mic EIN: <-128dBu
  • CMRR: >85dB @ 1kHz
  • Maximum Input Level: +16dBu
  • Mic Input Impedance: >3k OHM Balanced
  • Line Input Impedance: >10k OHM Balanced
  • Frequency Response: ±0.5dB 10Hz to 40kHz
  • Crosstalk: <-105dBu @ 1kHz & 10kHz
  • THD+N: <0.0015% @ 0dBu (1kHz)
  • Signal-to-Noise Ratio: 100dB
  • XLR Wiring: Pin 2 (Hot), Pin 3 (Cold), Pin 1 (Shield)
  • 1/4” Jack Wiring: Tip (Hot), Ring (Cold), Sleeve (Shield)
• DI Input
  • DI Gain Range: 58dB
  • Maximum Input Level: +10dBu
  • Input Impedance: 1Meg OHM Unbalanced
  • Frequency Response: ±0.5dB 10Hz to 20kHz
  • THD+N: <0.3% @ 0dBu (1kHz)
  • Signal-to-Noise Ratio: 100dB
  • 1/4” Jack Wiring: Tip (Hot), Sleeve (Shield)
• ADC Inputs
  • Digital Reference Level: 0dBFS = +8dBu
  • Frequency Response: ±0.5dB 10Hz to Fs/2
  • Crosstalk: -105dBu @ 1kHz & 10kHz
  • THD+N: <0.001% @ -1dBFS (1kHz)
  • Dynamic Range: 113dB A-weighted
• DAC Outputs
  • Maximum Output Level: +11dBu
  • Digital Reference Level: 0dBFS = +11dBu
  • Output Impedance: <100 OHM Balanced
  • Frequency Response: ±0.5dB 10Hz to Fs/2
  • Crosstalk: <-110dBu @ 1kHz
  • THD+N: <0.0015% @ -1dBFS (1kHz)
  • Dynamic Range: 113dB A-weighted
  • 1/4” Jack Wiring: Tip (Hot), Ring (Cold), Sleeve (Shield)
• Headphone Output
  • Output Impedance: <50 OHM
  • Frequency Response: ±0.5dB 10Hz to Fs/2
  • Crosstalk: -110dBu @ 1kHz
  • THD+N: <0.0015% @ -1dBFS (1kHz)
  • Dynamic Range: 113dB A-weighted
  • Max Output (30 OHM): +0.5dBu, 0.0025% THD+N, 1.16Vpk, 45mW
  • Max Output (60 OHM): +4.22dBu, 0.0015% THD+N, 1.78Vpk, 52mW
  • Max Output (600 OHM): +10.1dBu, 0.0018% THD+N, 3.52Vpk, 20mW
  • 1/4” Jack Wiring: Tip (Left), Ring (Right), Sleeve (Shield)
  • DSP Mixer Roundtrip Latency:
    • 44.1 kHz / 0.594ms
    • 48.0 kHz / 0.552ms
    • 88.2 kHz / 0.302ms
    • 96.0 kHz / 0.281ms
  • DAW Playback Latency:
    • 44.1 kHz / ~2.5ms @ 32 Sample Buffer
    • 96.0 kHz / ~2ms @ 32 Sample Buffer
  • DAW Roundtrip Monitoring Latency:
    • 44.1 kHz / 5ms @ 32 Sample Buffer
    • 96.0 kHz / 4.1ms @ 32 Sample Buffer
• USB High-Speed Interface
  • Input Channels: 2 Analogue
  • Output Channels: 2 Digital
  • Connector Type: USB Type-C
  • Included Cable: 1m USB 2.0 Type-C to USB Type-A
• Weight and Dimensions
  • Unit Weight: 360g
  • Packaged Weight: 600g
  • Unit Dimensions: 140mm (W) x 67mm (H) x 67mm (D)
  • Packaged Dimensions: 172mm (W) x 88mm (H) x 97.5mm (D)

Package Content

• Audient EVO 4 2x2 USB Audio Interface
• USB-C to USB-A Cable
• Free Software Package (Download)
