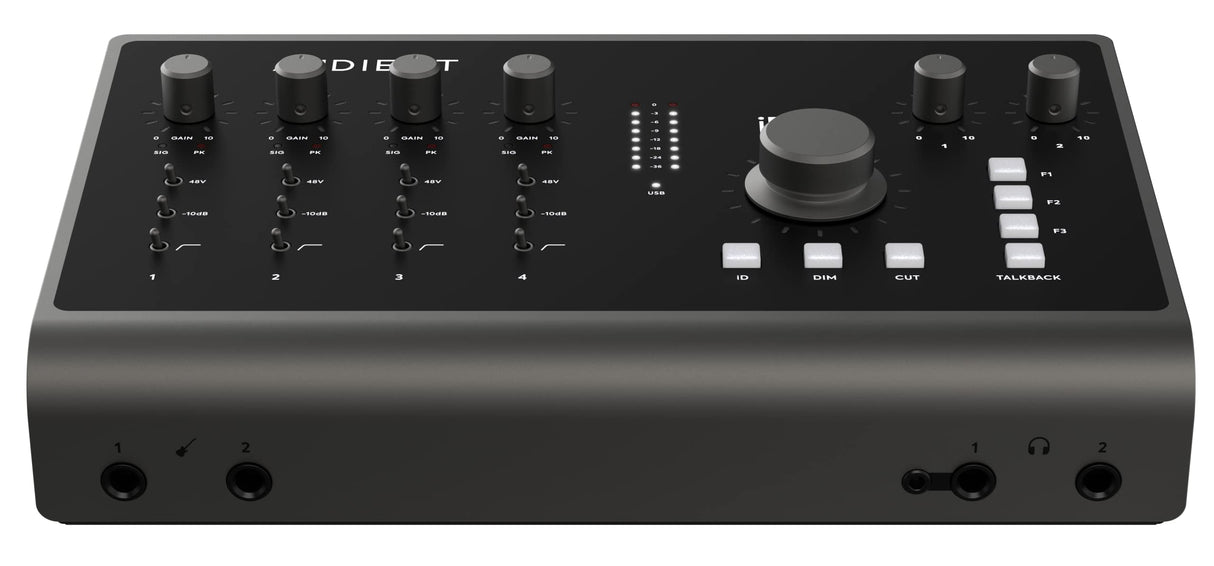

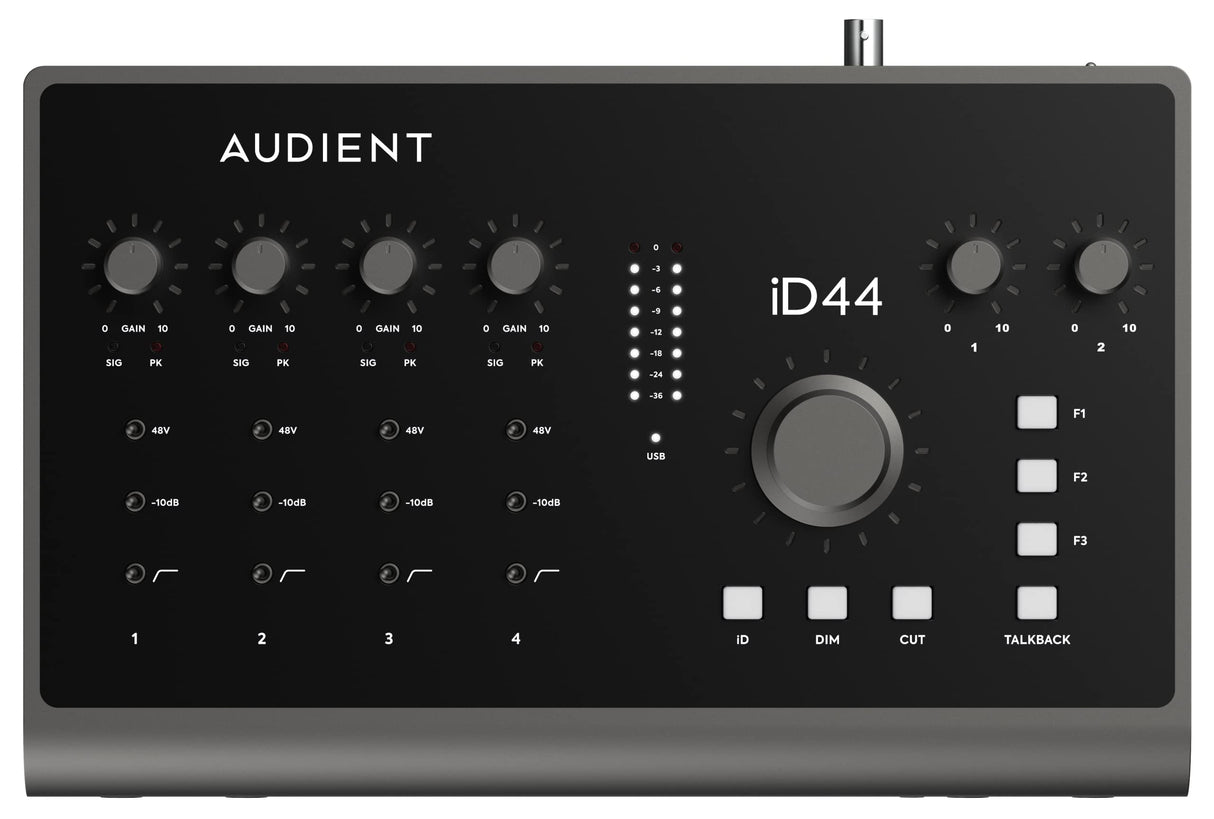

Audient iD44 MKII 20 x 24 USB Audio Interface
Audient iD44 MKII 20 x 24 USB Audio Interface
Free Shipping
The Audient iD44 MKII 20 x 24 USB Audio Interface is an improved version of the original iD44 audio interface. It features better audio performance, more features, and a new smoke-grey finish.
Audio Performance
Improved audio converters with a wider dynamic range (126 dB) for more accurate recordings.
Even lower distortion on the analog-to-digital converters (ADCs) for cleaner audio.
Additional Features
Audio loop-back which allows you to capture audio from your computer along with your microphone recordings. This is useful for content creators, podcasters, and streamers.
Dual headphone output so you can connect two sets of headphones at the same time.
Three programmable function buttons that you can assign to your favorite monitoring features.
ScrollControl which lets you use the volume knob as a virtual scroll wheel to control various settings on your computer.
Key Features
- Four high-quality Audient Console mic preamps for recording microphones.
- Two JFET instrument inputs for guitars, basses, and other instruments.
- Two balanced inserts for connecting outboard effects units.
- ADAT expandability which allows you to add up to 16 additional channels of mic preamps.
- Ultra-low latency mixer for direct monitoring while recording.
- Built-in DSP for adding effects to your recordings.
- All-metal construction for durability.
- Includes a three-year limited warranty.
Technical Specifications
Microphone Preamplifier
MIC GAIN:0 to +60dB
LINE GAIN:-10 to +50dB
PHANTOM POWER:48v +/-4v @ 10mA/Channel
MIC EIN:-126dBu
CMRR:>80dB @ 1kHz
MAXIMUM INPUT LEVEL:+18dBu
INPUT IMPEDANCE (Mic):3k Ī© balanced
INPUT IMPEDANCE (Line):10k Ī© balanced
FREQUENCY RESPONSE:Ā±0.5dB 10Hz to 65kHz
CROSSTALK:<-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz):0.003% (-90dB)
SNR:96dB
XLR:Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4ā TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
PAD:-10dB
HPF:-3dB @ 100Hz, 2nd Order (12dB/Octave)
D.I / Instrument Input (Channel 1)
D.I GAIN:0 to +60dB
MAXIMUM INPUT LEVEL:+10dBu
INPUT IMPEDANCE:1MegĪ© Unbalanced
FREQUENCY RESPONSE:Ā±0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz):<0.3%
SNR:95dB A-weighted
1/4ā JACK:Tip (Hot) & Sleeve (Shield)
Analogue to Digital Converter (ADC 1 & 2):
(Measured via Insert Returns under AES-17)
MAXIMUM INPUT LEVEL:+18dBu (0dBFS digital maximum)
DIGITAL REFERENCE LEVEL:+18dBu = 0dBFS
INPUT IMPEDANCE:>10k Ī© Balanced
CROSSTALK:<-118dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:Ā±0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz):<0.0003% (-112dB)
DYNAMIC RANGE:120dB A-weighted
1/4ā TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital to Analogue Converter (DAC 1, 2, 3 & 4):
(Measured under AES-17 at line outputs 1, 2, 3 & 4)
MAXIMUM OUTPUT LEVEL:+18dBu (0dBFS digital maximum)
OUTPUT IMPEDANCE:<100 Ī©
CROSSTALK:<-118dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:Ā±0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz):<0.0006% (-104dB)
DYNAMIC RANGE:124dB un-weighted, 126dB A-weighted
1/4ā TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Outputs
(Measured under AES-17 at phones output)
MAXIMUM OUTPUT LEVEL:+14dBu (0dBFS digital maximum)
OUTPUT IMPEDANCE:<50 Ī© unbalanced
CROSSTALK:<-110dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:Ā±0.5dB 10Hz to Fs/2
CROSSTALK:-115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):<0.0008% (-103dB)
DYNAMIC RANGE:121dB un-weighted, 124dB A-weighted
MAX LEVEL INTO 30ohms:+10.2dBu 0.002% THD+N Power: 210mW
MAX LEVEL INTO 60ohms:+14.2dBu 0.001% THD+N Power: 54mW
MAX LEVEL INTO 600ohms:+14.2dBu 0.001% THD+N Power: 54mW
1/4ā JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital Input
ADAT 16 CHANNELS:44.1kHz to 48.0kHz
ADAT 8 CHANNELS (SMUX):88.2kHz to 96.0kHz
STEREO S/PDIF:44.1kHz to 96.0kHz
Digital Output
ADAT 16 CHANNELS:44.1kHz to 48.0kHz
ADAT 8 CHANNELS (SMUX):88.2kHz to 96.0kHz
STEREO S/PDIF:44.1kHz to 96.0kHz
USB2.0 High Speed
No. of INPUT CHANNELS 20:20 (4 Analogue, 16 Digital)
No. of OUTPUT CHANNELS 24:24 (8 Analogue, 16 Digital)
CONNECTOR:USB Type-C
INCLUDED CABLES:1.5m USB 2.0 Type-C to USB Type-C, 1.5m USB 2.0 Type-C to USB Type-A
DSP Mixer Latency ā ROUND TRIP (in-to-out)
44.1kHz0.677ms
48.0kHz0.625ms
88.2kHz0.354ms
96.0kHz0.323ms
Word Clock Output
WORD CLOCK OUTPUT:44.1kHz to 96kHz
Dimensions
Unit 276mm (w) x 51mm (h) x 174mm (d)
