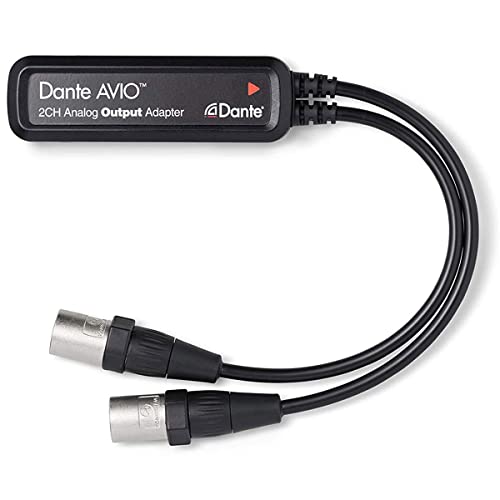

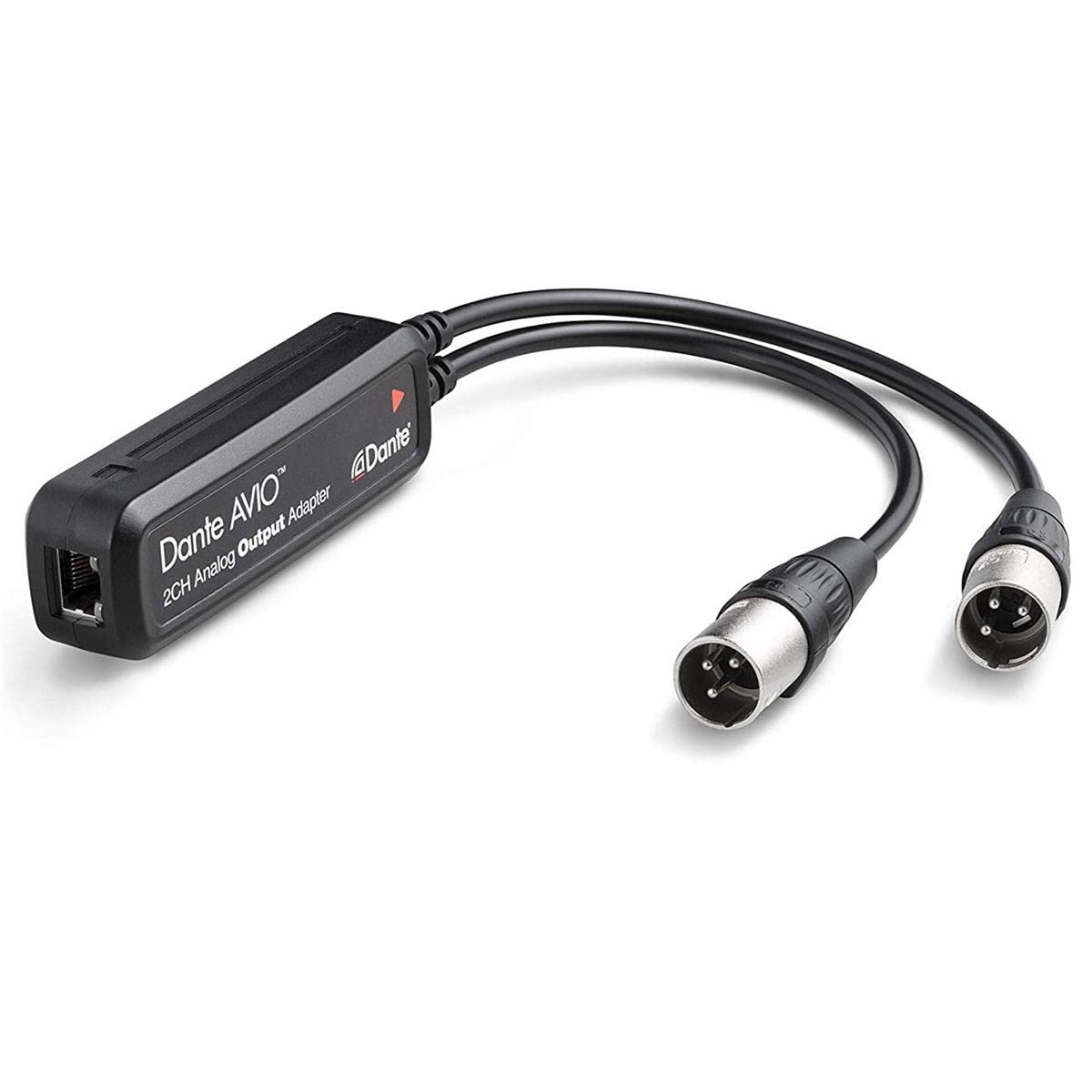

Audinate ADP-DAO-AU-0X2 Dante AVIO Analog Output Adapter
Authorized Dealer
Free Shipping
Last 2
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
Audinate ADP-DAO-AU-0X2 Dante AVIO Analog Output Adapter
The Audinate ADP-DAO-AU-0X2 Dante AVIO Analog Output Adapter allows you to use the audio gear you already own with your Dante network. Don't abandon trusted compressors, equalizers or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO.
Key Features
- 2 Channel
- Send audio to analog power amplifiers and powered speakers over a Dante audio network
- Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
- Create easy drop-points for connecting overflow areas to a Dante network
Technical Specifications
Channels
2
Max Signal Level(balanced)
+18dBu / +4dBu / 0dBu; 0dBV / -10dBV
Frequency Response
20Hz to 20kHz (±0.5dB)
Impedance
150 Ohm balanced; 75 Ohm unbalanced
Dynamic Range
> 100dB
Signal to Noise Ratio
> 100dB
Total Harmonic Distortion
< 0.01% at +4dBu
Connectors
RJ45 & 2 XLR-M
Power
Class 1 802.3af PoE
Sample Rates
44.1, 48, 96 kHz
Bit Depth
24
Network Transport
Dante Audio over IP AES67 RTP
Installation / Use Cases
- Use the 2-channel Dante analog output adapter to send network audio to analog power amplifiers or powered speakers through its two XLR male outputs.
- Create convenient analog audio drop points from a Dante network in overflow rooms, distributed sound systems, performance spaces, or installed AV environments.
- Use with corresponding Dante AVIO input and output adapters when inserting analog DSP processors, compressors, or equalizers into a Dante-based signal path.
- Power the adapter directly from a compatible 802.3af PoE network connection without requiring a separate local power supply.
Package Contents
- Audinate ADP-DAO-AU-0X2 Dante AVIO Analog Output Adapter
Frequently Asked Questions
What does the Dante AVIO Analog Output Adapter do?
It converts two channels of Dante network audio to analog audio for connection to compatible analog equipment.
What analog outputs does the ADP-DAO-AU-0X2 provide?
The adapter provides two XLR male analog outputs.
Can it feed powered speakers or analog amplifiers from a Dante network?
Yes. One of its intended applications is sending Dante audio to analog power amplifiers and powered speakers.
How is the Dante AVIO output adapter powered?
It uses Class 1 IEEE 802.3af Power over Ethernet.
Which sample rates does the adapter support?
It supports 44.1 kHz, 48 kHz, and 96 kHz sample rates at 24-bit depth.
Does the adapter support AES67 network audio?
Yes. Its network transport specification includes Dante Audio over IP and AES67 RTP.
