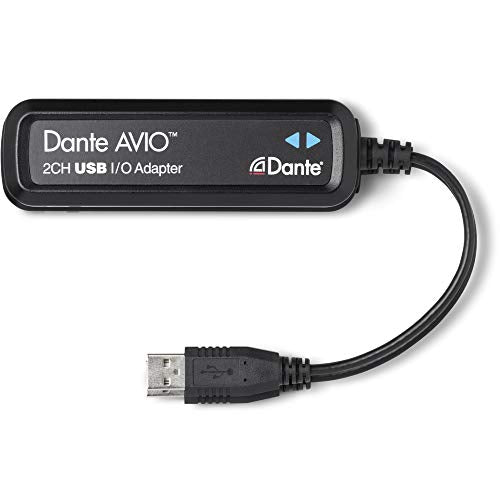

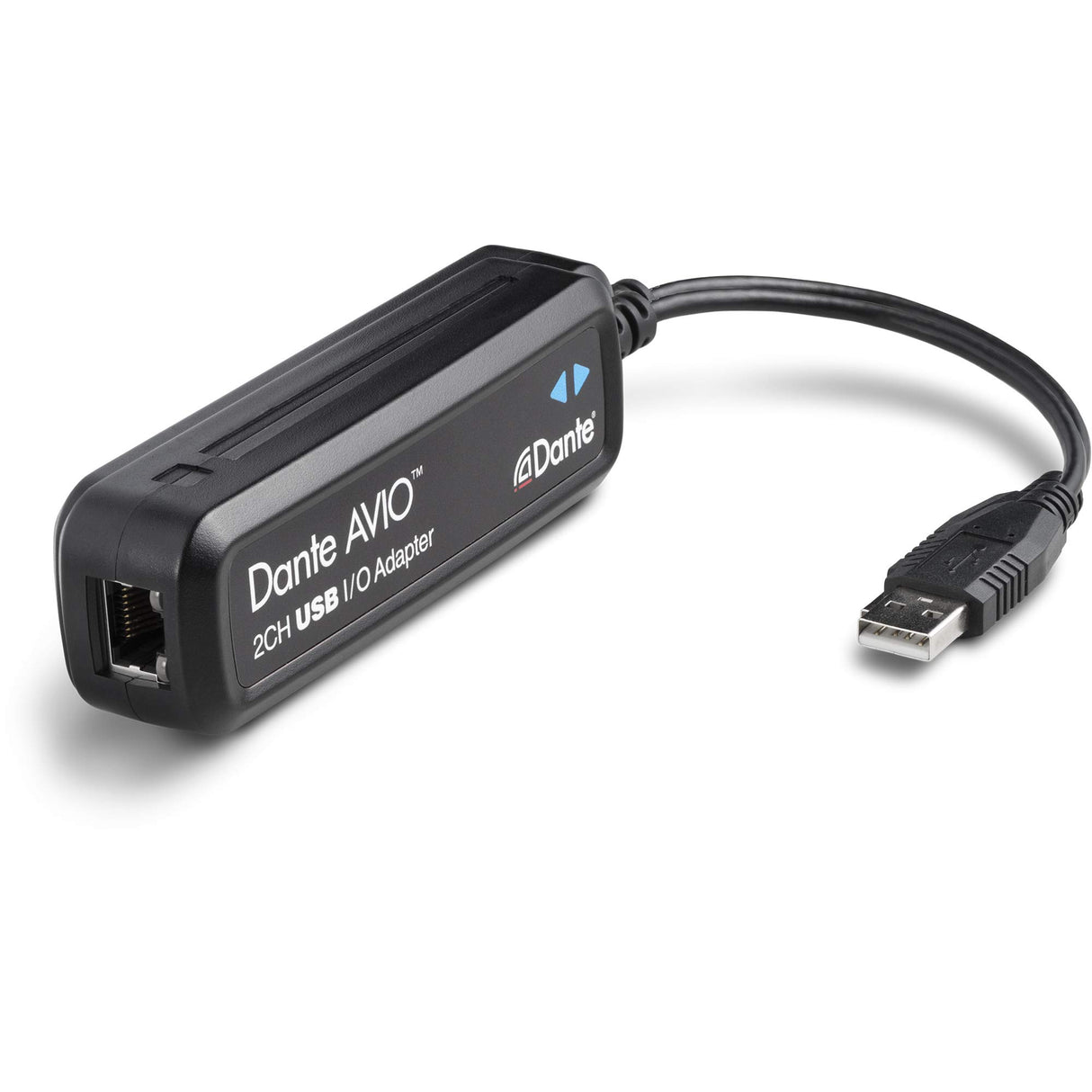

Audinate ADP-USB-AU-2X2 Dante AVIO USB IO Adapter
Authorized Dealer
Free Shipping
Last 2
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
Audinate ADP-USB-AU-2X2 Dante AVIO USB IO Adapter
The Audinate ADP-USB-AU-2X2 Dante AVIO USB Adapter lets you connect any computer to a Dante audio network with zero software installation, and can be used with any audio application for playout or recording. Ideal for conference rooms and presentation events.
Key Features
- Channels: 2 in 2 out
- Easy audio drop-point for laptops in conference settings, no need to reconfigure your Dante network for different computers
- Record or playout 2-channel audio from any PC or Mac with no additional software at all
- Connect mobile devices to a Dante network (with USB adapters)
Technical Specifications
Channels
2 in 2 out
Connectors
RJ45 & USB Type A
Power
Class 1 802.3af PoE or USB
Sample Rates
48 kHz
Bit Depth
24
Network Transport
Dante Audio over IP AES67 RTP
USB
Class Compliant
Installation / Use Cases
- Connect a PC or Mac directly to a Dante audio network for two-channel recording and playback without installing an additional USB audio driver.
- Use as a temporary or permanent Dante audio drop point for laptops in conference rooms, presentations, meetings, and installed AV systems.
- Connect compatible mobile devices to a Dante network when used with the appropriate USB adapter.
- Power the adapter through USB or a compatible IEEE 802.3af PoE network connection.
Package Contents
- Audinate ADP-USB-AU-2X2 Dante AVIO USB IO Adapter
Frequently Asked Questions
What does the Dante AVIO USB adapter do?
It connects a compatible computer to a Dante audio network for two-channel audio recording and playback.
How many audio channels does the ADP-USB-AU-2X2 support?
It supports two input channels and two output channels.
Does the Dante AVIO USB adapter require a special USB audio driver?
No. It is a class-compliant USB audio device and does not require additional USB audio software for normal operation.
What audio resolution does the adapter support?
It operates at 24-bit depth with a 48 kHz sample rate.
How can the ADP-USB-AU-2X2 be powered?
It can be powered through its USB connection or from a Class 1 IEEE 802.3af PoE network connection.
Does the adapter support AES67 networking?
Yes. Its network transport includes Dante Audio over IP and AES67 RTP.
