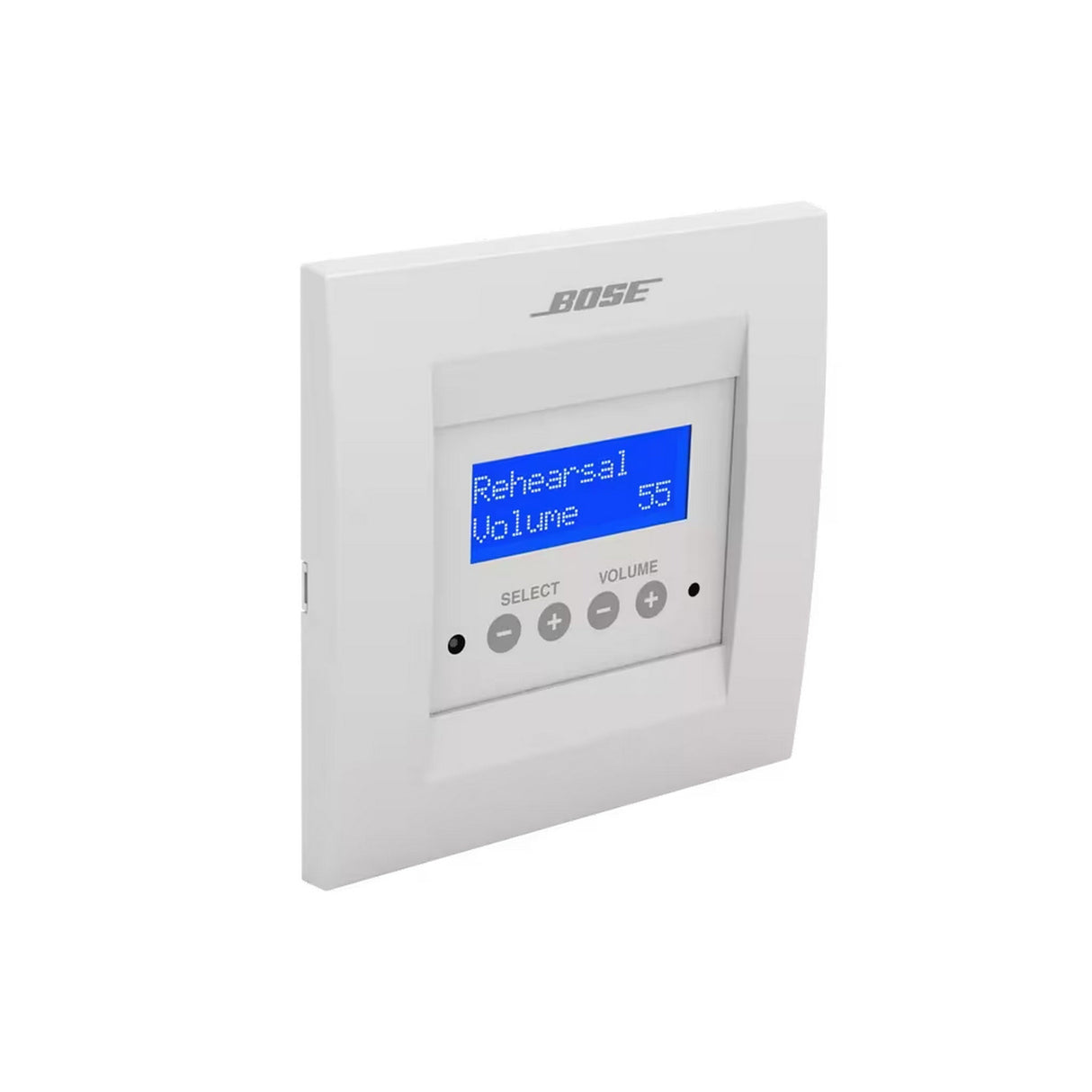

Bose Professional ControlSpace CC-16 Control Center
The Bose Professional Professional ControlSpace CC-16 control center is a compact, wall-mounted zone controller designed to provide simple, intuitive end-user control of installed ControlSpace sound systems.
Through custom programming in ControlSpace Designer software, the CC-16 can manage a wide range of system functions, including volume control, audio source selection, and scene or system configuration recall. Its streamlined interface makes it well suited for spaces requiring straightforward, reliable user interaction.
The CC-16 features a backlit bitmap LCD and four sealed pushbuttons for durable operation in permanent installations. Designed to fit into a standard 2-gang electrical wall box, it integrates seamlessly into ControlSpace ESP processorābased systems for indoor commercial audio environments.
Key Features
- Zone Controller Design: Wall-mounted control interface for ControlSpace systems
- Bitmap LCD Display: 122 Ć 32 pixel backlit blue screen for clear system feedback
- Sealed Pushbuttons: Volume and select buttons designed for durability
- Programmable Functionality: Supports source switching, scene selection, and system configuration control
- Custom Labeling: User-defined on-screen wording for simplified operation
- Software Lockout: Prevents unauthorized or accidental system changes
- Compact Wall Mount: Fits standard 2-gang electrical wall boxes
Technical Specifications
Product TypeProgrammable zone control center
Compatible Systems
ControlSpace ESP-880A
ControlSpace EX-1280
ControlSpace EX-1280C
DS4 Ceiling Audio Solution
Maximum Controllers per Processor
15 per ControlSpace ESP processor
Cable Requirements
Cat 5 (24ā18 AWG), unshielded twisted-pair (UTP)
Maximum Cable Length
609 m
2000 ft
Connectors
(1) 6-pin Euroblock
Power Requirements
8ā18 VDC, 100 mA
Front Panel Controls
(2) Volume buttons (+ / ā)
(2) Select buttons (+ / ā)
Display
122 Ć 32 pixel LCD, backlit blue
Mounting
2-gang electrical wall box (North America, Japan)
Available Color
White
Product Dimensions (H x W x D)
121 Ć 118 Ć 37 mm
4.8" Ć 4.7" Ć 1.5"
What's in the Box
(1) ControlSpace CC-16 Control Center(1) Installation Guide
