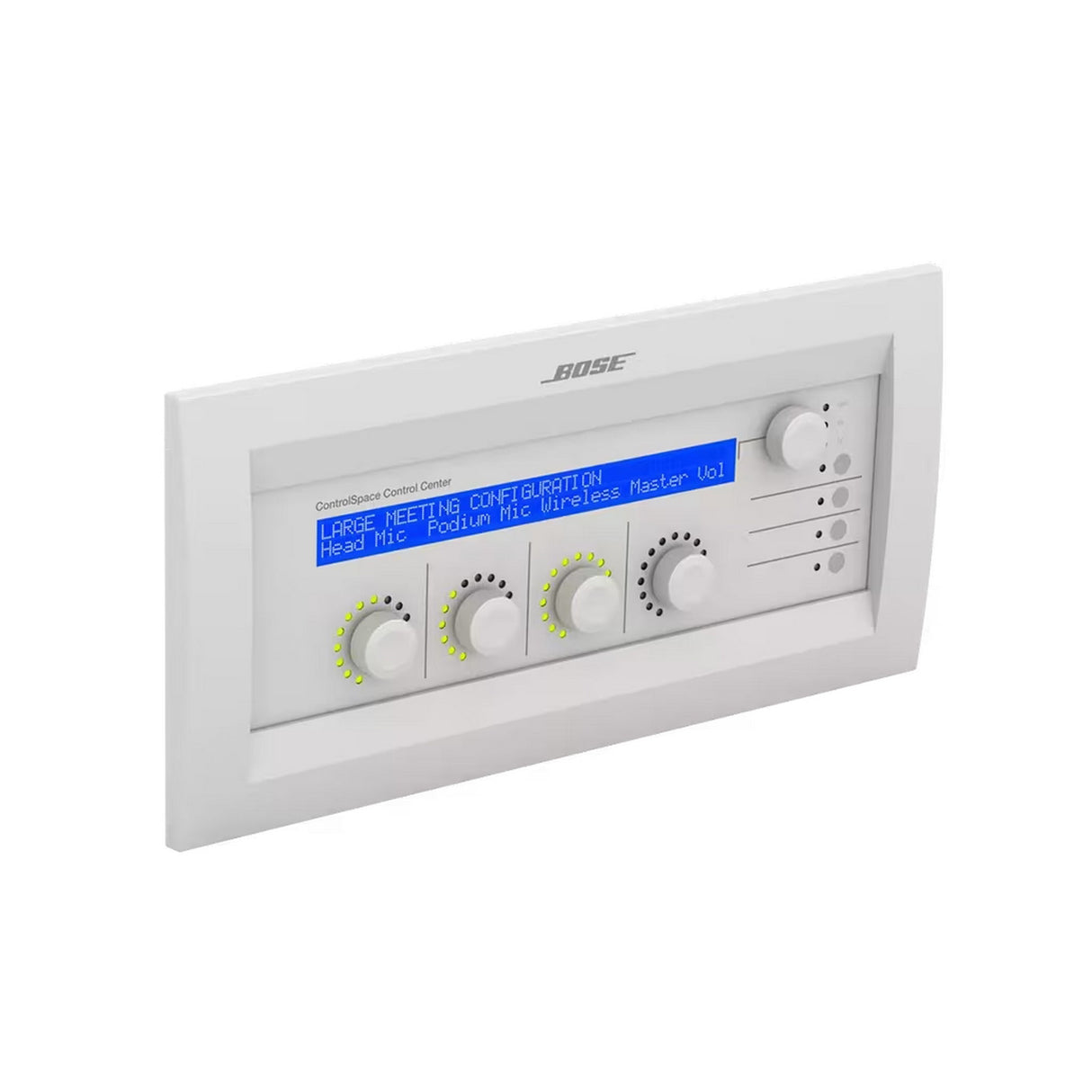

Bose Professional ControlSpace CC-64 Control Center
The Bose Professional Professional ControlSpace CC-64 control center is a programmable, networked wall-mounted controller designed to provide intuitive user control of installed sound systems using ControlSpace ESP processors and network-enabled PowerMatch amplifiers.
Its fully programmable design allows system integrators to customize available controls, simplifying operation for end users while maintaining precise system management. The CC-64 features four rotary gain/selector encoders with LED rings and a dedicated master scene/preset encoder for flexible system interaction.
A large backlit LCD display provides clear, dynamic labeling of system elements, while bank-switch buttons allow access to up to 16 programmable controls. Designed for permanent indoor installations, the CC-64 fits into a standard 5-gang electrical wall box and integrates seamlessly into ControlSpace networks.
Key Features
- Programmable Control Interface: Fully customizable control surface for ControlSpace systems
- Rotary Encoder Controls: Four gain/selector knobs with LED rings plus master scene encoder
- Bank Switching: Four bank buttons provide access to up to 16 controls
- Backlit LCD Display: 2-line, 40-character screen with dynamic labeling
- Scene and Preset Recall: Supports easy selection of programmed scenes
- Software Lockout: Programmable lockout prevents unauthorized changes
- Wall-Mount Design: Fits standard 5-gang electrical wall boxes
Technical Specifications
Product TypeProgrammable networked control center
Compatible Systems
Bose Professional ControlSpace ESP processors
Network-enabled PowerMatch amplifiers
Maximum Controllers per Network
16
Cable Requirements
Cat 5 unshielded twisted-pair (UTP)
Maximum Cable Length
328 ft (100 m)
Connectors
(1) RJ-45 port
(1) 2-pin Euroblock
Power Requirements
15ā24 VDC, 300 mA
Front Panel Controls
(4) Gain/Select rotary push encoders
(4) Bank-switch buttons
(1) Master scene/preset rotary push encoder
Display
2-line Ć 40-character backlit LCD (blue)
LED Indicators
(4) Volume LED rings
(4) Bank selection LEDs
Network, transmit, and receive LEDs
Mounting
5-gang electrical wall box (North America)
Available Color
White
Product Dimensions (H x W x D)
137 Ć 282 Ć 51 mm
5.4 Ć 11.1 Ć 2.0 in
What's in the Box
(1) ControlSpace CC-64 Control Center(1) Installation Guide
(1) Cat 5 Power Adapter
