TOA Electronics TS-D1000-CU Chairman Unit
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

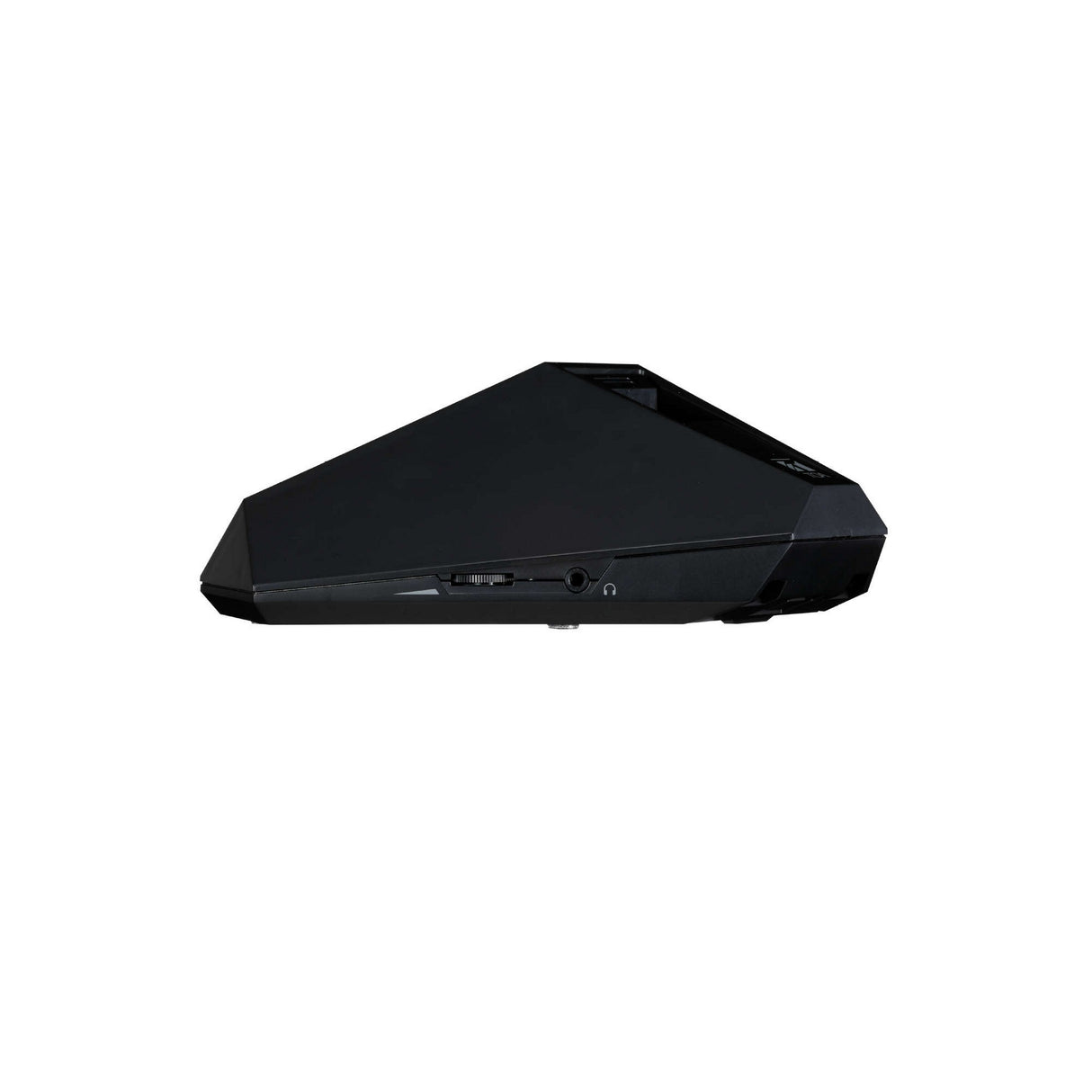

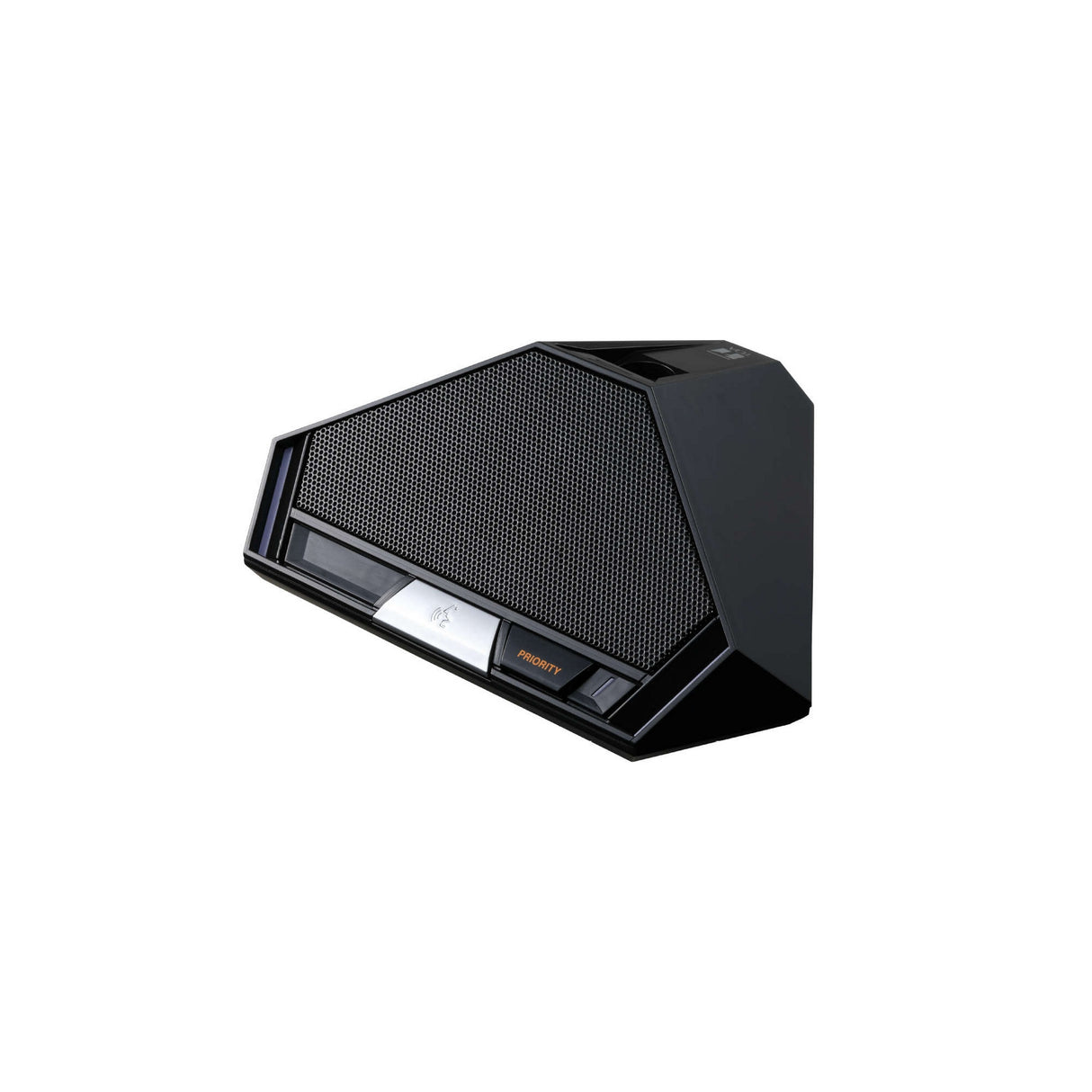

TOA TS-D1000-CU Chairman Unit
The TOA TS-D1000-CU Chairman Unit is a central conference interface designed for use with TOA Digital Conference Systems. It provides intuitive controls including priority speech function and easy operation for chairpersons in professional meeting environments. This unit connects directly to the master control unit via CAT5e STP LAN cabling.

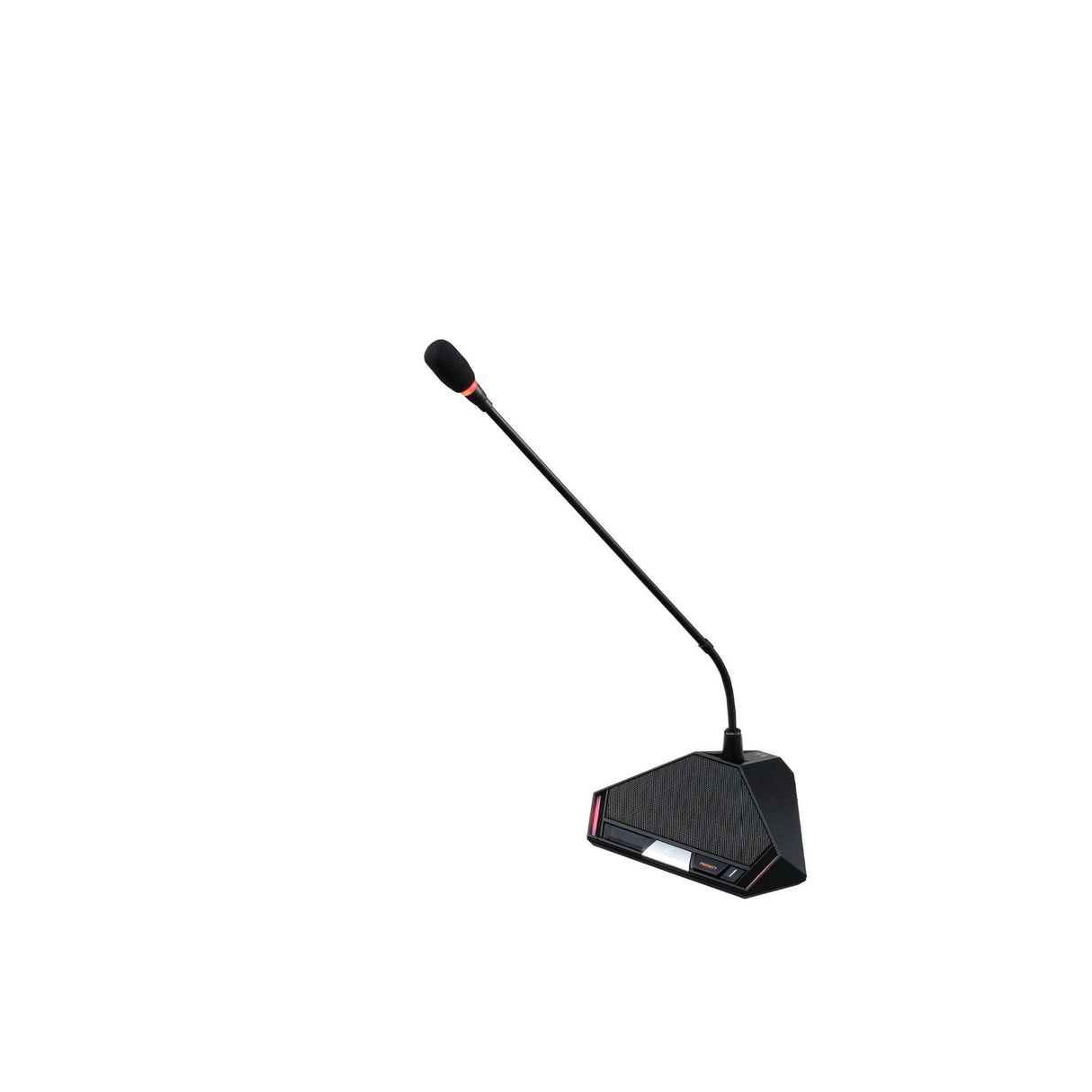

The TS-D1000-CU supports optional gooseneck microphones for flexible installation and clear audio capture. Built-in monitor speaker and dual headphone jacks let participants hear proceedings clearly. Its priority button ensures the chairmanās microphone takes precedence over delegate units.
Constructed with durable ABS resin and finished in matte black, this chairman unit is engineered for daily use in corporate boardrooms, government chambers, and conference halls. With integrated indicators and simple controls, it is ideal for managing discussions in wired digital conferencing systems.
Key Features
- Priority Speech Function: Chairmanās microphone takes precedence in discussions.
- Easy CAT5e Connectivity: Connects to master or sub control units using CAT5e STP LAN cable.
- Built-In Monitor Speaker: 0.4 W speaker for clear local audio monitoring.
- Dual Headphone Outputs: Two Ćø3.5 mm headphone jacks with individual volume controls.
- Compact Durable Design: ABS resin construction suitable for frequent professional use.
Technical Specifications
- Power Source: 24 V DC supplied from master, sub, or extension units
- Power Consumption: 1.5 W or less
- Input: Microphone terminal: XLR-3-31 type
- Output (Speaker): Monitor speaker: 8 Ī©, 0.4 W
- Output (Headphones): Ćø3.5 mm mini jack, monaural Ć 2
- Connecting Terminals: RJ45 connector Ć 2
- Signal to Noise Ratio: 65 dB or more (A-weighted)
Whatās in the Box
- Chairman Unit: TS-D1000-CU
- Note: Optional microphones TS-D1000-M1 or TS-D1000-M2 not included
