TOA Electronics TS-D1000 Series Conference System Gooseneck Microphone - Standard Microphone

TOA TS-D1000 Series Conference System Gooseneck Microphone

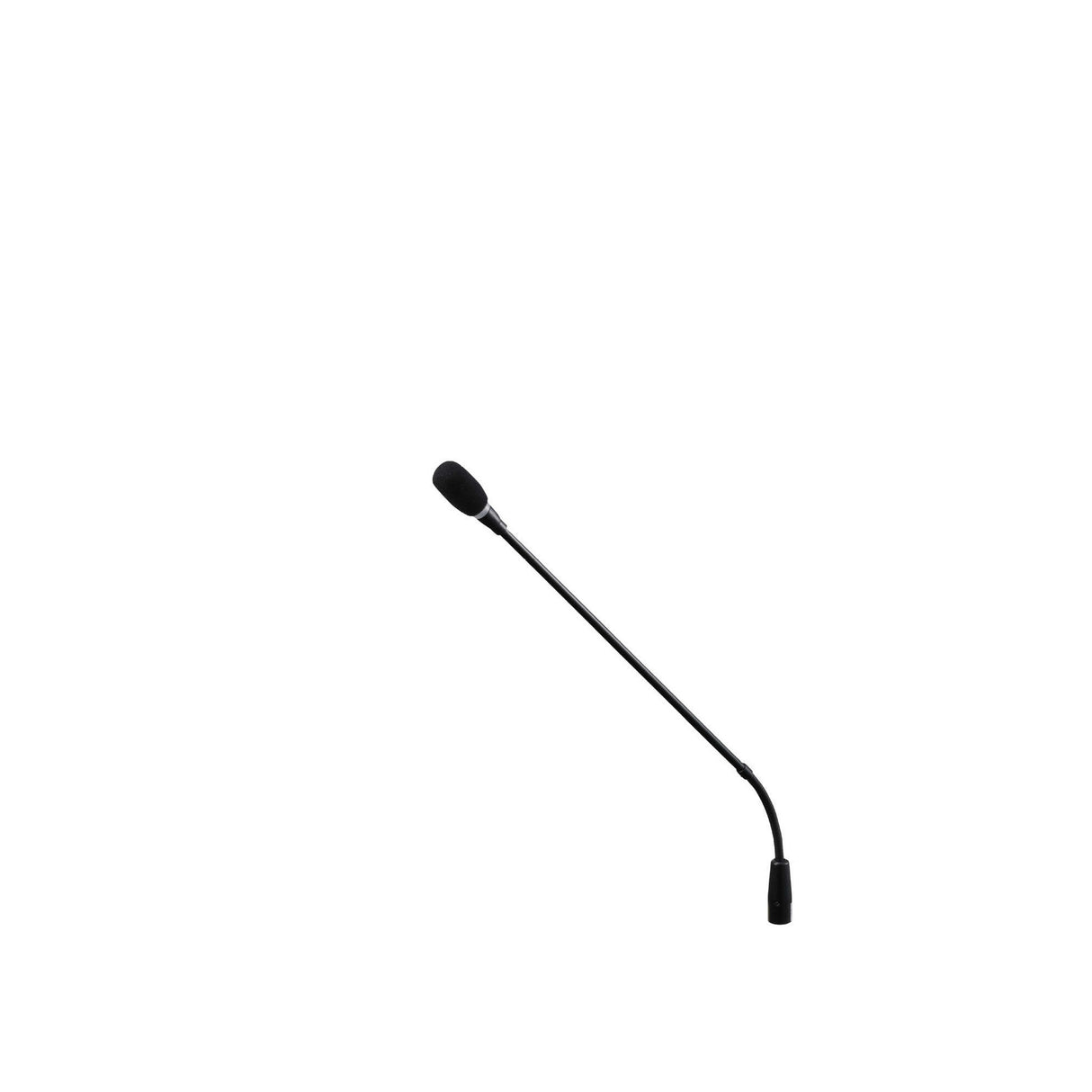

The TOA TS-D1000-M1 and TS-D1000-M2 are electret condenser gooseneck microphones designed for use with TOA Digital Conference System chairman and delegate units. They deliver clear speech reproduction for professional conference, council, and meeting room environments. Both models integrate seamlessly with compatible TOA conference units.

Each microphone features unidirectional pickup for focused voice capture and reduced ambient noise. A red LED speech indicator ring provides clear visual confirmation when the microphone is active. The microphones connect using a combined XLR-3-12C connector for secure and reliable operation.

Built with stainless steel goosenecks and durable black finishes, the TS-D1000-M1 and TS-D1000-M2 are engineered for daily professional use. Two length options allow system designers to select the appropriate microphone height for different seating layouts and room configurations. These microphones are ideal for boardrooms, government chambers, and corporate conference installations.

Key Features

• Electret Condenser Design: Provides clear and intelligible speech reproduction.
• Unidirectional Pickup Pattern: Focuses on the speaker while minimizing background noise.
• Speech Indicator LED: Red LED ring shows microphone active status.
• Professional Gooseneck Construction: Stainless steel gooseneck with durable black finish.

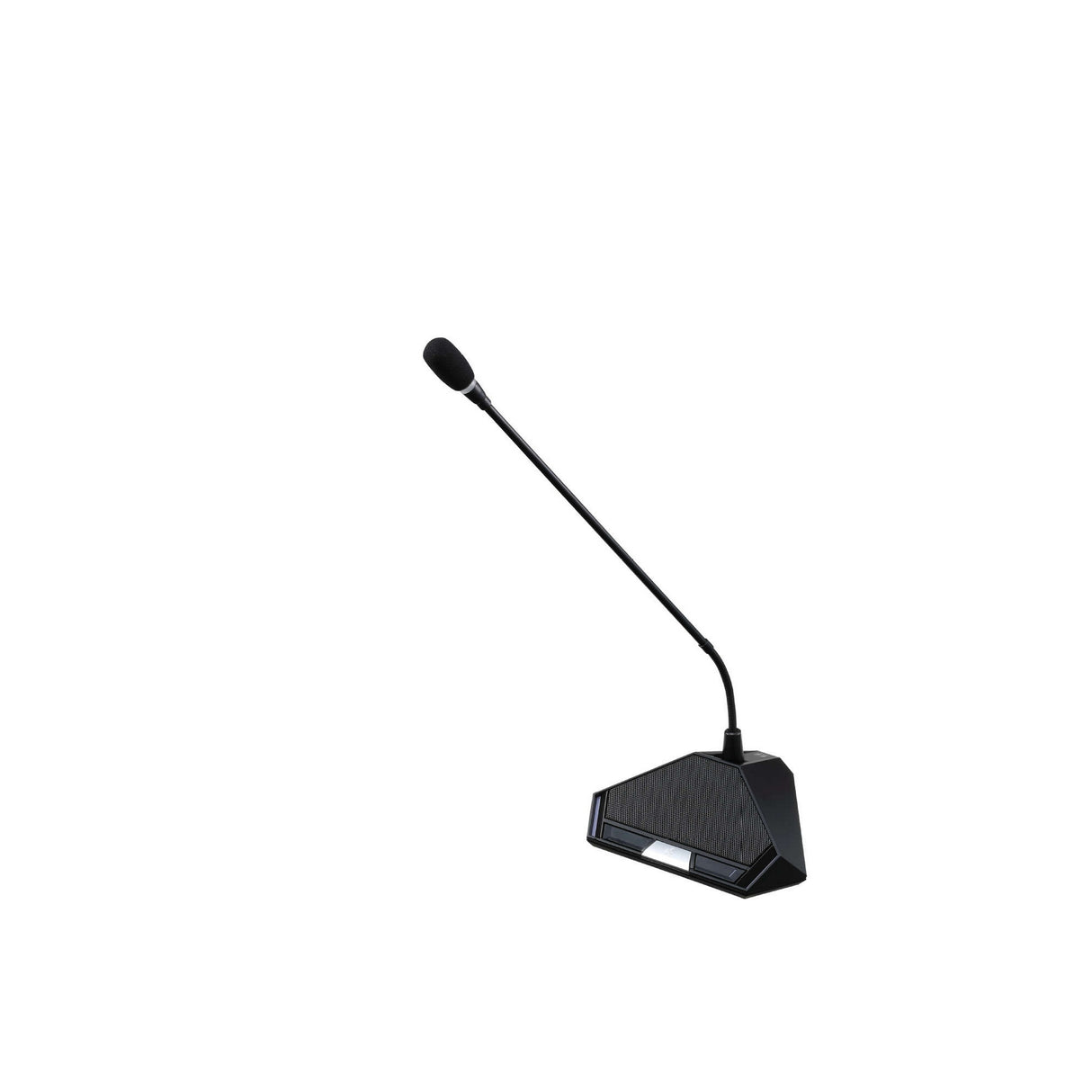

• System Compatibility: Designed for use with TOA TS-D1000 chairman and delegate units.

Technical Specifications

• Microphone Type: Electret condenser microphone
• Directivity: Unidirectional
• Rated Impedance: 1.4 kΩ
• Rated Sensitivity: -37 dB 1 kHz 0 dB = 1 V/Pa
• Frequency Response: 100 Hz - 13 kHz
• Output Connector: Combined connector type of XLR-3-12C
• Applicable Models: TS-D1000-CU chairman unit, TS-D1000-DU delegate unit
