Vaddio ConferenceSHOT AV Bundles with Microphone and Speaker Configurations - Black / Conference Shot AV Speaker / One Ceiling Microphone

Vaddio ConferenceSHOT AV Bundles with Microphone and Speaker Configurations

The Vaddio ConferenceSHOT AV series is a versatile line of professional video conferencing bundles engineered for high-quality AV integration in medium-sized meeting rooms and collaboration spaces. These all-in-one kits feature the powerful ConferenceSHOT AV PTZ camera, known for its crisp 1080p video resolution, 10x optical zoom, and plug-and-play USB 3.0 connectivity. Whether paired with table or ceiling microphones, and with or without an included speaker, each bundle ensures pristine audio and video performance for unified communications platforms like Zoom, Teams, and Google Meet.

These bundles are available in multiple configurations to match specific room layouts and AV requirements. Users can choose between black or white color options, with microphone types (ceiling or table), quantities (one or two), and the inclusion of the ConferenceSHOT AV Speaker. Each bundle delivers streamlined installation via PoE+ and a robust user experience with echo cancellation, wide-angle video capture, and remote control via browser. With flexible combinations, there's a tailored solution for nearly any collaboration environment.

Configuration Variations

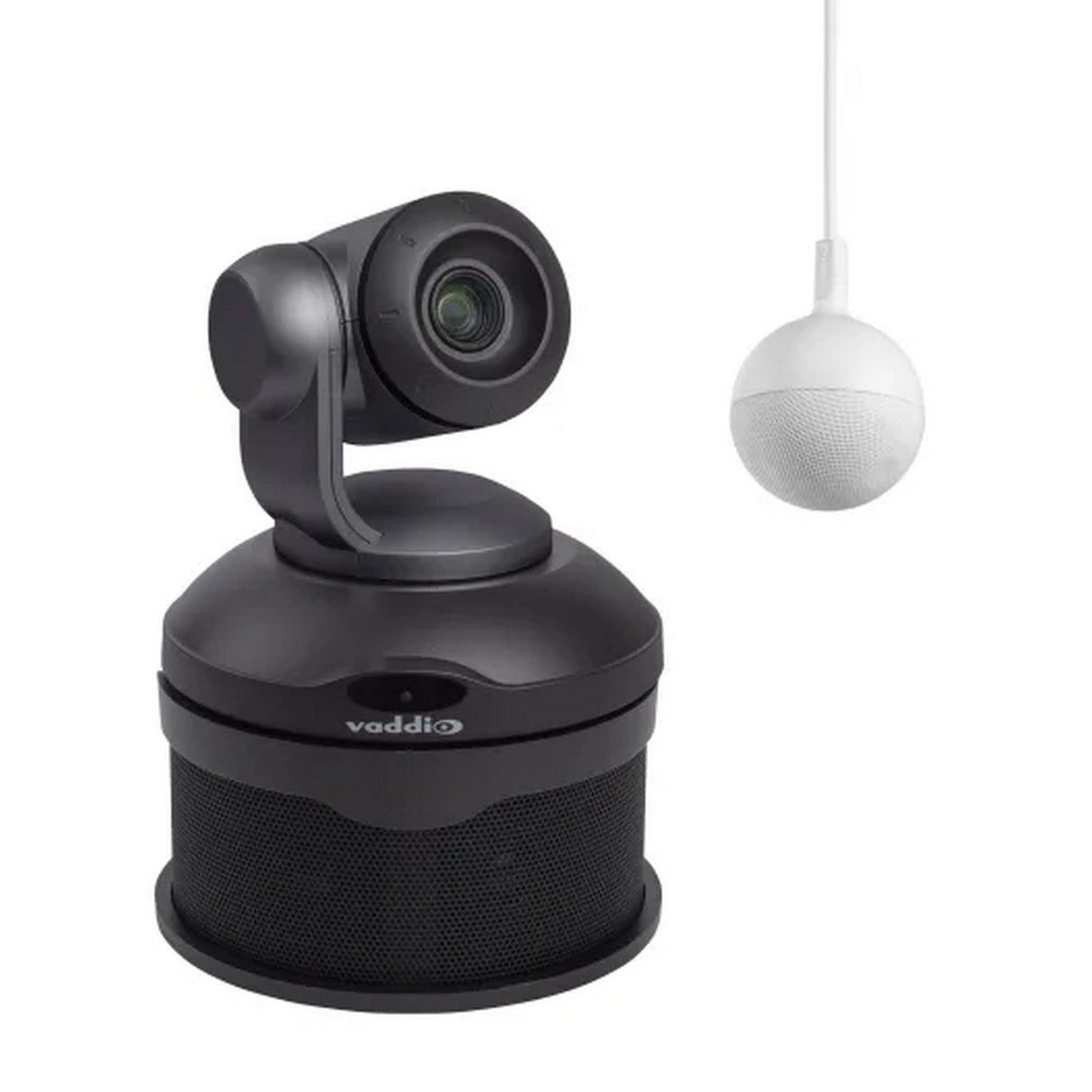

• 999-99950-100B: Black, 1 Ceiling Microphone, Speaker included

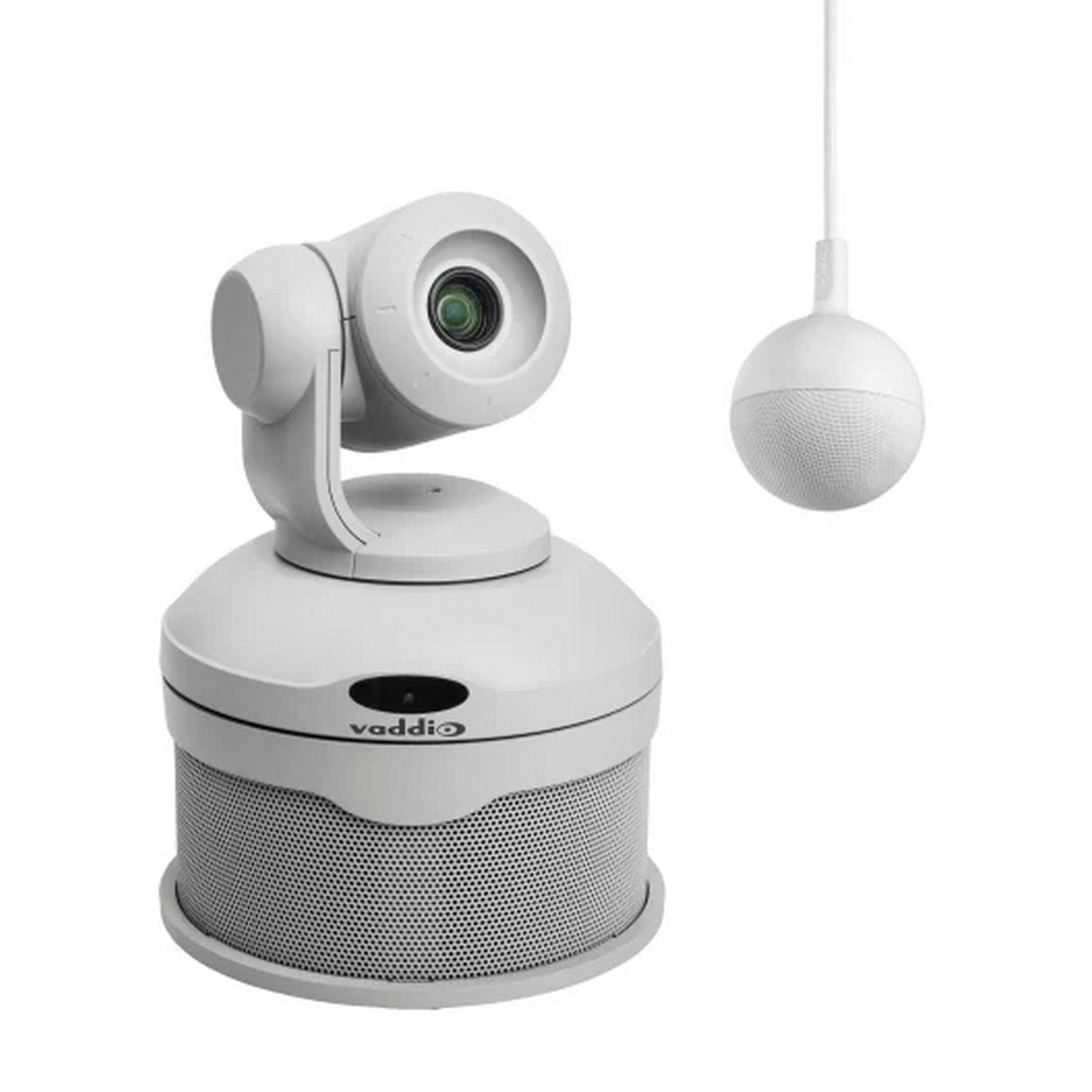

• 999-99950-100W: White, 1 Ceiling Microphone, Speaker included
• 999-99950-200B: Black, 2 Ceiling Microphones, Speaker included
• 999-99950-200W: White, 2 Ceiling Microphones, Speaker included
• 999-99950-300B: Black, 1 Table Microphone, Speaker included
• 999-99950-300W: White, 1 Table Microphone, Speaker included
• 999-99950-400B: Black, 2 Table Microphones, Speaker included
• 999-99950-400W: White, 2 Table Microphones, Speaker included
• 999-99950-500B: Black, 1 Table Microphone, No Speaker
• 999-99950-500W: White, 1 Table Microphone, No Speaker
• 999-99950-600B: Black, 2 Table Microphones, No Speaker
• 999-99950-600W: White, 2 Table Microphones, No Speaker
• 999-99950-700B: Black, 2 Ceiling Microphones, No Speaker
• 999-99950-700W: White, 2 Ceiling Microphones, No Speaker
• 999-99950-800B: Black, 1 Ceiling Microphone, No Speaker
• 999-99950-800W: White, 1 Ceiling Microphone, No Speaker

Key Features

• Integrated PTZ Camera: 10x optical zoom and 74° horizontal field of view for detailed coverage.
• Flexible Audio Options: Choose from one or two CeilingMIC or TableMIC microphones based on room layout.
• Speaker Options: Select models include the ConferenceSHOT AV Speaker for amplified sound.
• Plug-and-Play Compatibility: Works with Microsoft Teams, Zoom, Google Meet, and more.
• PoE+ Support: Simplifies setup by combining power and data over a single Ethernet cable.
• Remote Management: Control camera functions and audio settings via a browser interface.

Technical Specifications

• Camera Dimensions (WxHxD): 6.1" x 6.3" x 5.5"
• Camera Weight: 3.0 lbs
• Image Sensor: 1/2.8" Exmor CMOS, 2.14 Megapixels
• Video Output: USB 3.0, IP Streaming (RTSP, RTMP)
• Pan/Tilt Range: Pan: ±165°, Tilt: +90° to -30°
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Power Supply: PoE+ (802.3at)
• Certifications: CE, FCC, UL Listed, TAA Compliant

What's Included in the Box

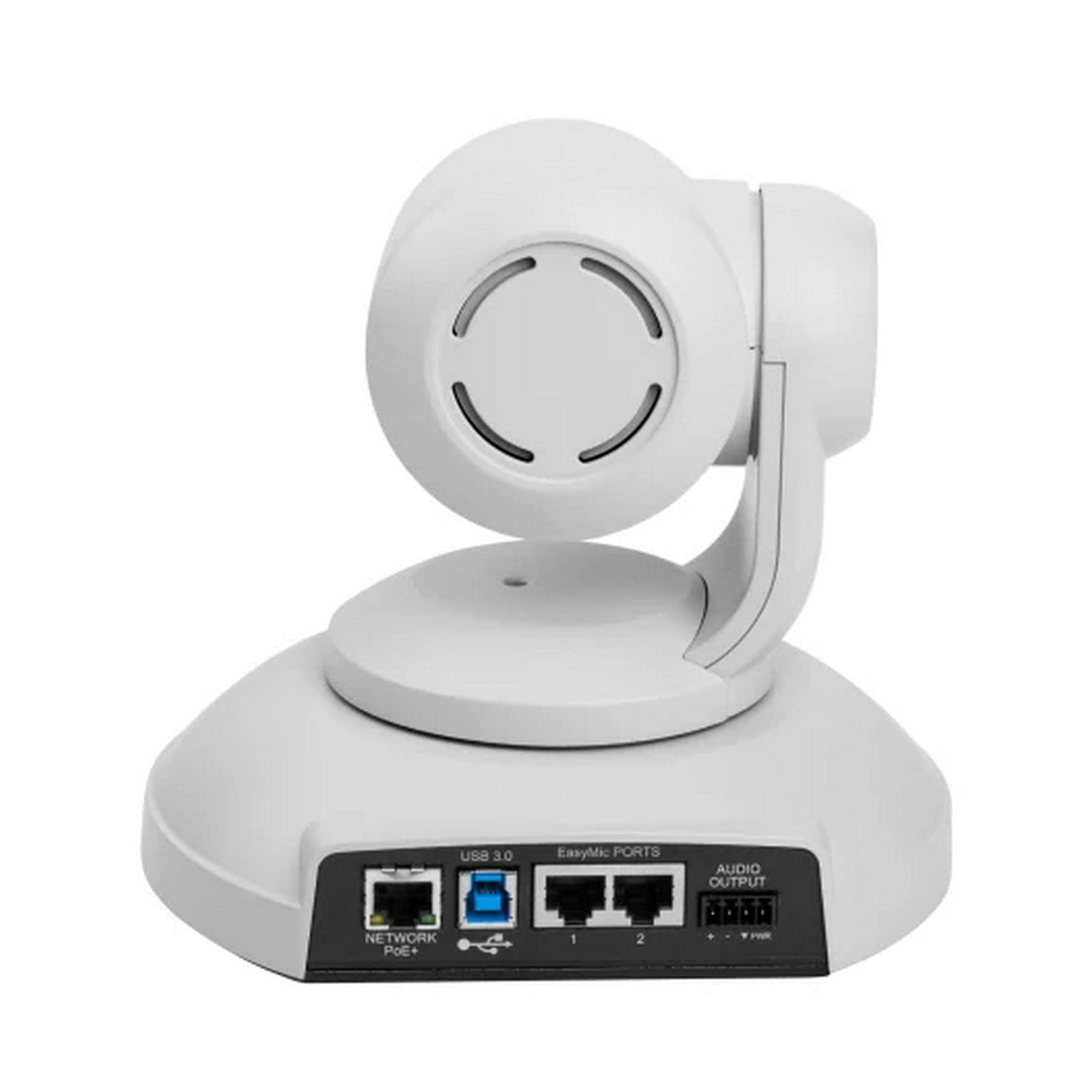

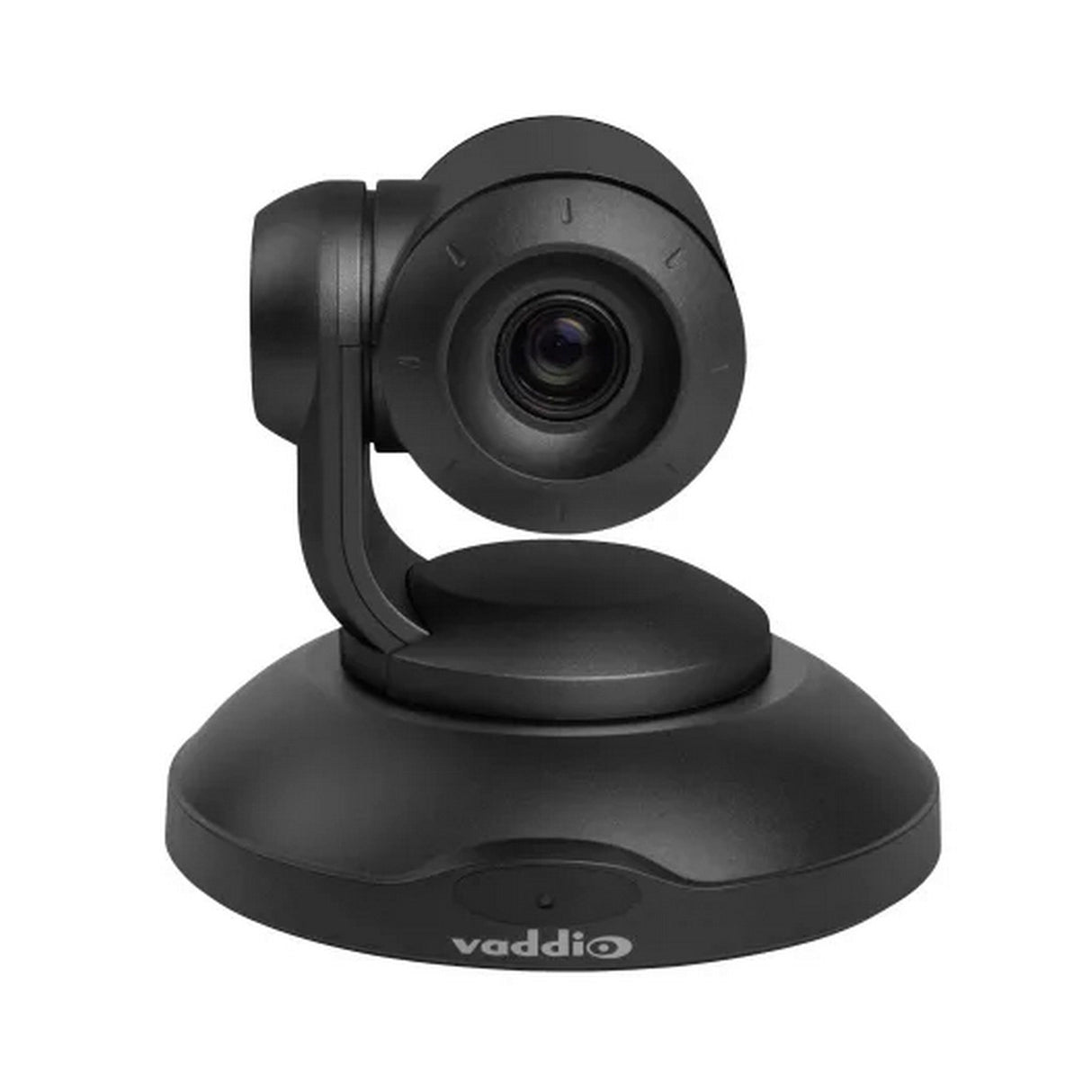

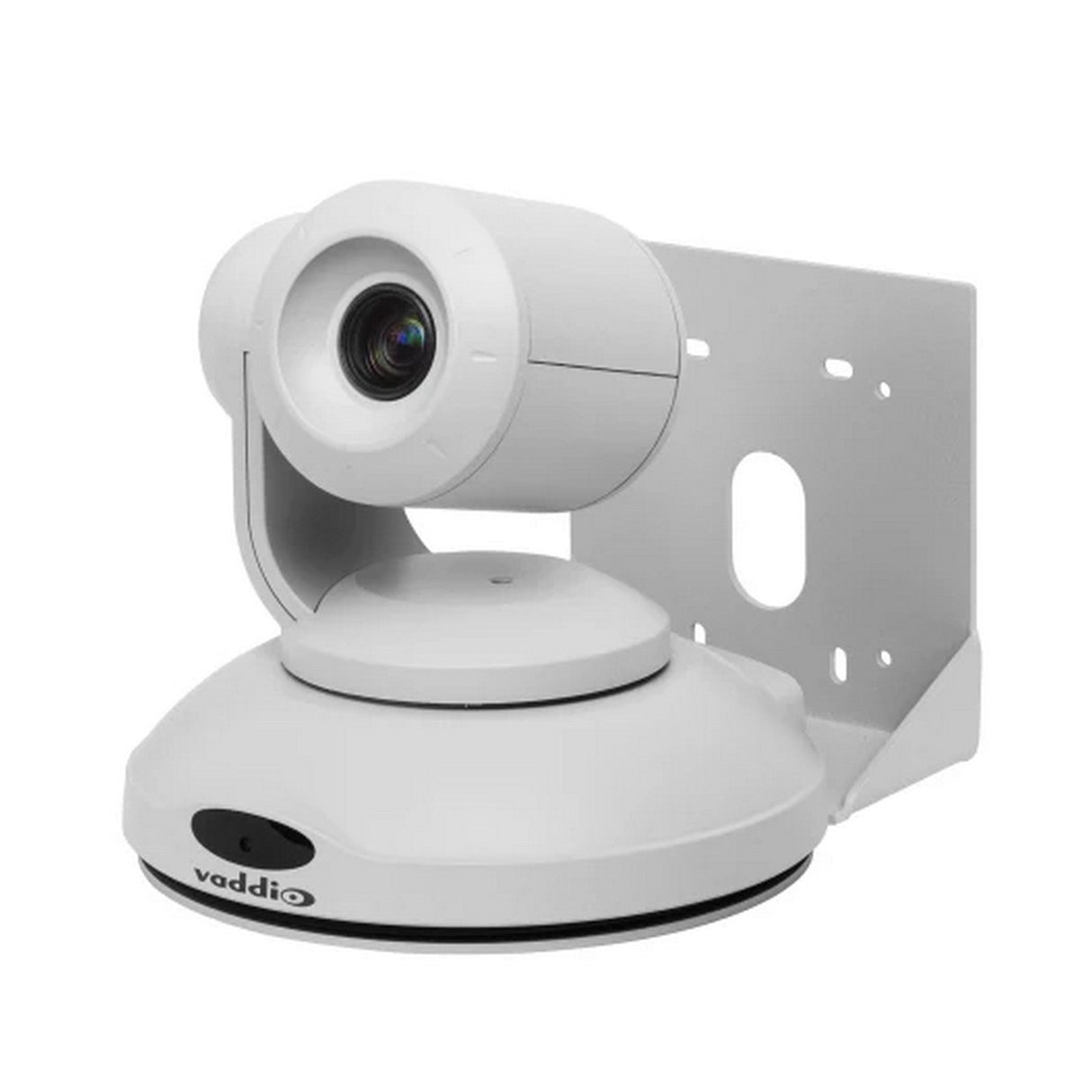

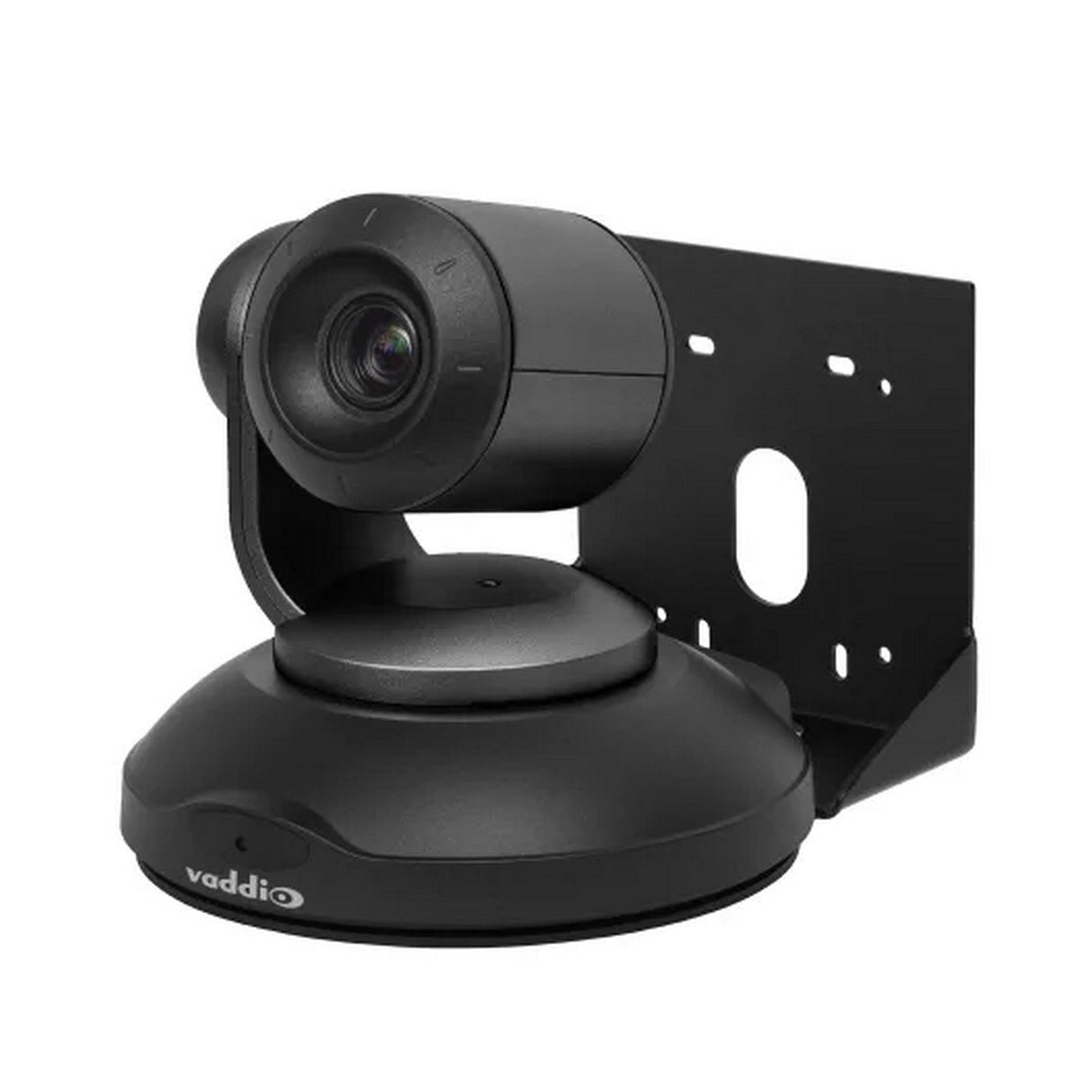

• ConferenceSHOT AV camera (Black or White)

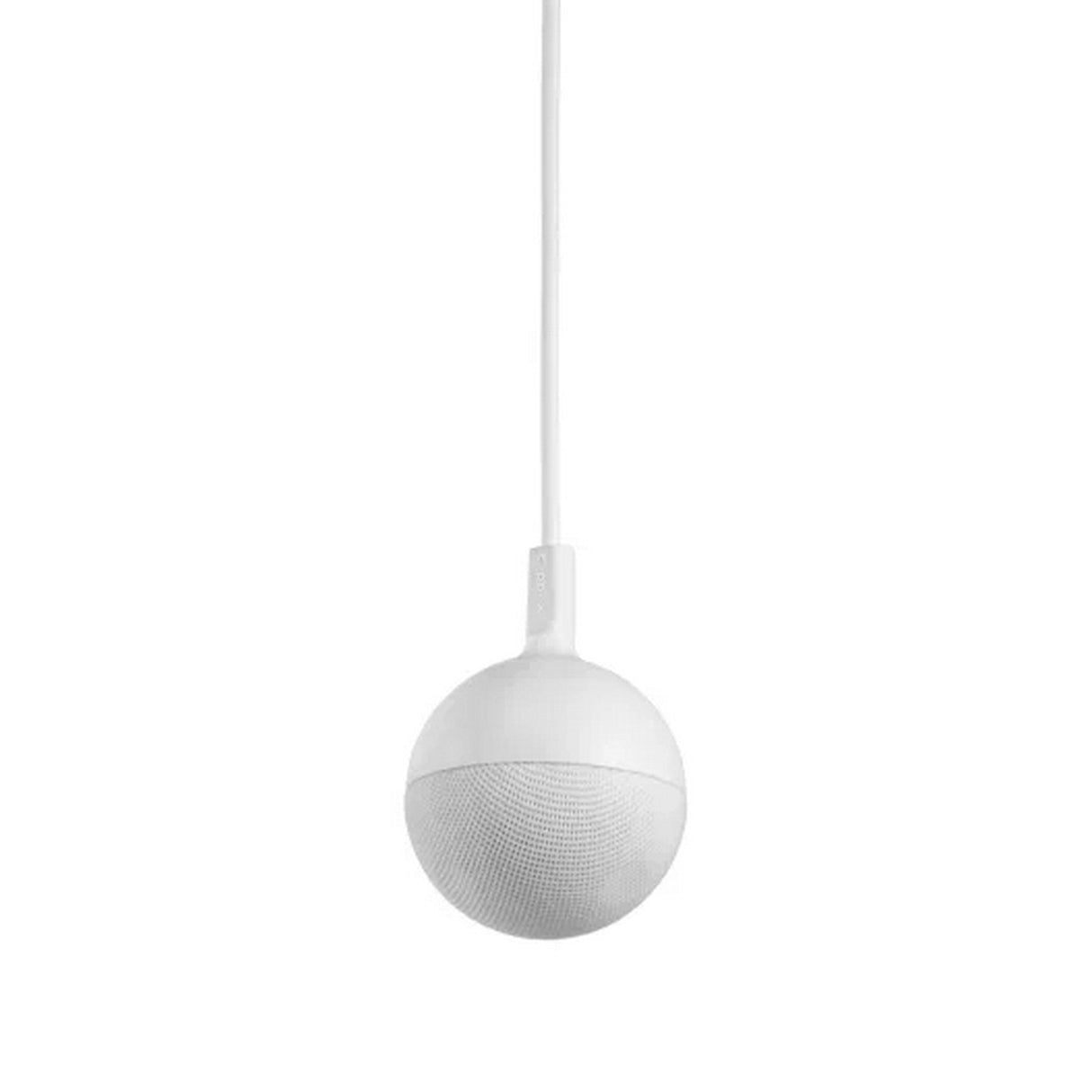

• Microphone(s) – TableMIC or CeilingMIC (Black or White)

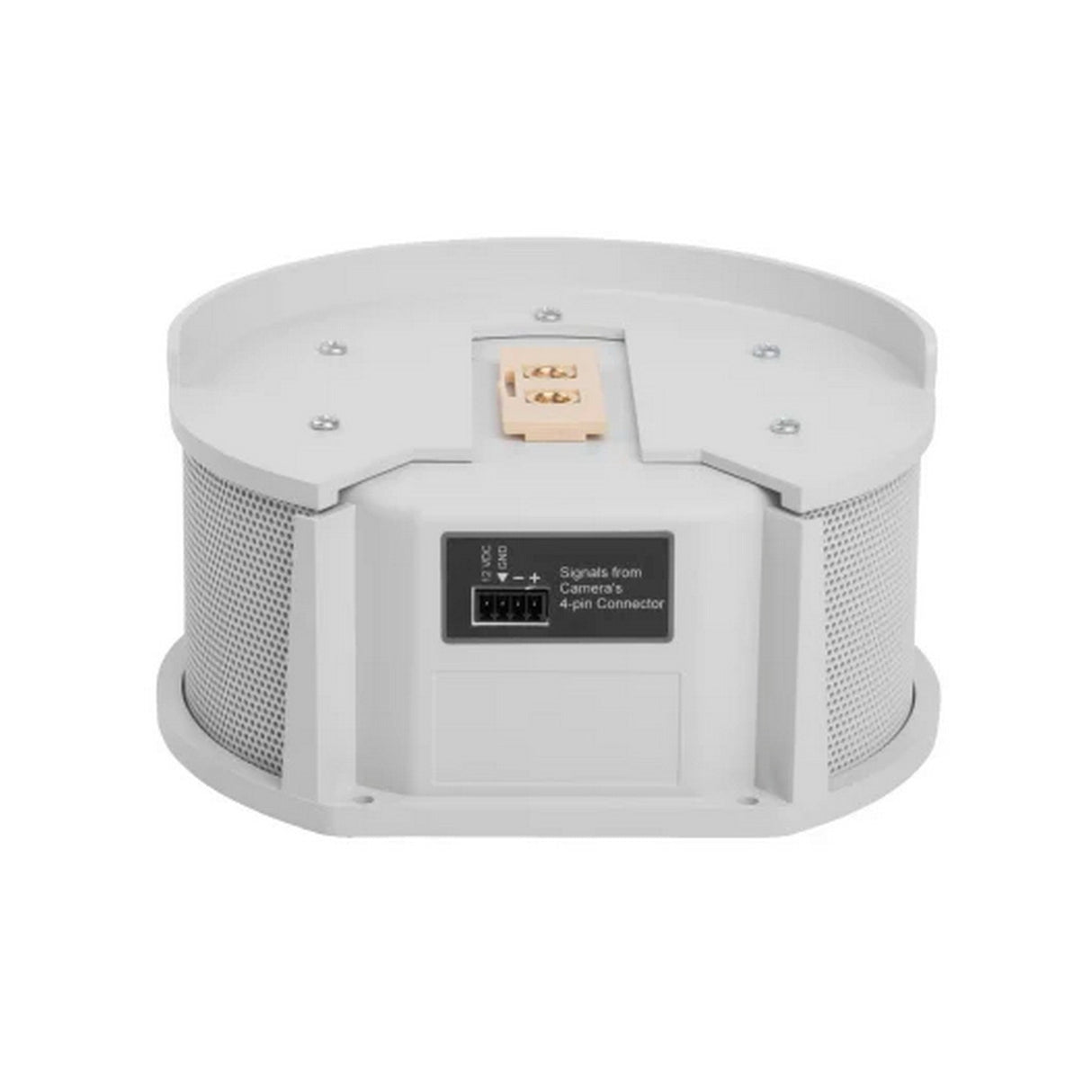

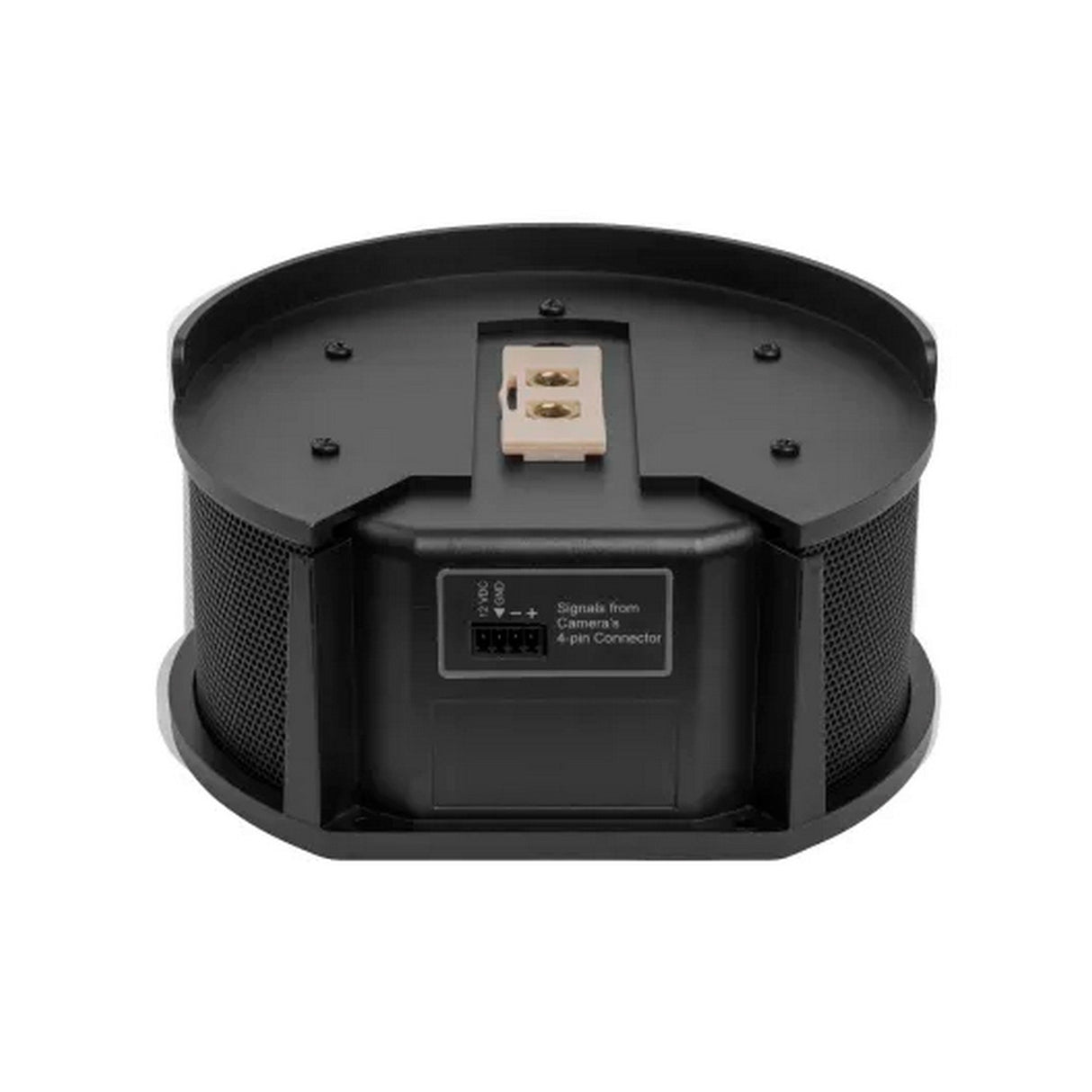

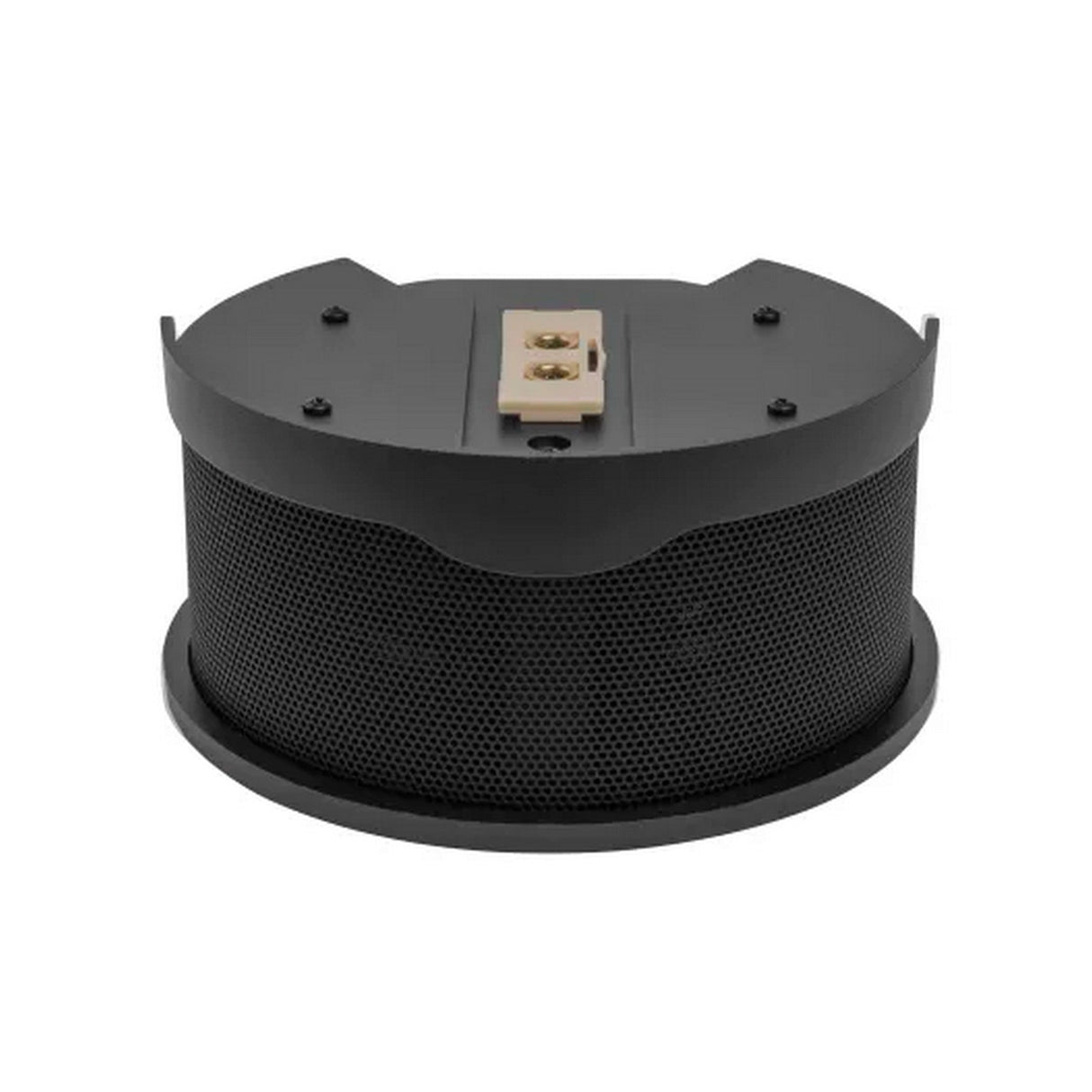

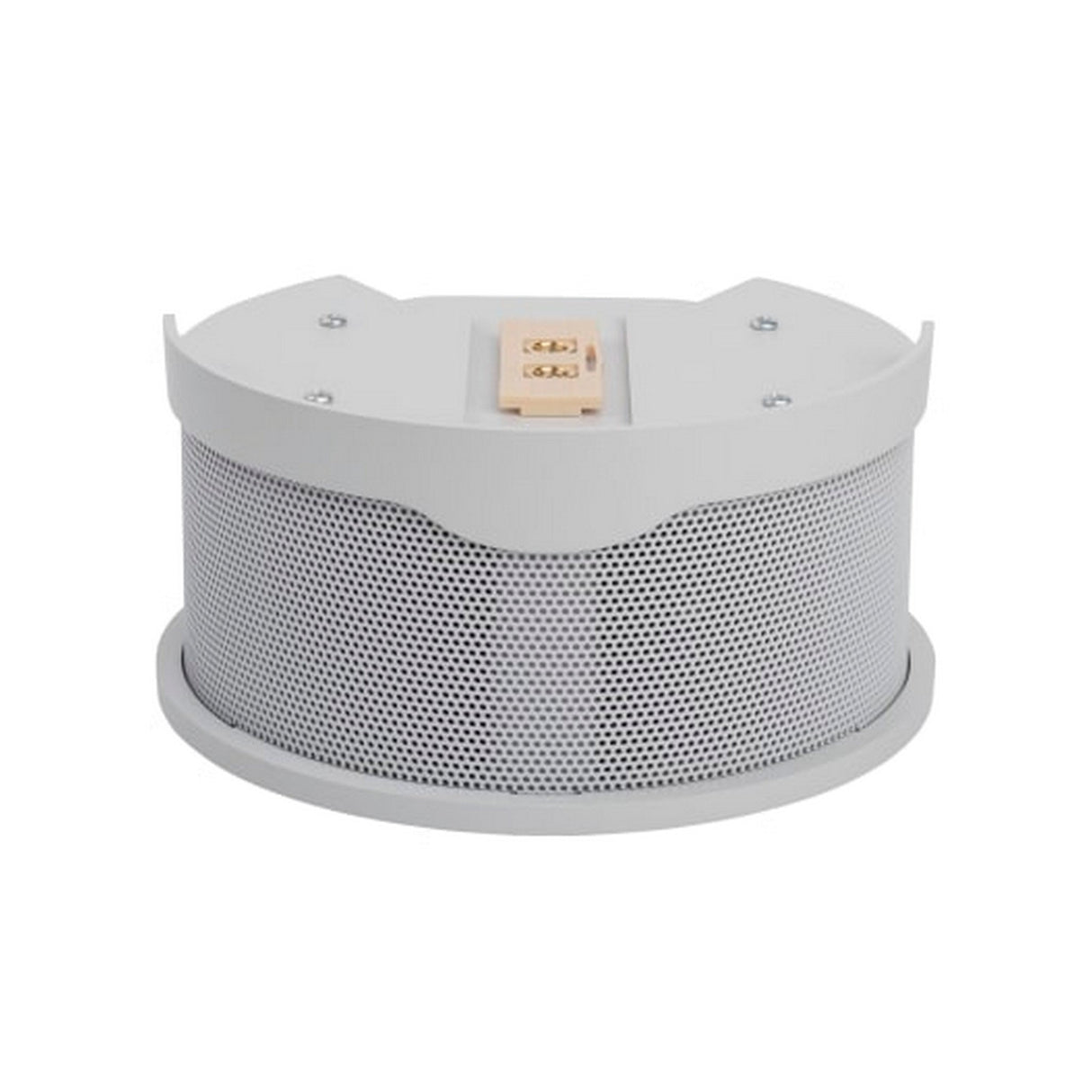

• Optional ConferenceSHOT AV Speaker (Black or White – in select models)
• PoE+ Midspan Power Injector with AC cords

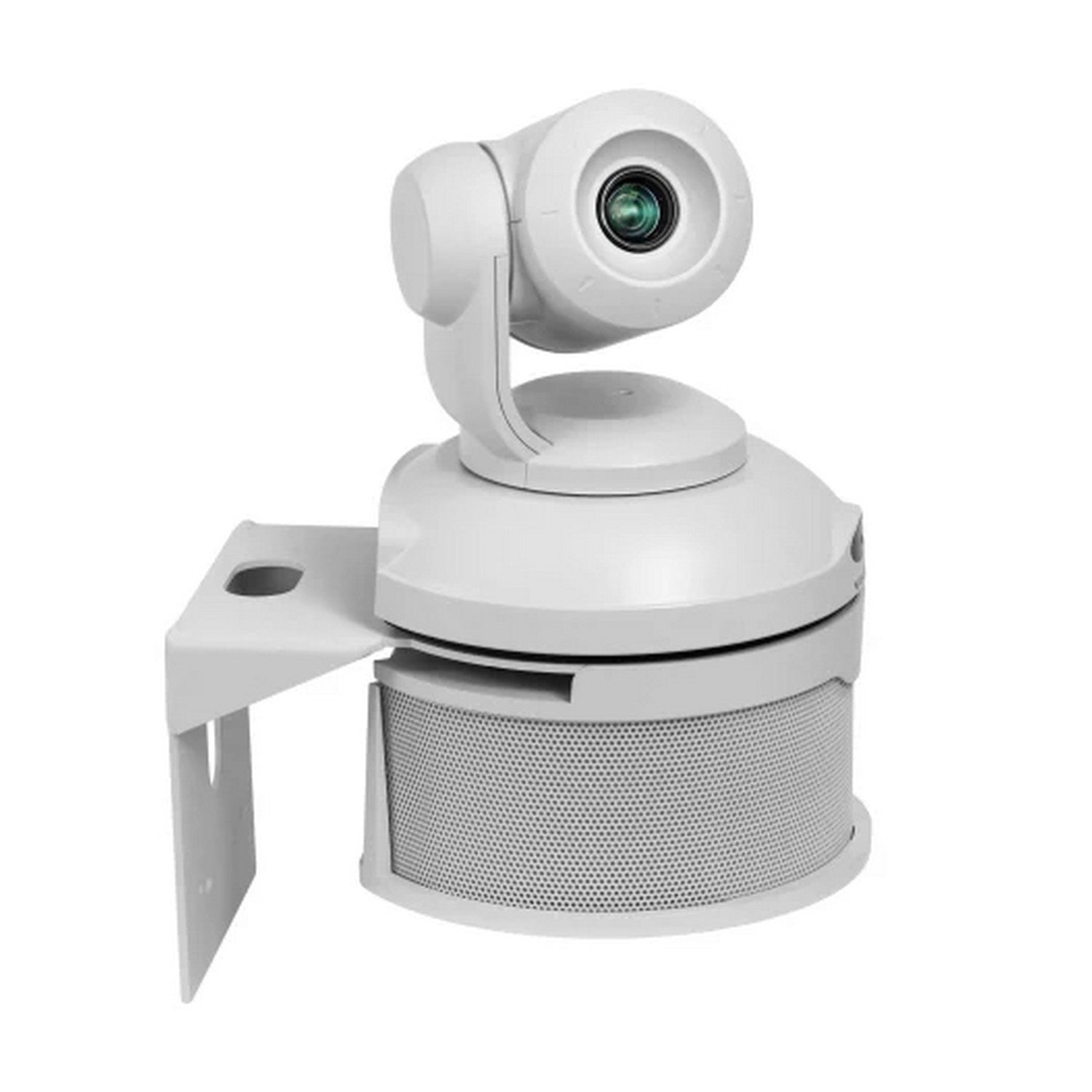

• Wall Mount with installation hardware
• IR Remote Commander

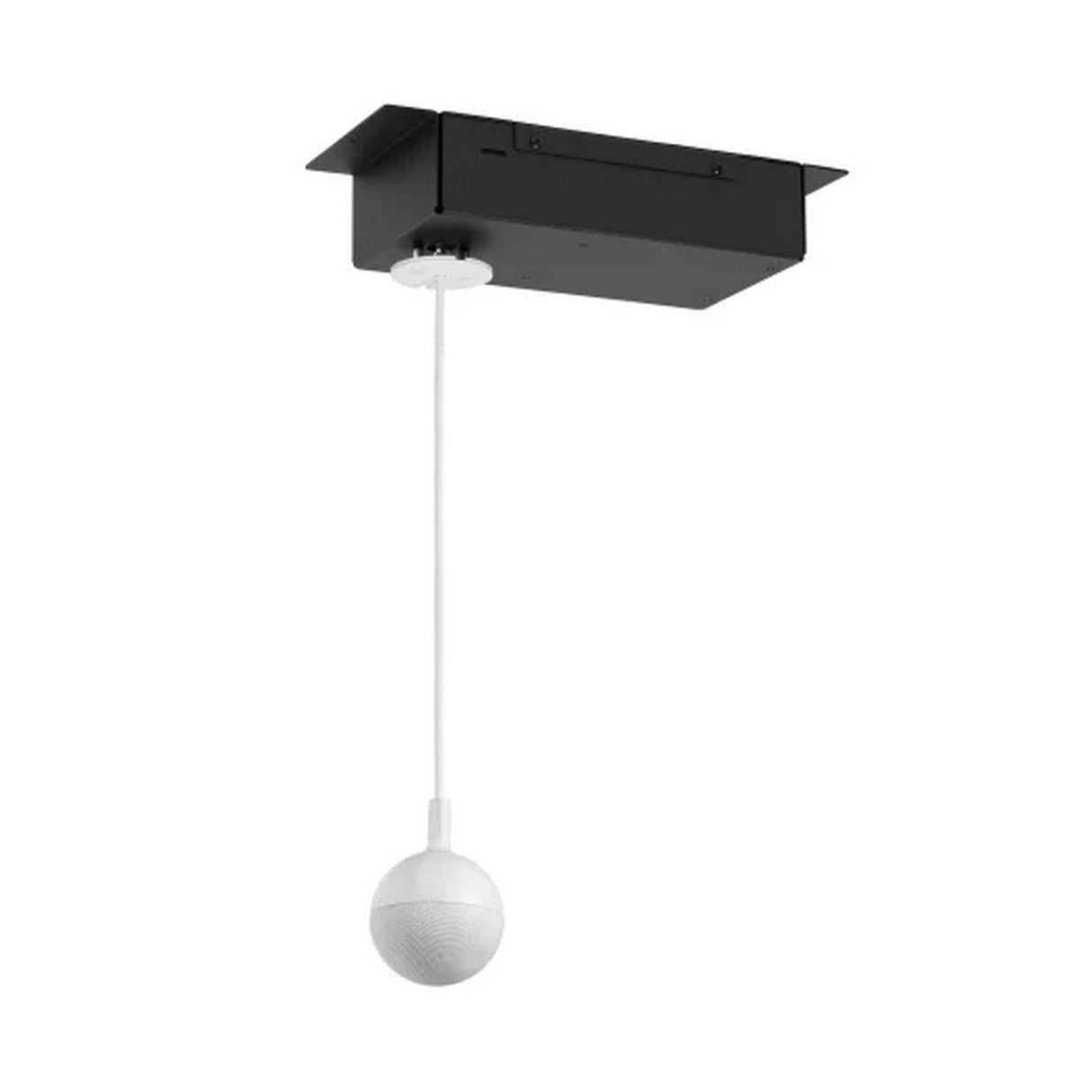

• CeilingMIC interface box (for ceiling mic models)
• Mounting accessories (tile brace, grommet, trim rings, etc.)
• USB 3.0 cable (6 ft)
• Cat-5 cables and connectors
• Documentation: Quick-Start and Installation Guides
