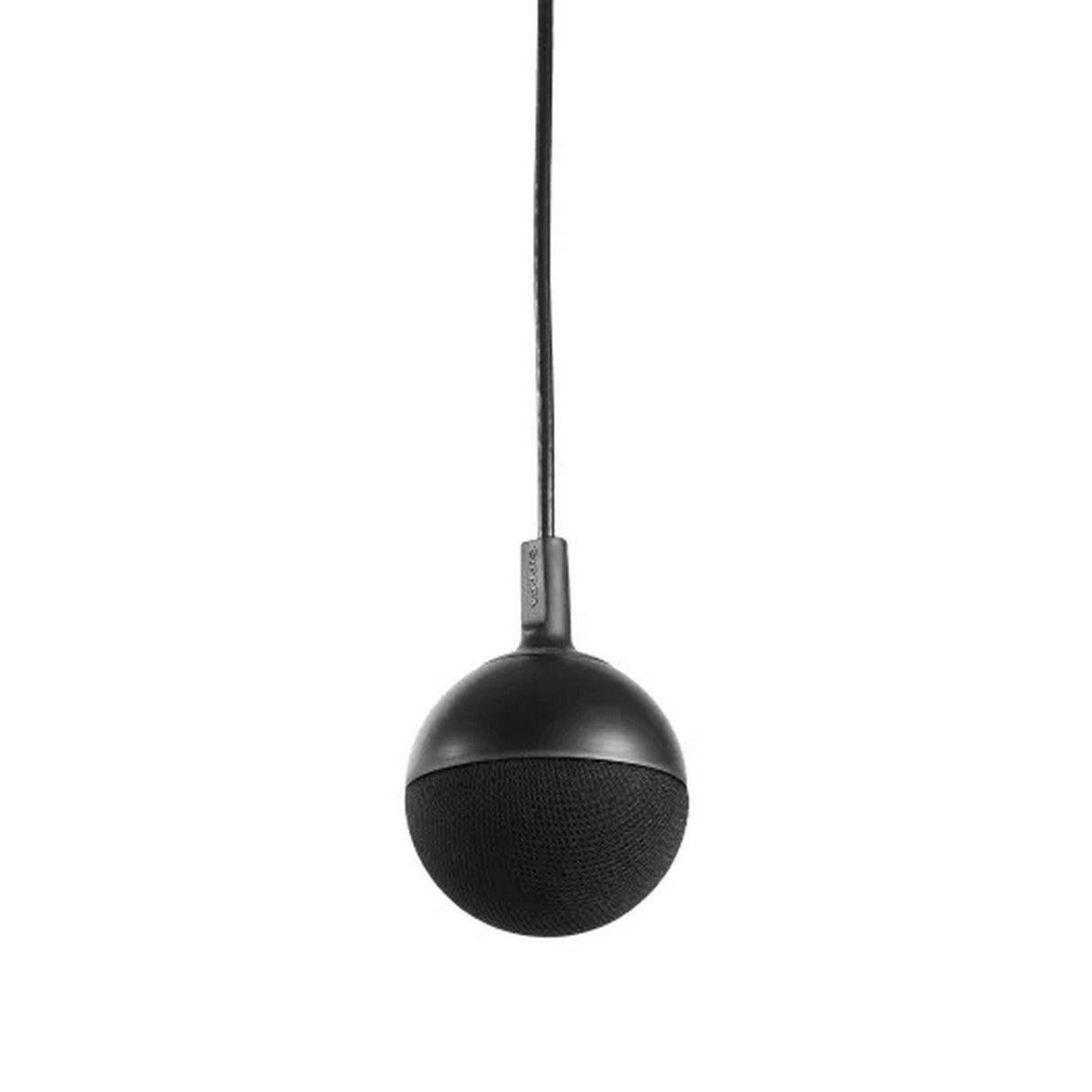

Vaddio EasyIP CeilingMIC D, Dante-Enabled Ceiling Microphone - Black

Vaddio EasyIP CeilingMIC D, Dante-Enabled Ceiling Microphone

High-Performance Dante Ceiling Microphone for Pro AV Integration

The Vaddio EasyIP CeilingMIC D is a professional-grade Dante-enabled ceiling microphone that delivers outstanding 360-degree audio coverage for conference rooms, classrooms, and collaboration spaces. Engineered with a three-element cardioid array, it captures audio from every direction with exceptional clarity. Integrated DSP technologies—such as echo cancellation, automatic gain control (AGC), and equalization—optimize voice pickup for consistent sound performance across various acoustic environments.

Designed to integrate seamlessly into modern AV infrastructures, the CeilingMIC D connects through a single Cat-5e cable for audio, power, and control. It’s fully compatible with Dante networked audio systems, making routing and configuration simple via Dante Controller software. The unobtrusive and stylish design blends into any space, available in both black and white finishes, and is ideal for drop ceiling tiles or exposed beam ceilings in commercial installations.

Key Features

• 360° Audio Coverage: Three cardioid elements ensure clear pickup throughout the room.
• Advanced DSP: Built-in echo cancellation, AGC, filtering, and equalization for optimal performance.
• Dante Audio Integration: Streamlined audio networking and control through Dante Controller.
• Single Cable Design: Uses one Cat-5e cable for power, control, and audio transmission.

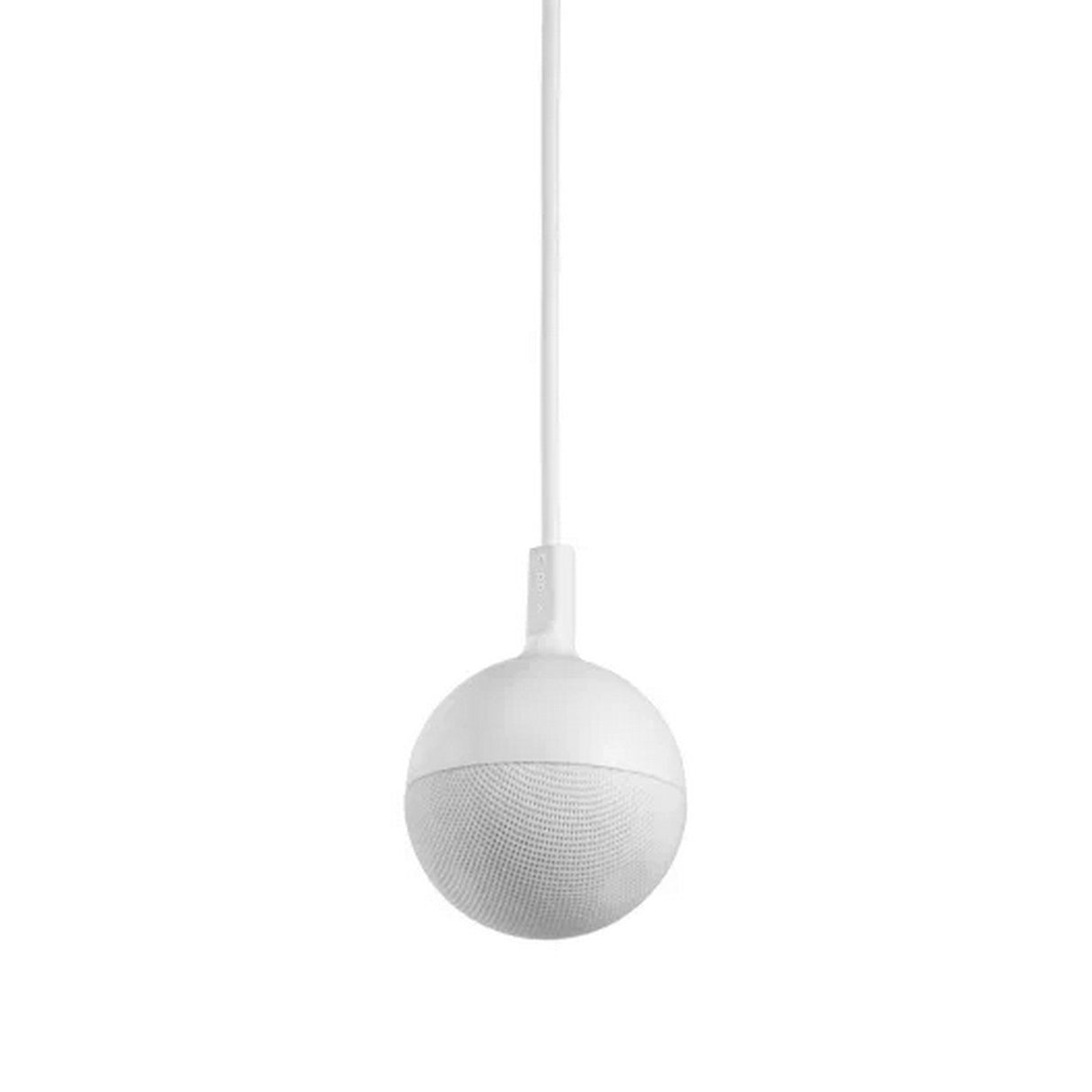

• Modern Aesthetic: Available in black and white with fabric-wrapped finish for a clean look.

Technical Specifications

• Frequency Response: 100 Hz to 16 kHz
• THD + Noise: Less than 0.02%
• Dynamic Range: Greater than 90 dB

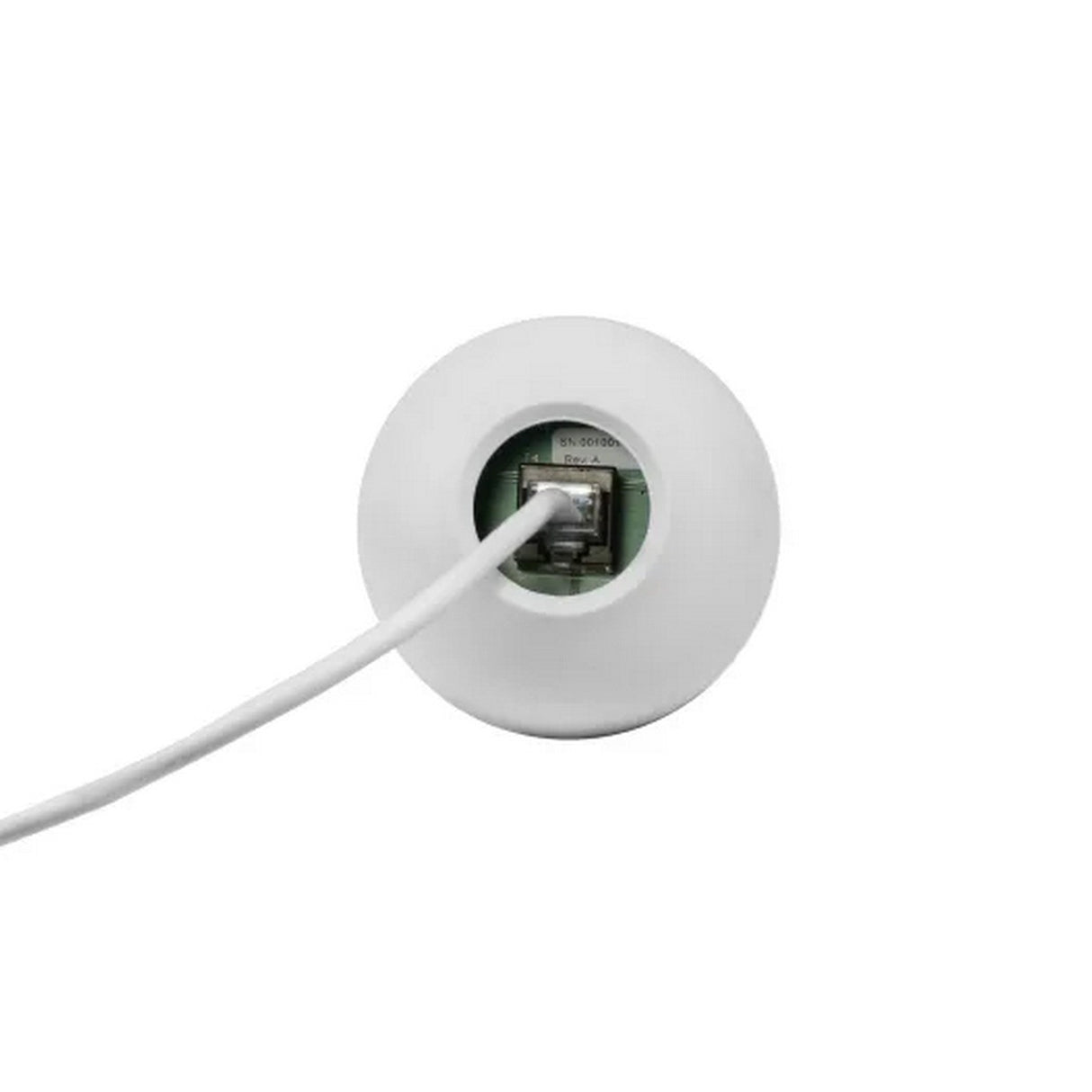

• Microphone Connector: RJ-45
• Maximum Cable Distance: Pendant to interface: 15 ft; Interface to host: 328 ft
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 10% to 80% (non-condensing)
• Power Requirements: PoE 15W max, 2W typical
• Certifications: CE, FCC, TAA Compliant

What's Included in the Box

• EasyIP CeilingMIC D Microphone Pendant

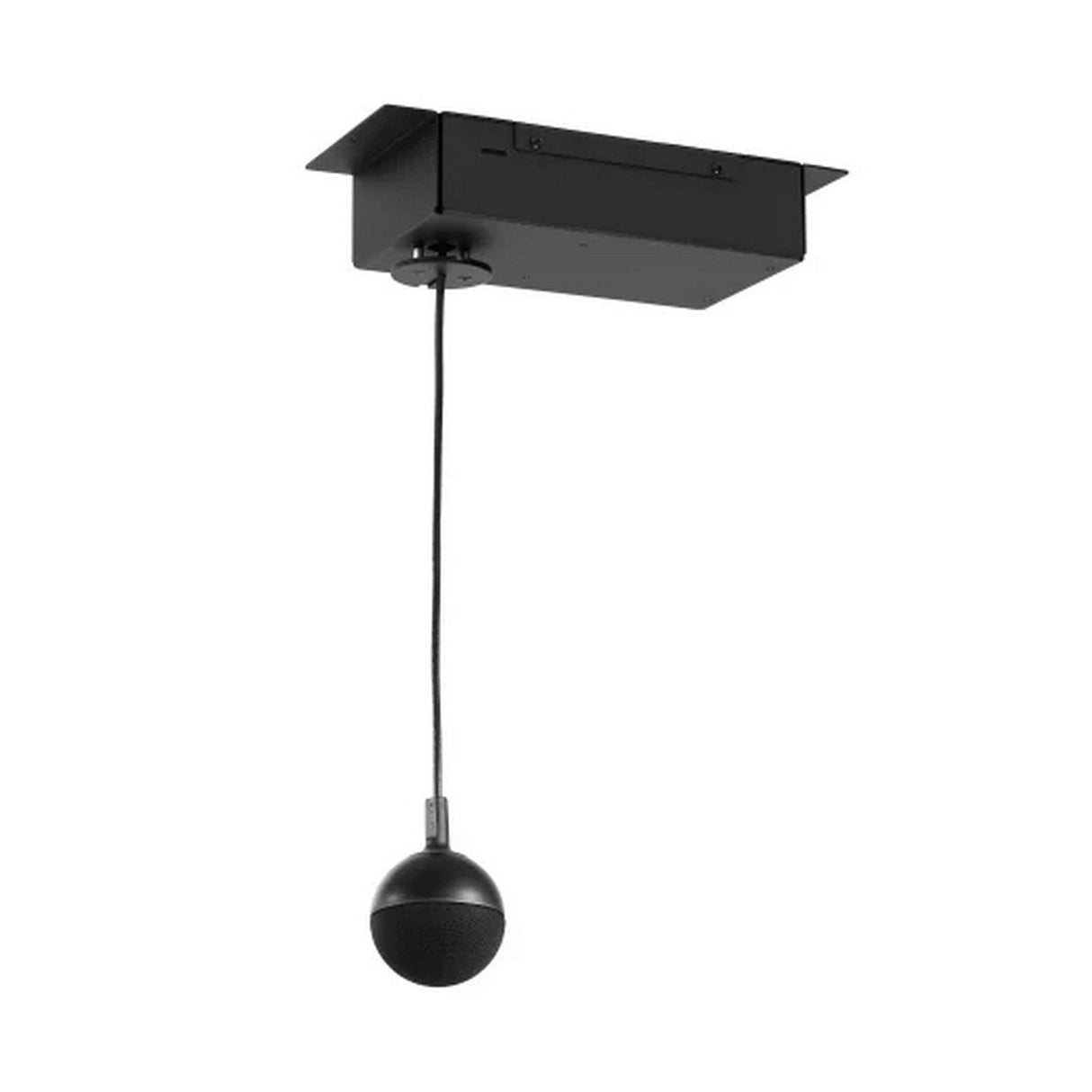

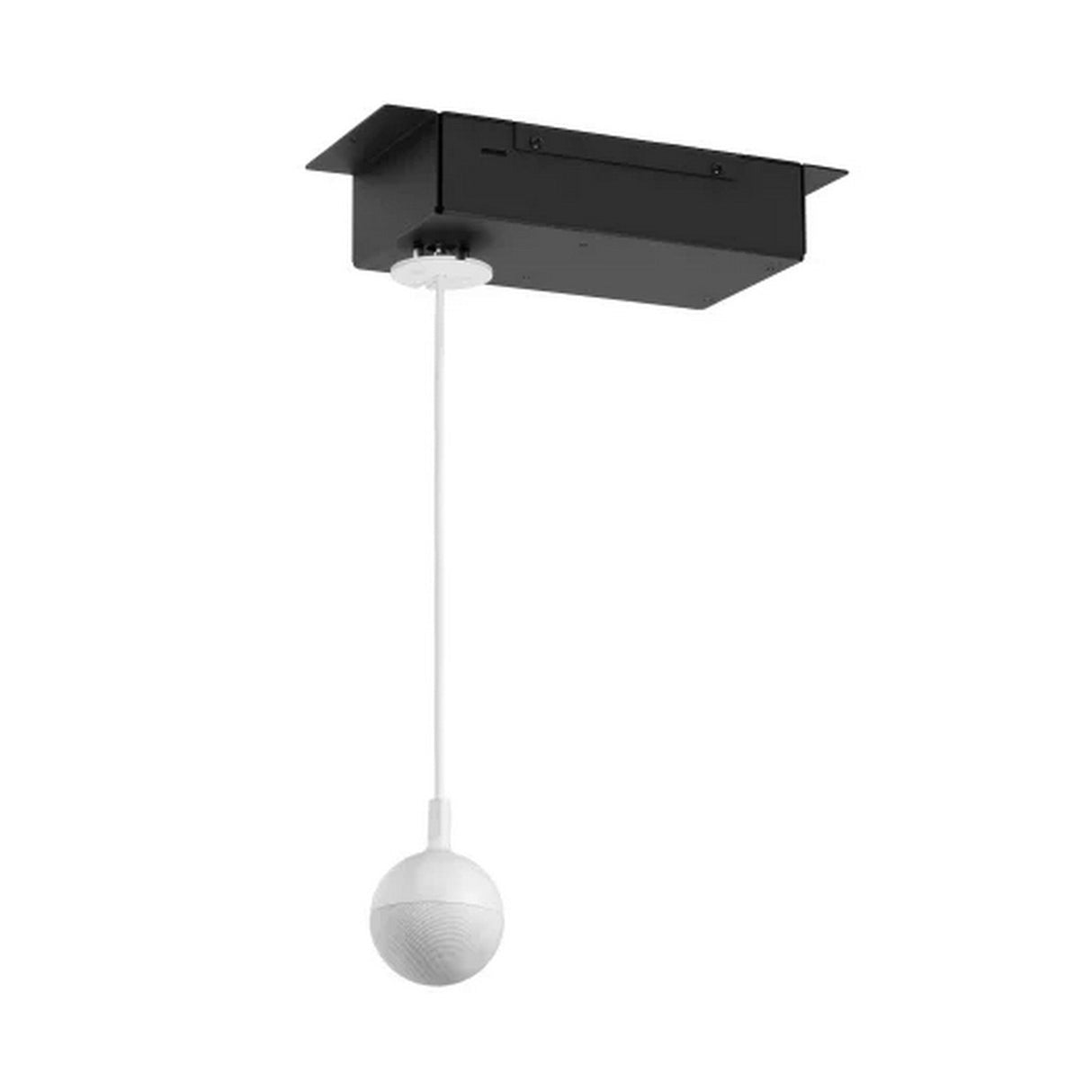

• EasyIP CeilingMIC D Interface Box
• 3 ft (0.9 m) Cat-5e Cable (Black)
• Silicone Split Strain Relief Boot (Black)
• Cable Clamp Grommet
• 2 x Ceiling Trim Ring Plates (Black) with Mounting Screws
• Ceiling Tile Brace
• Quick Start Guide
