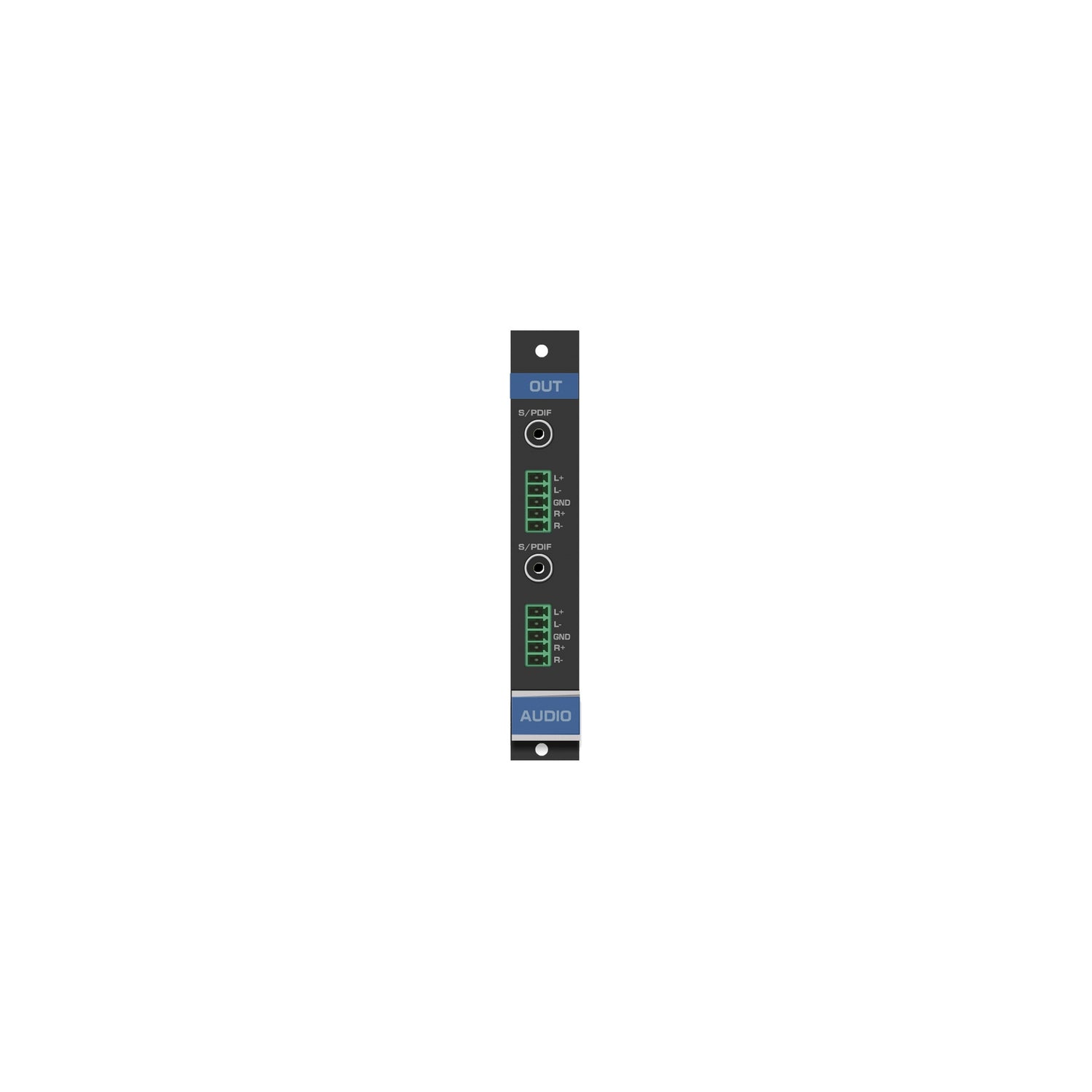

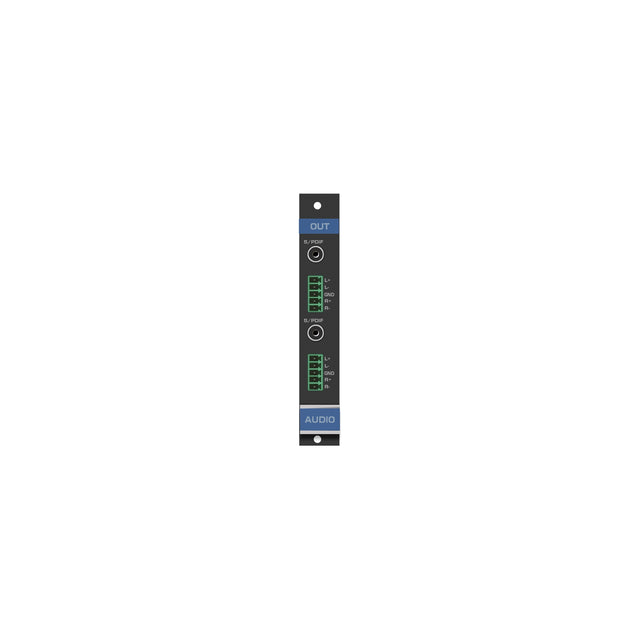

Kramer AAD-OUT2-F16/STANDALONE 2‑Channel Analog and Digital Audio Output Card for Frame 16
The Kramer AAD‑OUT2‑F16 is a two-channel audio output card designed for VS‑1616 modular matrix switcher systems. It delivers both balanced analog and digital (S/PDIF) audio outputs in a compact standalone module, making it ideal for audio routing in broadcast, production, and professional AV environments.
Equipped with 5‑pin terminal‑block connectors for analog and RCA for digital output, the AAD‑OUT2‑F16 supports high‑quality audio distribution with low latency and wide frequency response. It fits into Kramer’s Frame 16 chassis or can be used independently in AV setups.
Key Features
- Analog Outputs: 2 balanced stereo channels via 5‑pin terminal block
- Digital Outputs: 2 S/PDIF channels via RCA connectors
- Bandwidth: Analog > 100 kHz (-3 dB), Digital sample rates 32-192 kHz
- Low Power: 5.8 W consumption
- Robust Design: Compliant with CE, RoHS, WEEE standards
Technical Specifications
- Ports: 2 × S/PDIF RCA, 2 × balanced analog terminal‑block
- Analog Bandwidth: >100 kHz (-3 dB)
- Digital Sample Rates: 32 to 192 kHz
- Power Consumption: 5.8 W
- Operating Temp: 0 °C to +40 °C
- Storage Temp: -40 °C to +70 °C
- Humidity: 10-90 % RH, non‑condensing
- Compliance: CE, RoHS, WEEE
- Weight: 0.4 lb (0.2 kg)
- Dimensions: 7.48″ × 5.12″ × 0.79″ (19.00 × 13.00 × 2.00 cm)
What's Included
- AAD‑OUT2‑F16 standalone audio output card
