Zoom H3-VR Virtual Reality 360 Audio Handy Recorder
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

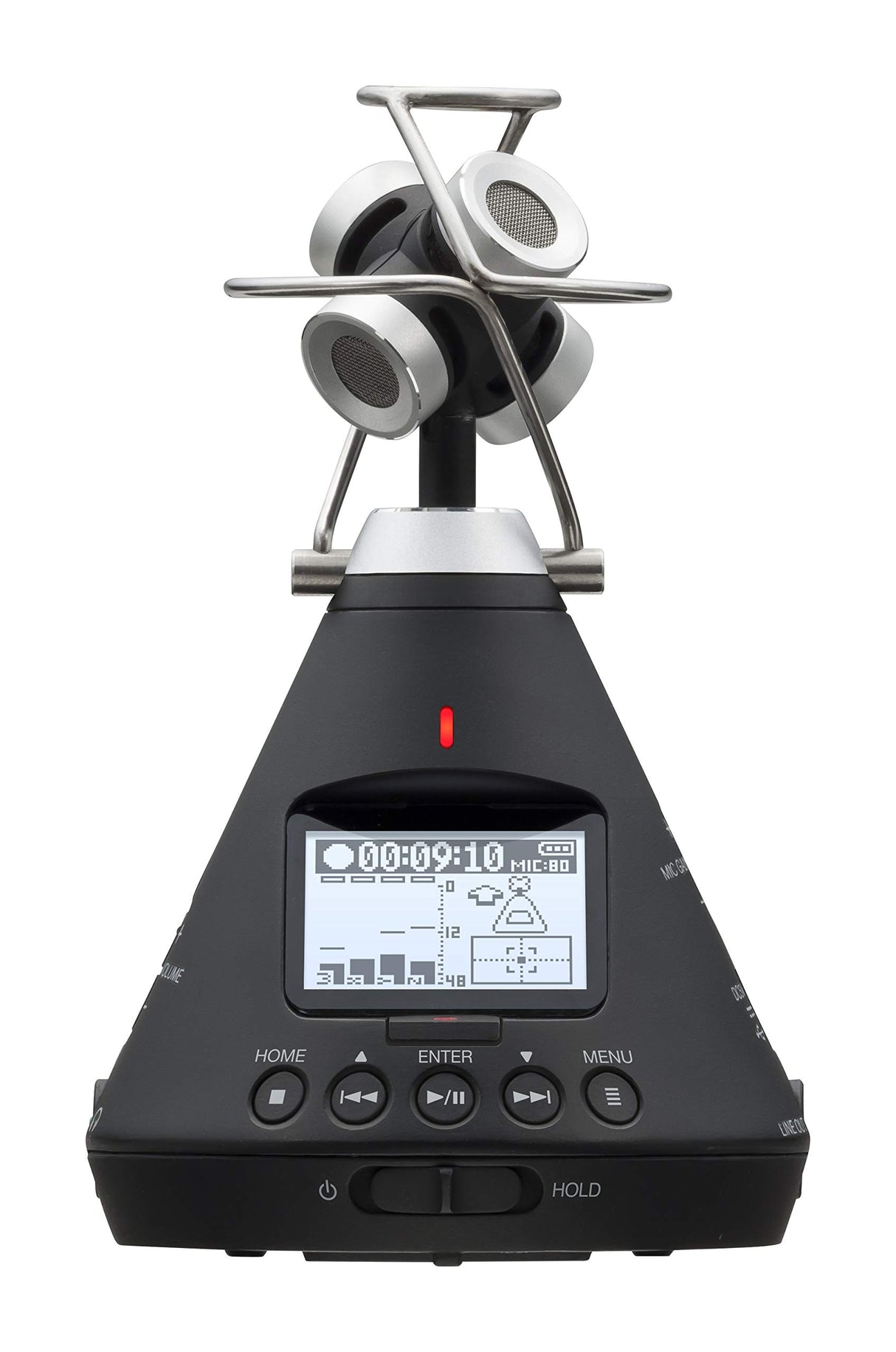

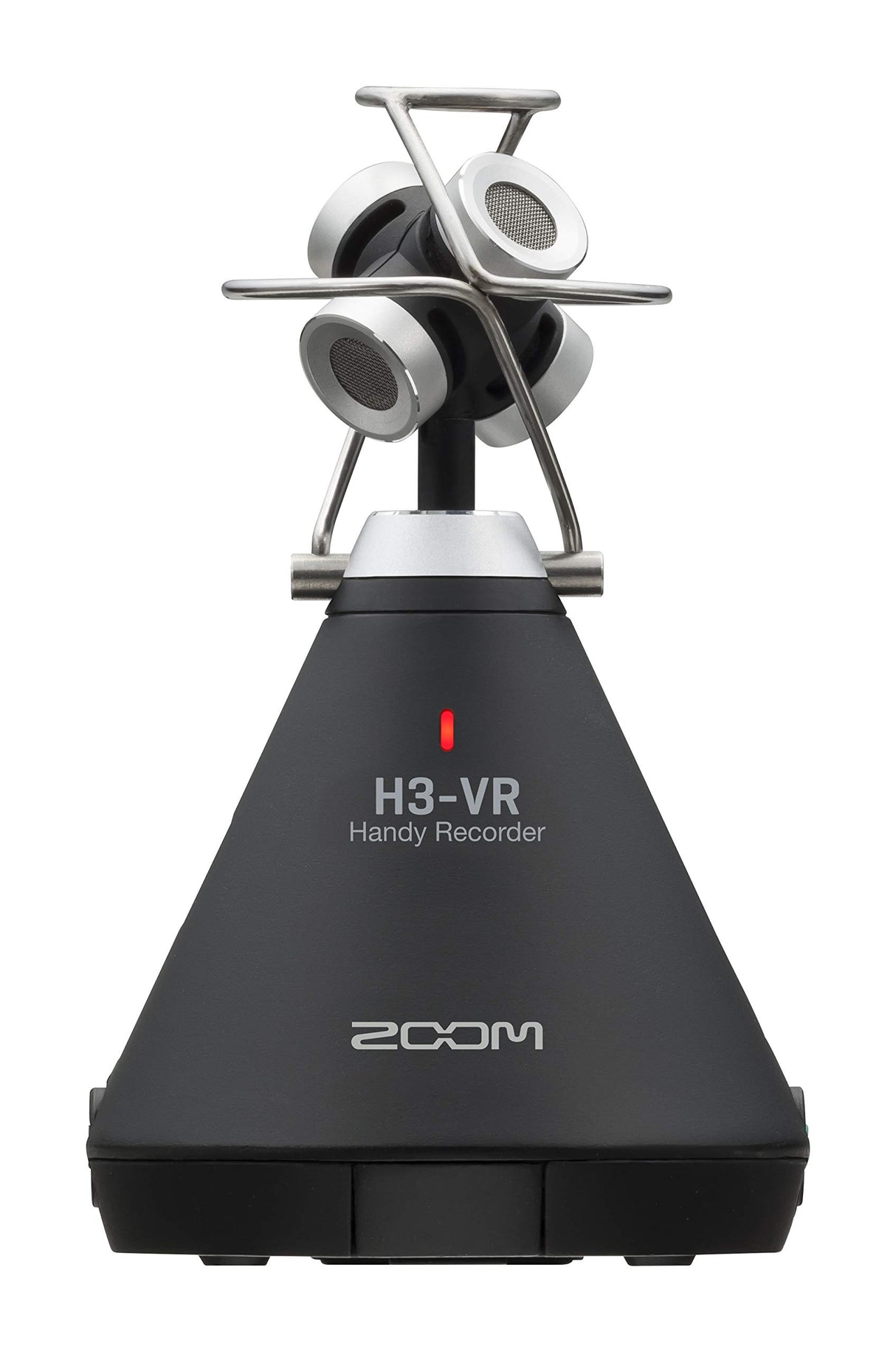

Zoom H3-VR Virtual Reality 360 Audio Handy Recorder
The Zoom H3-VR virtual reality audio recorder is the complete solution for capturing and processing spatial audio for VR, AR and mixed-reality content. With a built-in Ambisonic mic, recorder and decoder, the H3-VR puts 360-audio in the palm of your hand.
Key Features
- 4 built-in mics arranged in an Ambisonic array
- Full-sphere surround sound recording
- Single-knob gain control of all input levels
- Onboard Ambisonics A to B decoding
- Three recording modes: Ambisonics, Stereo Binaural or Standard Stereo
- Record up to 24bit/96kHz
- Stereo binaural monitoring of Ambisonics signal
- Headphone output and line output
- Slate tone
- Extensive metadata
- Auto Mic Position Detection using 6-axis gyroscope (upfront, endfire, upside-down, endfire inverted)
- Level Function to ensure precise angle placement
- Wireless iOS remote control available through the BTA-1 Bluetooth adapter
- Onboard Ambisonics playback with audio rotation
- Accurate internal clock with .5ppm discrepancy
- USB 2.0 Audio Interface Mode
- Zoom PC/Mac post-production software to play, change a direction, and convert to binaural, stereo,and 5.1ch surround file
- Powered by 2 AA batteries or USB bus power
- Records to SD card up to 512GB
Technical Specifications
Recording Media
Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher)
Recording formats
Ambisonics A, Ambisonics B (FuMa/AmbiX)
WAV 4ch poly (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/16-bit, 96 kHz/24-bit
Stereo
WAV stereo (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48kHz/16-bit, 48 kHz/24-bit, 96 kHz/16-bit, 96 kHz/24-bit
Binaural
WAV stereo (supports BWF and iXML): 44.1 kHz/16-bit, 44.1 kHz/24-bit, 48kHz/16-bit, 48 kHz/24-bit
Display
1.25" monochrome LCD (96Ć64)
Motion sensor
6 axes (3-axis gyro, 3-axis acceleration)
Built-in Ambisonic mic
4 matched unidirectional condenser mics
Maximum sound pressure input: 120 dB SPL
Mic gain: +18 +48 dB
LINE OUT
Connector: 3.5 mm stereo mini
Maximum output level: 10 dBu (1 kHz, 10 k load)
PHONE OUT
Connector: 3.5 mm stereo mini
Maximum output level: 20 mW + 20 mW (into 32 load)
USB
Connector: microUSB
Mass storage operation
USB 2.0 High Speed
Audio interface operation
2 in/2 out (stereo/binaural input), USB 2.0 Full Speed
44.1 kHz/16-bit, 48 kHz/16-bit
4 in/2 out ( Ambisonics A/FuMa/AmbiX input), USB 2.0 High Speed
44.1 kHz/24-bit, 48 kHz/24-bit
Power
2 AA batteries (alkaline, rechargeable NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A (supports USB bus power)
Estimated continuous recording time using batteries
48 kHz/24-bit, FuMa Rec Mode
Alkaline batteries: about 11.5 hours
NiMH batteries (1900 mAh): about 11.5 hours
Lithium batteries: about 24 hours
The above values are approximate.
Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
External dimensions
76 mm (W) Ć 78 mm (D) Ć 123 mm (H)
Weight (main unit only)
120 g
