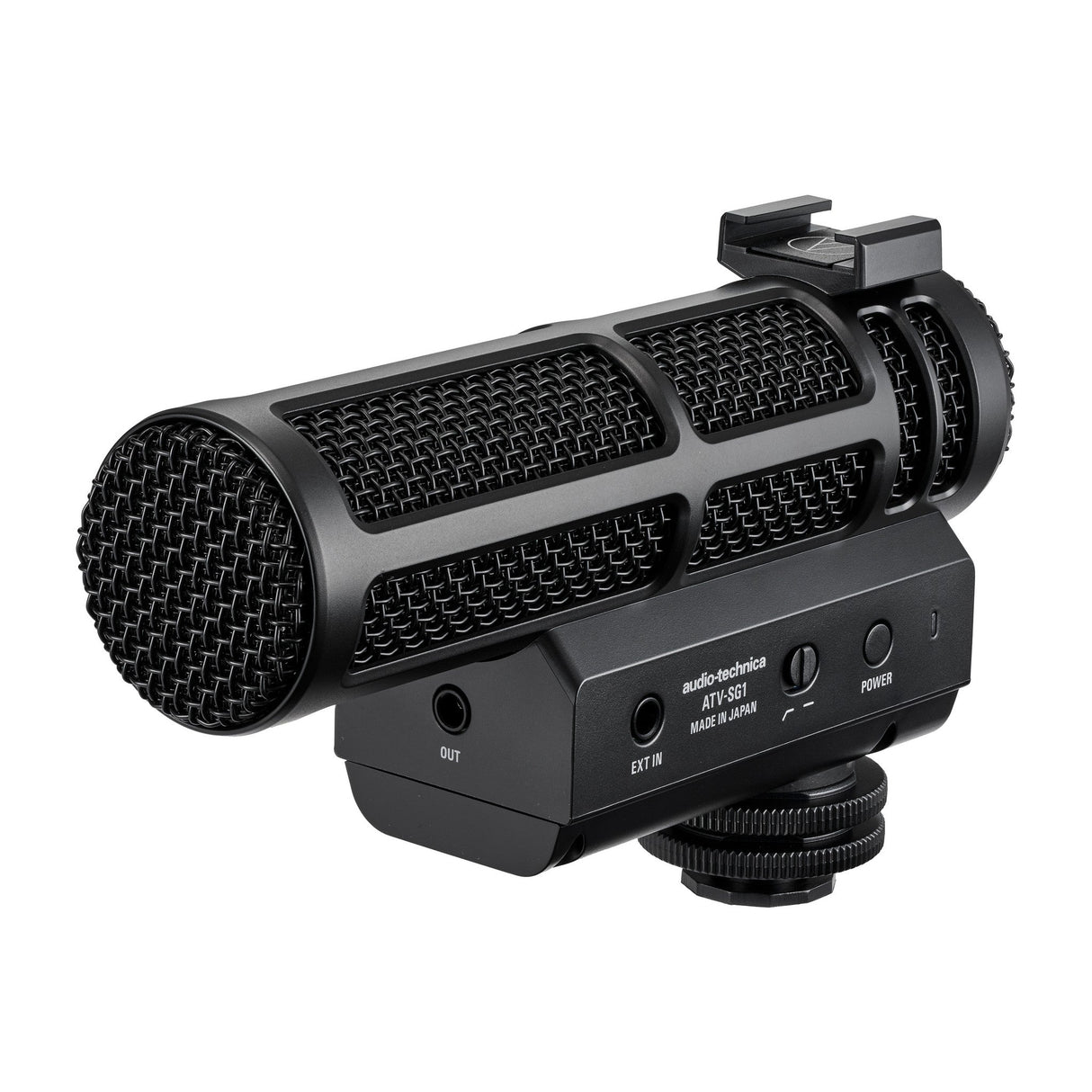

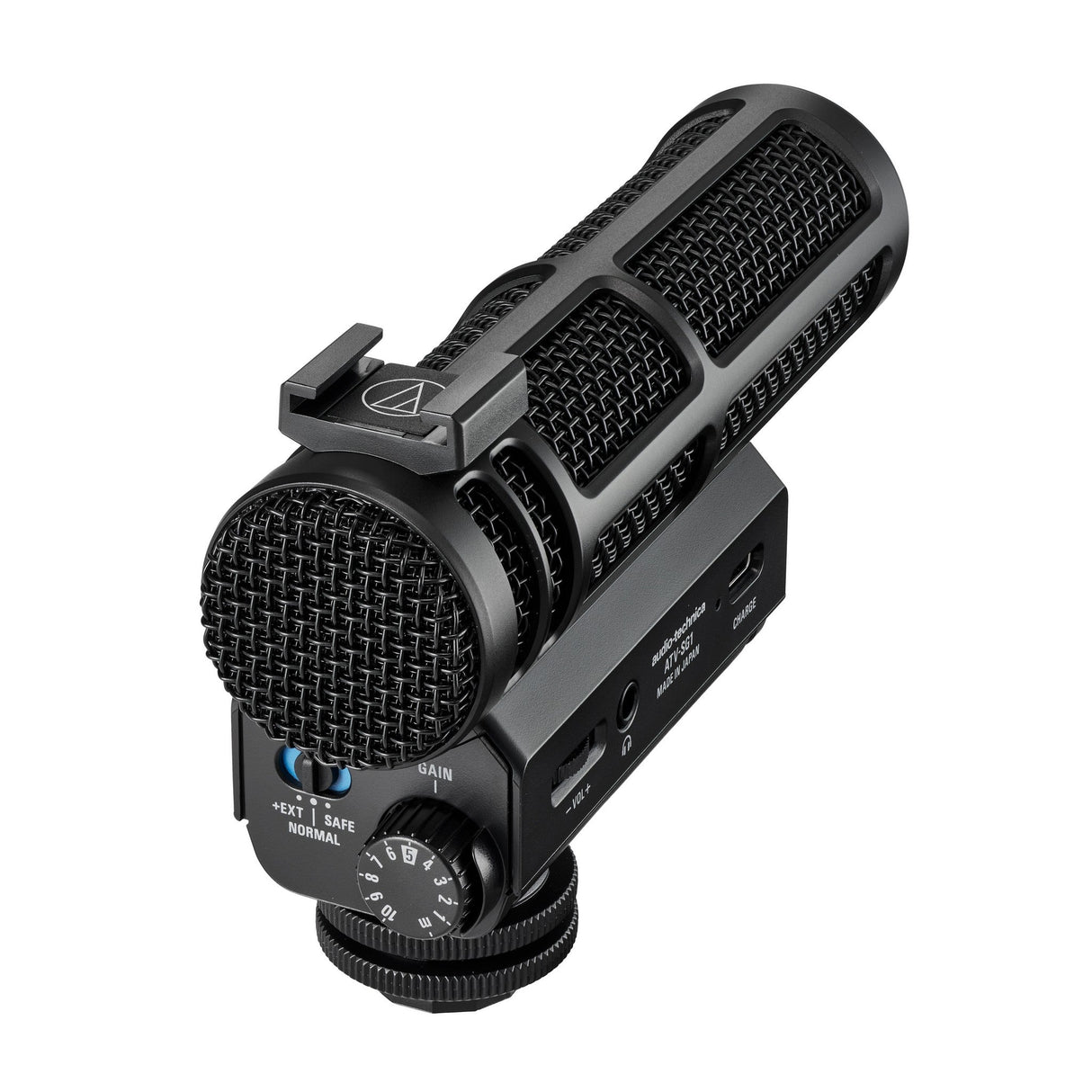

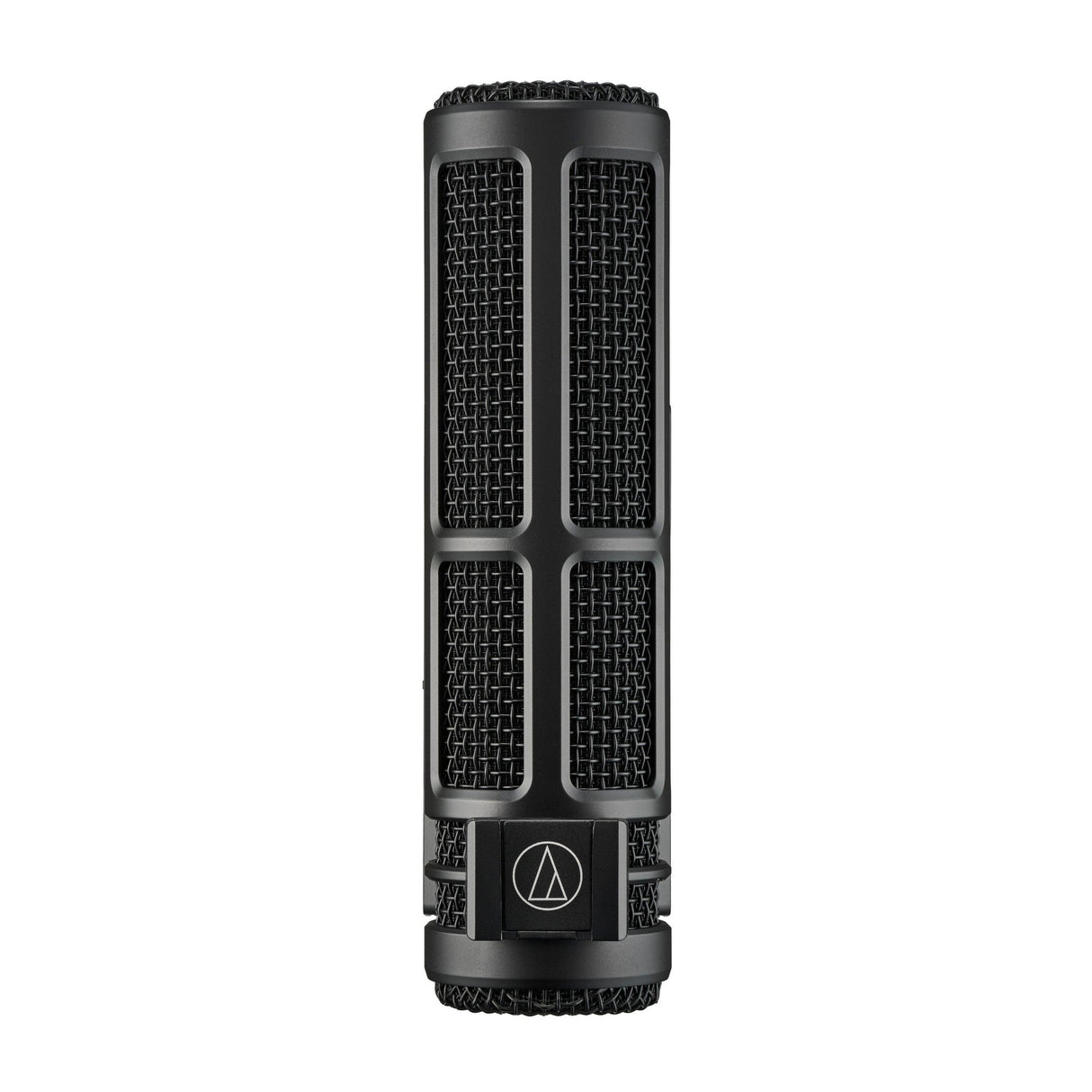

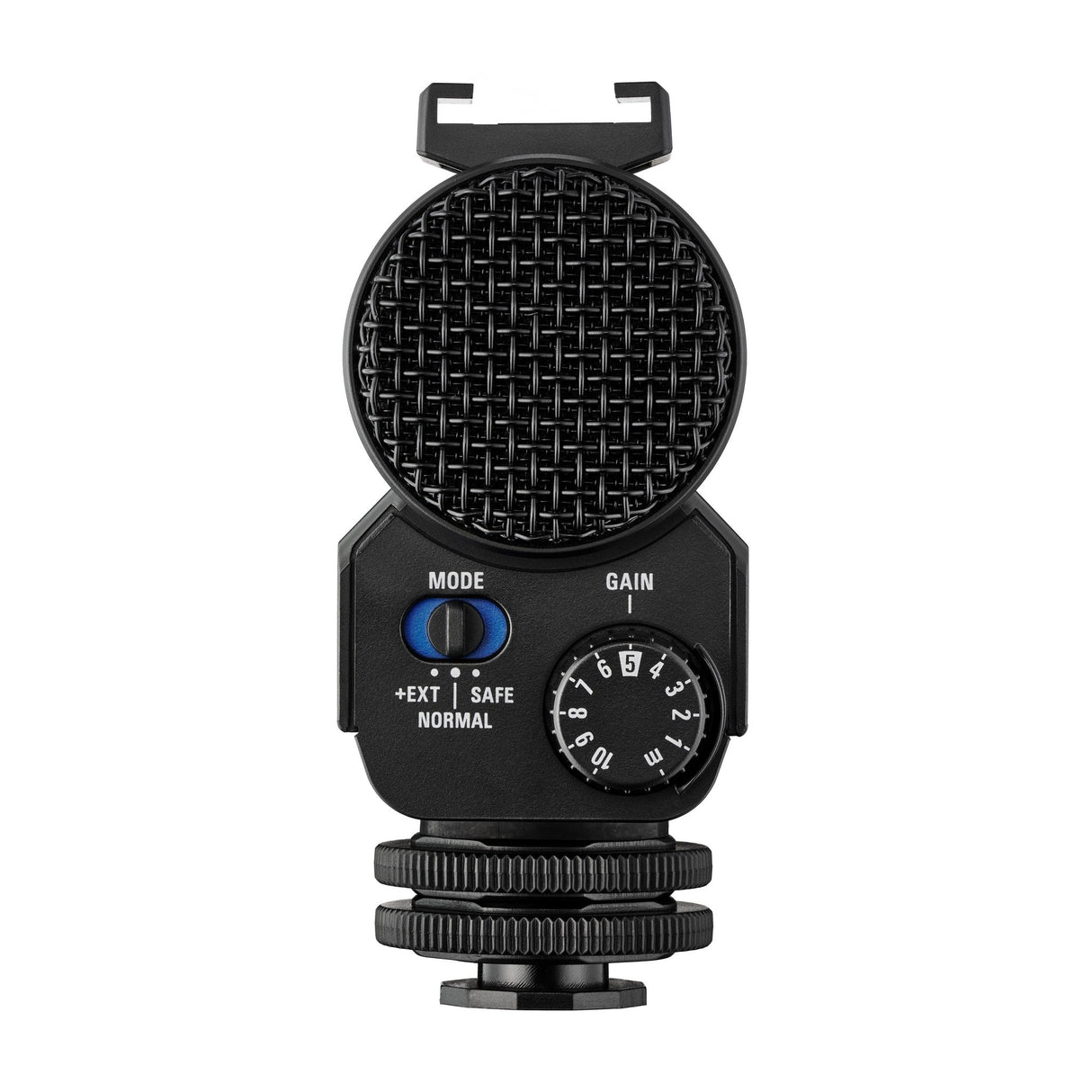

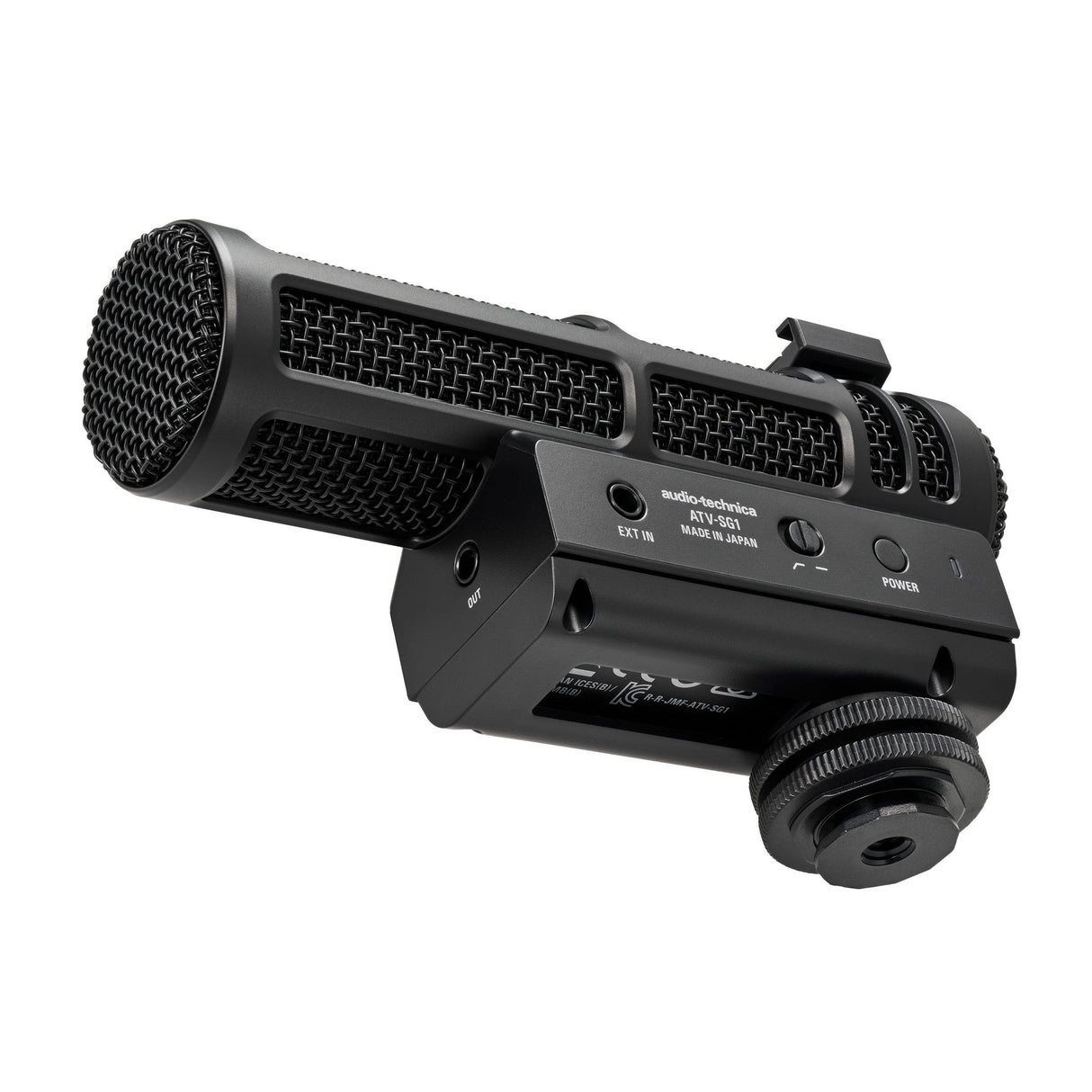

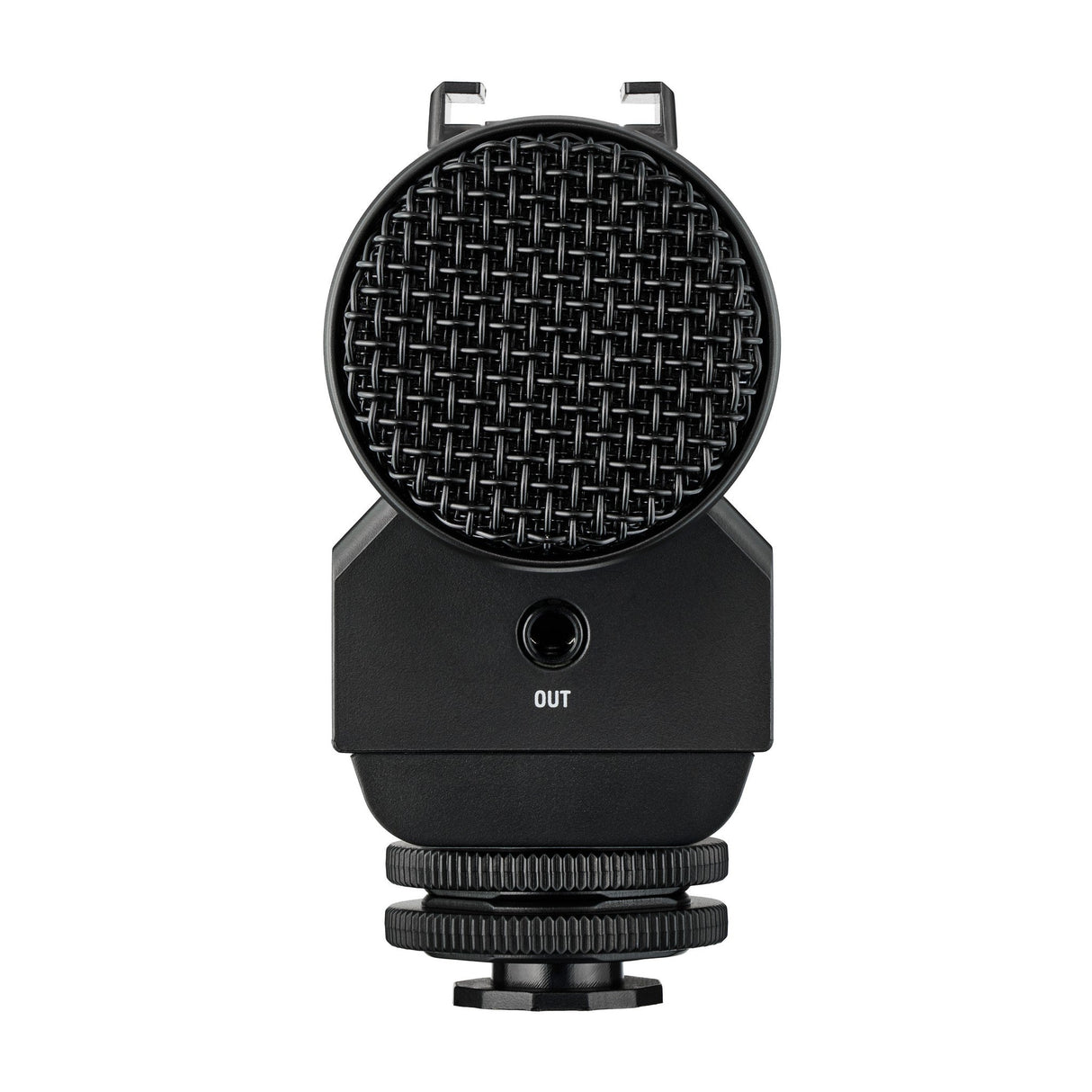

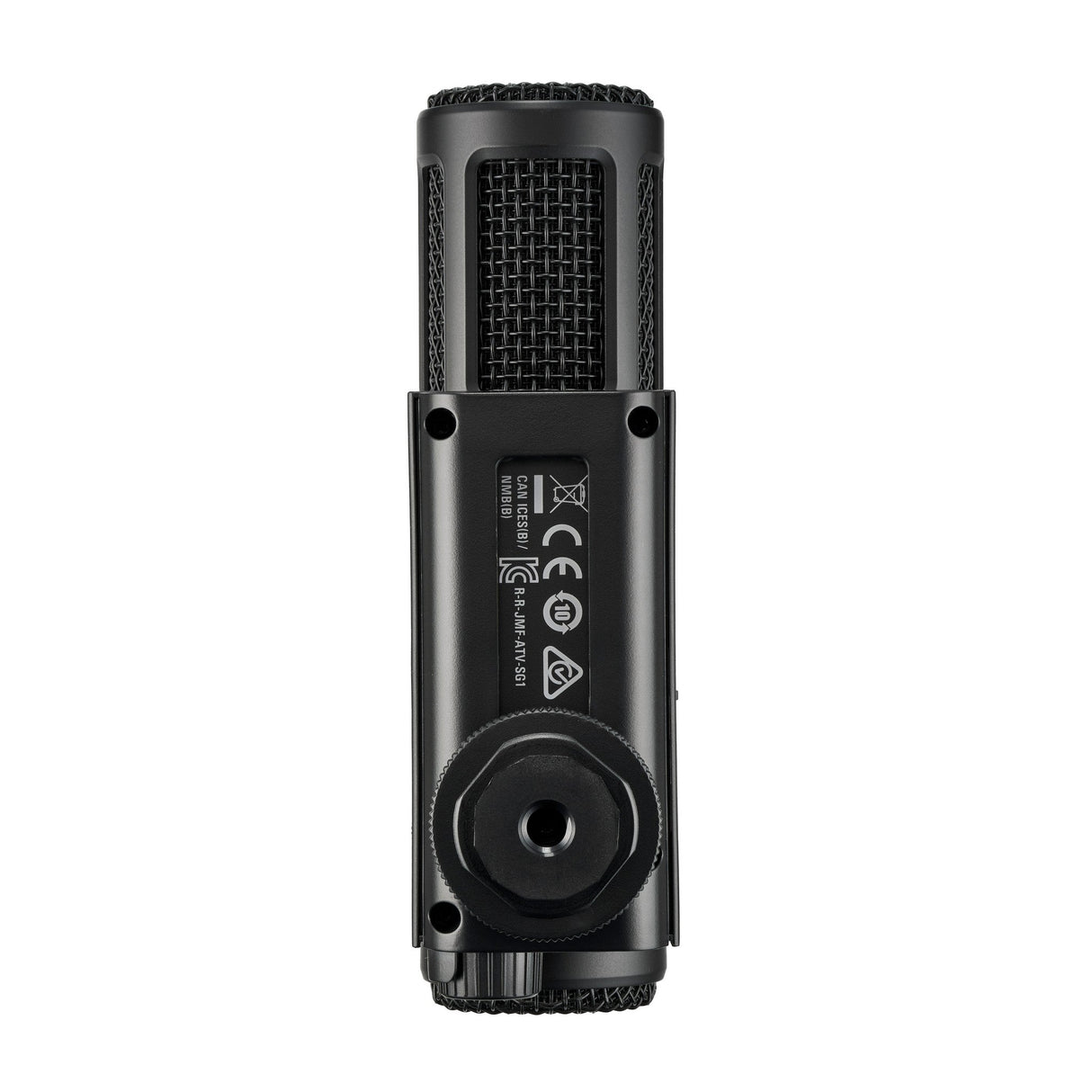

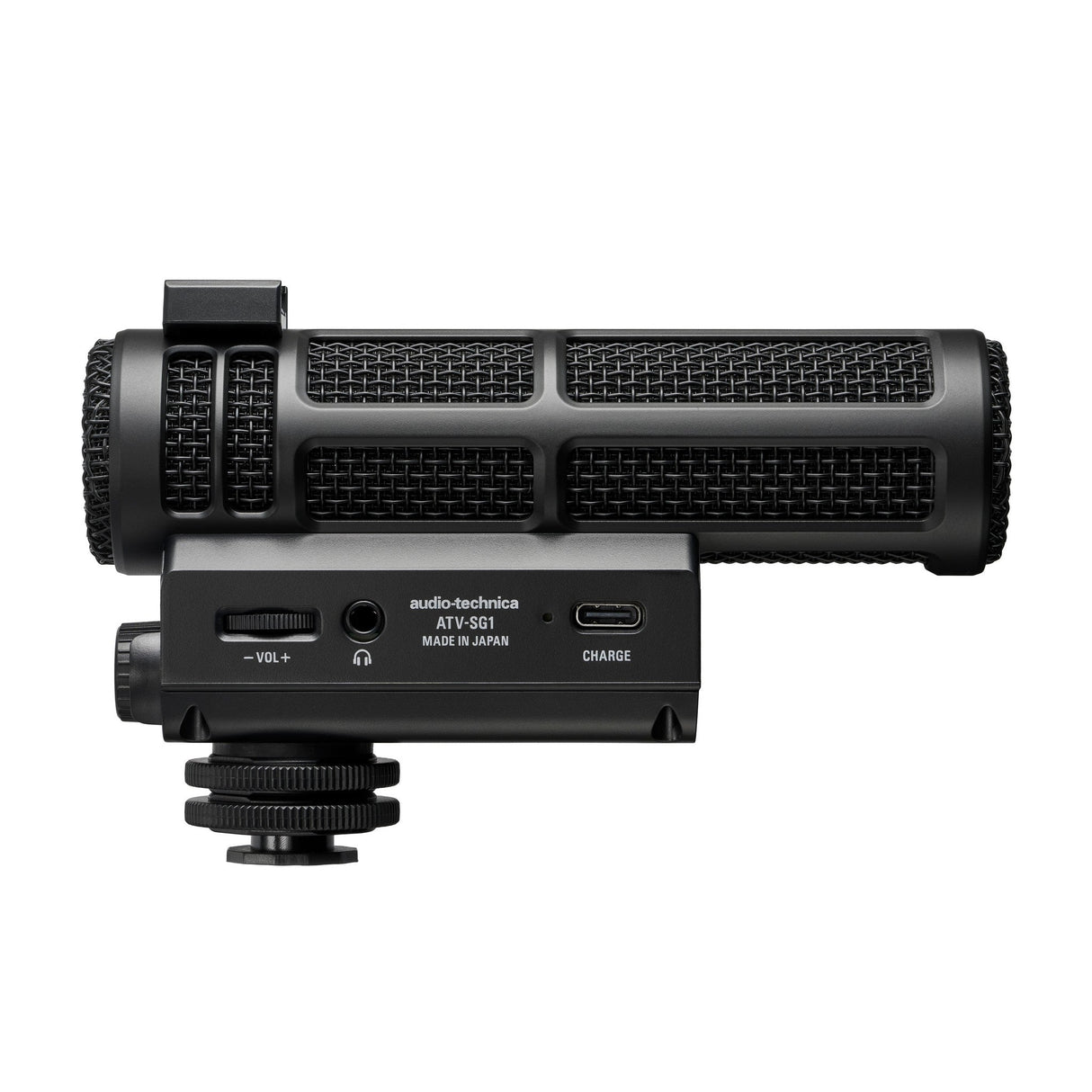

Audio-Technica ATV-SG1 Camera-Mount Shotgun Microphone

Audio-Technica ATV-SG1 Camera-Mount Shotgun Microphone

The Audio-Technica ATV-SG1 shotgun microphone is designed for content creators, videographers, and audio professionals who demand precise, directional sound capture with enhanced control. Featuring a line + gradient polar pattern, this microphone focuses on audio directly in front of the capsule while minimizing unwanted ambient noise, making it ideal for interviews, video production, and on-location recording. Its compact yet robust design allows for seamless integration with cameras and portable recording setups.

Equipped with a high-performance fixed-charge back plate, permanently polarized condenser element, the ATV-SG1 delivers clear and detailed audio across a wide frequency range. The microphone includes a built-in adjustable gain control with a wide 37 dB range, allowing users to fine-tune input levels for different recording environments. A low-frequency roll-off filter at 160 Hz helps reduce handling noise and environmental rumble, ensuring cleaner recordings in both indoor and outdoor settings.

The ATV-SG1 also features a rechargeable lithium-ion battery for extended operation, providing up to 24 hours of use on a single charge. With headphone monitoring capability, users can monitor audio in real time, while the external input terminal allows for additional audio sources to be mixed directly into the signal. Designed for flexibility and reliability, this microphone is an all-in-one solution for capturing professional-quality sound with convenience and precision.

Key Features

• Line + gradient polar pattern for focused directional audio capture
• Fixed-charge condenser element for accurate and consistent sound
• Adjustable gain control with wide 37 dB range
• Low-frequency roll-off filter (160 Hz) to reduce unwanted noise
• Rechargeable lithium-ion battery with up to 24 hours of operation
• Headphone monitoring for real-time audio feedback
• External input terminal for mixing additional audio sources
• Wide dynamic range and high maximum SPL handling
• Compact design ideal for cameras and portable rigs
• Includes essential accessories for immediate use

Technical Specifications

Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Line + gradient
Frequency Response: 60 – 20,000 Hz
Low Frequency Roll Off: 160 Hz, 24 dB/octave
Open Circuit Sensitivity: -28 dBV (maximum gain), -35 dBV (gain setting: 5)
Gain Range: 37 dB (stepless)
Maximum Input Sound Level: 126 dB SPL (1 kHz, THD 3%) (maximum gain), 132 dB SPL (1 kHz, THD 3%) (minimum gain)
Dynamic Range: 109 dB (1 kHz, THD 3%) (maximum gain)
Signal-to-Noise Ratio: 77 dB (1 kHz at 1 Pa, A-weighted) (maximum gain)

External Input Terminal: 3.5 mm (1/8") stereo mini-jack (input audio is mixed to mono)
External Power Supply: Plug-in power (2.7 V)

Power Supply: DC 3.85 V lithium-ion battery
Charging Time: Approx. 2.5 hours
Operating Time: Max. approx. 24 hours (when not using headphone monitor)

Operation Temperature Range: 32°F to 104°F
Storage Temperature Range: 14°F to 140°F, 10% to 90% RH (without condensation)

Weight: Approx. 5.5 oz
Dimensions: 5.0" length x 1.4" max diameter x 3.2" height

Main Output Terminal: 3.5 mm (1/8") stereo mini-jack

Compatible Headphone Impedance: Minimum 16 ohms
Headphone Output Level: 100 mW (at 1 kHz, 32 ohms load), 75 mW (at 1 kHz, 16 ohms load)
Headphone Total Harmonic Distortion: < 1% (at 60 mW, 1 kHz, 32 ohms output)

What’s Included

Coiled cable (approx. 2.0" length when contracted, up to 20" extended) with dual 3.5 mm (1/8") stereo mini plugs
USB charging cable (20", USB Type-A to USB Type-C)

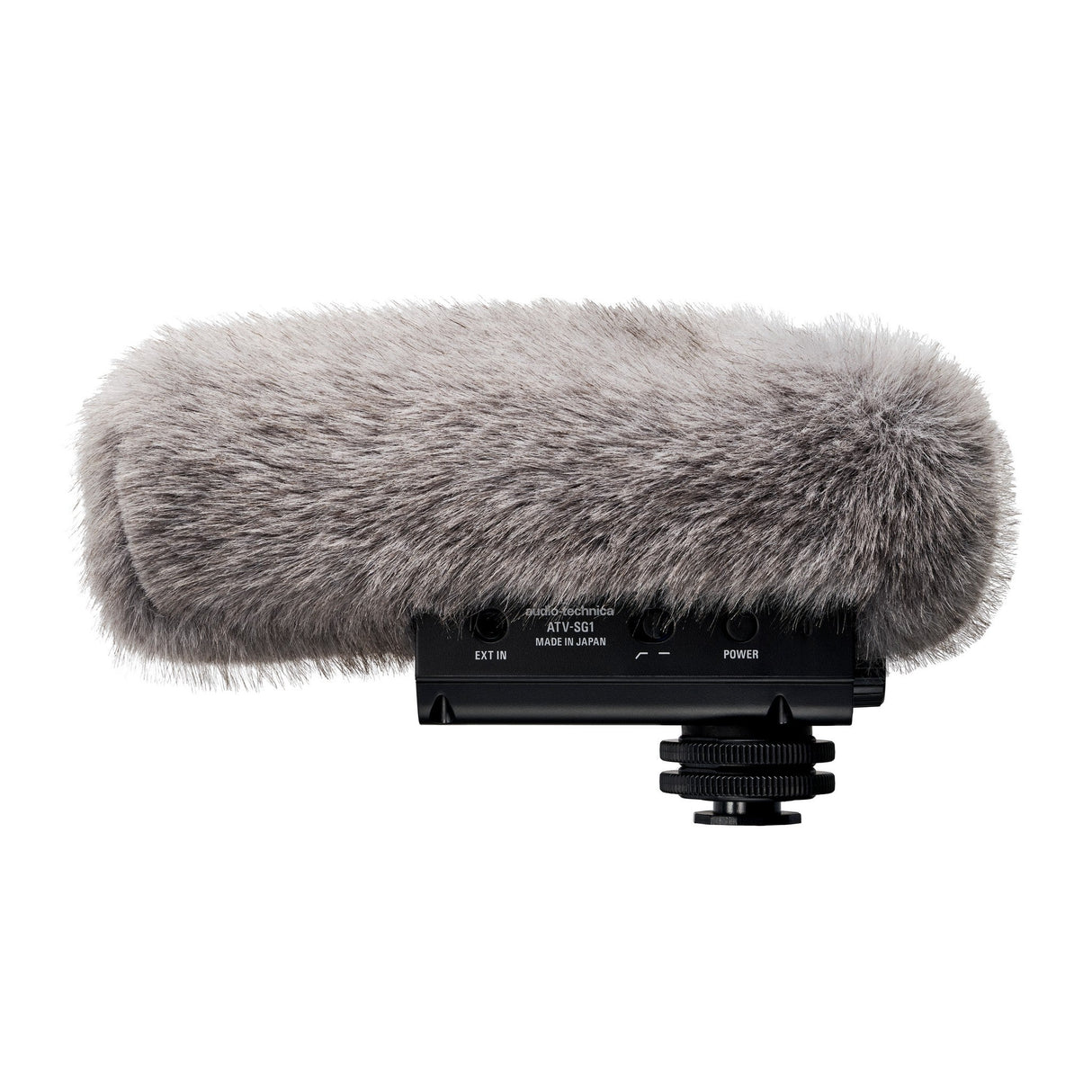

Wind muff (exclusive for ATV-SG1)
