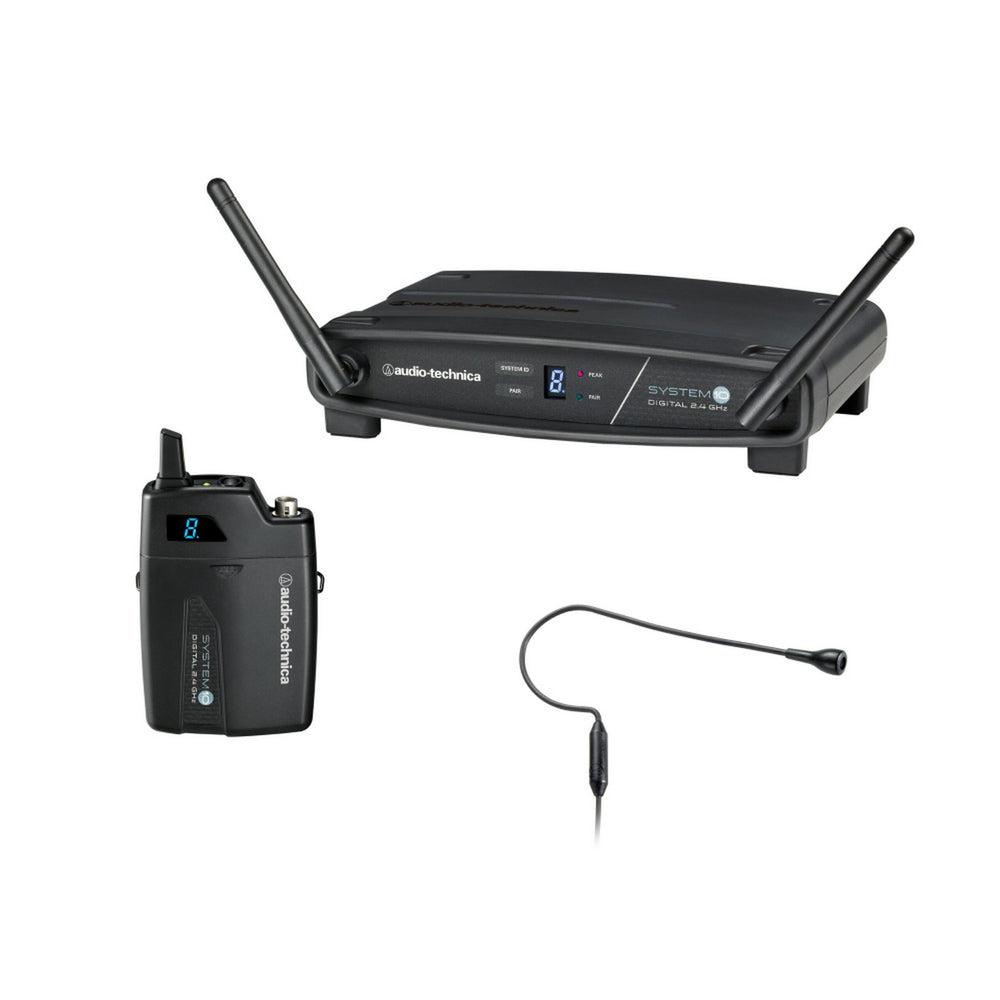

Audio-Technica ATW-1101/H92 Stack-Mount Digital Wireless Headworn System
ATW-R1100 receiver and ATW-T1001 body-pack transmitter with PRO 92cW headworn microphone.
Technical Specifications
OVERALL SYSTEM SPECIFICATIONS
Operating Frequencies
2.4 GHz ISM band (2400 to 2483.5 MHz)
Dynamic Range
>109 dB (A-weighted), typical
Total Harmonic Distortion
<0.05% typical
Operating Range
30 m (100') typical
Open range environment with no interfering signals
Operating Temperature Range
0Ā° C to +40Ā° C (32Ā° F to 104Ā° F)
Battery performance may be reduced at very low temperatures
Frequency Response
20 Hz to 20 kHz
Depending on microphone type
Maximum Simultaneous Use (Recommended)
200' minimum
RECEIVER SPECIFICATIONS
Receiving System
Diversity (frequency/time/space)
Maximum Output Level
XLR, balanced
0 dBV
1/4" (6.3 mm), unbalanced
+6 dBV
Power Supply
100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Operating Temperature Range
40Ā° F (4Ā° C) to 110Ā° F (43Ā° C)
Dimensions
190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Net Weight
290 grams (10.2 oz)
Accessory Included
Power supply
BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output
10 mW
Spurious Emissions
Following federal and national regulations
Input Connections
Four-pin Locking Connector
Pin 1
GND, Pin 2
INST INPUT,
Pin 3
MIC INPUT, Pin 4
DC BIAS +9V
Batteries
Two 1.5V AA
not included
Battery Life
>7 hours (alkaline)
Depending on battery type and use pattern
Dimensions
70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight
100 grams (3.5 oz) without batteries
