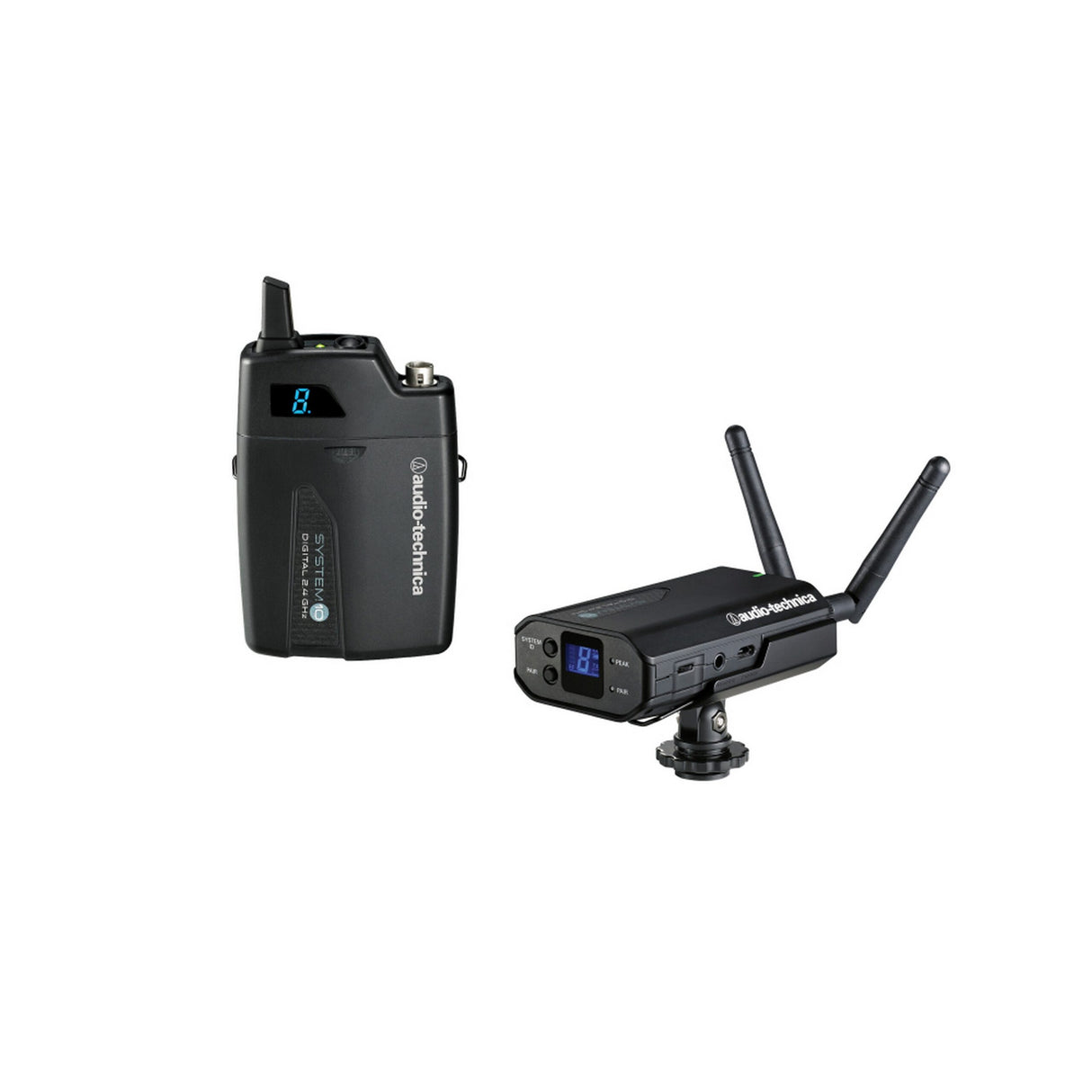

Audio-Technica ATW-1701 Portable Camera-Mount Digital Wireless System

ATW-R1700 receiver and ATW-T1001 body-pack transmitter.

Technical Specifications

OVERALL SYSTEM SPECIFICATIONS
Operating Frequencies
2.4 GHz ISM band (2400 to 2483.5 MHz)
Dynamic Range
>109 dB (A-weighted), typical
Total Harmonic Distortion
<0.05% typical
Operating Range
30 m (100') radius, 60 m (200') diameter typical
Open range environment with no interfering signals
Operating Temperature Range
0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Frequency Response
20 Hz to 20 kHz
Depending on microphone type
Maximum Simultaneous Use (Recommended)
200' minimum
Audio Sampling
24 bits / 48 kHz

RECEIVER SPECIFICATIONS
Receiving System
Diversity (frequency/time/space)
Maximum Output Level
3.5 mm (1/8"), TRS balanced
+6 dBV Dual mono, unbalanced
0 dBV
Power Supply
100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Battery
Internal Battery
3.7V rechargeable Li-ion battery
Battery Rating
5.5 Wh
1,460 mAh
Battery Life
12 hours
Depending on environmental conditions
Battery Charging Time
4 hours 30 minutes
Depending on environmental conditions
Charging Temperature Range
5° C to +35° C (41° F to 95° F)
Operating Temperature Range
40° F (4° C) to 110° F (43° C)
Dimensions
56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
Net Weight
105 grams (3.7 oz)
Accessories Included
Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable

BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output
10 mW
Spurious Emissions
Following federal and national regulations
Input Connections
Four-pin Locking Connector
Pin 1
GND, Pin 2
INST INPUT,
Pin 3
MIC INPUT, Pin 4
DC BIAS +9V
Batteries
Two 1.5V AA
not included
Battery Life
>7 hours (alkaline)
Depending on battery type and use pattern
Dimensions
70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight
100 grams (3.5 oz)
without batteries
