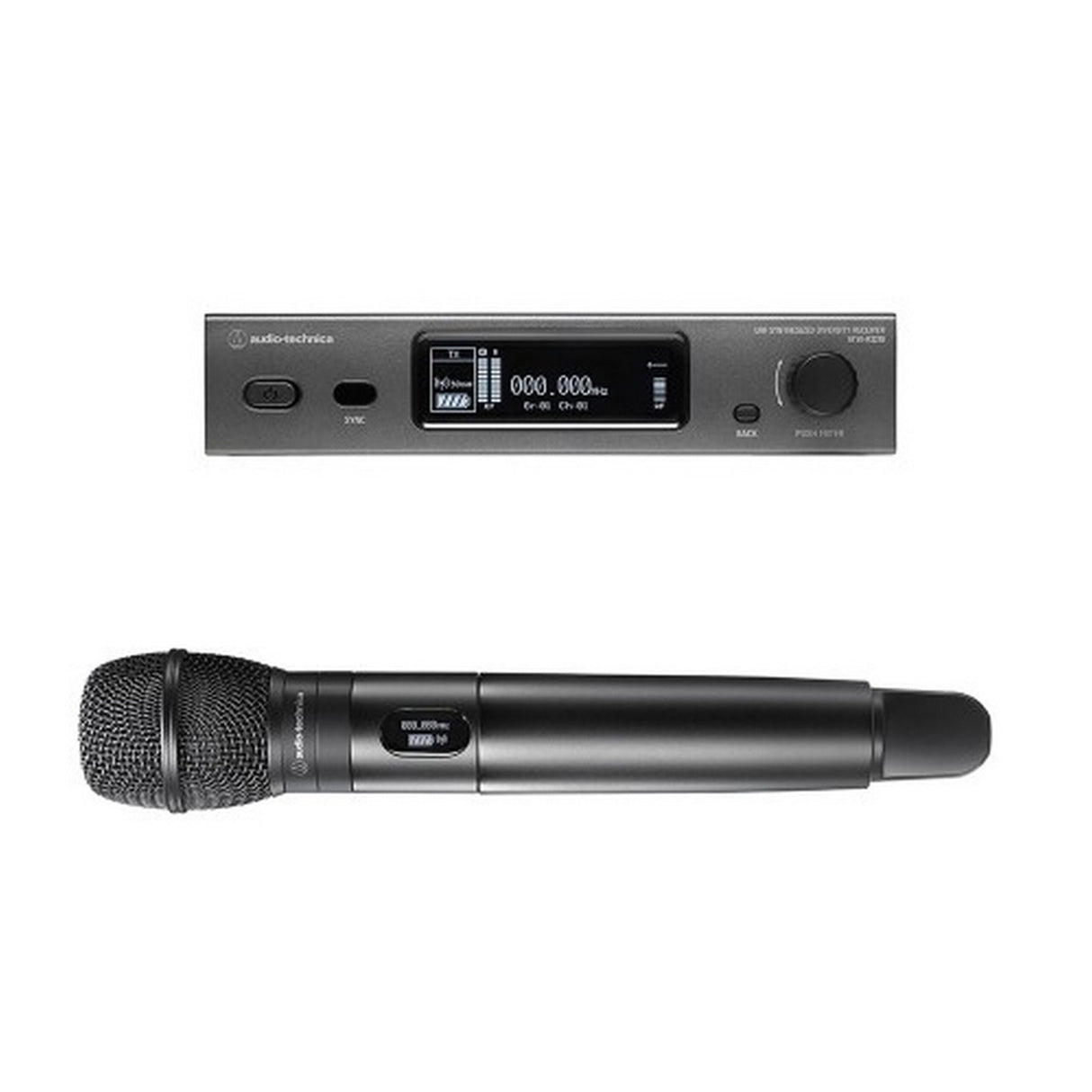

Audio-Technica ATW-3212NC710 EE1 3000 Series Network Wireless Handheld System with ATW-C710, EE1 530-590 MHz

With a class-leading 60 MHz tuning range - more than twice that offered by the previous versions - the new 3000 Series systems are available in 6 frequency bands - DE2 (470-530 MHz), EE1 (530-590 MHz), EF1 (590-650 MHz), FG1 (650-700 MHz), GH2 (795 - 806 MHz) and HH2 (821 - 865 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference. This system configuration features an ATW-R3210 receiver along with an ATW-T3202 handheld transmitter and an ATW-C710 interchangeable capsule. The ATW-T3202 comes with an ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.

Key Features

• 60 MHz UHF tuning bandwidth in each of 6 available frequency bands
• Unique multifunction button to switch to a backup frequency
• Frequency scan and IR sync functionality for ease of setup
• Industry-standard thread for use with interchangeable microphone capsules
• Charging terminals on transmitter to recharge NiMH batteries
• ATW-C710 condenser interchangeable cardioid capsule

Technical Specifications

Microphone
Element
Fixed-charge back plate permanently polarized condenser
Polar Pattern
Cardioid
Frequency Response
80 - 20000 Hz
Impedance
60 Ohms
Power Requirements
5 V DC
Battery Type
Two 1.5V AA, not included
Weight
114 g
Dimensions
84.4 mm long, 50.0 mm max. diameter
Output Connector
Interchangeable industry-standard thread
Operating Frequencies
Band DE2: 470.125 to 529.975 MHz
Band EE1: 530.000 to 589.975 MHz
Band EF1: 590.000 to 649.975 MHz
Band FG1: 650.000 to 699.875 MHz
Band GH2: 794.100 to 805.900 MHz
Band HH2: 821.100 to 831.900 MHz and 863.100 to 864.900 MHz
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step
25 kHz
Modulation Mode
FM
Maximum Deviation
ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Simultaneous Use
40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent
Frequency Response
ATW-T3201: 31 Hz to 15500 Hz
ATW-T3202: 25 Hz to 16700 Hz
Operating Range
100 m
Dynamic Range
ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion
<1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range
-5 ºC to +45 ºC
Receiver
Receiving System
True Diversity
Sensitivity
20 dBuV at 60 dBA S/N ratio (50 termination)
Maximum Output Level
XLR / Balanced: +14 dBV
6.3 mm (¼"") / Unbalanced: +8 dBV
Antenna Input
BNC-type, 50
Power Output
12 V DC, 160 mA (combined)
Power Supply
100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions
210.0 mm x 191.0 mm x 43.4 mm (W x H x D)
Weight
1100 g, without accessories
Accessories Included
Two Flexible UHF antennas
AC adapter (country dependent)
Rack Mount Adaptors
Handheld Transmitter
RF Power Output
High: 30 mW, Low: 10 mW (switchable), at 50
Spurious Emissions
Following Federal and National Regulations
Microphone Element
Interchangeable industry-standard thread
Battery Life
High: 8.0 hours / Low: 9.0 hours (alkaline)
High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage and environmental conditions.
Dimensions
193.0 mm long, 37.0 mm maximum diameter
Net Weight
200 g
Accessories Included
AT8456a Quiet-Flex stand clamp; 5/8"-27 male to 3/8"-16 female threaded screw adapter
