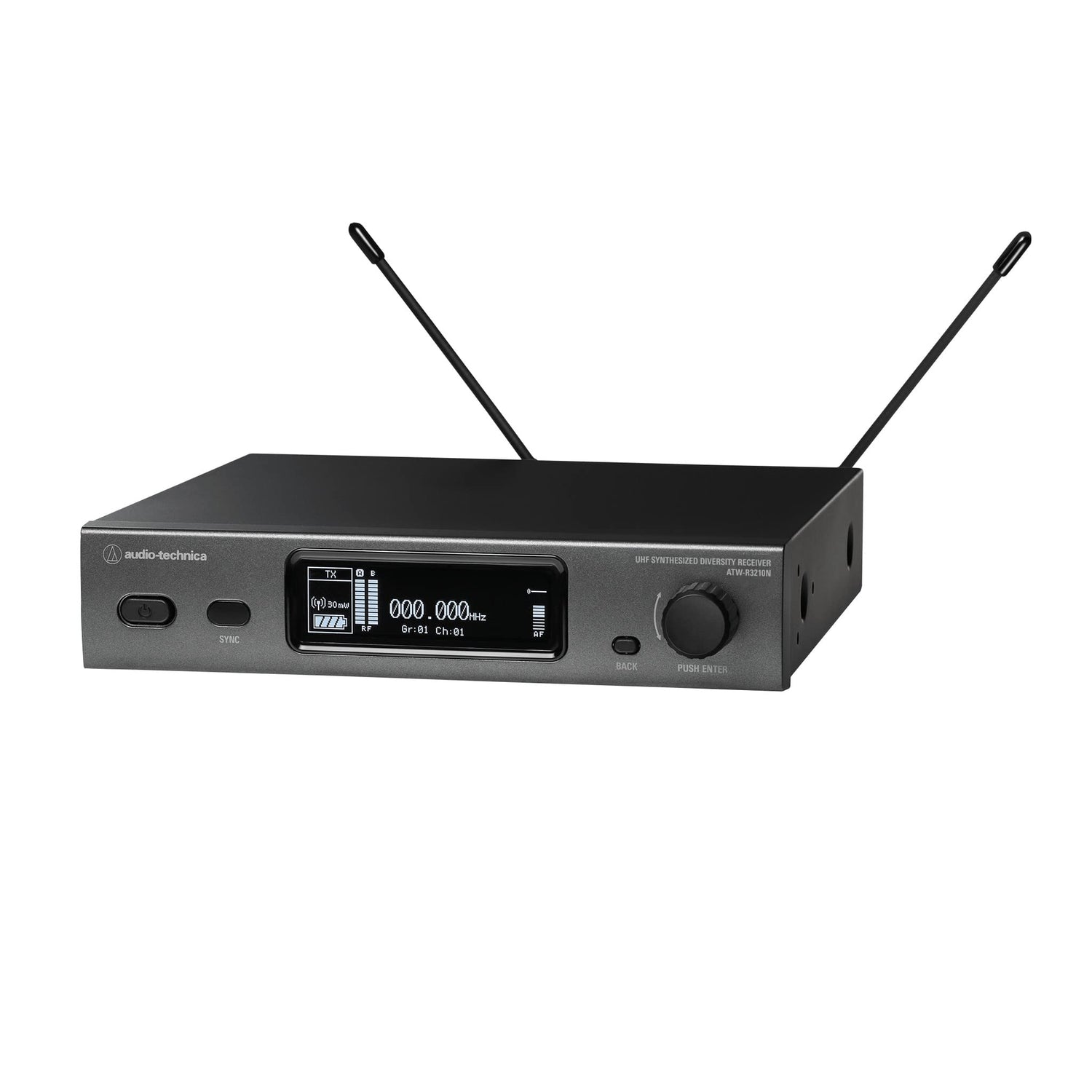

Audio-Technica ATW-R3210N DE2 3000 Series Network Diversity Receiver, DE2 470-530 MHz
The Audio-Technica ATW-R3210N DE2 3000 Series Network Diversity Receiver is a powerful and reliable tool designed for high-fidelity audio. Operating within the DE2 470-530 MHz frequency band, this receiver provides clear and uninterrupted audio, making it an ideal choice for professionals working in crowded RF environments. One standout feature is its automatic frequency scanning capability, which simplifies the process of finding the most appropriate frequency for the operating area. With 25 kHz frequency spacing and pre-coordinated frequency scan groups, the ATW-R3210N ensures hassle-free frequency coordination in a multichannel wireless system.

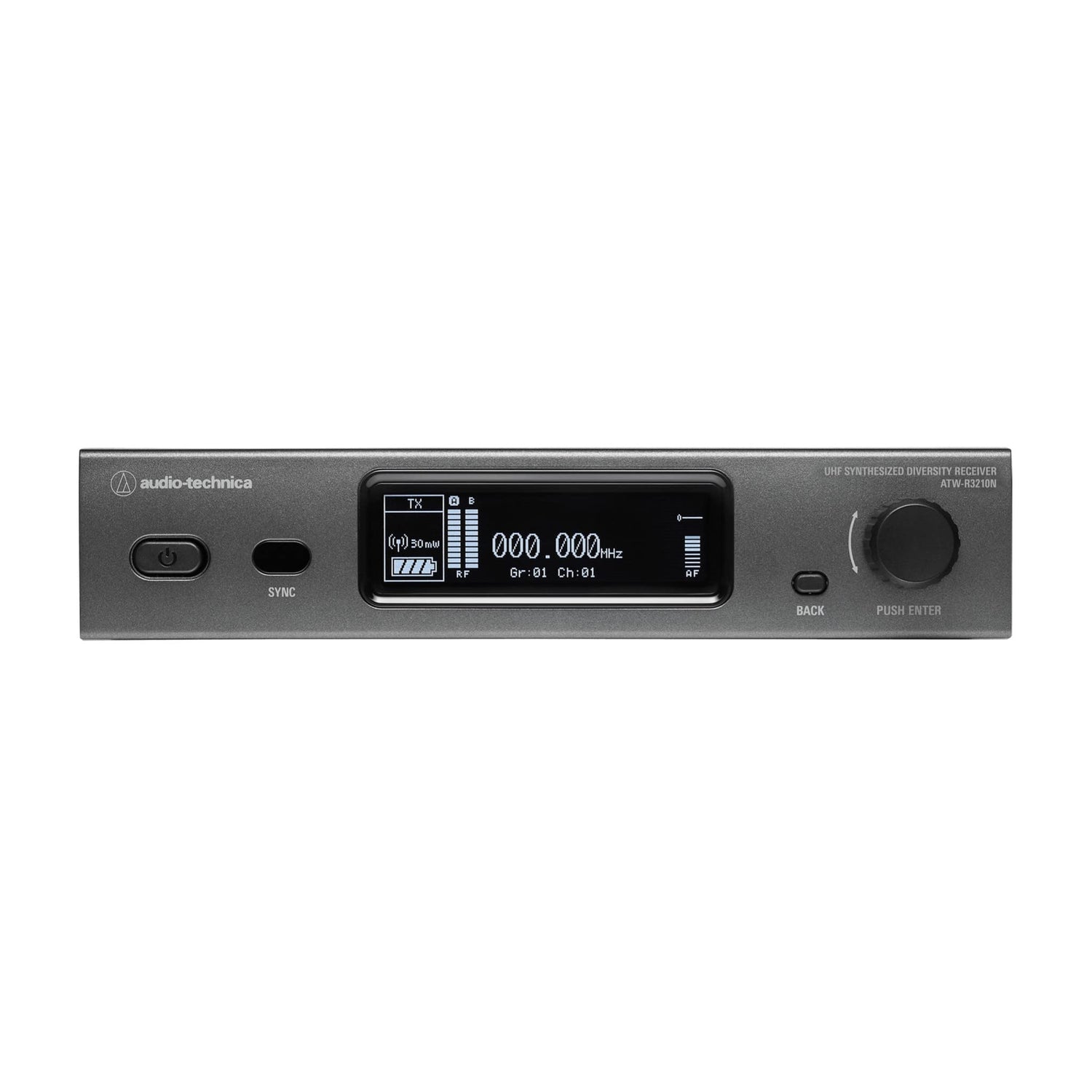

The receiver’s dual-mode front panel display provides continuous indication of various parameters, including RF signal strength, frequency, mute status, and audio modulation level. Users can easily switch between the standard view and performance view to highlight key metering information. Flexibility and ease of use are paramount with settings that can be adjusted via the control dial and BACK button on the front panel. Additionally, the receiver can sync frequencies with transmitters using IR sync functionality, and the squelch setting can be adjusted automatically to maximize range while minimizing interference.
Key Features
- 3000 series wireless receiver
- 60 MHz UHF tuning bandwidth in each of 6 available frequency bands
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard or performance view
- Antenna power available for powered antennas and other in-line RF devices
- Balanced and unbalanced audio output jacks
Specifications
- Operating Frequencies: DE2 470.125 to 529.975 MHz
- Minimum Frequency Step: 25 kHz
- Modulation Mode: FM
- Maximum Deviation: ATW-T3201: ±38 kHz (THD:10%), ATW-T3202: ±36 kHz (THD:10%)
- Simultaneous Use: 40 Channels per band (region and band dependent)
- Frequency Response: ATW-T3201: 31 Hz to 15500 Hz, ATW-T3202: 25 Hz to 16700 Hz
- Operating Range: 100 m
- Dynamic Range: ATW-T3201 Mic input: >115 dB (A-weighted), typical; ATW-T3201 Inst input: >112 dB (A-weighted), typical; ATW-T3202: >115 dB (A-weighted), typical
- Total Harmonic Distortion: <1.0% (at 1 kHz ±17.5 kHz deviation)
- Operating Temperature Range: -5 ºC to +45 ºC
- Receiver Receiving System: True Diversity
- Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 termination)
- Maximum Output Level: XLR / Balanced: +14 dBV; 6.3 mm (¼ ) / Unbalanced: +8 dBV
- Antenna Input: BNC-type, 50 Ω
- Power Output: 12 V DC, 160 mA (combined)
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
- Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
- Weight: 1100 g, without accessories
Package Contents
- Two Flexible UHF antennas
- AC adapter (country dependent)
- Rack Mount Adaptors
