Audio-Technica VMx Series Phono Cartridge - Conical Bonded

Audio-Technica VMx Series Phono Cartridge

Precision-Carved Stylus Profiles for Authentic Vinyl Playback

The Audio-Technica VMx Series Phono Cartridge lineup offers a full spectrum of stylus designs to suit every listening preference—from casual spins to audiophile-grade playback. This comprehensive series features the acclaimed dual moving magnet system, delivering superior channel separation and outstanding fidelity. With advanced stylus profiles including Conical Bonded, Elliptical Bonded, Nude Elliptical, Microlinear, Shibata, Special Line Contact, Mono, and SP, each cartridge is tailored to extract every sonic nuance from your vinyl collection.

Designed to meet the demands of both stereo and mono recordings, the VMx Series includes precision-engineered models that combine timeless analog quality with modern cartridge technology. Whether you are upgrading your setup or replacing an aging stylus, this series delivers reliable performance and crystal-clear audio reproduction.

Available Models and Stylus Types

• AT-VM510xCB: Conical Bonded Stylus
• AT-VM520xEB: Elliptical Bonded Stylus

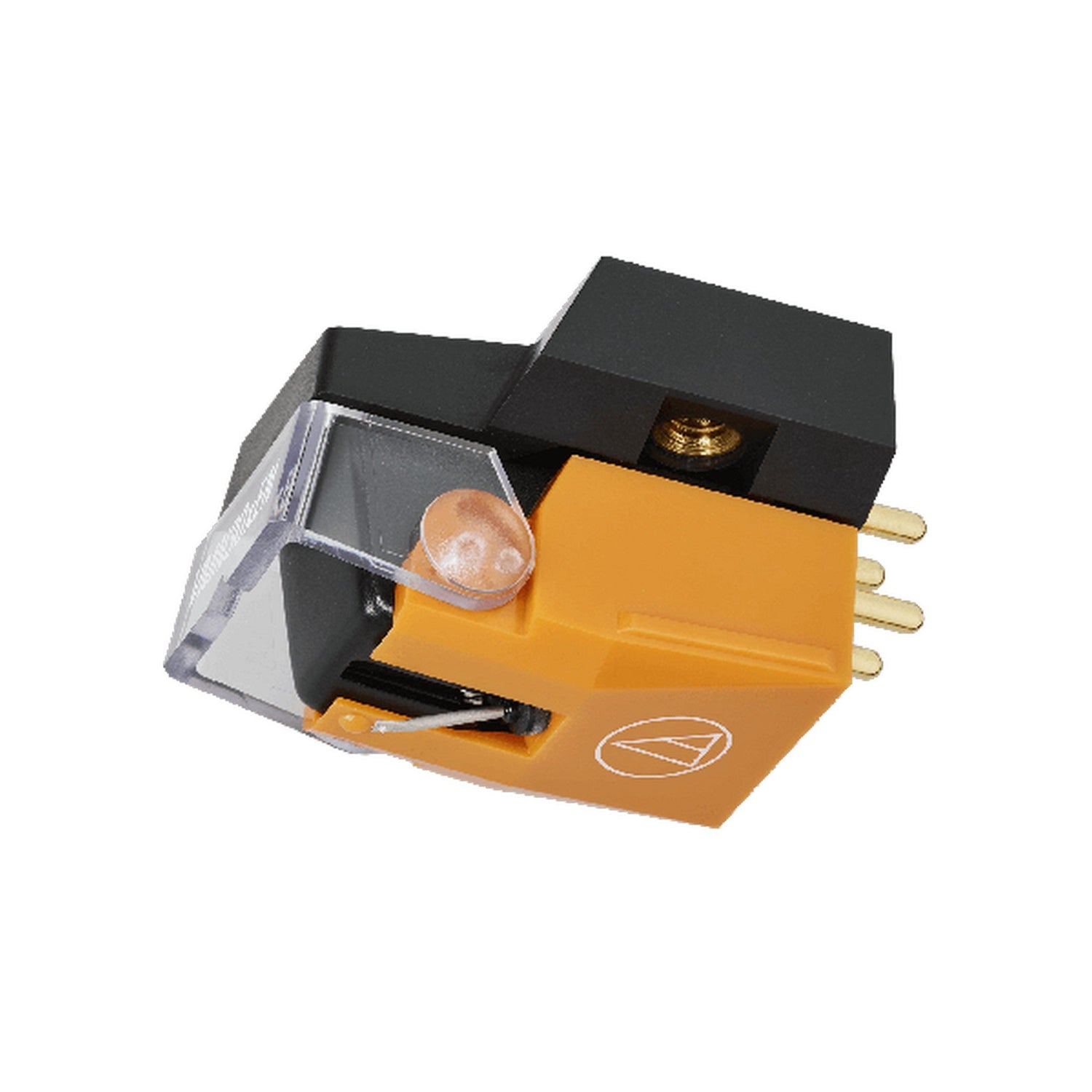

• AT-VM530xEN: Elliptical Nude Stylus
• AT-VM610xMONO: Mono Stylus
• AT-VM670xSP: SP Stylus
• AT-VM740xML: Microlinear Stylus
• AT-VM745xML: Microlinear Stylus
• AT-VM750xSH: Shibata Stylus
• AT-VM760xSL: Special Line Contact Stylus

Key Features

• Dual Moving Magnet Design: Delivers wide stereo separation and natural tonal response.
• Stylus Options: Includes Conical Bonded, Elliptical Bonded, Nude Elliptical, Microlinear, Shibata, Special Line Contact, Mono, and SP stylus types.
• Precision Cantilevers: Features aluminum construction for optimal signal transmission and stylus stability.
• Center Shield Plate: Reduces crosstalk between channels for clear imaging.
• 1/2" Mount Compatibility: Installs easily on most standard turntables and tonearms.

Technical Specifications

• Frequency Response: 20 Hz – 20,000 Hz (varies slightly by stylus type)
• Output Voltage: Approx. 4.0 – 5.5 mV (1 kHz, 5 cm/sec)
• Channel Separation: Up to 30 dB at 1 kHz (depending on model)
• Tracking Force Range: 1.5 – 2.5 g (2.0 g typical recommended)
• Stylus Types Available: Conical Bonded, Elliptical Bonded, Nude Elliptical, Microlinear, Shibata, Special Line Contact, Mono, SP
• Load Impedance: 47,000 ohms
• Mount Type: 1/2" Standard Mount
• Dimensions (W x H x D): Approx. 0.7" x 0.7" x 1.1"
• Weight: Approx. 0.2 oz (6.4 g)

What's Included in the Box

• Contents may vary depending on the model chosen.
