AudioPressBox APB-008-IW-EX In-Wall Pressbox with 1 Line Input and 8 Mic Outputs

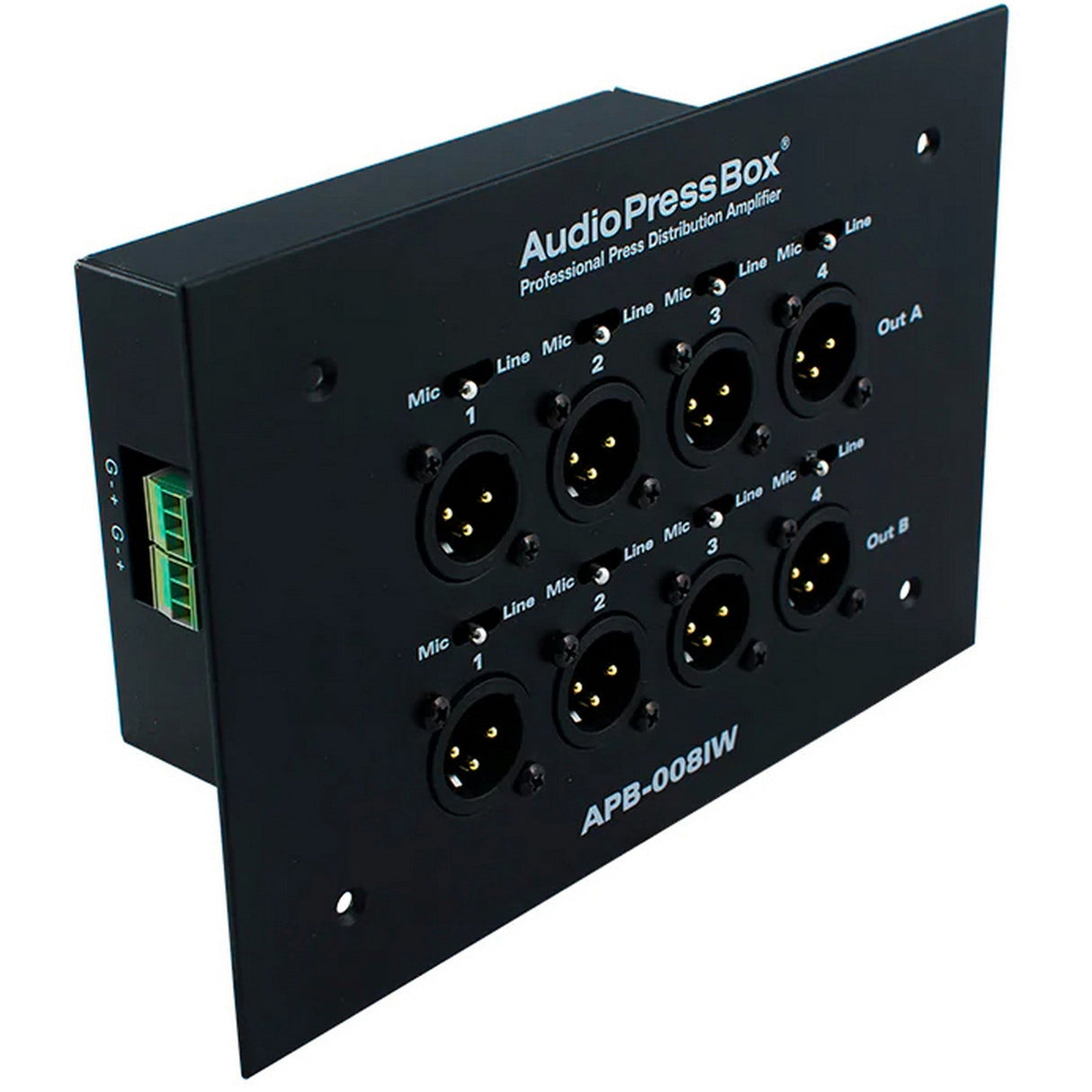

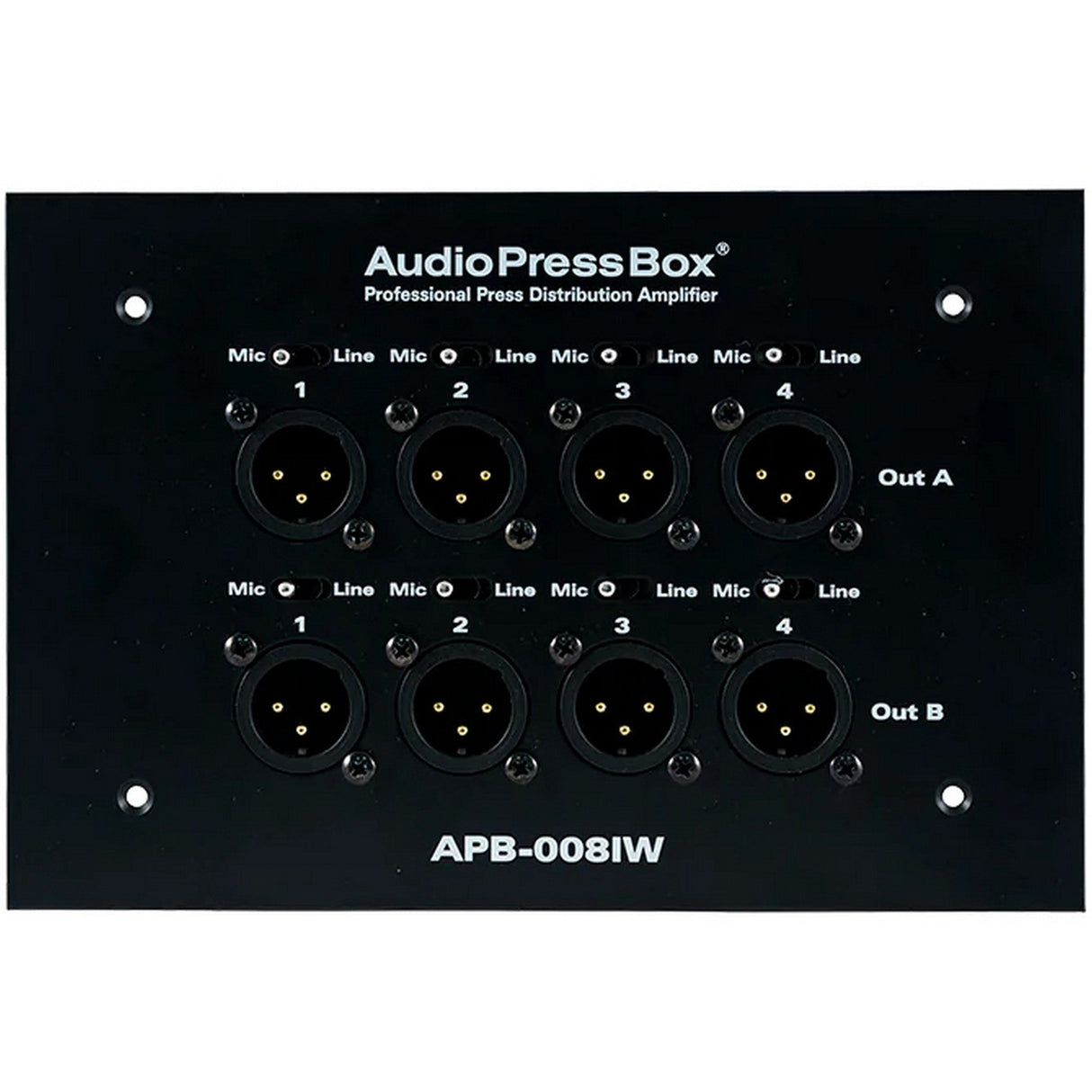

The AudioPressBox APB-008 IW-EX BK is a professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation. The IW stands for IN WALL as it is for flush mounting. Outputs are divided to channel A and channel B so it can also be used for bilingual conferences. Each Output is independent transformer balanced and isolated. It has 2 inputs with 3-pin phoenix connectors, one for each Output channel. You can route each Input to Output Channel A or B or both via jumpers.
The expander must be fed with an APB-Drive unit in order to function properly.

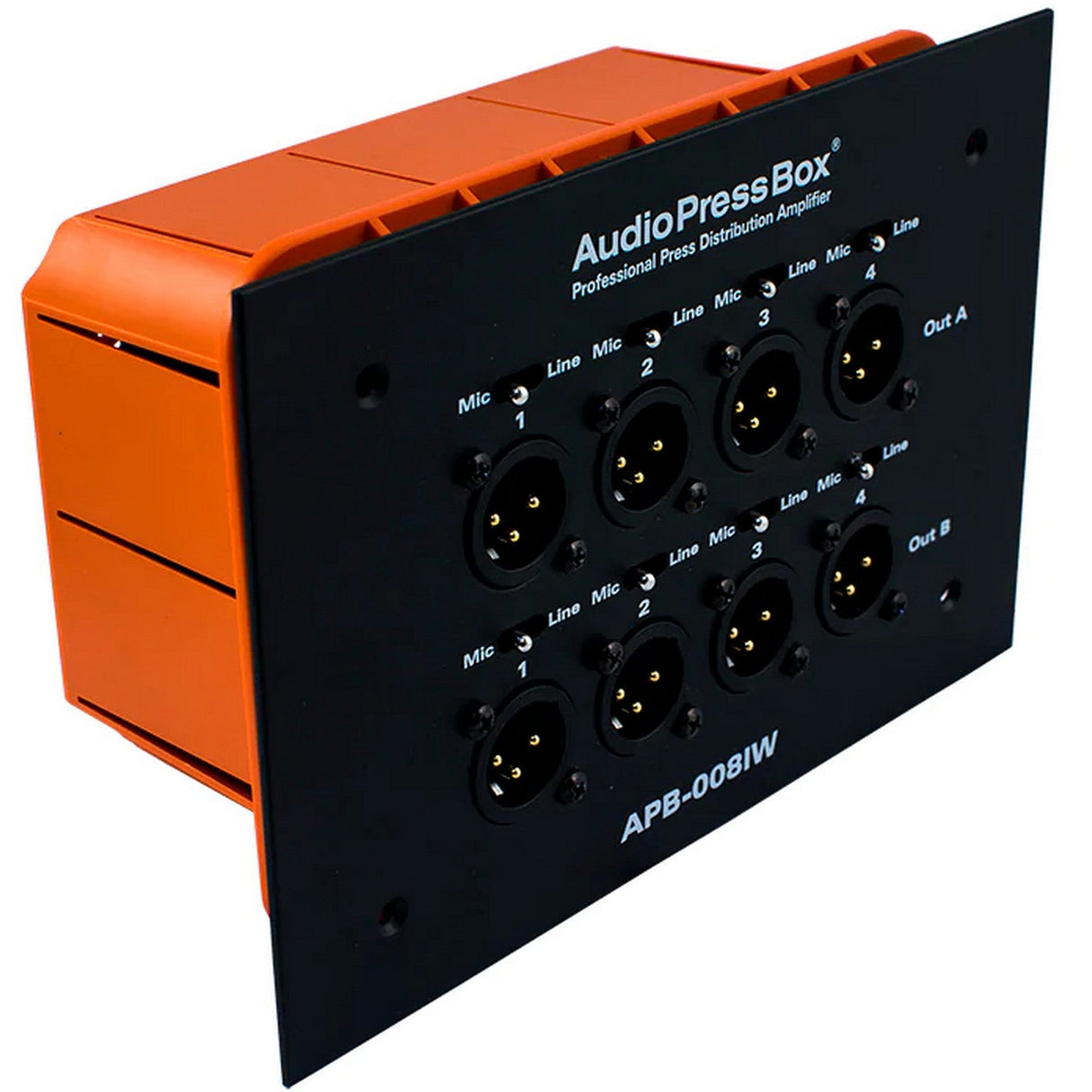

Flush mounting junction box is included in the APB-008 IW-EX package.
Note: Requires drive unit as a source.
Key Features
- 8 High quality balanced Outputs, each Output is independent transformer isolated
- Each Output is switchable between LINE or MIC Output level.
- 2 internal Output Groups: 4x Output A and 4x Output B
Technical Specifications
Type
Expander
Groups
2
Inputs
1x Bus A / 1x Bus B
Input Connectors
ballanced, 3-pin phoenix connector
Ouputs
4x Bus A, Line/Mic level / 4x Bus B, Line/Mic level
Output Connectors
Ballanced, XLR-M connector
Transfomer Isolated Outputs
Yes (each output)
Nominal Output Level
Mic
-20dBu / Line
+6 dBu
Output Impedance
Mic - 220Ī© / Line - 600Ī©
Dimensions (WxHxD)
7.08 x 4.72 x 2.48" (180 x 120 x 63mm)
Weight
2.13lbs (970g)
Item Includes
1x APB-008-IW-EX Passive In-wall AudioPressBox with 1 Line Input and 8 Mic Outputs - Black
1x Flush mounting junction box
