AudioPressBox APB-112-OW-D On-Wall Active 1-Channel Dante Pro Pressbox

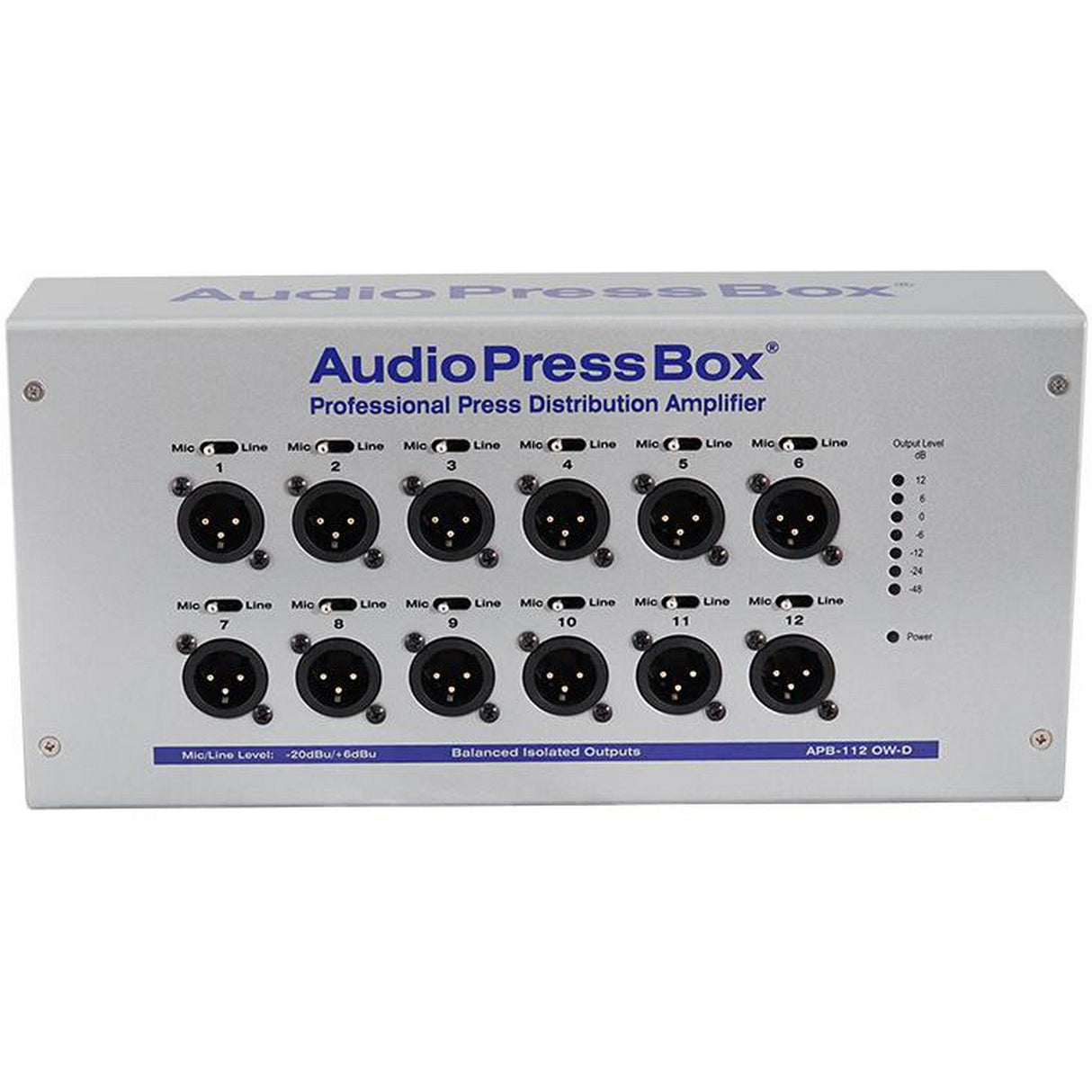

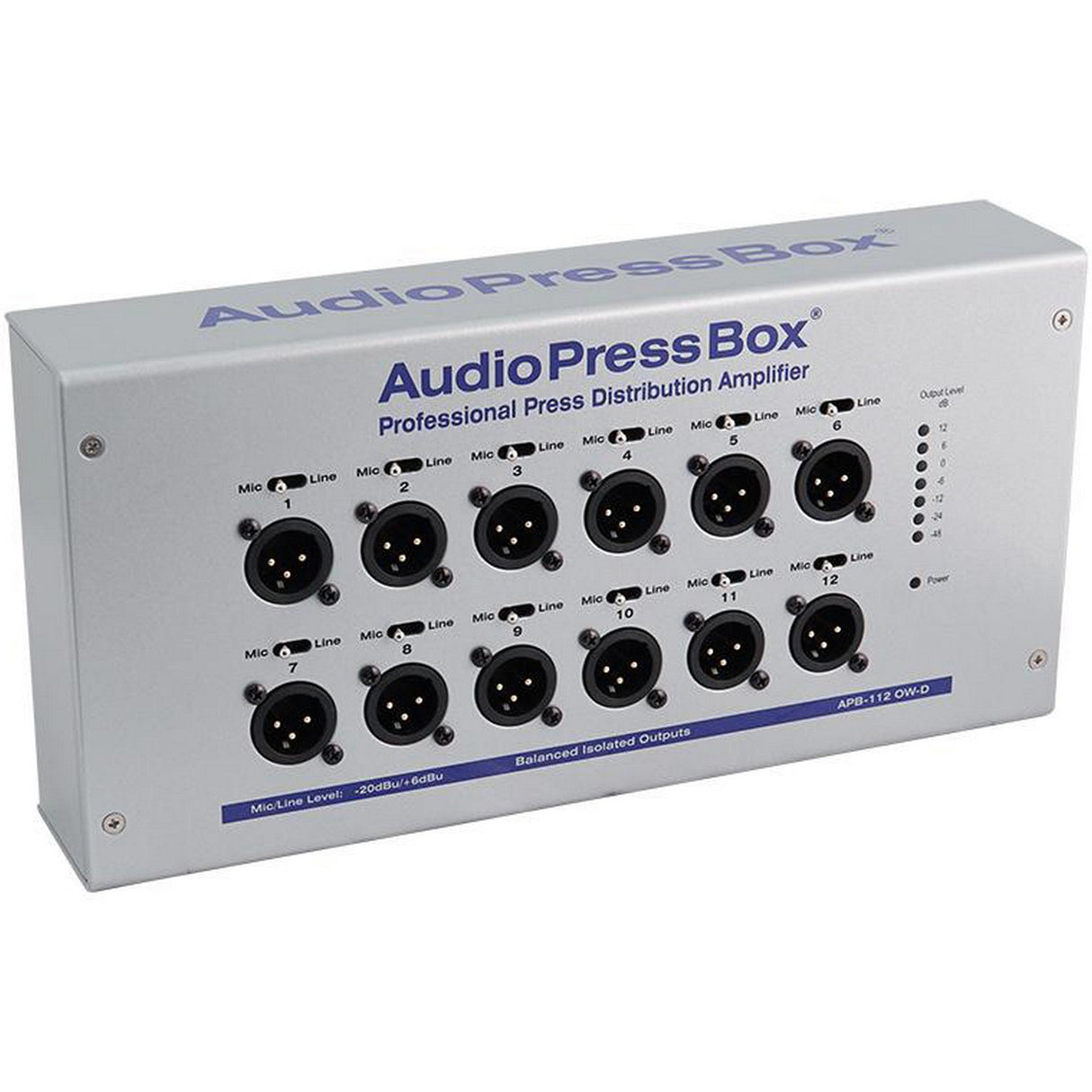

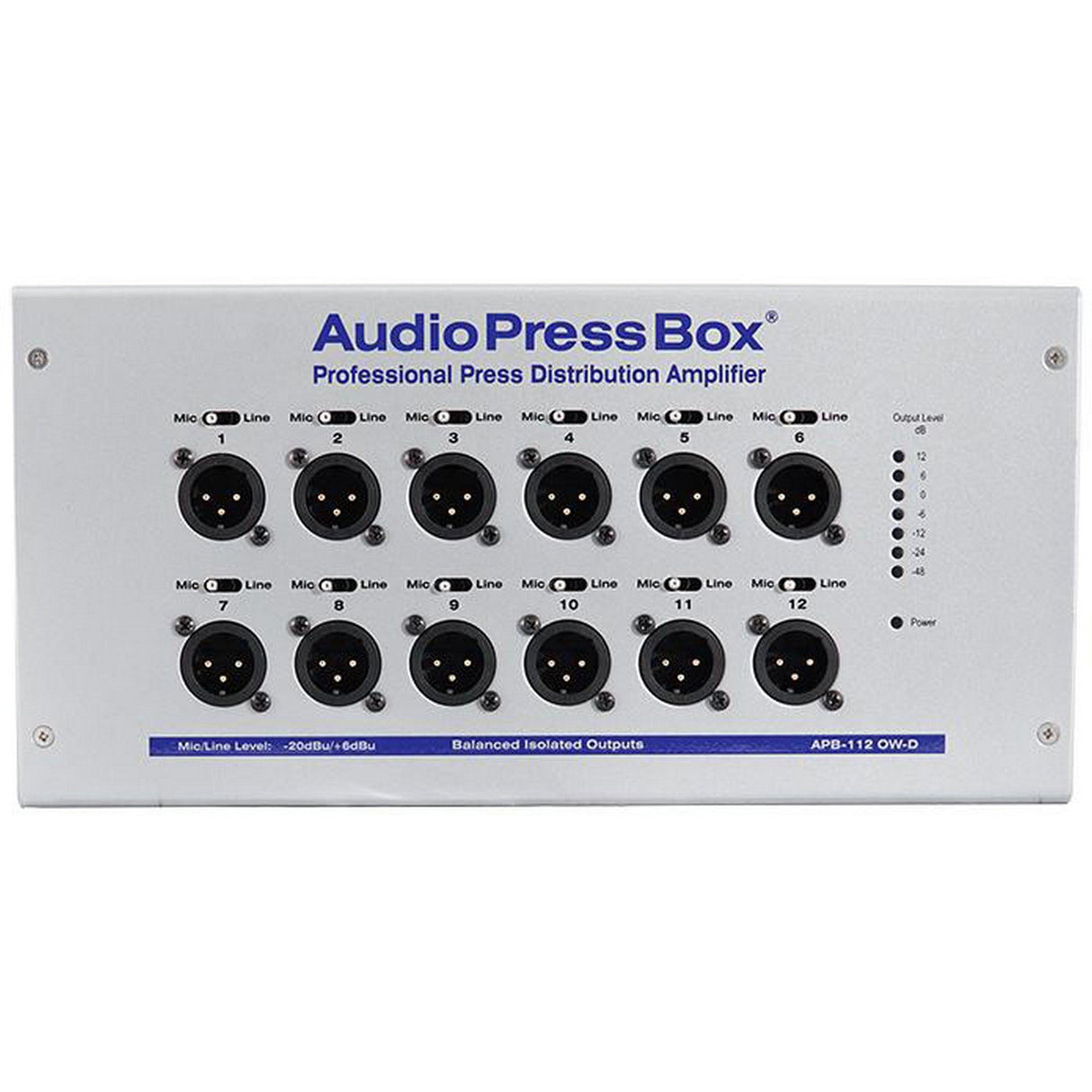

The AudioPressBox APB-112 OW-D is a wall mounted professional active Audio Press Box with a one channel RJ45 DANTE Ethercon input and 12 Line/Mic outputs. Powered by POE (Power Over Ethernet) you only need ONE cable for both signal and power. The AudioPressBox APB-112 OW-D features high quality individually balanced and isolated transformer outlets and each output is switchable between Mic or Line Levels. Plug and Play means super quick set-up anywhere and thanks to DANTE patching you can easily expand channels and outputs.
Key Features
- 1 channel DANTE input - RJ45 ethercon
- 12 high qualities balanced, individually transformer isolated outputs.
- Each output is switchable between Line or MIC level.
- The unit is powered only via PoE from DANTE network
- DANTE patching to easily expand the number of channels or number of outputs by adding other APB-112 OW-D
Technical Specifications
Type
1 In 12 Out
Groups
1
Inputs
1
Input Connectors
RJ45 - Dante
Outputs
12 Line/MIC level
Output Connectors
Balanced, XLR
Nominal Output Level
+6dBu (front outputs)
Maximum Output Level
+20dBu (no load) +14dBu (600Ohm)
Output Impedance
Mic
220 Ohm
Line
600 Ohm
Individually Transformer Isolated Outputs
Yes (each output)
SNR
>70 dB
Frequency Response
20Hz to 20kHz/-3dB
Indicators
Output level, Power
Power Supply
PoE, Class 3
Dimensions (WxHxD)
280x138x50mm
Weight
2750 g
Item Includes
1x AudioPressBox APB-112-OW-D On-wall Active Pro AudioPressBox with 1-Ch Dante Input & 12 LinE/Mic Outputs - PoE Powered
Warranty
2 Year
