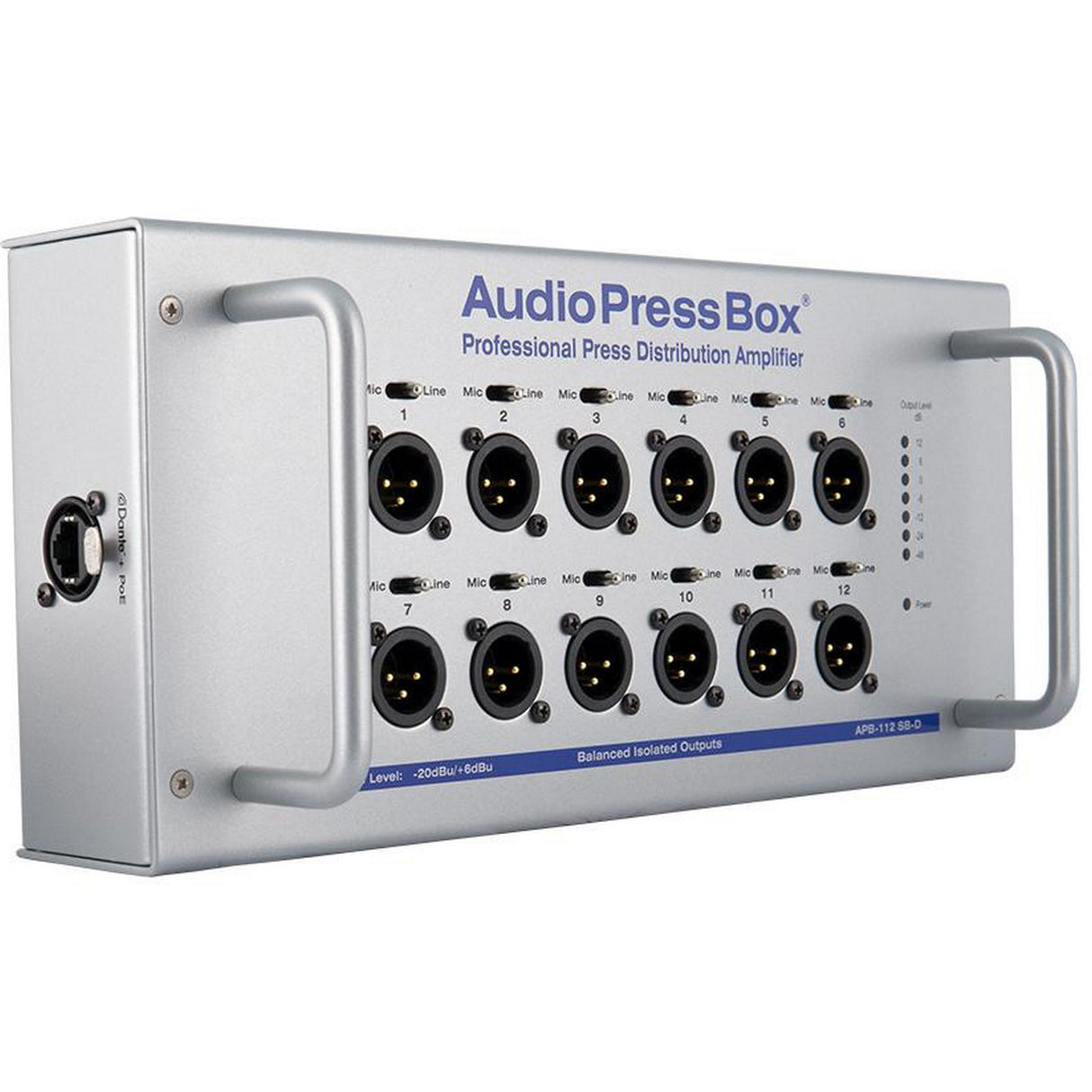

AudioPressBox APB-112-SB-D Portable Active Professional 1-Channel Dante Pressbox

The AudioPressBox APB-112 SB-D is a portable, professional, active Audio Press Box with a one channel RJ45 DANTE input and 12 Line/Mic outputs. Powered by POE (Power Over Ethernet) you only need ONE cable for both signal and power. The AudioPressBox APB-112 SB-D features high quality individually balanced and isolated transformer outlets and each output is switchable between Mic or Line Levels. Plug and Play means super quick set-up anywhere abd thanks to DANTE patching you can easily expand channels and outputs by adding another AudioPressBox APB-112 SB-D.

Key Features

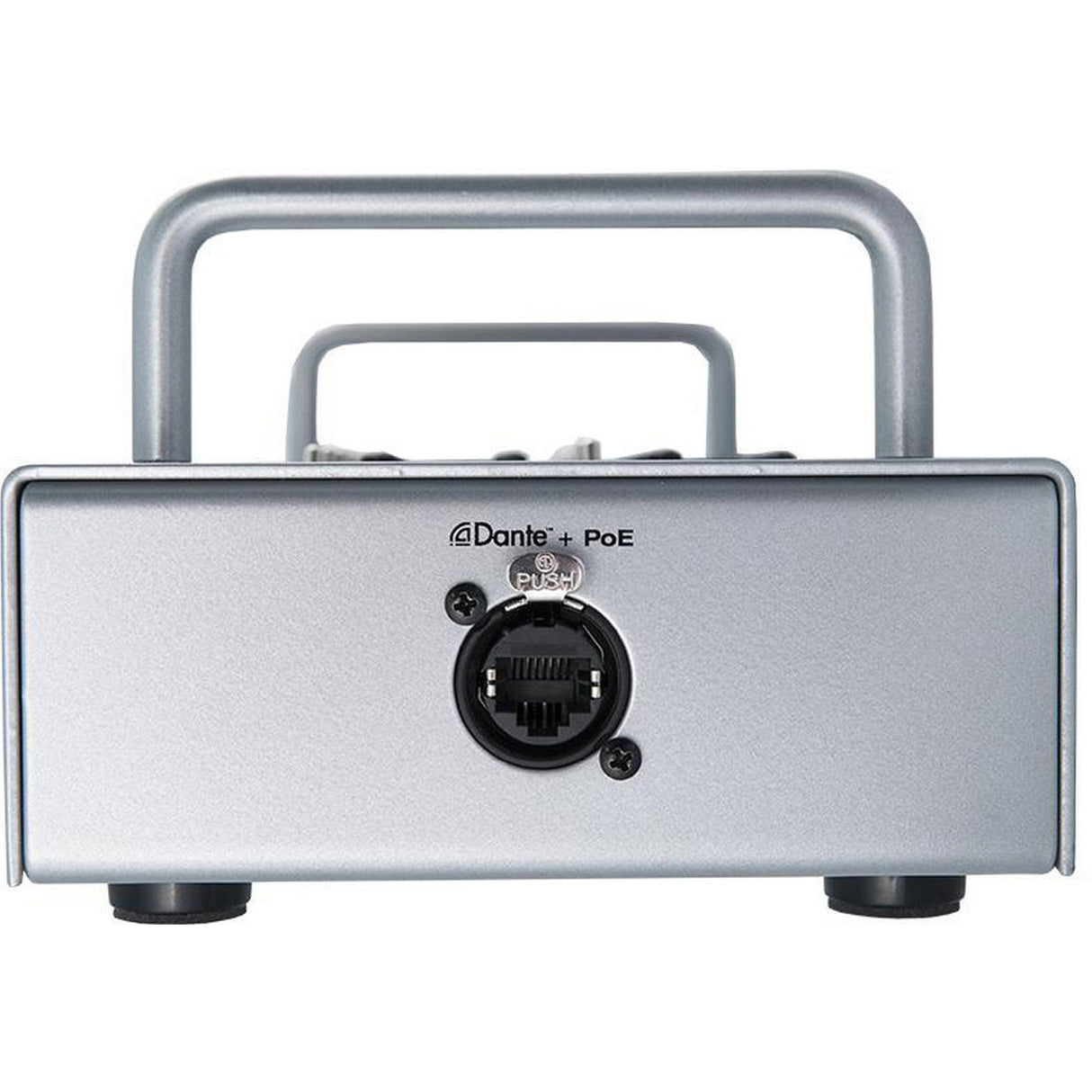

• 1 channel DANTE input - RJ45 ethercon
• 12 high qualities balanced, individually transformer isolated outputs.
• Each output is switchable between Line or MIC level.
• The unit is powered only via PoE from DANTE network
• Thanks to DANTE patching you can easily expand number of channels or number of outputs by adding other APB-112 SB-D

Technical Specifications

Type
1 In 12 Out
Groups
1
Inputs
1
Input Connectors
RJ45 - Dante
Outputs
12 Line/MIC level
Output Connectors
Balanced, XLR
Nominal Output Level
+6dBu (front outputs)
Maximum Output Level
+20dBu (no load) +14dBu (600Ohm)
Output Impedance
Mic
220 Ohm
Line
600 Ohm
Individually Transformer Isolated Outputs
Yes (each output)
SNR
>70 dB
Frequency Response
20Hz to 20kHz/-3dB
Indicators
Output level, Power
Power Supply
PoE, Class 3
Dimensions (WxHxD)
295x138x100mm
Weight
2800 g
Item Includes
1x AudioPressBox APB-112-SB-D Portable Active Professional Audio PressBox with 1 Channel Dante Input/12 Line/Mic Outputs
Warranty
2 Year
