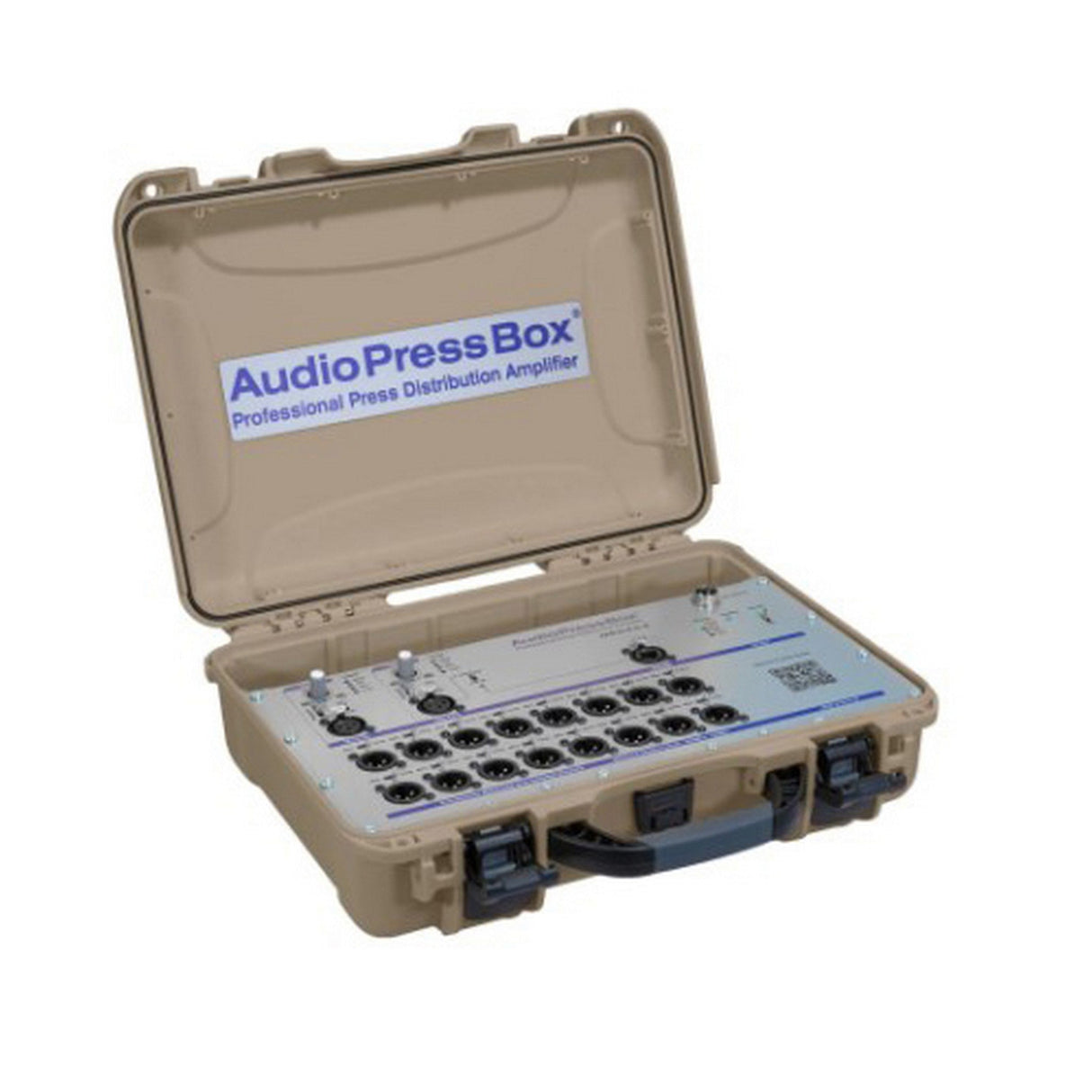

AudioPressBox APB-216-C-D Portable Active Dante-Enabled Pressbox, Tan

Professional portable, active, Dante-enabled pressbox with 2 Line/Mic & 1 ch Dante inputs and 16 Line/Mic outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case.

Key Features

• 2 MIC (phantom power) / LINE Inputs - balanced with gain control and 26dB PAD
• 1 Channel DANTE Input - RJ45 ethercon, requires PoE
• 16 balanced and individually transformer isolated outputs
• Each Output is switchable between MIC or LINE output level
• Built-in Compressor and Limiter for each Input
• Li-Ion AccuPack with microprocessor-controlled battery management
• 10 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
• On unit printed QR code for online access to manual, user guide and video guide

Technical Specifications

Type
2 in 16 out
Groups
1
Inputs
2 Analog, 1 Dante
Input Connectors
Balanced, XLR
Input Gain
Mic
+22/+62 dB
Line
-4/+36 dB
Max. Input Level
Mic
-10/-30dBu
Line
+36/-4dBu
Phantom Voltage
48V
Input Impedance
Mic
2.4 kOhm
Line
3.5 kOhm
Number of Dante Channels
1
PoE Requirement
Yes
Reference level
-18dBFS
Input connector
RJ45
Outputs
16 Line/MIC level
Output Connectors
Balanced, XLR
Nominal Output Level
+6dBu
Maximum Output Level
+20dBu (no load) +14dBu (600kOhm)
Output Impedance
Mic
220 Ohm
Line
600 Ohm
Transformer Isolated Outputs
Yes (each output)
SNR
86dB
Frequency Response
120Hz to 30kHz/-1dB
Controls
Input Section
26dB PAD, Input gain, Phantom
Output Section
Power switch, Output PAD
Indicators
Input section
Phantom power, Input level
Power Supply
24V DC, 1A external adaptor
Battery
Li-Ion, 14,4 V 2200mAh
Battery Operation Time
up to 8 hrs
Dimensions (WxHxD)
14.6 x 4.72 x 11.81” (370 x 120 x 300mm)
Weight
10.36Lbs (4.7kg)
Color
Tan
