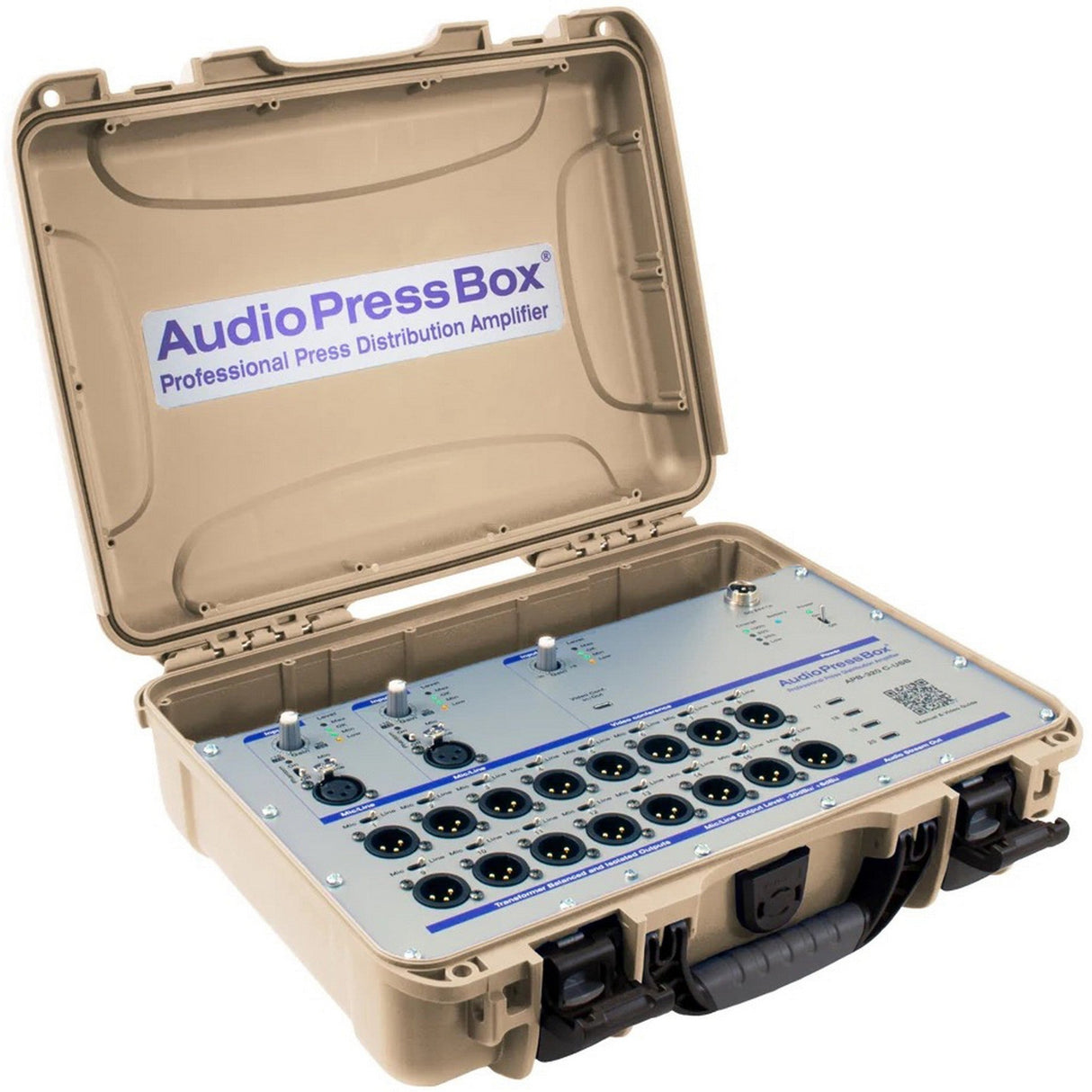

AudioPressBox APB-320 C-USB Analog Mic/LINE XLR Portable Pressbox, Tan

AudioPressBox APB-320 C-USB Analog Mic/LINE XLR Portable Pressbox, Tan

AudioPressBox APB-320 C-USB is a professional portable, active pressbox with 2 Analog Line/Mic inputs, 1 Digital USB-C input & output and 16 Analog Line/Mic & 4 Digital USB-C outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable AccuPack and heavy-duty Nanuk case. The USB-C also allows for a video conference in & out connection.

Key Features

• 2 Analog MIC (phantom power) / LINE Inputs - balanced with gain control and 26dB PAD
• 1 Digital USB-C input & output
• 16 Analog High quality independent transformer balanced and isolated outputs
• 4 Digital USB-C outputs
• Analog Outputs are switchable between MIC or LINE level
• Built-in Compressor and Limiter for analog Inputs
• On unit printed QR code for online acces to manual, user guide and video guide
• Li-Ion AccuPack with microprocessor-controlled battery management
• 20-hour full load capacity. Note: AccuPack is placed inside the unit

Technical Specifications

General
Type
3 in 20 out
Groups
1
Input Selection
Inputs
2 analog, 1 digital
Analog Inputs
Input Connectors
Balanced, XLR
Input Gain
Mic
+22/+62dB, Line
-4/+36dB
Max. Input Level
Mic
-10/-30dBu, Line
+36/-4dBu
Phantom Voltage
48V
Input Impedance
Mic
2,4 kΩ Line
3,5 kΩ
Digital Inputs
Input connector
USB Type C
Compliant USB Specification
USB 2.0
Input Gain
-∞/ +6 dB
Supported Sampling Rates
32kHz, 44.1kHz, 48kHz
Bit Depth
16-Bit
Output Selection
Outputs
16 Analog with Line/ MIC level, 4 Digital
Analog Outputs
Output connectors
Balanced, XLR
Nominal Output Level
+6dBu
Maximum Output Level
+20dBu (no load)
+14dBu (600Ω)
Output impedance
Mic
220Ω Line
600Ω
Transformer isolated outputs
Yes (each output)
SNR
86dB
Frequency Response
120Hz to 30kHz/ -3dB
Digital Outputs
Output connector
USB Type C
Compliant USB Specification
USB 2.0
Supported Sampling Rates
8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
Bit Depth
16-Bit
Interface Powering
Internal
Controls
Input section
26dB PAD, Input gain, Phantom
Output section
Power switch, Output PAD
Indicators
Input Selection
Phantom Power, input level
Power
Power Supply
24V DC, 1A external adapter
Battery
Li-Ion, 14,4V 2200mAh
Battery Operation Time
up to 20 hours
Physical
Color
Tan
Dimensions (WxHxD)
14.56 x 4.72 x 11.81” (370x 120x 300mm)
Weight
10.36lb (4.7kg)
Item Includes
1x AudioPressBox APB-320 C-USB Portable, active pressbox with Digital USB-C Input/Output - Tan
