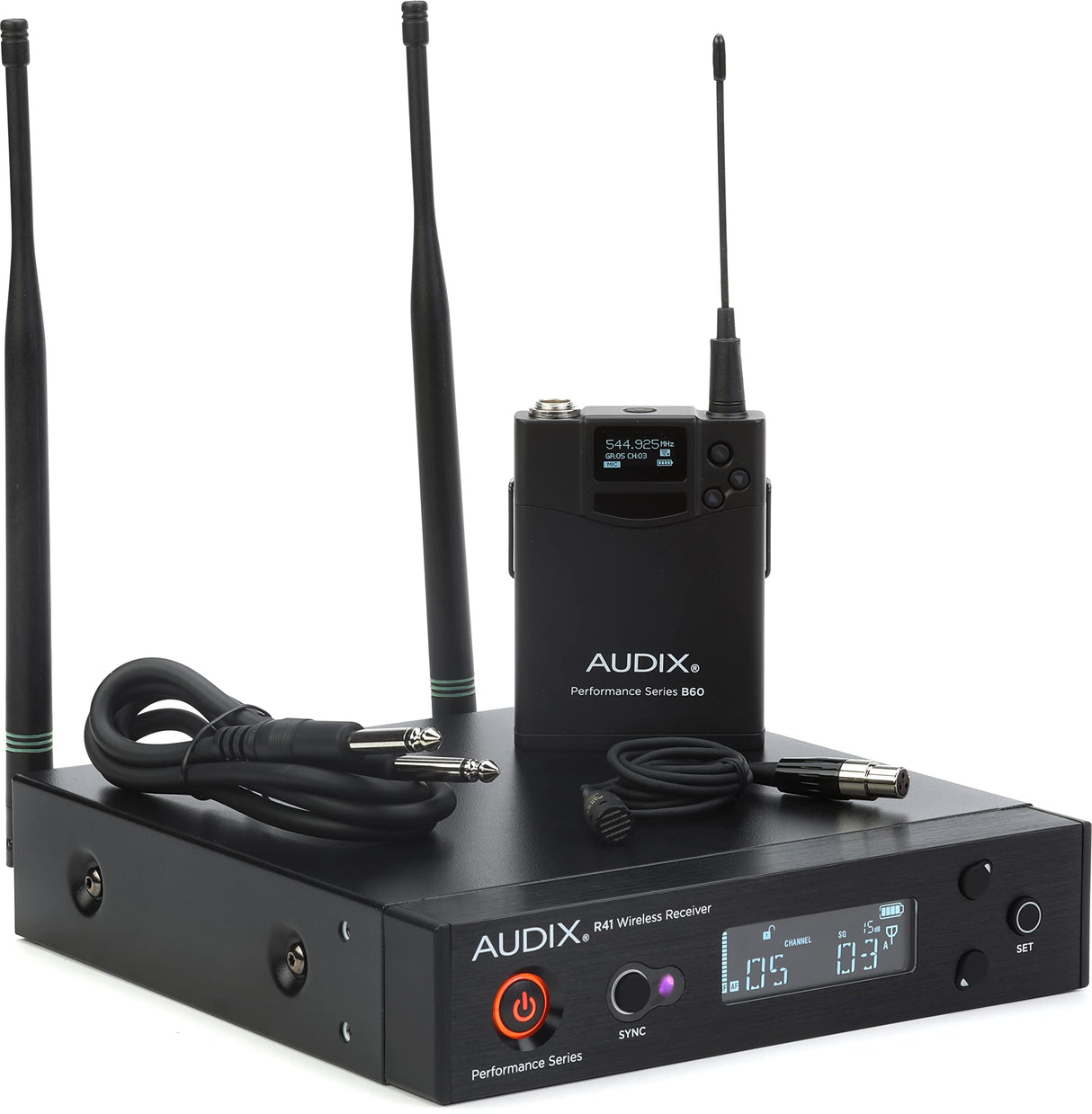

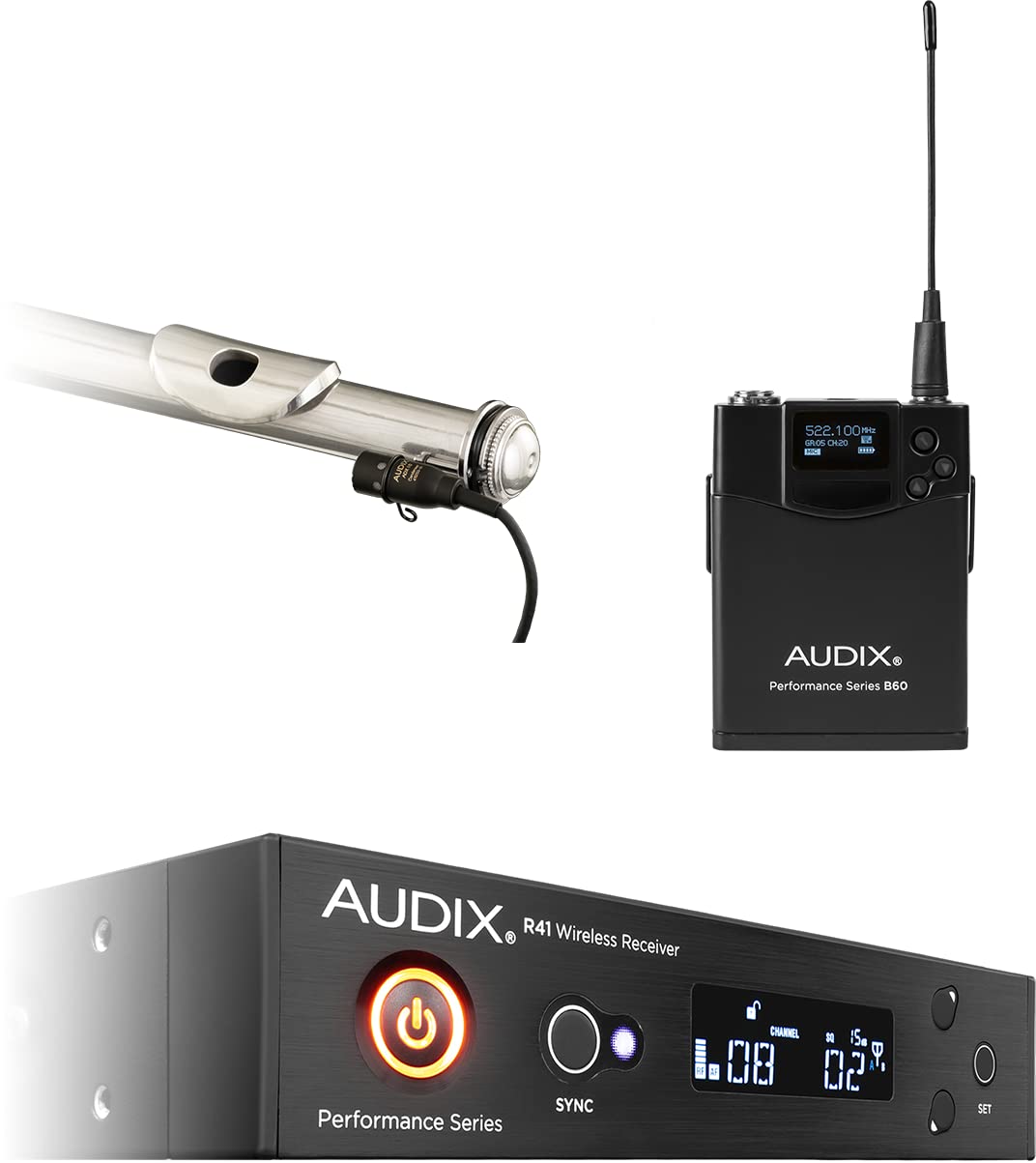

Audix AP41 Flute B R41 Receiver Wireless System with B60 Bodypack ADX10FLP Flute Mic

A professional diversity wireless system featuring the ADX10FL miniaturized cardioid condenser for standard-sized flutes.

The ADX10FL reproduces the natural tone and percussive nature of the flute with detail and accuracy. The tight pickup pattern of the mic helps to isolate the flute from the rest of the instruments on stage.

Specifically designed for use with a standard-sized flute, the ADX10FL includes an integrated clip that attaches to the headstock of the flute.

Key Features

• 554 MHz - 586 MHz
• 106 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• 64 MHz Wide spectrum transmitter with ADX10FLP condenser microphone and mount
• Durable metal housing
• 14 Hour run time AA batteries

Technical Specifications

R41
Frequency Range
522 MHz 554 MHz / 554 MHz 586 MHz
Bandwidth
32 MHz
Compatible Systems
16 Compatible system operation
Switchable Frequencies
106 Preset frequencies
Frequency Response
45 Hz 18 kHz
Compander System
2:1
Pilot Tone
32 kHz
Receiving System
Single tuner, diversity
Signal-to-Noise Ratio
105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion
<.7% (33 kHz deviation at 1 kHz)
Sensitivity
5 dBuV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0)
Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors
1/4", XLR
Audio Level Adjust
Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range
300', (91 M)
Power Supply
100 240V / 50 60 Hz, 12V DC, 1A
Dimensions
205 mm (W) x 206 mm (D) x 44 mm (H)
406 mm (W) x 209 mm (D) x 44 mm (H) (R42)
Net Weight
1.92 lbs. / 870 g
4.4 lbs. / 2.0 kg (R42)

B60
RF Power Output
10 mW, 40 mW
Frequency Bandwidth
64 MHz
Gain Controls
0 db, -6 dB, -12 dB
Input Connector
3 pin mini-XLR
Batteries Included
2 AA 1.5 V
Current Consumption
110 mA typical
Battery Life
14 hours
Input Impedance
Mic: 10 kohm, Line: 1 Mohm
Max Sound Pressure Level
128 dB to140 dB (depending on mic)
Dimensions
67 mm (W) x 90 mm (L) x 17 mm (D)
2.6" (W) x 3.5" (L) x .67" (D)
Net Weight
3.0 oz / 85 g (without battery)
