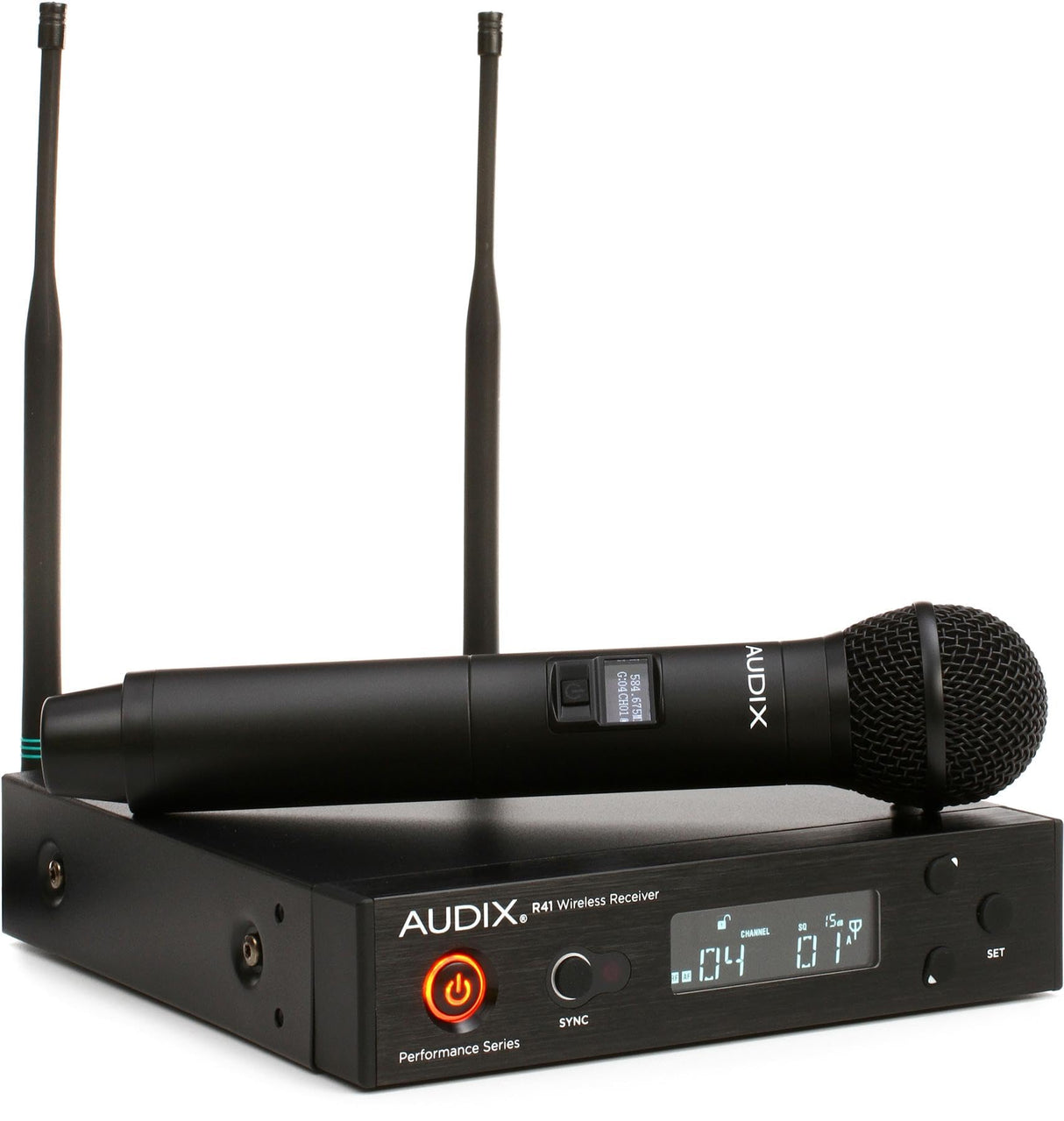

Audix AP41 OM5 A R41 Handheld Wireless System with H60 OM5 Transmitter

A high performance handheld diversity wireless system featuring the legendary Audix OM5.

Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and ability to handle SPLs in excess of 144 dB without distortion.

Key Features

• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• 64 MHz Wide spectrum transmitter with OM5 dynamic capsule
• Durable metal housing
• 14 Hour run time AA batteries

Technical Specifications

R41
Frequency Range
522 MHz - 554 MHz / 554 MHz - 586 MHz
Bandwidth
32 MHz
Compatible Systems
16 Compatible system operation
Switchable Frequencies
106 Preset frequencies
Frequency Response
45 Hz - 18 kHz
Compander System
2:1
Pilot Tone
32 kHz
Receiving System
Single tuner, diversity
Signal-to-Noise Ratio
105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion
<.7% (33 kHz deviation at 1 kHz)
Sensitivity
5 dBUV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0)
Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors
1/4", XLR
Audio Level Adjust
Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range
300 Feet
Power Supply
100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions
205 mm (W) x 206 mm (D) x 44 mm (H)
406 mm (W) x 209 mm (D) x 44 mm (H) (R42)
Net Weight
1.92 lbs. / 870 g
4.4 lbs. / 2.0 kg (R42)

H60
RF Power Output
10 mW, 40 mW
Frequency Bandwidth
64 MHz
Gain Controls
0 dB, -6 dB, -12 dB
Batteries Included
2 AA 1.5 V
Current Consumption
110 mA typical
Battery Life
14 hours
Max Sound Pressure Level
>140 dB (depending on capsule)
Dimensions
2.1" diameter body, 10.43" (L),
53 mm diameter body, 265 mm (L)
Net Weight
11.0 oz / 312 g (without battery)
