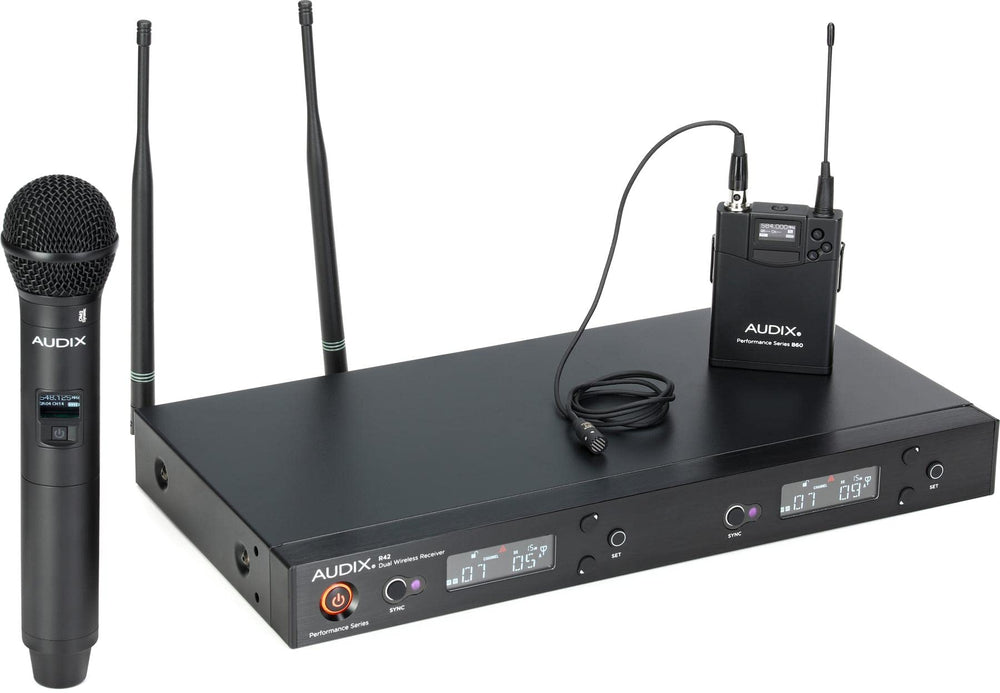

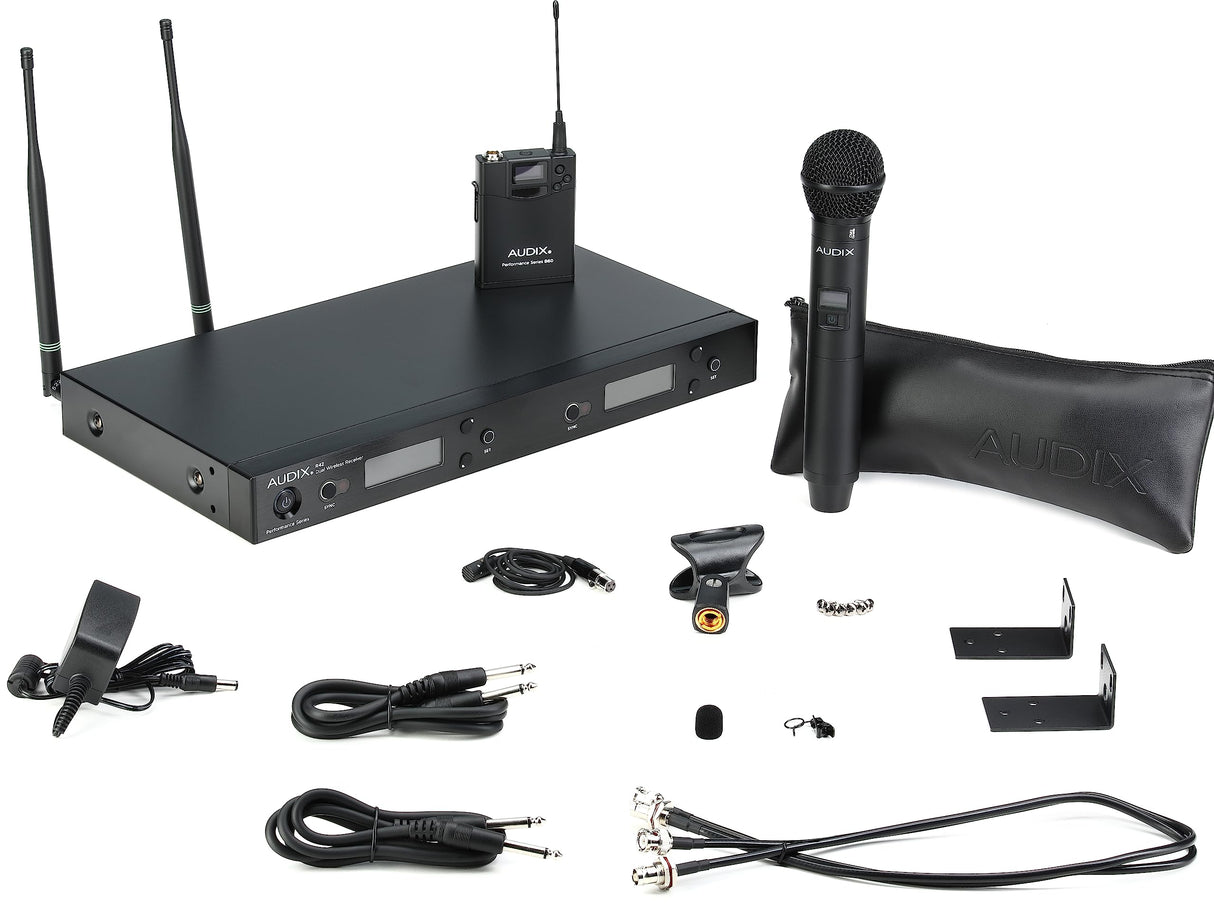

Audix AP42 C210 A R42 Receiver Wireless System with OM2 Transmitter B60 Bodypack and ADX10 Lavalier

A dual channel system that combines the OM2 handheld transmitter with the ADX10 cardioid lavalier system.

This is a very efficient and cost effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.

Key Features

• 522 MHz - 554 MH
• 106 pre-coordinated frequencies
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
• Durable metal housing
• 14 Hour run time AA batteries
• 64 MHz Wide spectrum transmitter with ADX10 lavalier microphone
• Durable metal housing
• 14 Hour run time AA batteries

Technical Specifications

R42
Frequency Range
522 MHz 554 MHz / 554 MHz 586 MHz
Bandwidth
32 MHz
Compatible Systems
16 Compatible system operation
Switchable Frequencies
106 Preset frequencies
Frequency Response
45 Hz 18 kHz
Compander System
2:1
Pilot Tone
32 kHz
Receiving System
Single tuner, diversity
Signal-to-Noise Ratio
105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion
<.7% (33 kHz deviation at 1 kHz)
Sensitivity
5 dBuV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0)
Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors
1/4", XLR
Audio Level Adjust
Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range
300', (91 M)
Power Supply
100 240V / 50 60 Hz, 12V DC, 1A
Dimensions
205 mm (W) x 206 mm (D) x 44 mm (H)
406 mm (W) x 209 mm (D) x 44 mm (H) (R42)
Net Weight
1.92 lbs. / 870 g
4.4 lbs. / 2.0 kg (R42)

B60
RF Power Output
10 mW, 40 mW
Frequency Bandwidth
64 MHz
Gain Controls
0 db, -6 dB, -12 dB
Input Connector
3 pin mini-XLR
Batteries Included
2 AA 1.5 V
Current Consumption
110 mA typical
Battery Life
14 hours
Input Impedance
Mic: 10 kohm, Line: 1 Mohm
Max Sound Pressure Level
128 dB to140 dB (depending on mic)
Dimensions
67 mm (W) x 90 mm (L) x 17 mm (D)
2.6" (W) x 3.5" (L) x .67" (D)
Net Weight
3.0 oz / 85 g (without battery)
