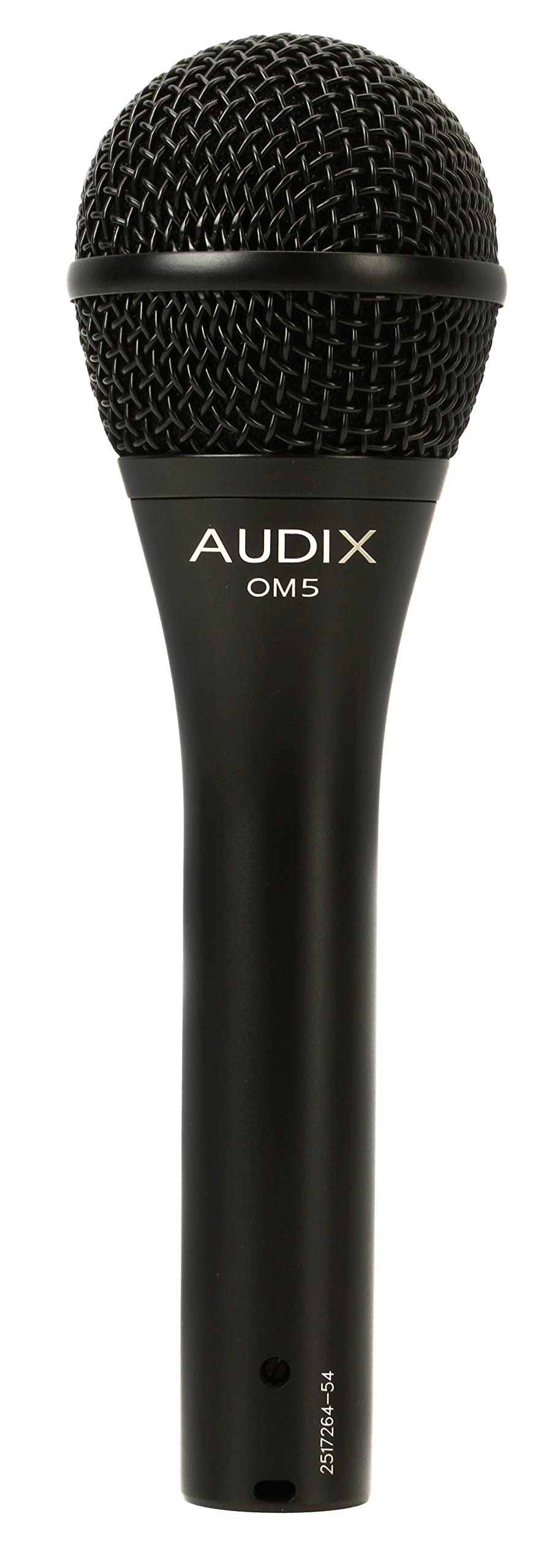

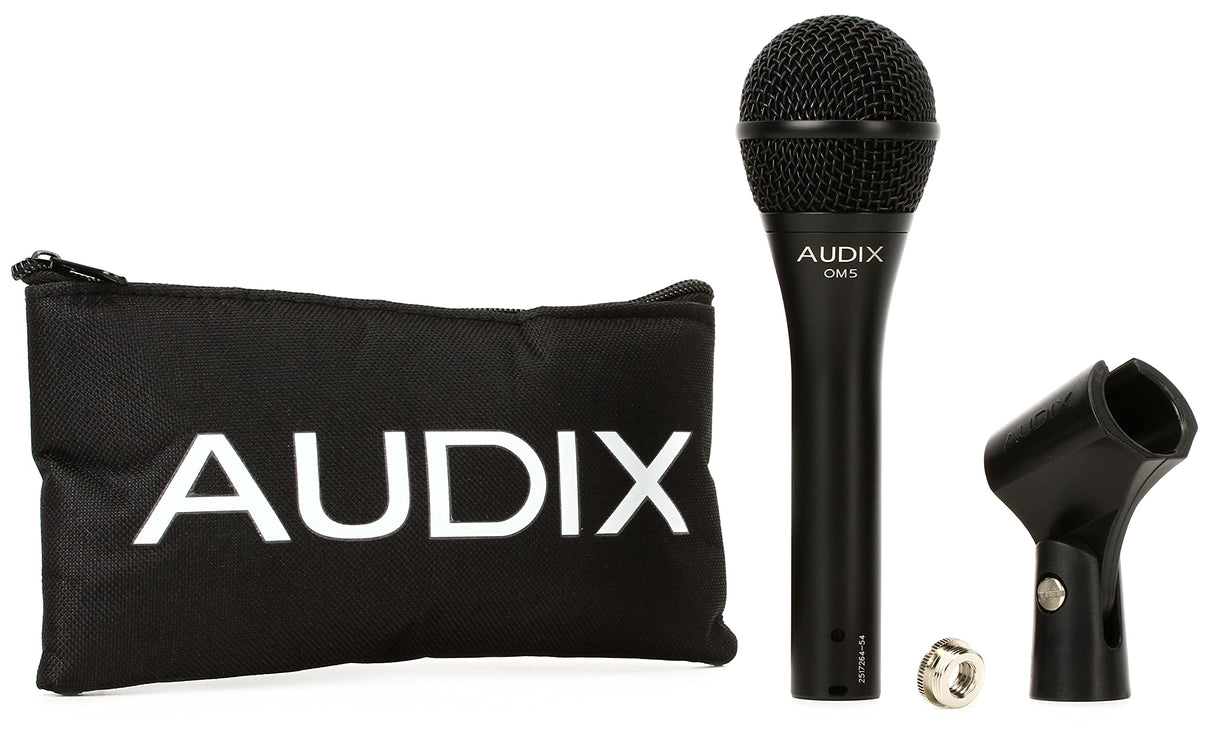

Audix OM5 Handheld Dynamic Vocal Microphone

Vocals, lead & backing - tight pattern control and tailored response enables vocals to cut through the mix.

The Audix OM5 is made with an extremely tight and uniformly controlled hypercardioid polar pattern which isolates the vocals from the rest of the instruments on stage or in a studio.

Used on stage, in studios and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and ability to handle SPLs in excess of 144 dB without distortion.

The OM5 is naturally attenuated at 120 Hz to reduce boominess and handling noise. The mid-range is tailored to provide extra presence in the vocals allowing the vocalist to be easily heard through the main speakers as well as the monitors.

Key Features

• Clear, accurate vocal reproduction
• Handles high SPL without distortion
• Low handling noise
• Provides exceptional gain before feedback
• Provides maximum vocal isolation on stage
• Dent resistant spring steel grill
• 5 year warranty
• Applications: Lead or backing vocals, Live recording, Broadcast, Home studio - vocal instrument, Sax, brass, guitar, dobro, flute, percussion, drums

Technical Specifications

Transducer Type
Dynamic
Frequency Response
48 Hz - 19 kHz
Polar Pattern
Hypercardioid
Output Impedance
200 ohms
Sensitivity
2 mV / Pa @ 1k
Capsule Technology
VLM Type C
Off Axis Rejection
>30 dB
Maximum SPL
144 dB
Power Requirements
None
Connector
Switchcraft® or Audix male XLR < br /> Polarity
Positive pressure on diaphragm
produces positive voltage on pin 2
relative to pin 3 of output
XLR connector
Housing / Finish
Zinc Alloy /
Black E-coat
Weight
307 g / 10.8 ounces
Length
176 mm / 6.9 inches
