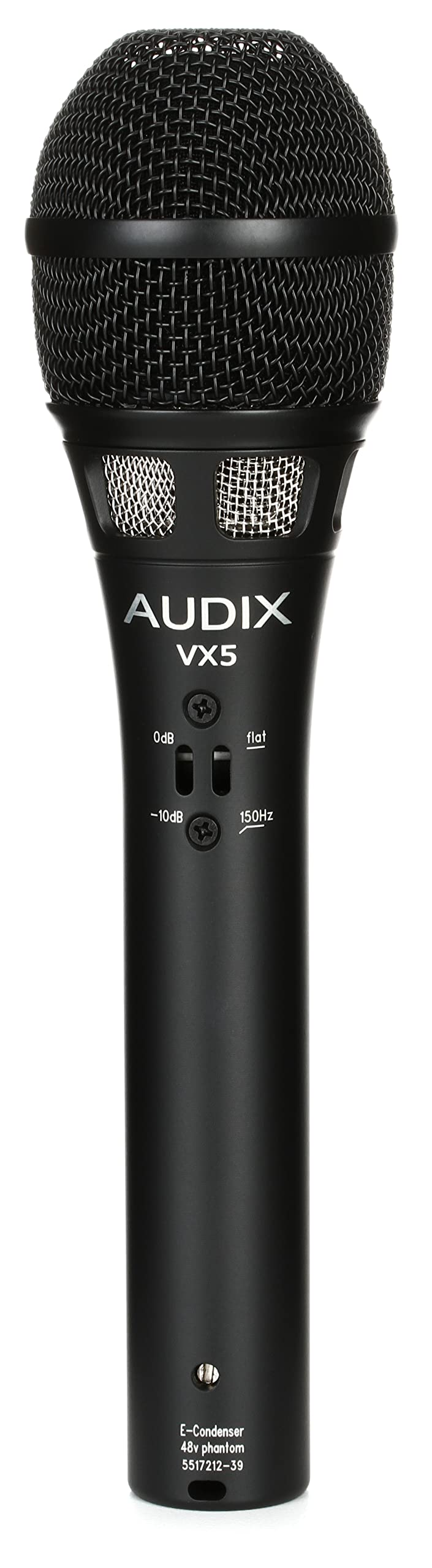

Audix VX5 Supercardioid Condenser Vocal Microphone
The VX5 is a multi purpose, professional vocal condenser microphone designed for live, studio and broadcast applications. With an ability to duplicate studio quality sound on stage, the VX5 has a smooth and accurate frequency response, resistance to feedback and handles very high SPLs without distortion.
Designed with a tight and uniformly controlled supercardioid polar pattern, the VX5 helps isolate vocals from the rest of the stage. Other features are a 14 mm gold vapor diaphragm, an acoustically ported steel mesh grill with a multi-stage pop filter, and a -10 dB pad and bass roll-off filter. The VX5 will handle SPLs in excess of 140 dB (with pad and roll-off engaged) and will provide over 20 dB of ambient noise rejection on live stages.
In addition to vocal applications, the VX5 is designed to capture instruments such as guitars, woodwinds, brasses, percussion toys, drum overheads, hi-hats and pianos.
The VX5 requires 18 - 52 V phantom power.
Key Features
- Live and studio vocals, lead and backing
- Speech
- Acoustic instruments
Technical Specifications
Transducer Type
Pre-polarized Condenser
Frequency Response
40 Hz - 16.5 kHz +/- 3 dB
Polar Pattern
Supercardioid
Output Impedance
150 ohms
Sensitivity at 1k
5 mV / Pa
Equivalent Noise Level
26 dB (A weighted)
Signal to Noise Ratio
68 dB
Off Axis Rejection
>20 dB
Maximum SPL
ā„140 dB (w/ -10 pad)
Power Requirements
9-52 volts
Connector
SwitchcraftĀ® or Audix male XLR connector
Polarity
Positive voltage on pin 2 relative to pin 3 of output XLR connector
Housing / Finish
Die Cast Zinc / Black E-coat
Weight
227 g / 8 ounces
Length
181 mm / 7.1 inches
