Aurora Multimedia VPX-TC1-WP2-PRO 4K60 AV-over-IP Wall Plate - Black

Aurora Multimedia VPX-TC1-WP2-PRO 4K60 AV-over-IP Wall Plate Transceiver

The Aurora Multimedia VPX-TC1-WP2-PRO is a 2-gang AV-over-IP wall plate transceiver that carries 4K60 4:4:4 video, audio, USB, data, and control across standard 1Gb Ethernet infrastructure. Its Mimix CODEC uses 13:1 compression while supporting 1.78 ms Ultra Low Latency operation, seamless source switching, and both white and black installation variants.

Built for classrooms, meeting spaces, digital signage, residential AV, and distributed video systems, the VPX-TC1-WP2-PRO combines one HDMI 2.0b input with USB-C video and data connectivity. A 128 x 64 OLED provides local status information, while integrated test patterns, live diagnostics, channel mapping, video-wall modes, image rotation, and MJPEG preview simplify commissioning and day-to-day system management.

Network transport uses RJ-45 or SFP connectivity, with 10/100/1000M PoE available through the LAN interface. AES 256 encryption, 802.1X, HTTPS, SSH, and HDCP 2.3 address enterprise deployment requirements. AES67 audio support is included, while an optional Dante 2-channel license expands networked-audio integration. The aluminum Decora-style enclosure installs in a 2-gang location and is available in White or Black.

Key Features

• 4K60 4:4:4 AV over IP: Transports UHD video at up to 4K60 4:4:4 across 1Gb Ethernet networks using Aurora Mimix compression.
• White and Black Variants: One umbrella product family covers both available wall plate finishes without changing the verified VPX-TC1-WP2-PRO model designation.
• HDMI and USB-C Sources: Accepts one HDMI 2.0b source plus one USB-C video/data connection for flexible room connectivity.
• 1.78 ms Low-Latency Mode: Supports Aurora's specified zero-frame Ultra Low Latency mode for responsive switching and interactive applications.
• Integrated OLED Display: A 128 x 64 display provides local system information useful during setup, operation, and troubleshooting.
• Advanced Video Processing: Supports seamless switching, video walls, image rotation, EPG channel mapping, freeze frame, mosaic, and custom graphics.
• Enterprise Network Security: AES 256, 802.1X, HTTPS, SSH, and HDCP 2.3 support secure professional AV deployments.
• Networked Audio Support: Includes AES67 and offers an optional 2-channel Dante license for compatible audio-over-IP workflows.

Technical Specifications

• Manufacturer: Aurora Multimedia
• Model: VPX-TC1-WP2-PRO
• Revision: Rev 2
• Product Type: 1Gb AV-over-IP Wall Plate Transceiver

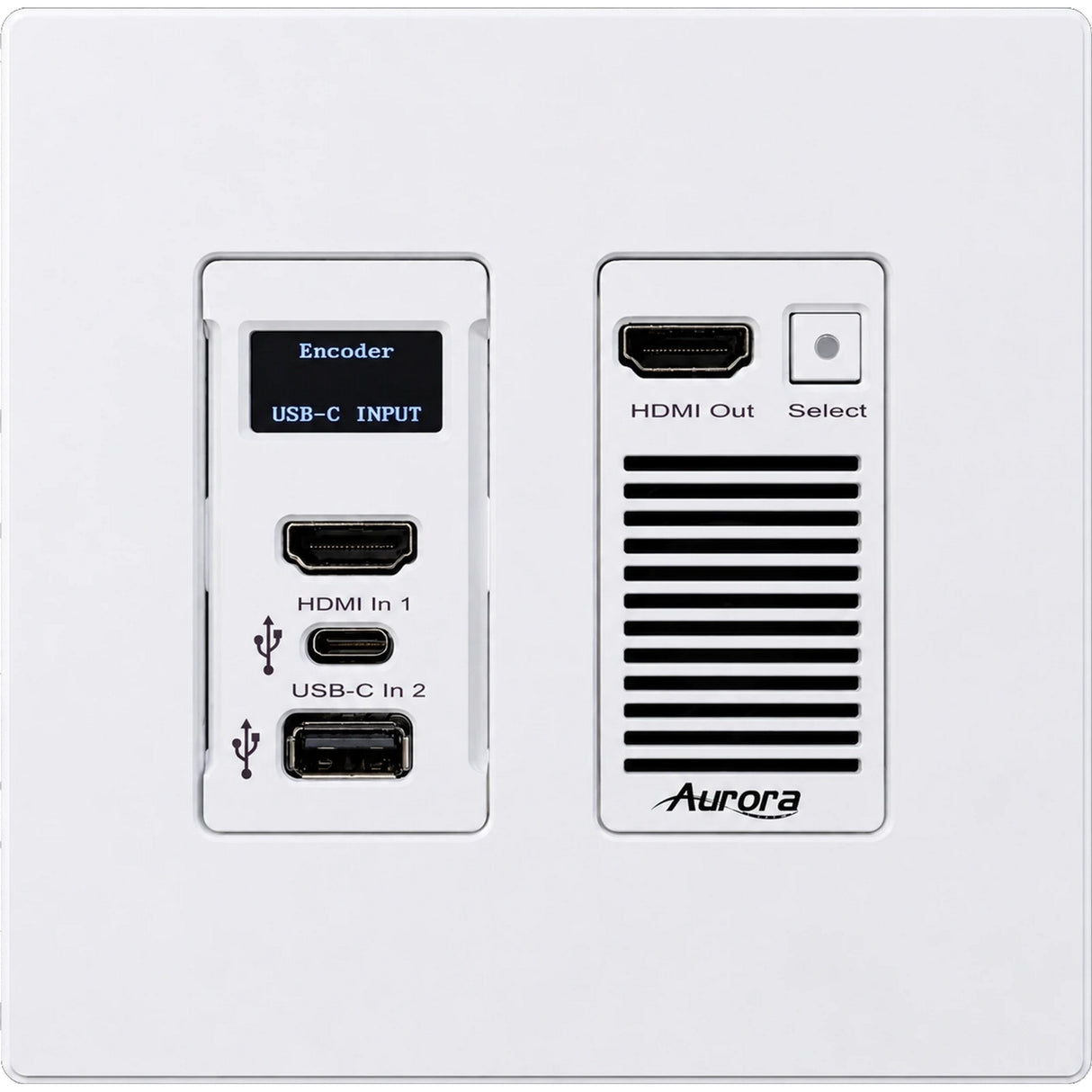

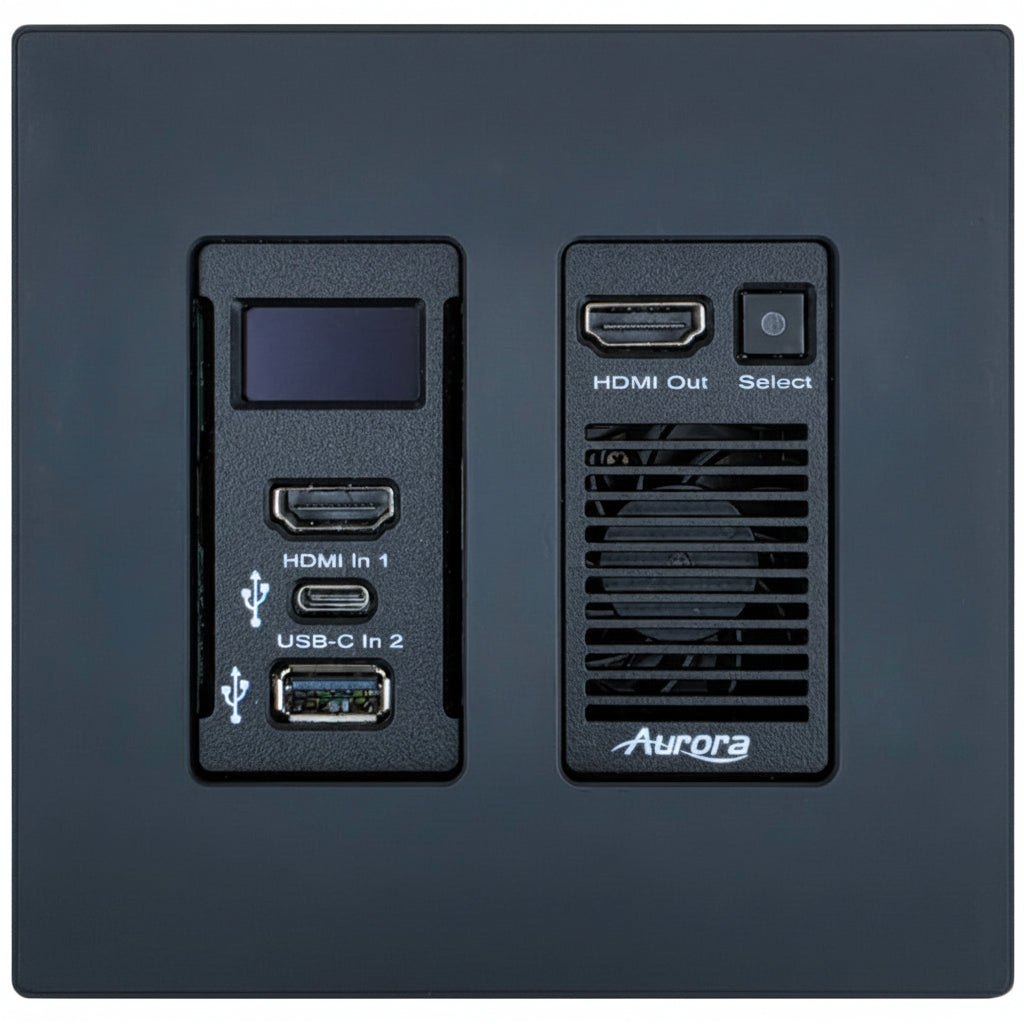

• Color Variants: White, Black
• Mounting Format: 2-gang Decora-style wall plate
• Display: 128 x 64 OLED
• Compression: Mimix 13:1
• Latency: 1.78 ms in Ultra Low Latency mode, specified as 0 frame
• Video Inputs: 1 x HDMI 2.0b, 1 x USB-C
• Maximum Video Resolution: 4K2K 4:4:4 at 60 Hz
• Video Bandwidth: 600 MHz
• Video Stream Bandwidth: 93 to 850 Mbps for 4K60 4:4:4, with packet size under 1600
• Combined Network Bandwidth: Up to 1 Gbps with USB and audio
• HDR Support: HDR10, HDR10+, Dolby Vision
• Color Processing: 12-bit color depth processing
• OSD Processing: 16-bit
• MJPEG Preview: Up to 720p30
• Video Functions: Seamless switching, video wall, image rotation, freeze frame, mosaic, custom graphics, EPG, and channel mapping
• Test Generator: Integrated video test pattern generator with 1 kHz tone
• Encryption and Content Protection: HDCP 2.3 and AES 256
• Network Security: AES 256, 802.1X, HTTPS, SSH
• Audio Channels: Up to 12 channels
• Audio Formats: LPCM, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
• Analog Audio: Stereo line input/output via 3.5 mm TRS
• Network Audio: AES67 included
• Dante: Optional 2-channel Dante license

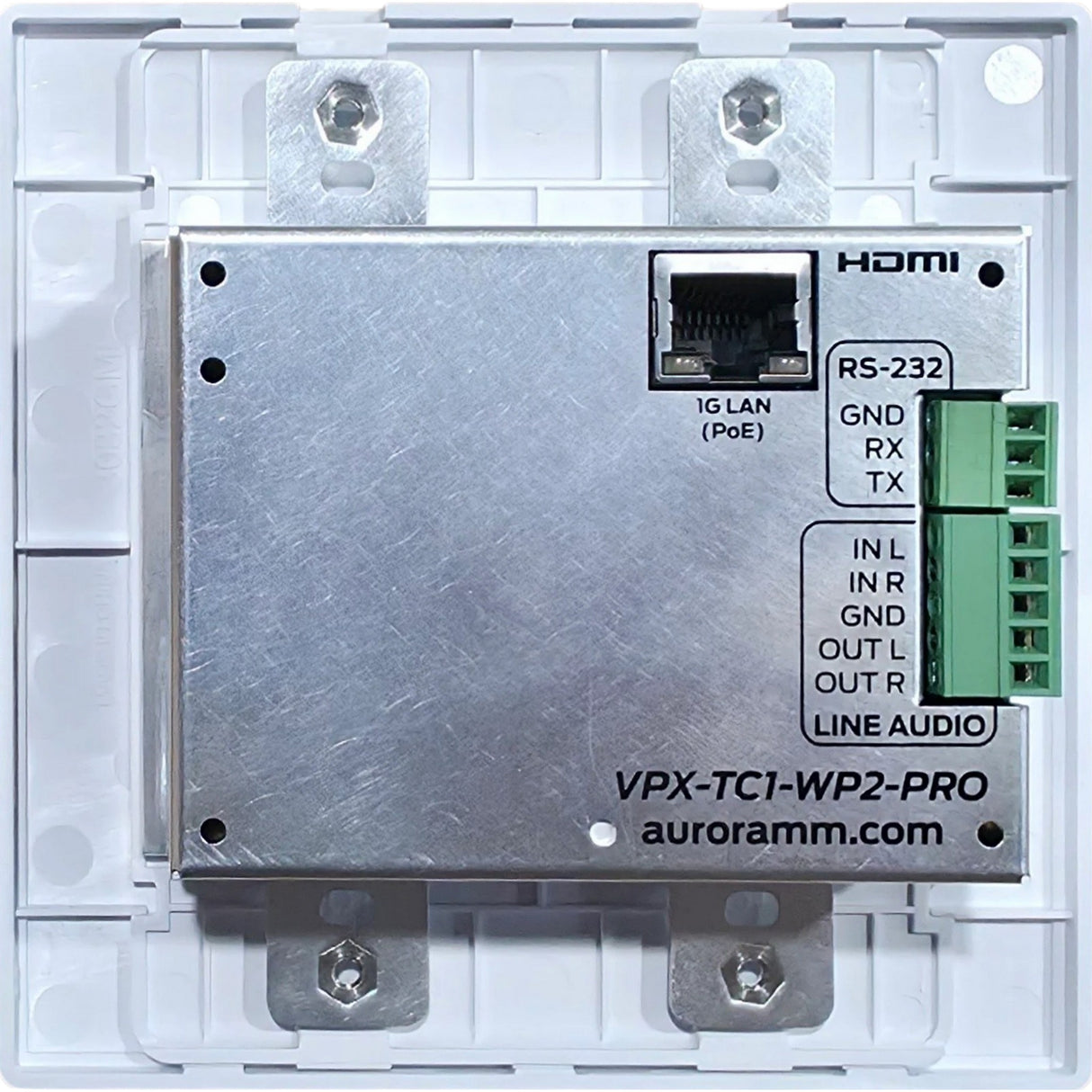

• 1Gb Ethernet: RJ-45 and SFP
• LAN: RJ-45 10/100/1000M with PoE
• USB: 1 x USB 2.0 Type-A, 1 x USB 2.0 Type-C
• USB Camera Bandwidth: 200 Mbps
• USB HID/Mass Storage Bandwidth: 170 Mbps
• RS-232: Up to 115.2 kbps via 3.5 mm TRS
• Configuration Interface: Integrated web server
• Additional Functions: Live logging, roaming mouse, hotkeys, picture-in-picture electronic programming guide, and AuraCast option in decoder mode
• Housing: Aluminum enclosure
• Dimensions: 3.5" L x 2.6" W x 1.4" H
• Width Including Mounting Tabs: 4.3"
• Power Consumption: 6.4 W typical, up to 12.9 W with USB
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Relative Humidity: 20% to 90% RH, non-condensing

What's In the Box

• VPX-TC1-WP2-PRO AV-over-IP Wall Plate Transceiver
