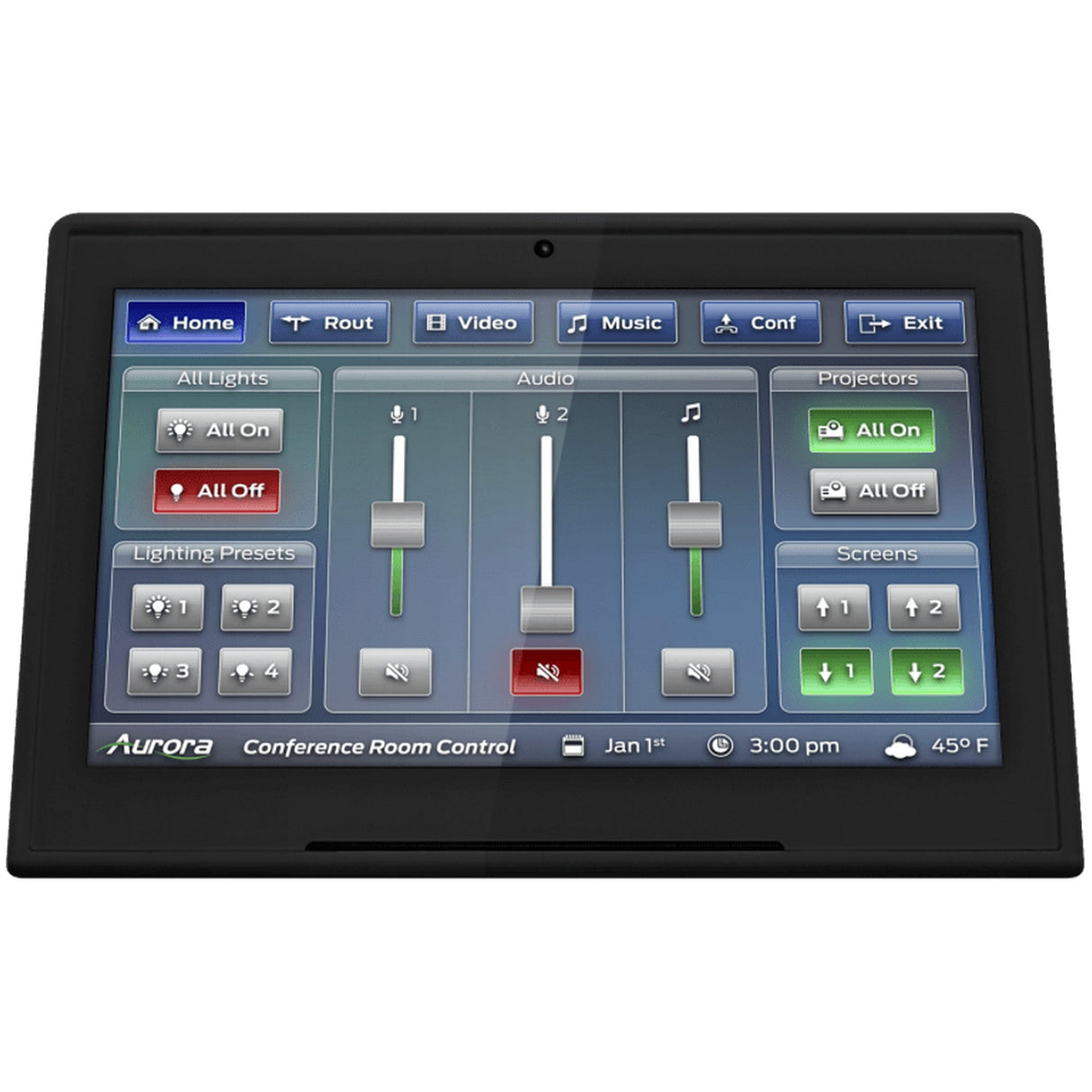

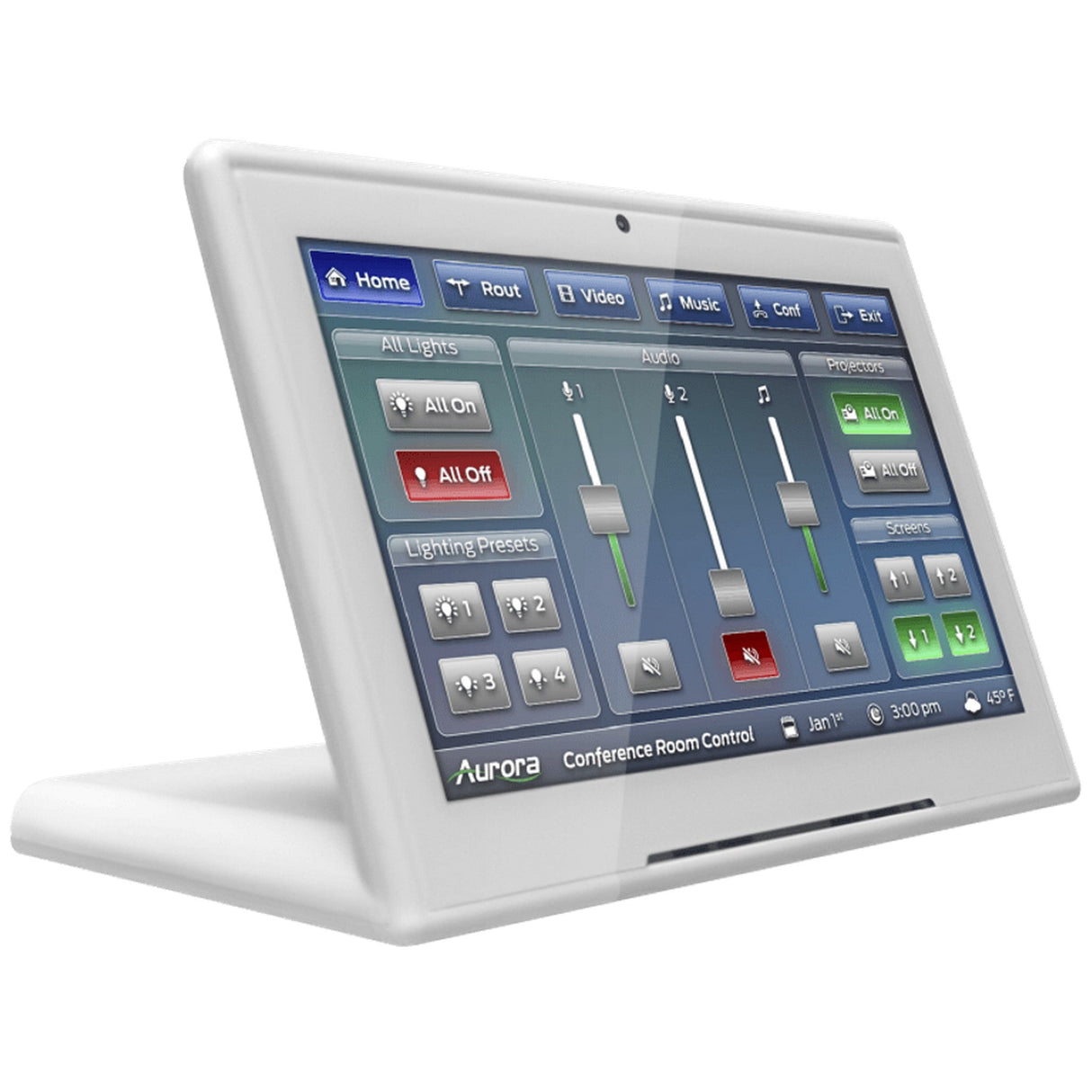

The Aurora RXT-8D 8-Inch Desktop ReAX Touch Panel Control System with Ethernet and WiFi is a touch panel control system designed to streamline presentations, automation, and digital signage in conference rooms, educational facilities, and more. It boasts a high-resolution touchscreen, a powerful processor for smooth operation, and a variety of connectivity options to integrate with various devices.

Display: An 8-inch touchscreen with a crisp 1280 x 800 resolution ensures clear visuals from almost any viewing angle thanks to its generous 170-degree field of view.

Performance: The six-core processor delivers the power to run demanding applications without lag, ensuring a seamless user experience during presentations or control operations.

Memory: 2GB of RAM keeps things running smoothly even when multitasking, while 16GB of flash storage provides ample space for storing control programs, images, and other necessary data.

Operating System: The RXT-8D runs on Android 10, a familiar and user-friendly platform that offers a wide range of compatible applications for customization.

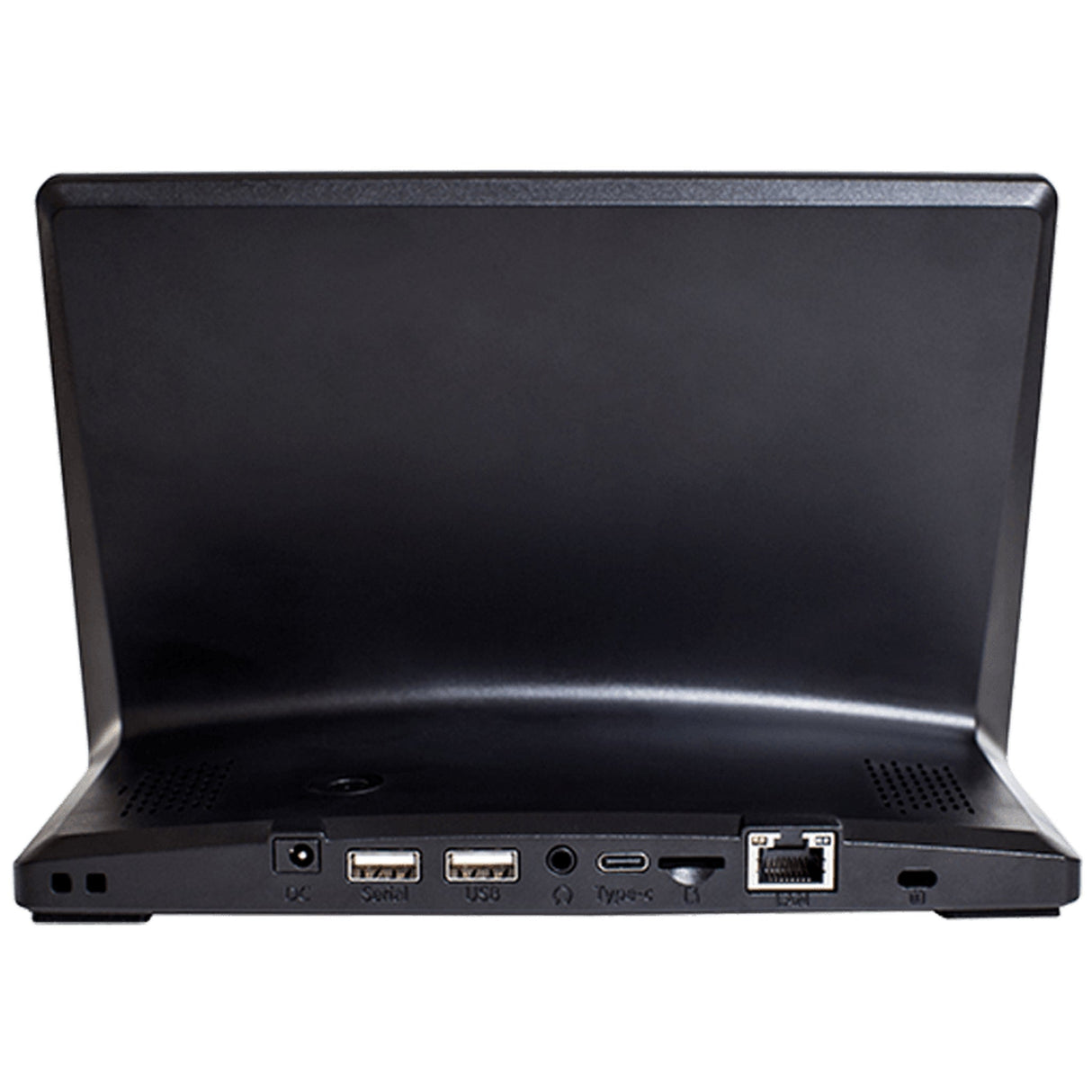

Connectivity: Built-in WiFi, Bluetooth, and Ethernet provide versatile connection options for integrating with network devices and the internet. USB ports and an SD card slot enable easy connection of external peripherals for data transfer or content storage.

Audio/Video: The RXT-8D supports decoding MP3/WMA/AAC audio formats, ensuring high-quality sound output. For video, it boasts compatibility with a wide range of codecs including 4K MPEG-1/2/4, H.263, H.264, and H.265, allowing for playback of high-resolution video content.

Camera: The integrated 5MP front camera facilitates video conferencing, allowing for remote participation and collaboration.

Other: A built-in speaker delivers clear audio for presentations or video conferencing, while a microphone ensures your voice is heard. Additionally, NFC (Near Field Communication) allows for quick and secure data sharing with compatible devices.

The RXT-8D simplifies control and automation thanks to its comprehensive features and user-friendly interface. With the included Core Studio software, users can design custom interfaces to suit their specific needs, further enhancing the system's versatility.

Technical Specifications

Default Passcode
Last 8 numeric characters of units serial number
CPU
Six core cortex A17
RAM
2GB
Internal memory
16GB
Operating system
ReAX server running on Android 10.0
Panel
8" LCD
Resolution
1280x800
Touch screen
10-point capacitive touch
Viewing angle
170° (85/85/85/85 [L/R/U/D])
Contrast ratio
800:1
Luminance
250cd/m2
Aspect ratio
16:10
WiFi
802.11 b/g/n (EIRP <0.1mW)
Ethernet
10M/100M/1000M
Bluetooth
Bluetooth 4.0
Card slot
TF (Micro-SD) card, up to 32GB
RS-232
USB for serial (RS232 format)
USB
USB Host 2.0
USB Type-C
USB OTG Only
Power jack
DC power input
Audio out
3.5mm TRS out
Ethernet
RJ-45
NFC
NFC 13.56MHz, ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
Microphone
Single microphone
Speaker
(1) 2W speaker
Camera
5.0M/P front camera
Power
12V/1.5A or PoE
Power adapter
12V adapter included
Product dimensions (WxHxD)
8.125” x .4.125” x 5.63” 206.4mm x 104.8mm x 143mm
Weight
1lb (0.45kg)
Enclosure
Plastic enclosure, white or black
Operating temperature
0~40°C [32~104°F]
Storage temperature
0~60°C [32~140°F]
Relative humidity
20~85% RH [no condensation]
