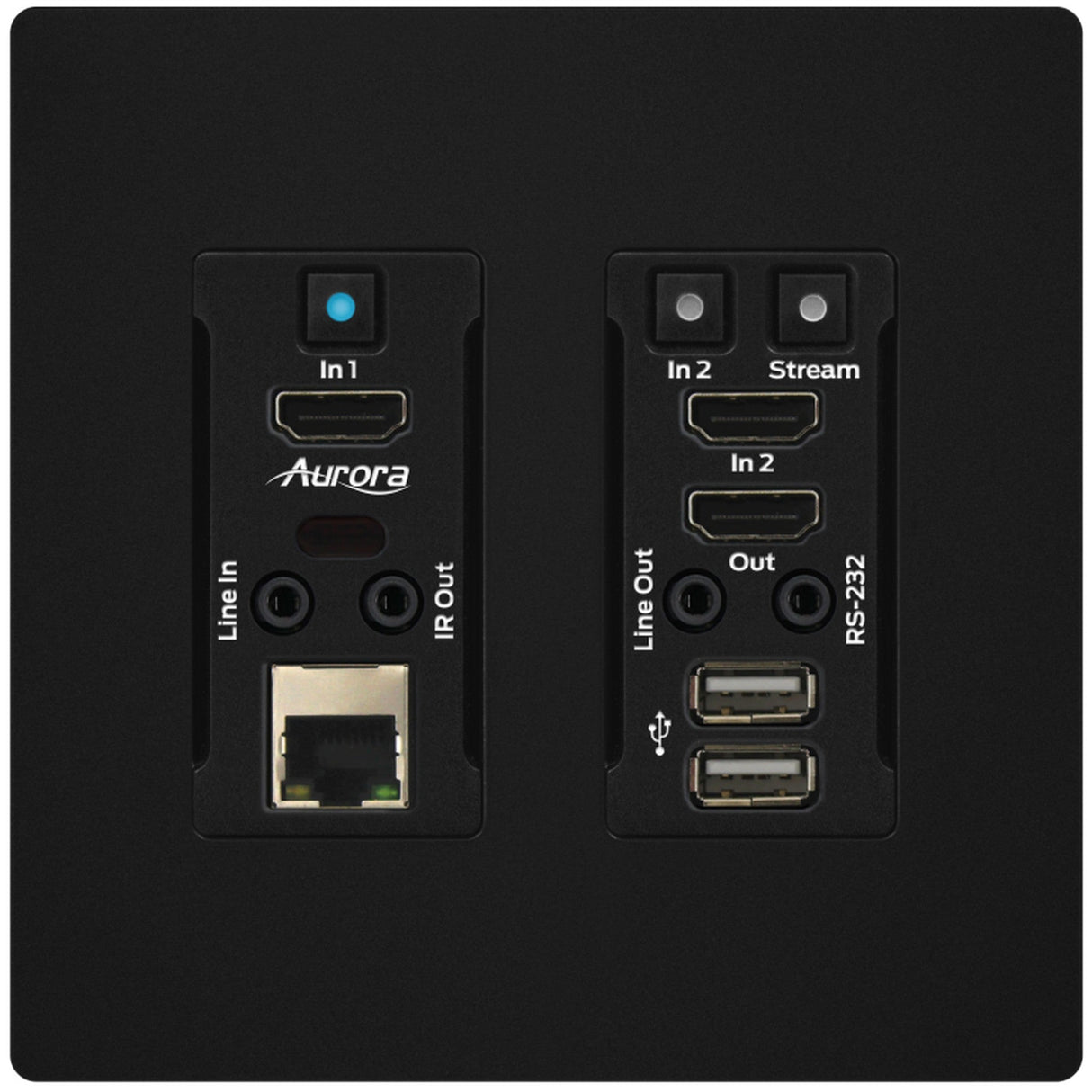

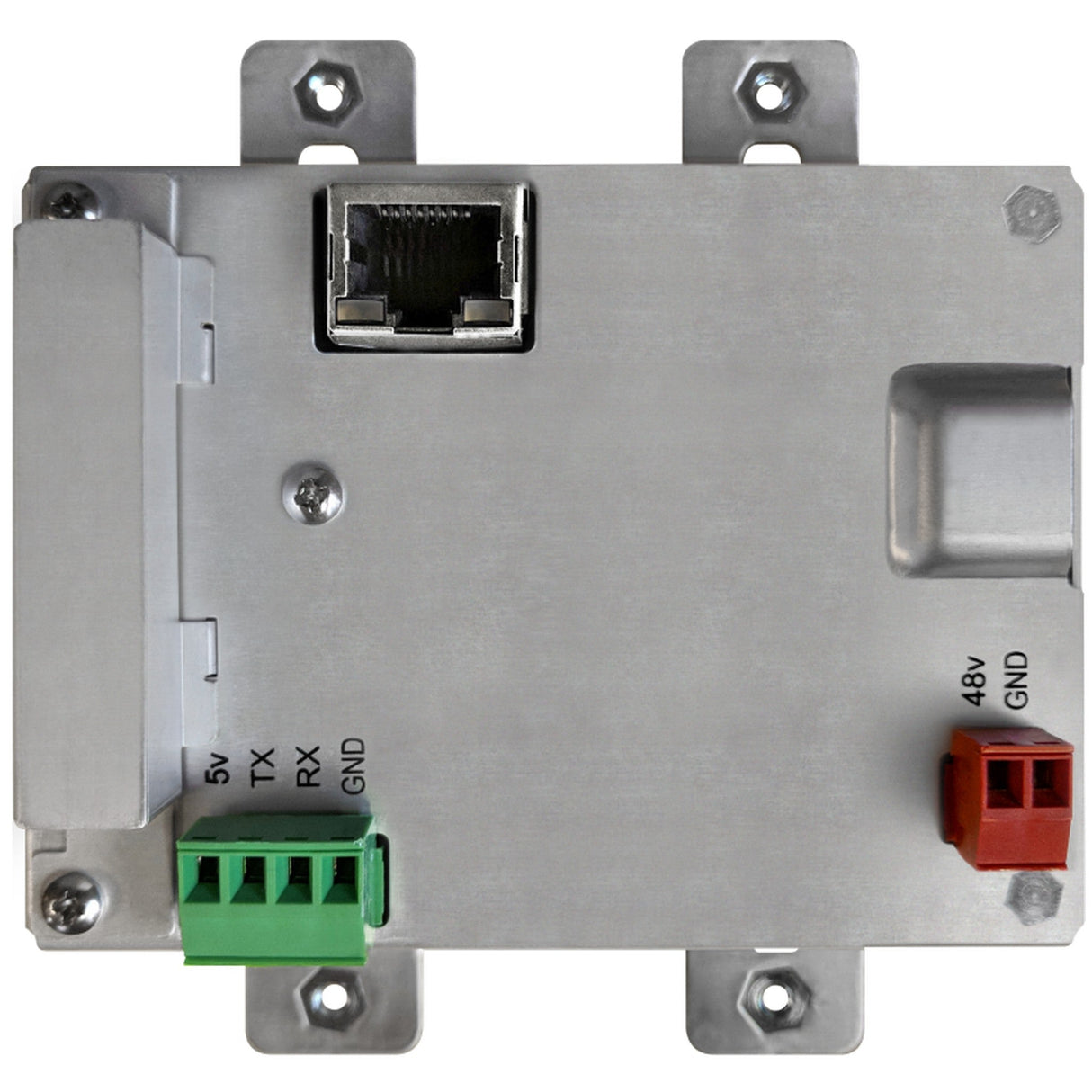

Aurora VLX-TCW2H-C 1Gbps 4K IP Audio Video Wall Plate Black

The VLX-TCW2H provides one of the most advanced IP Streaming solutions on the market utilizing Aurora’s IPBaseT technology, which synergizes various IP/AV standards to work together as one. It is the industry’s first 4K UHD transceiver with only 1.5 frame (25ms) latency and visually lossless compression. The VLX-TCW2H has 2 HDMI ports. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard until now. The VLX-TCW2 Series can be set up as either one to make installation, inventory, and troubleshooting easier.

Key Features

• Color: Black
• 4K visually lossless over 1Gbps network
• Low 1.5 frame latency
• 1080p to 4K, 4K to 1080p scaling
• HDMI 2.0/HDCP 2.2
• Unlimited scalability (based on network topology)
• Videowall with image rotation
• PoE (Power over Ethernet)
• Stereo line I/O
• RS-232 and IR Control Ports
• Auto sense switching
• USB 2.0 Host and Device Ports
• Dante IP audio option

Technical Specifications

Compression
8:1
Latency
1.5 Frames (25ms)
Scaling
1080p to 4K, 4K to 1080p
HDMI Inputs
2 HDMI 2.0/HDCP2.2
HDMI Outputs
1 HDMI 2.0/HDCP2.2
Audio Analog
Stereo Line In/Out (3.5mm TRS)
1G Copper Ethernet
RJ-45
LAN
RJ-45 10/100/1000M PoE (PSE)
Video Bandwidth
340MHz
Video support
Up to 4K2K 4:2:0 @60Hz
Audio support
Up to 32 channels & Break-away Capable
RS-232
2 qty Up to 115k Baud (3.5mm TRS)
IR
Bi-Directional (3.5mm TRS)
USB Connector
1 USB 2.0 Type A, 1 USB 2.0 Type B 2 USB 1.1 Type A
Expansion Port
Dante Option
Interface
IR or Keypad via OSD, Webserver
Housing
Aluminum
Dimensions
2 Gang 3.728” x 2.83”(4.331” with tabs) x 1.404”
Weight
1.13g <2.5lbs>
Mounting
Wall-mounting Decora 2 Gang
Power supply
48V DC (2 pin Euro) or 1G PoE
Power consumption
9 Watts
Operation temperature
0~40C <32~104F>
Storage temperature
-20~60C <-4~140F>
Relative humidity
20~90% RH
