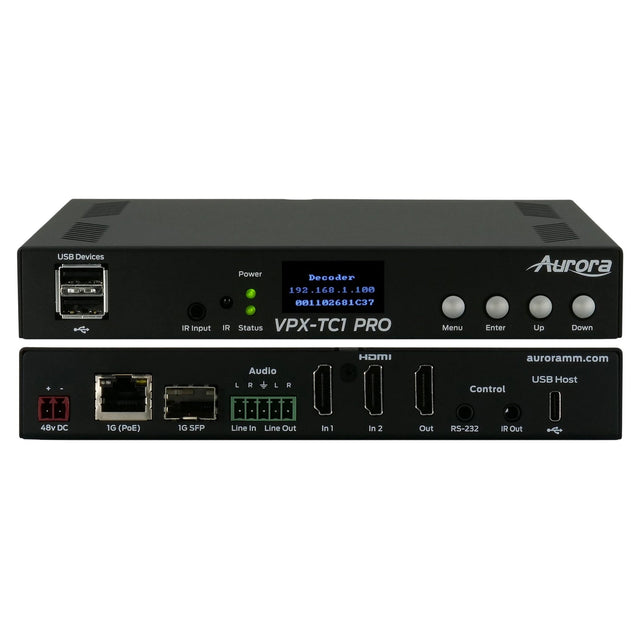

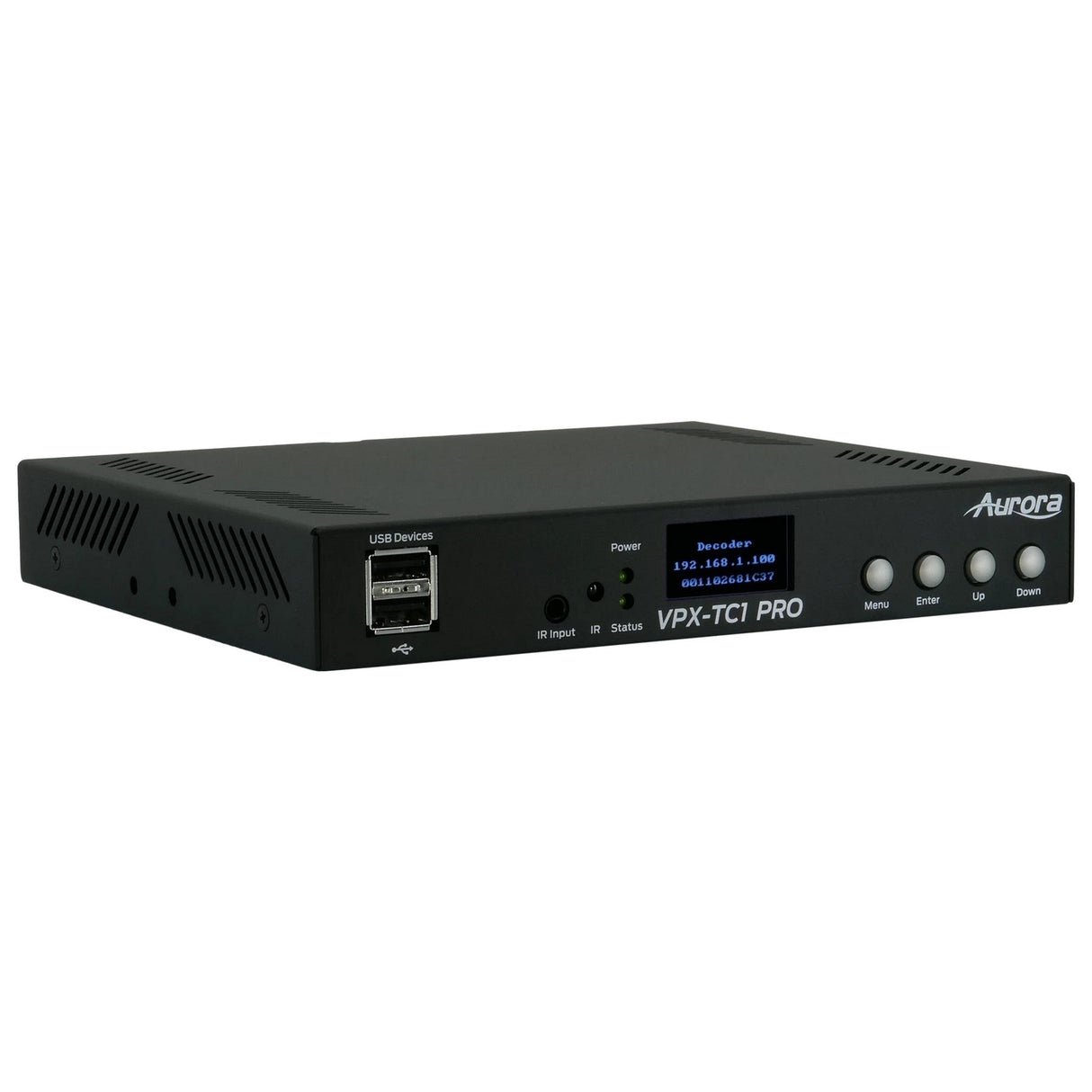

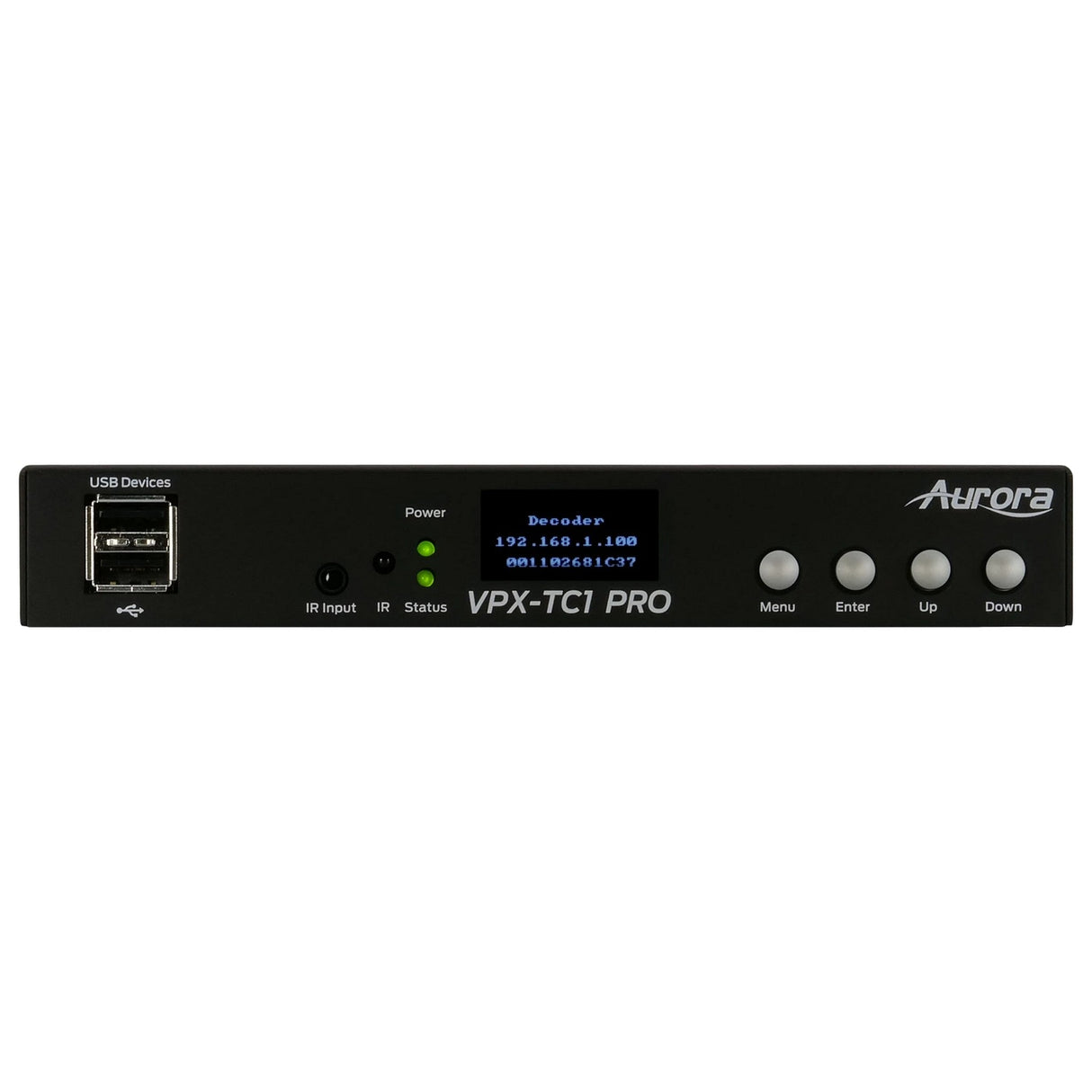

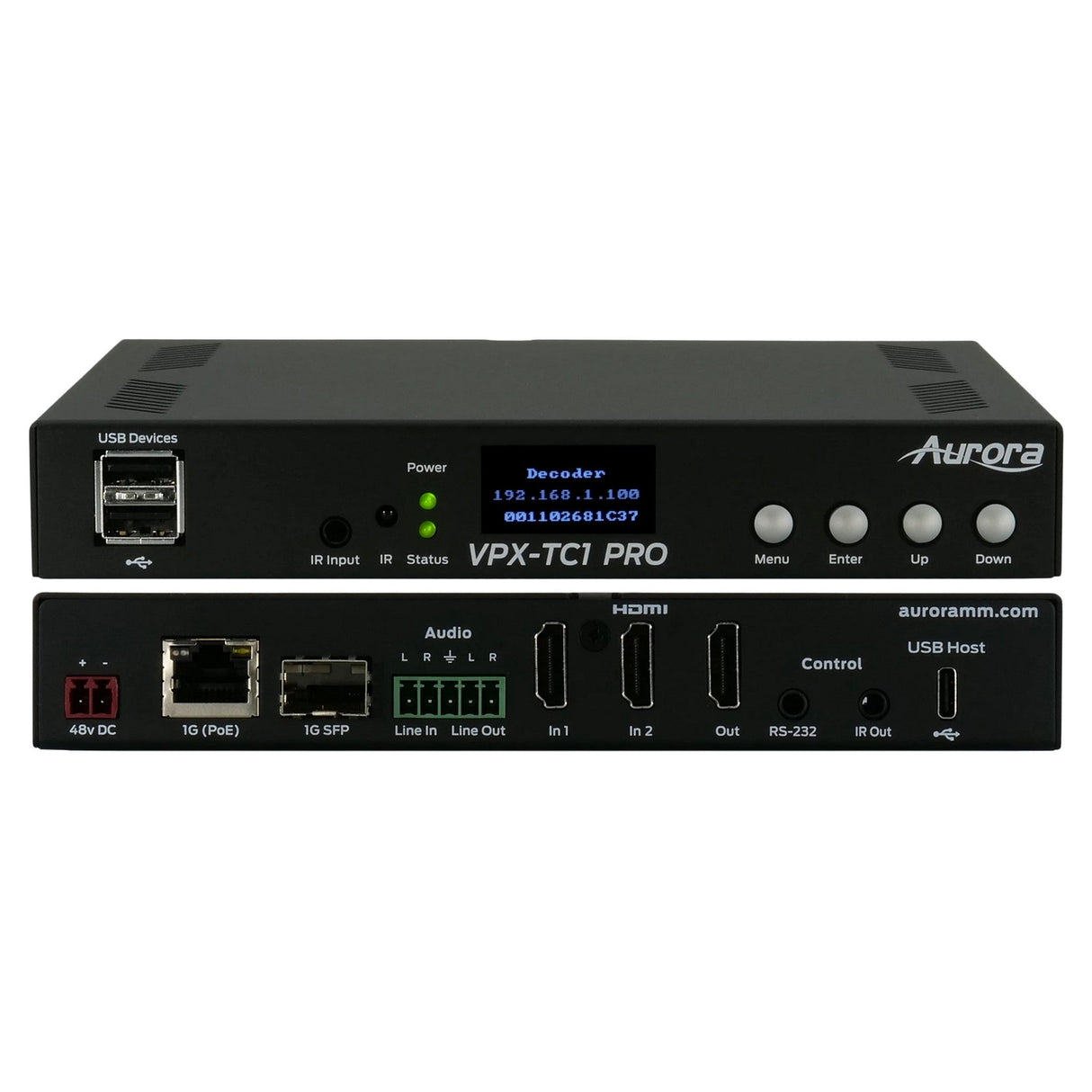

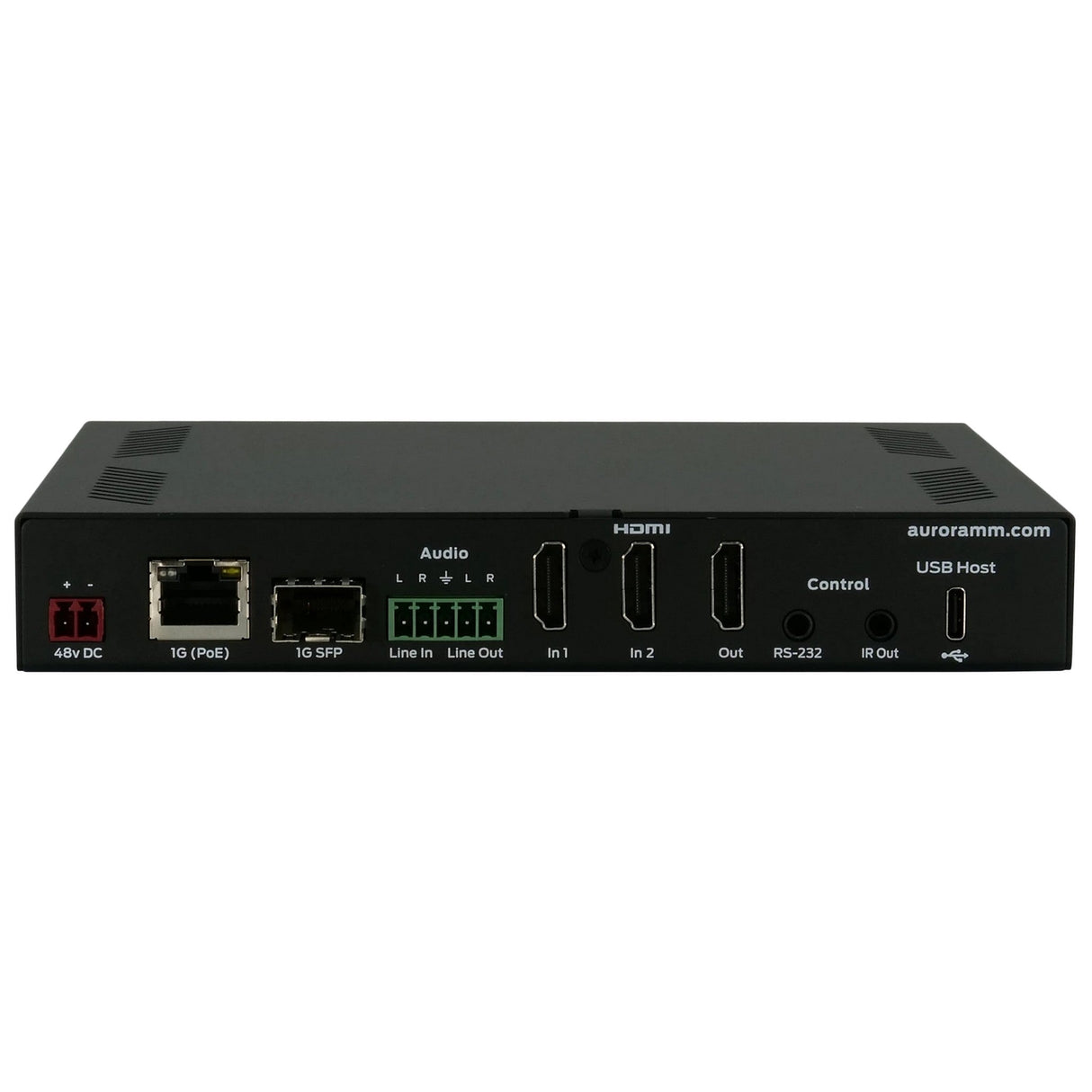

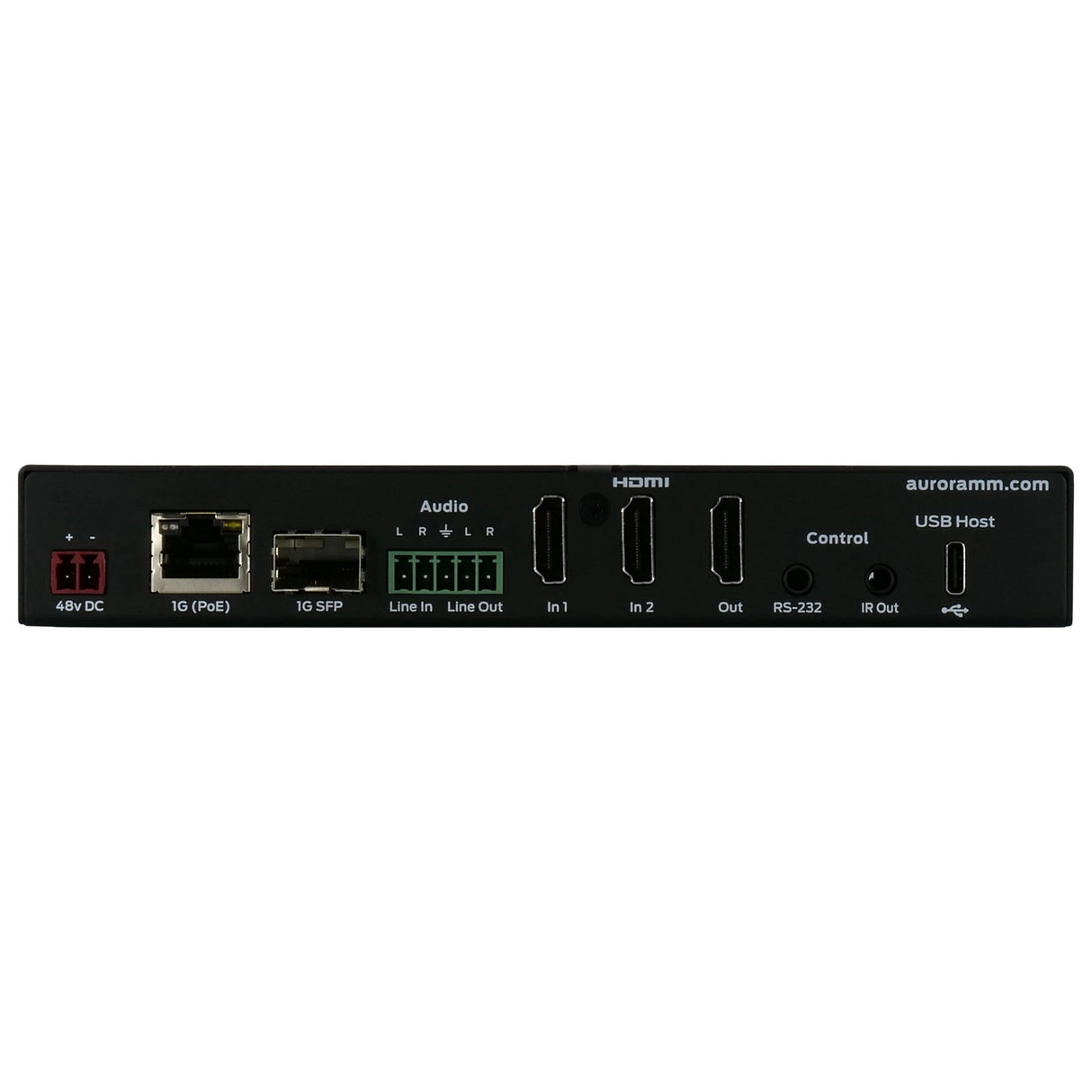

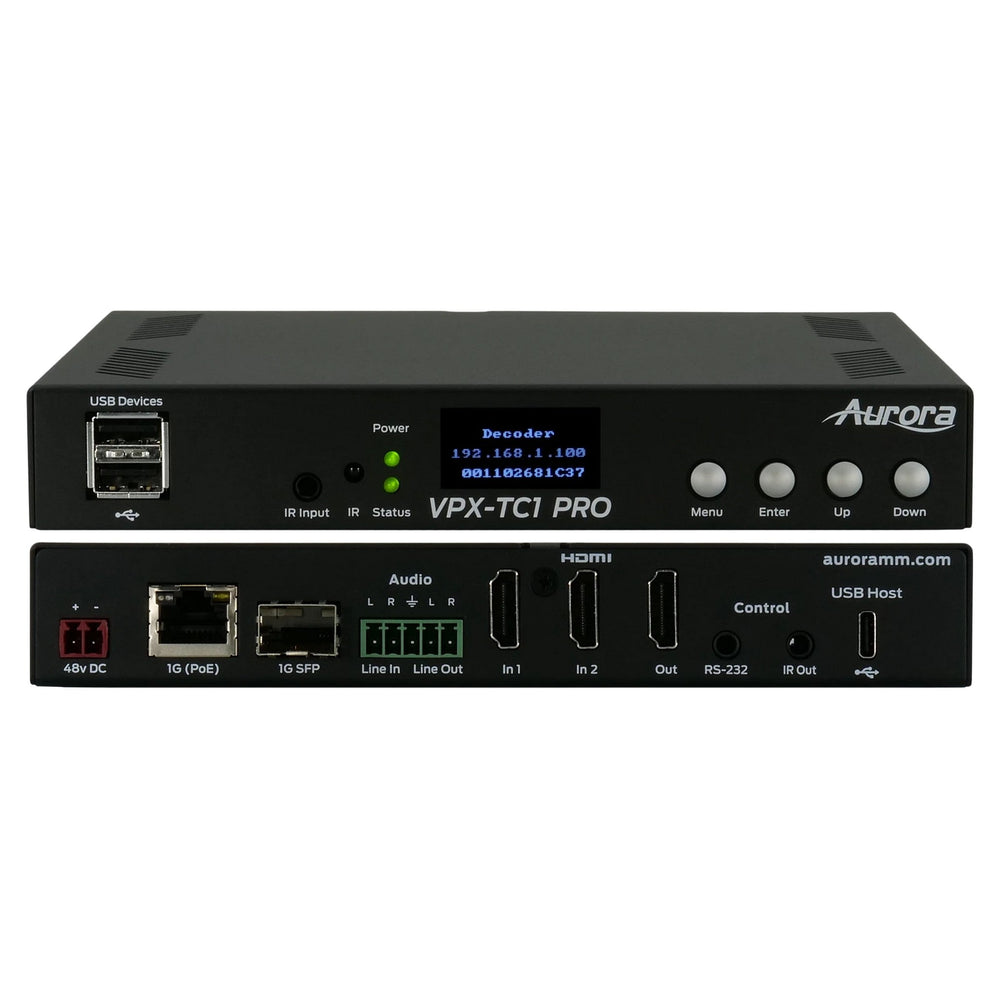

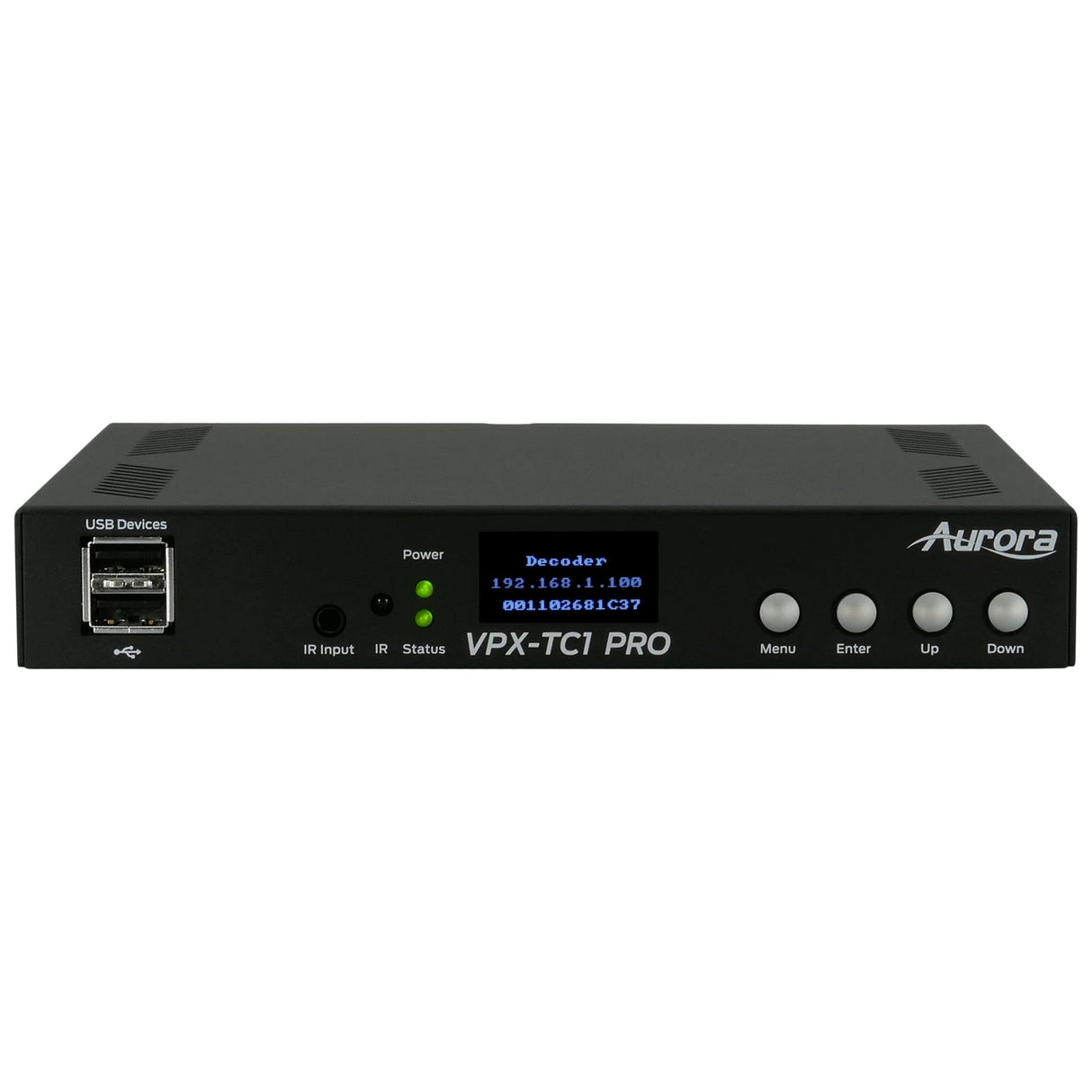

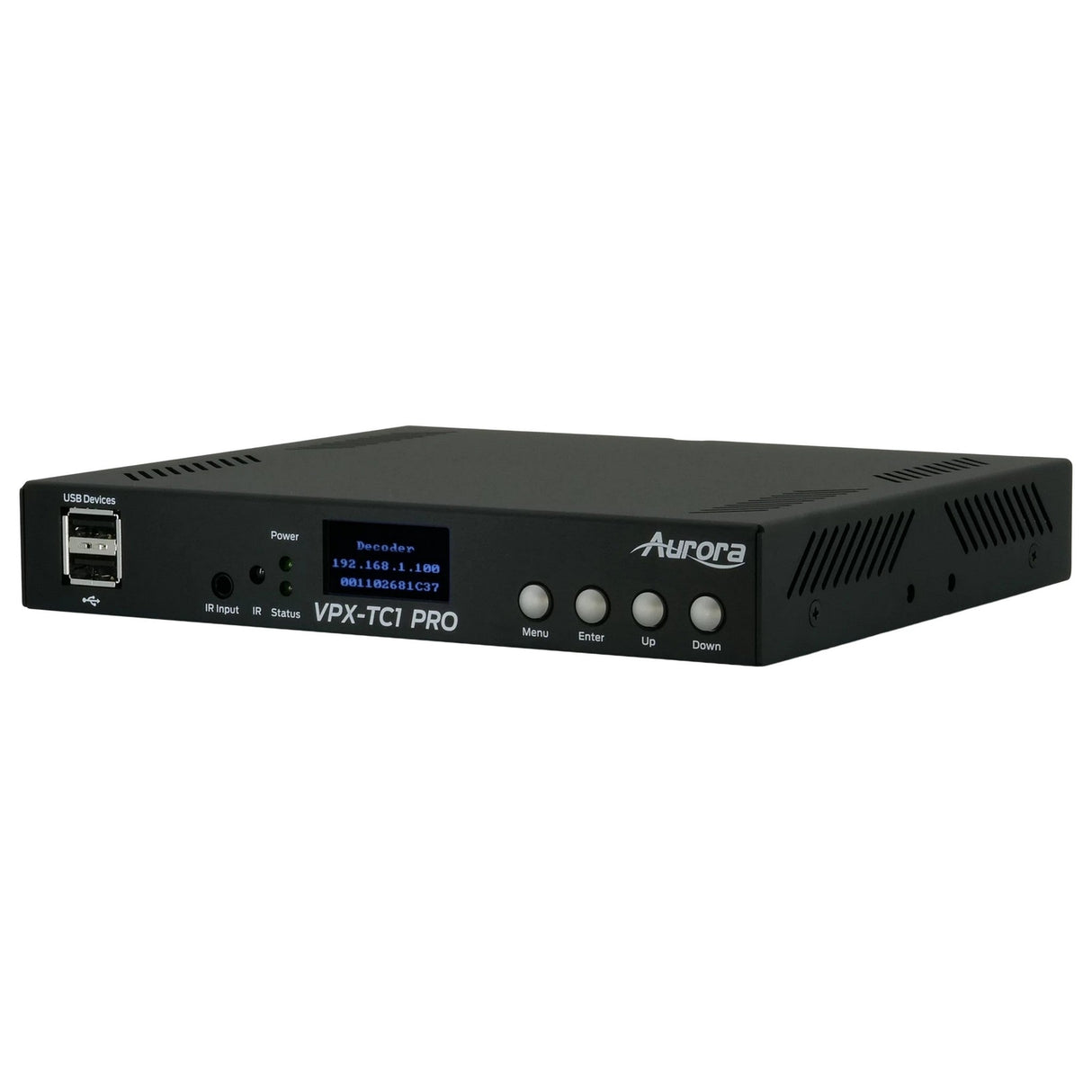

Aurora VPX-TC1-Pro 4K60 1Gbps AV over IP Transceiver

Aurora VPX-TC1-Pro 4K60 1Gbps AV over IP Transceiver

The Aurora VPX-TC1-Pro 4K60 1Gbps AV over IP Transceiver sends video, audio, USB, serial, IR, and control over standard Ethernet. AV over IP means audio/video routing across a network, and this unit supports 4K60 4:4:4 transmission with ultra-low 1.78 ms latency.

Use it as an encoder or decoder for conference rooms, classrooms, digital signage, residential AV, and corporate presentation systems. When configured as a transmitter, the two HDMI inputs act as a source switch and the HDMI output can serve as a loop output. As a receiver, it can select local HDMI inputs or an IP source.

Aurora’s Mimix codec supports compression at 13:1 while preserving detailed 4K imagery over 1G infrastructure. The VPX-TC1-Pro also adds AES 256 encryption, 802.1x, HTTPS, SSH, integrated web setup, USB 2.0 device support, AES67, and an optional Dante 2-channel audio license.

Key Features

• Encoder or decoder configuration: Deploys as either a transmitter or receiver for flexible AV over IP system design.
• 4K60 4:4:4 video support: Routes high-detail UHD video over 1G CAT 5e network infrastructure up to 393.7 feet.
• Ultra-low latency: Delivers zero-frame operation with 1.78 ms latency in Ultra Low Latency Mode.
• Dual HDMI inputs: Provides two HDMI 2.0b inputs and one HDMI 2.0b output for local source switching and loop-out use.
• Secure network operation: Supports AES 256 encryption, 802.1x, HTTPS, and SSH for enterprise AV environments.
• USB flexibility: Supports KVM, HID, mass storage, USB cameras, and high-speed data transfer up to 100 Mbps.
• Audio routing support: Includes stereo line input/output, up to 12-channel audio support, AES67, and optional Dante 2-channel licensing.
• Fanless low-power design: Runs at 8 watts, or up to 12.9 watts with USB, in a compact black aluminum enclosure.

Technical Specifications

• Brand: Aurora Multimedia
• Model: VPX-TC1-Pro
• Product Type: 1Gbps AV over IP Transceiver
• Configuration: Encoder or decoder
• Compression: Mimix codec, 13:1
• Latency: 0 frame, 1.78 ms with Ultra Low Latency Mode
• Maximum Resolution: Up to 4K2K 4:4:4 at 60 Hz
• Transmission Distance: 393.7 feet over 1G CAT 5e
• HDMI Inputs: 2 x HDMI 2.0b, HDCP 2.2
• HDMI Outputs: 1 x HDMI 2.0b, HDCP 2.2
• Video Bandwidth: 600 MHz
• Video Features: HDR10, HDR10+, Dolby Vision, scaling, seamless switching, video wall with image rotation
• Color Processing: 12-bit color depth processing, 16-bit OSD
• Preview: MJPEG preview up to 720p30
• Audio Support: Up to 12 channels
• Audio Formats: LPCM up to 12 channels, Dolby Digital Plus, Dolby TrueHD, DTS HD Master Audio, ATMOS
• Analog Audio: Stereo line input/output through 3.5mm TRS
• Network Interface: 1G Ethernet RJ-45 and SFP
• LAN: RJ-45 10/100/1000 PoE
• Security: AES 256, 802.1x, HTTPS, SSH
• RS-232: Up to 115k baud through 3.5mm TRS
• IR: Bi-directional through 3.5mm TRS
• USB Connectors: 1 x USB 2.0 Type-C, 1 x USB 1.1 Type-C, 1 x USB 2.0 Type-A, 2 x USB 1.1 Type-A
• USB Functions: KVM, HID, mass storage, USB camera support, host/device assignment
• USB Data Transfer: Up to 100 Mbps
• Interface Control: IR, keyboard through OSD, integrated web server
• Channel Control: Channel mapping with on-screen preview
• Included Network Audio: AES67
• Optional Audio License: Dante 2-channel license
• Power Supply: 48V DC through 2-pin Euro connector or PoE+ through LAN
• Power Consumption: 8 watts, up to 12.9 watts with USB
• Housing: Black aluminum enclosure
• Mounting: Rack mount vertical, rack mount horizontal, under-table mount
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Relative Humidity: 20% to 90% RH, no condensation
• Dimensions: 7 x 5.9 x 1 inches
• Weight: 1 lb

What's In the Box

• VPX-TC1-Pro Transceiver
• 2 Mounting Ears
