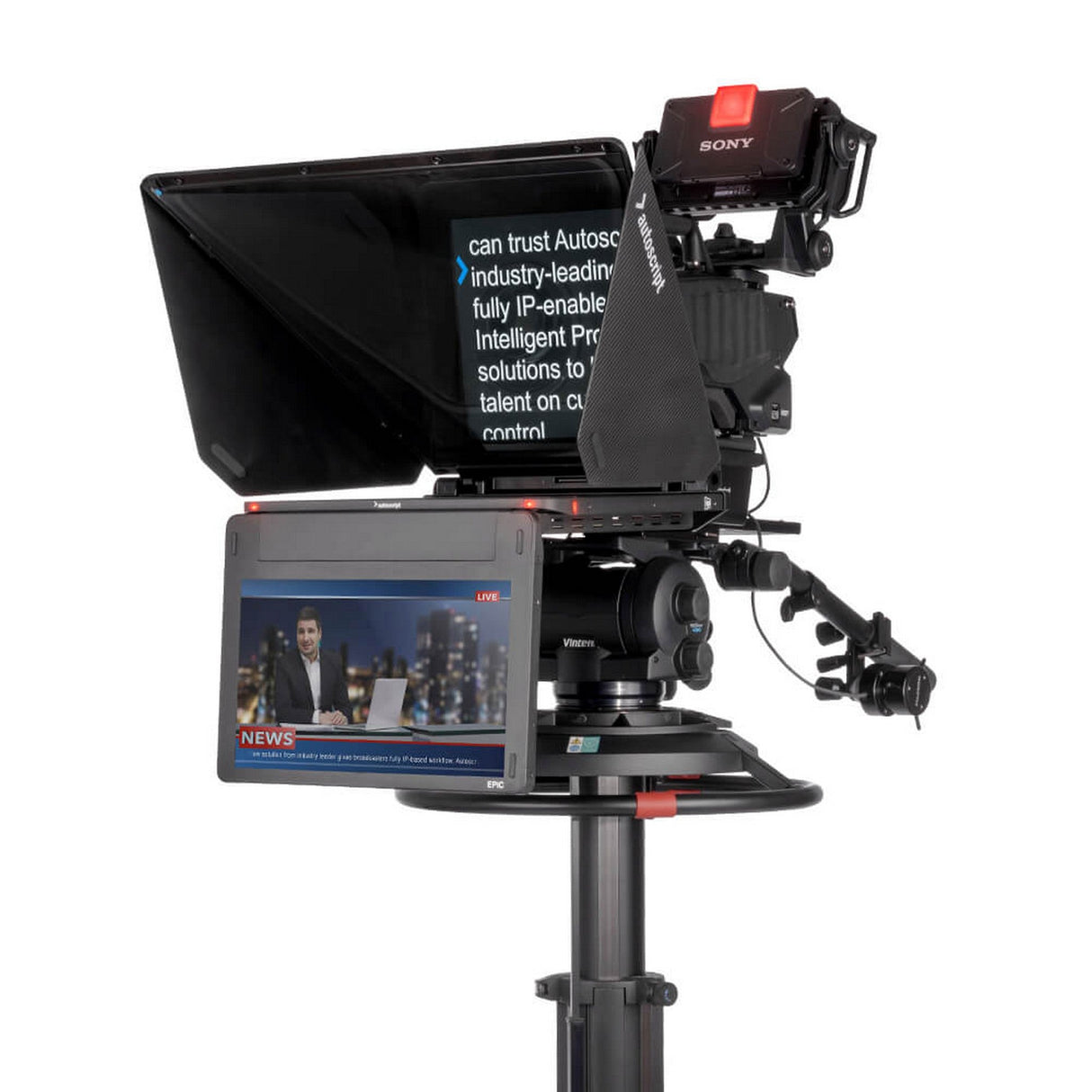

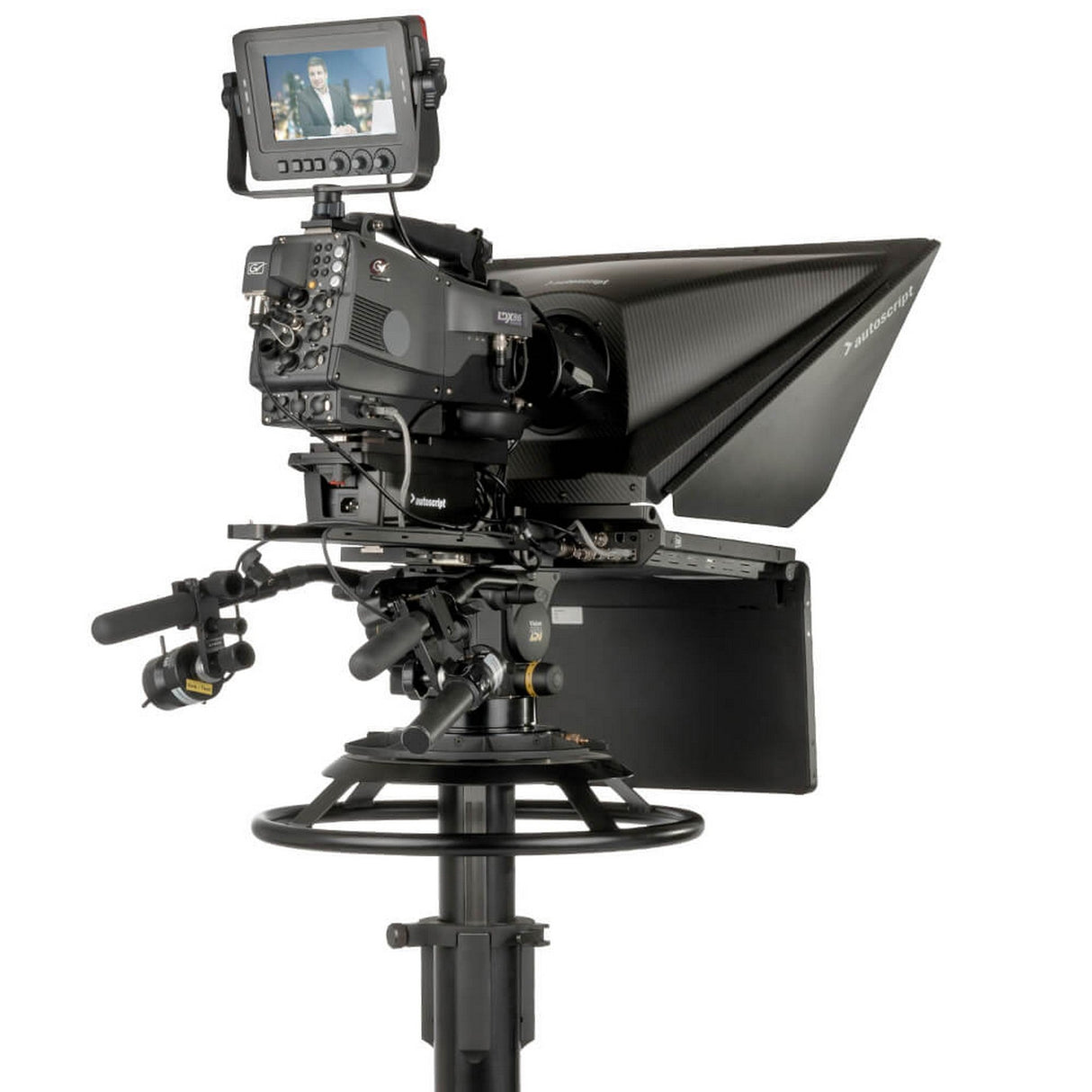

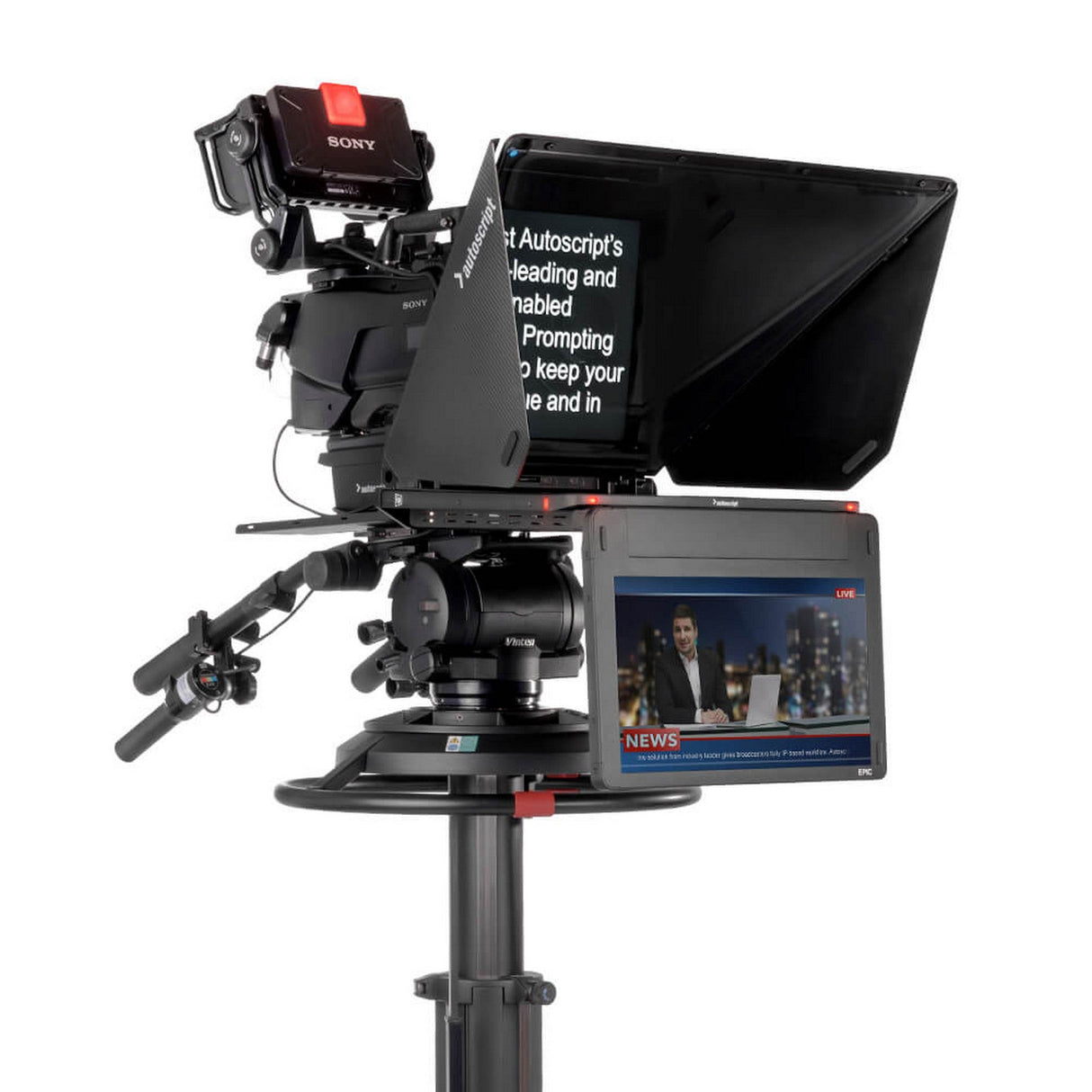

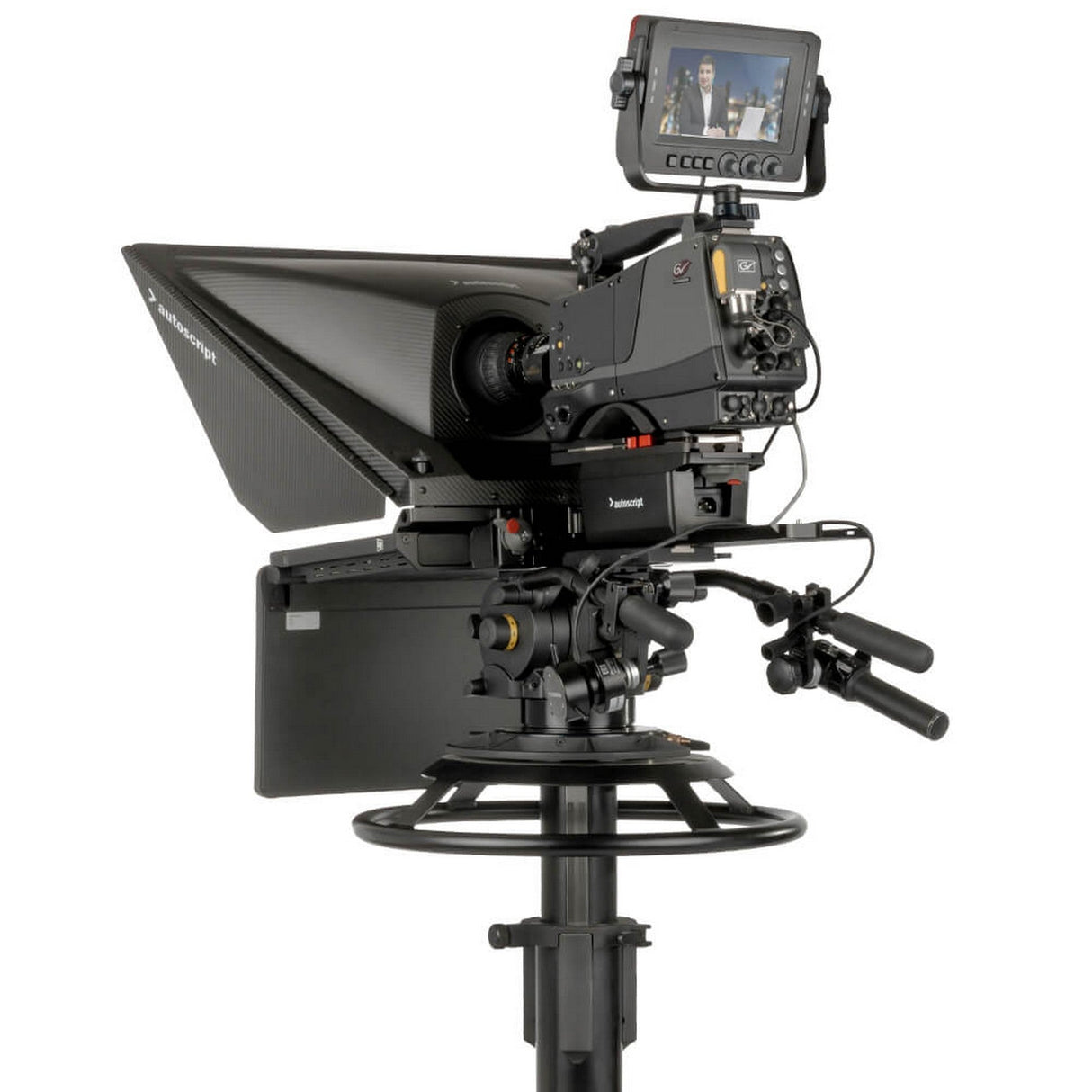

Autoscript EPIC-IP17 On-Camera Package with 17 Inch Prompt Monitor and Talent Monitor
The E.P.I.C. integrated prompting system has become the number one broadcast on-camera monitor in the world because of its unique design which combines a high-bright prompting screen with an integrated talent monitor. Now, as part of the Intelligent Prompting system development, E.P.I.C. has been enhanced to offer the ultimate connectivity and flexibility.
Key Features
- Prompt monitor size: 17 Inches
- Integrated talent monitor size: 17.3 Inches
- Unique integrated full HD talent monitor with SDI and CVBS input
- Prompt monitor networks directly to WinPlus-IP for simple integration and perfect synchronisation without a scroll box
- No restriction of camera tilt caused by non-integrated talent monitor mounting brackets
- Unique folding hood design massively reduces setup for time-critical and protects glass during transportation
- Optimised mounting kit and hood geometry allowing use of widest lenses on the market (4.3mm)
- No counterbalance needed for almost all camera/lens configurations, further reducing the weight
- 4 integrated tally lights, giving 270 deg. Visibility around the teleprompter
- Integration of CLOCKPLUS-IP clock and camera ID display (not included) creates attractive time, tally, camera ID solution
- EPIC-IP17: 17" integrated prompt and talent monitor package (EPIC-IP17M); carbon fibre hood and glass (HOOD-IP17); mounting system and camera carriage assembly to suit ENG cameras and camcorders; Tally sensor and cable (SNSR-IP); cable tray (MT-CABLE)
Technical Specifications
Prompt monitor size
17"
Integrated talent monitor size
17.3"
Integrated monitors only weight
6.1 kg / 13.4 lb
On-camera package weight
13.7 kg / 30.2 lb
Prompt monitor aspect ratio
4.3
Prompt monitor brightness
1500 nits
Prompt monitor resolution
1280 x 1024 SXGA
Prompt monitor contrast
1000:1
Prompt monitor dimensions
440 x 360 x 41mm / 17.3 x 14.2 x 1.6”
Talent monitor aspect ratio
16:9
Talent monitor brightness
400 nits
Talent monitor resolution
1920 x 1080
Script and feedback inputs
LAN, 2x HD-SDI, 2x CVBS
Tally input
Opto sensor
Timecode Inputs
LTC, NTP (VITC, D-VITC optional)
Power consumption
48W
Power input
4-pin XLR, 12-16.8VDC
Outputs
Repeat Tally Output inc. 12V DC out
Viewing angle
H/V 170/160
Mounting
On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket
