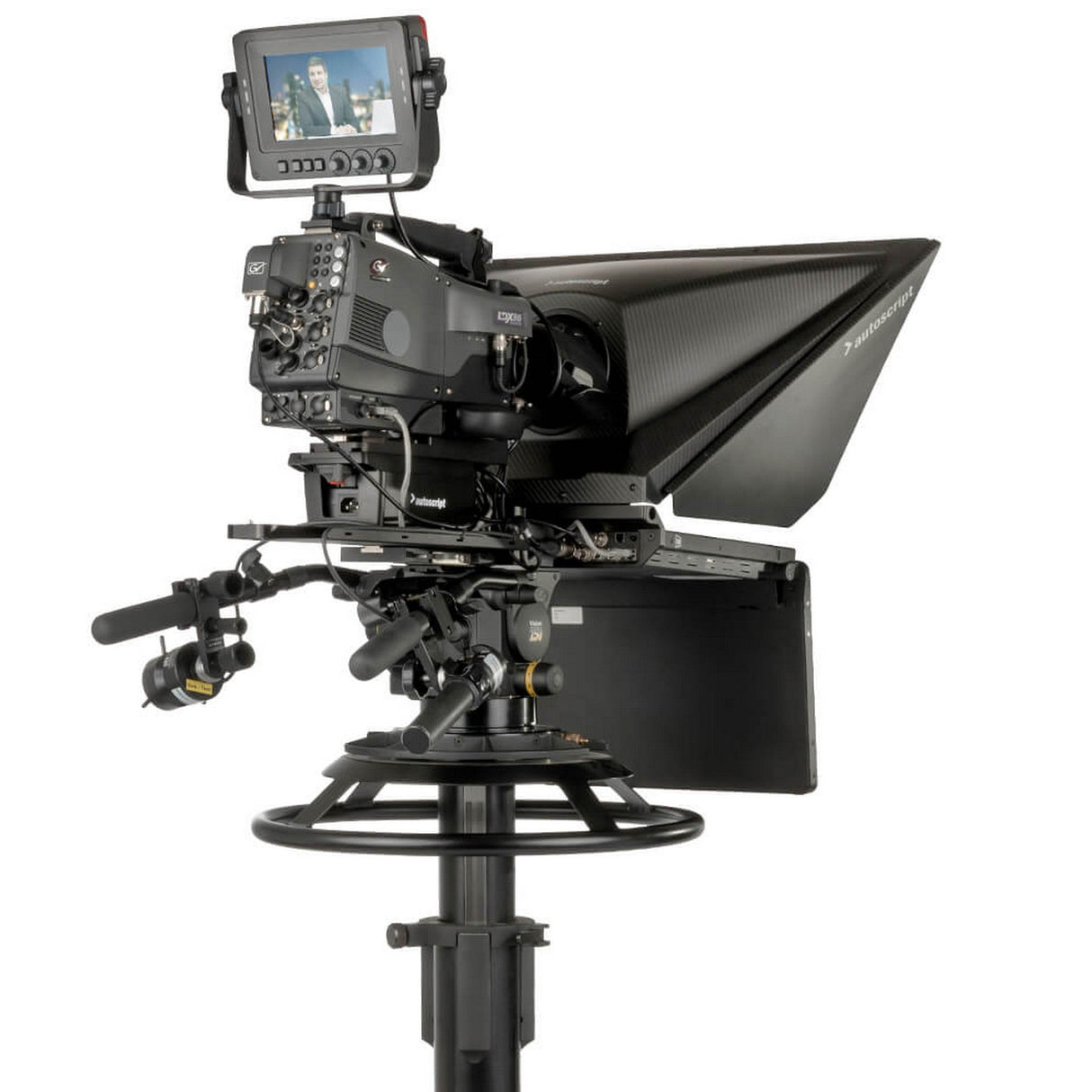

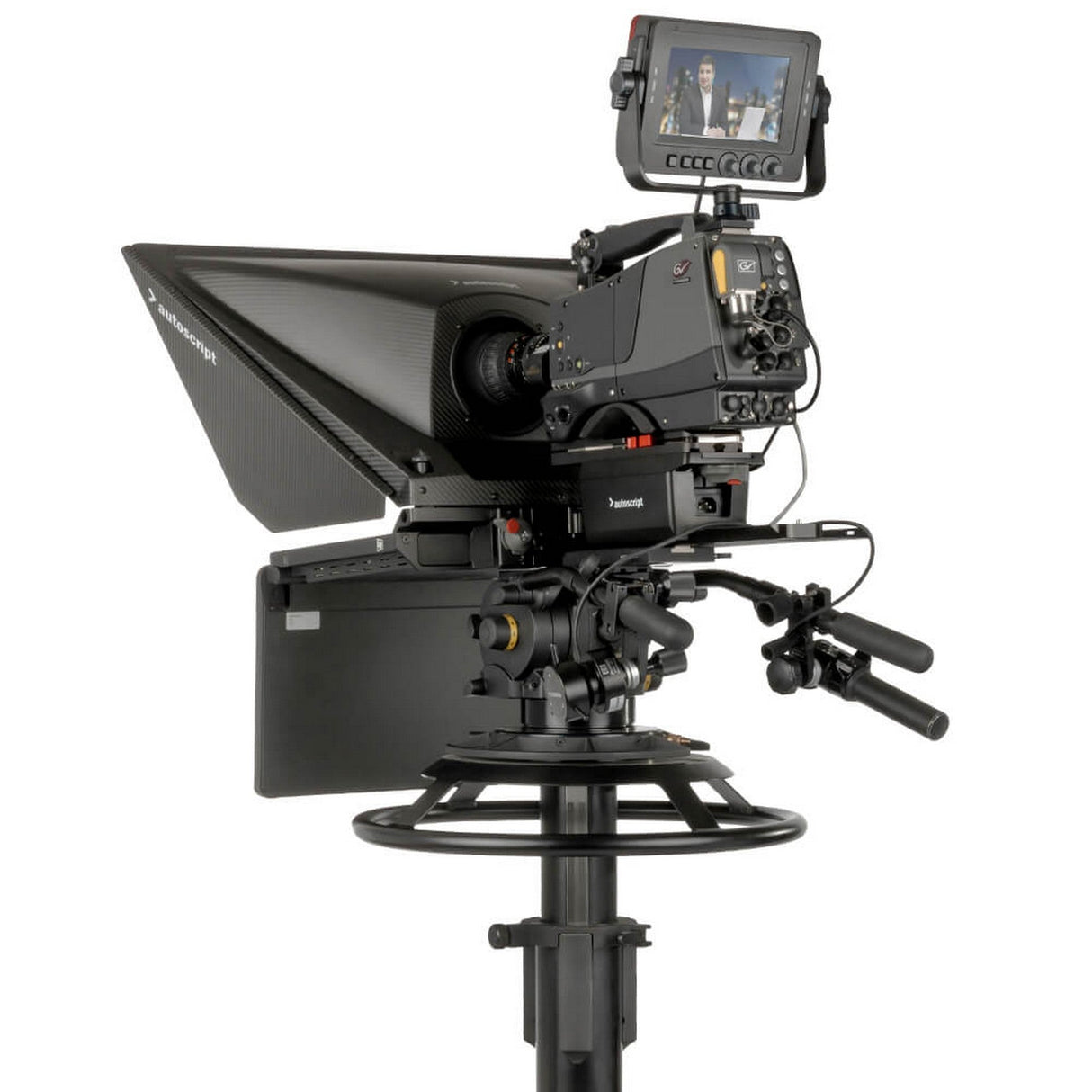

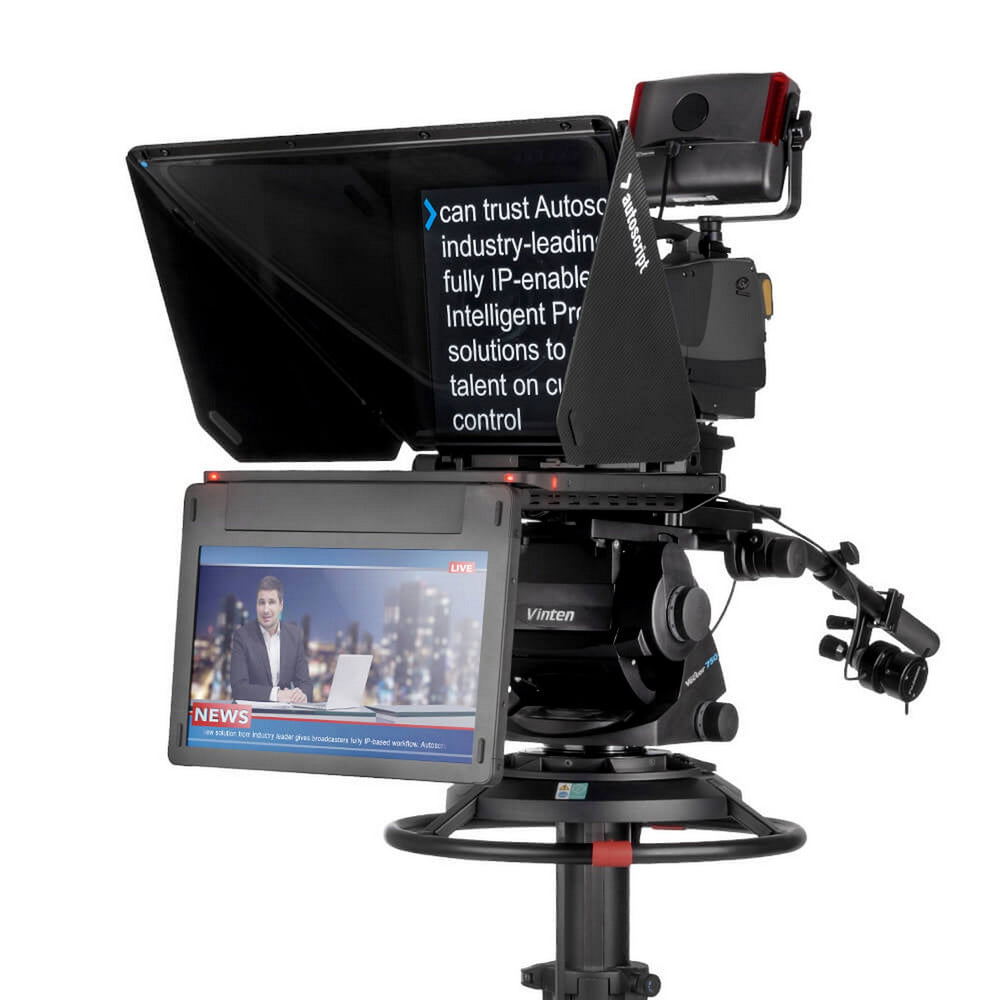

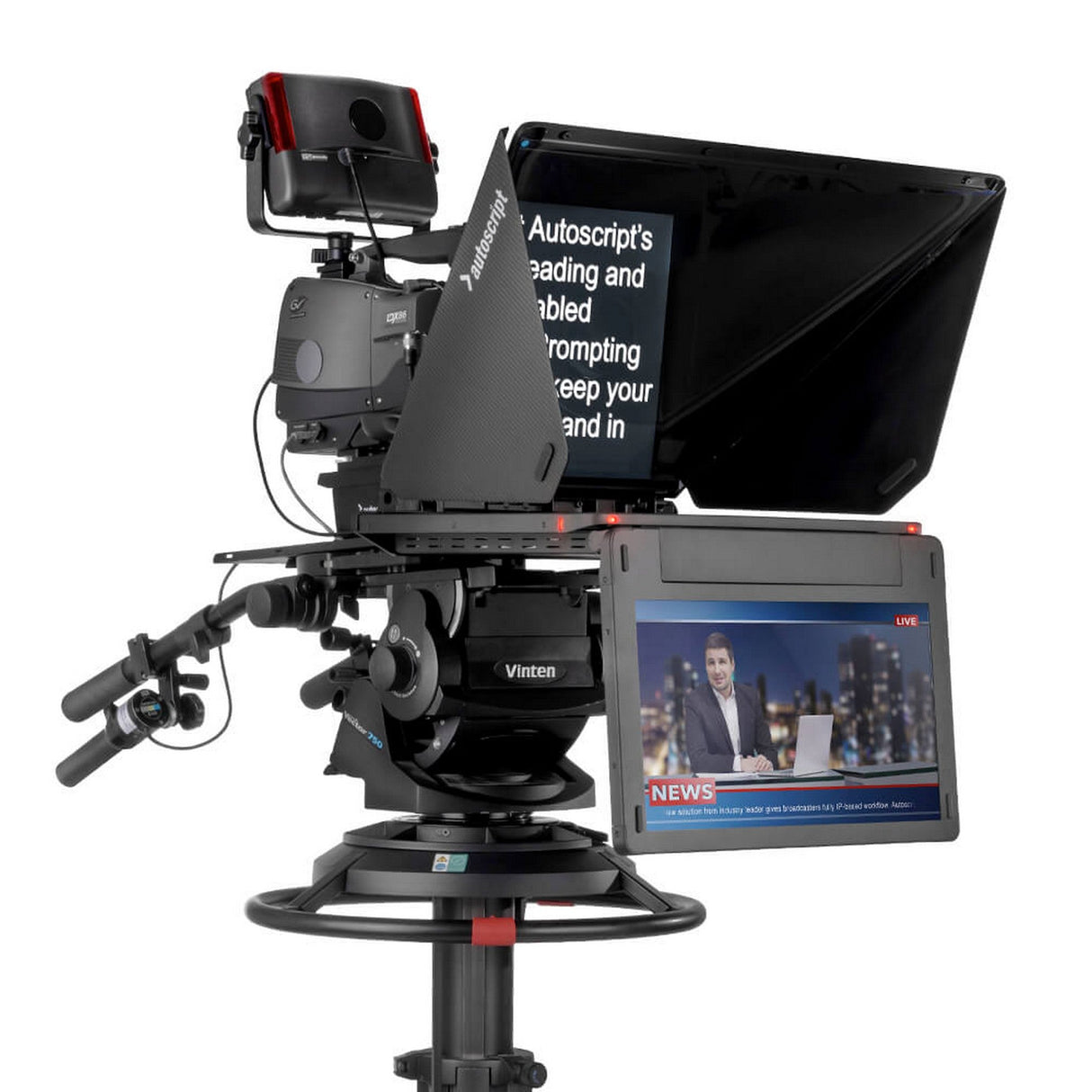

Autoscript EPIC-IP19 On-Camera Package with 19 Inch Prompt Monitor and Talent Monitor
Autoscript EPIC-IP19 On-Camera Package with 19 Inch Prompt Monitor and Talent Monitor
The E.P.I.C. integrated prompting system has become the number one broadcast on-camera monitor in the world because of its unique design which combines a high-bright prompting screen with an integrated talent monitor. Now, as part of the Intelligent Prompting system development, E.P.I.C. has been enhanced to offer the ultimate connectivity and flexibility.
Key Features
- Prompt monitor size: 19 Inches
- Integrated talent monitor size: 18.5 Inches
- Unique integrated full HD talent monitor with SDI and CVBS input
- Prompt monitor networks directly to WinPlus-IP for simple integration and perfect synchronisation without a scroll box
- No restriction of camera tilt caused by non-integrated talent monitor mounting brackets
- Unique folding hood design massively reduces setup for time-critical and protects glass during transportation
- Optimised mounting kit and hood geometry allowing use of widest lenses on the market (4.3mm)
- No counterbalance needed for almost all camera/lens configurations, further reducing the weight
- EPIC-IP19: 19" integrated prompt and talent monitor package (EPIC-IP19M); carbon fibre hood and glass (HOOD-IP19); mounting system and camera carriage assembly to suit ENG cameras and camcorders; Tally sensor and cable (SNSR-IP); cable tray (MT-CABLE)
Technical Specifications
Prompt monitor size
19"
Integrated talent monitor size
18.5"
Integrated monitors only weight
6.9 kg / 15.2 lb
On-camera package weight
14.7 kg / 32.4 lb
Prompt monitor aspect ratio
4.3
Prompt monitor brightness
1500 nits
Prompt monitor resolution
1280 x 1024 SXGA
Prompt monitor contrast
1000:1
Prompt monitor dimensions
467 x 399 x 41mm / 18.4 x 15.7 x 1.6ā
Talent monitor aspect ratio
16:9
Talent monitor brightness
350 nits
Talent monitor resolution
1920 x 1080
Script and feedback inputs
LAN, 2x HD-SDI, 2x CVBS
Tally input
Opto sensor
Timecode Inputs
LTC, NTP (VITC, D-VITC optional)
Power consumption
51W
Power input
4-pin XLR, 12-16.8VDC
Outputs
Repeat Tally Output inc. 12V DC out
Viewing angle
H/V 170/160
Mounting
On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket
