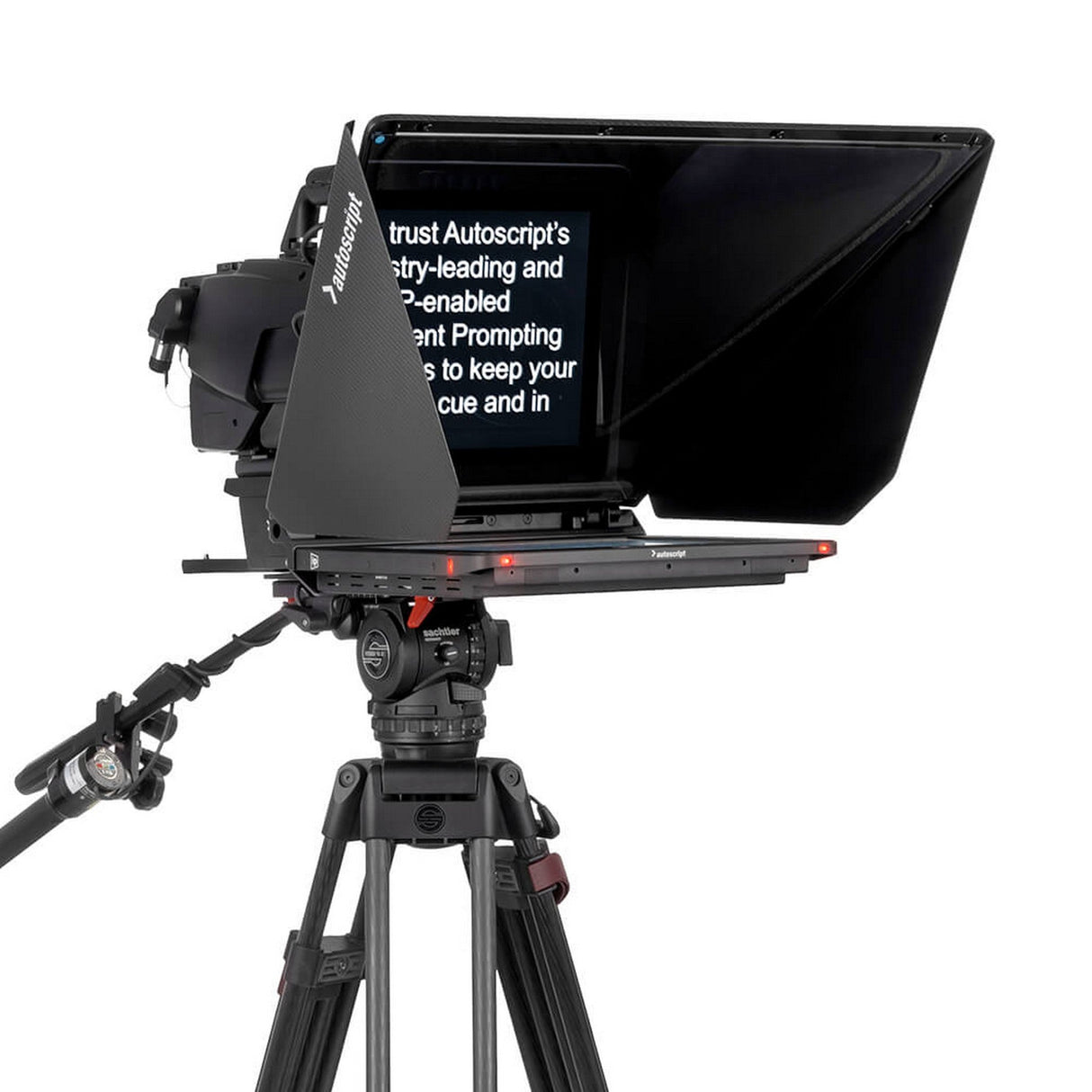

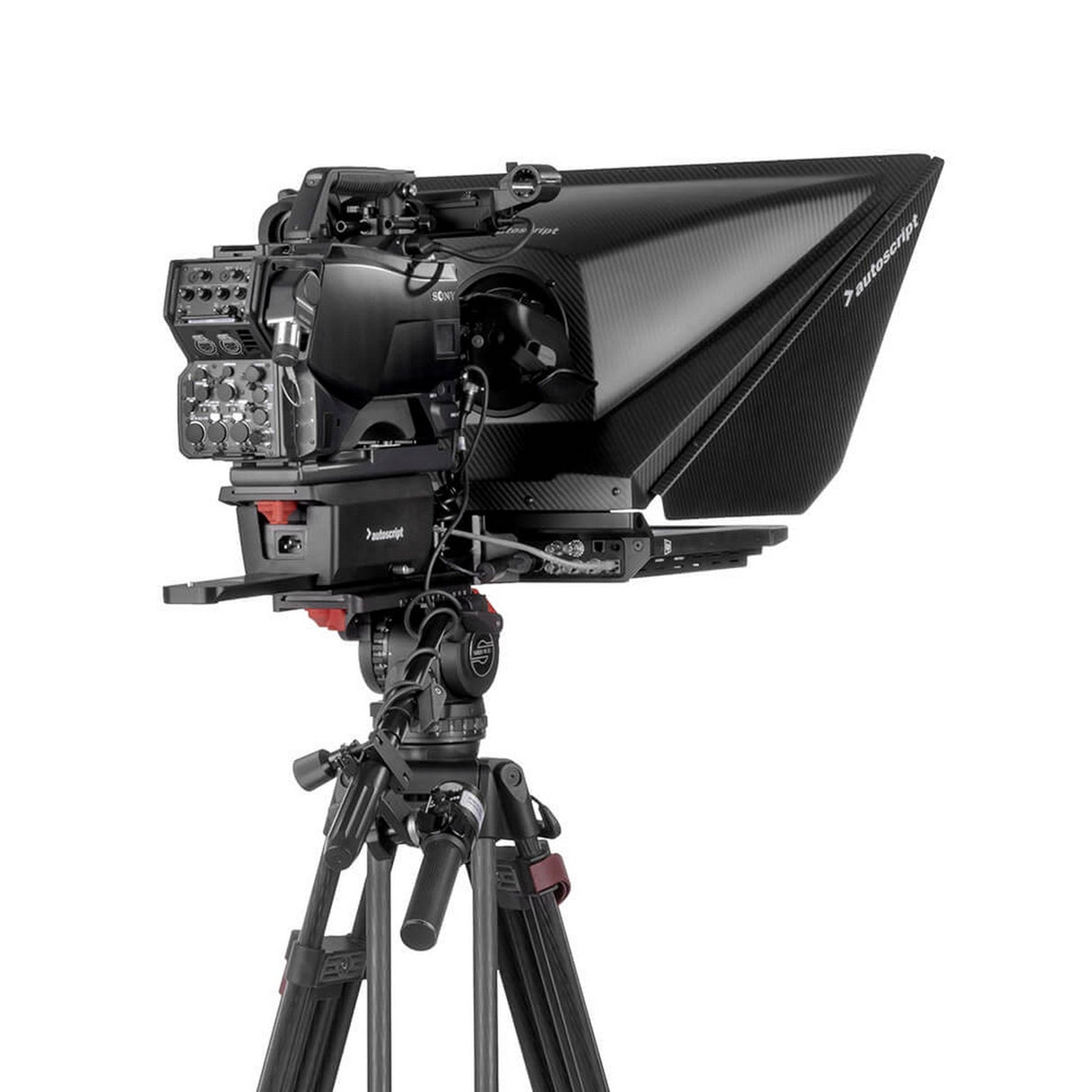

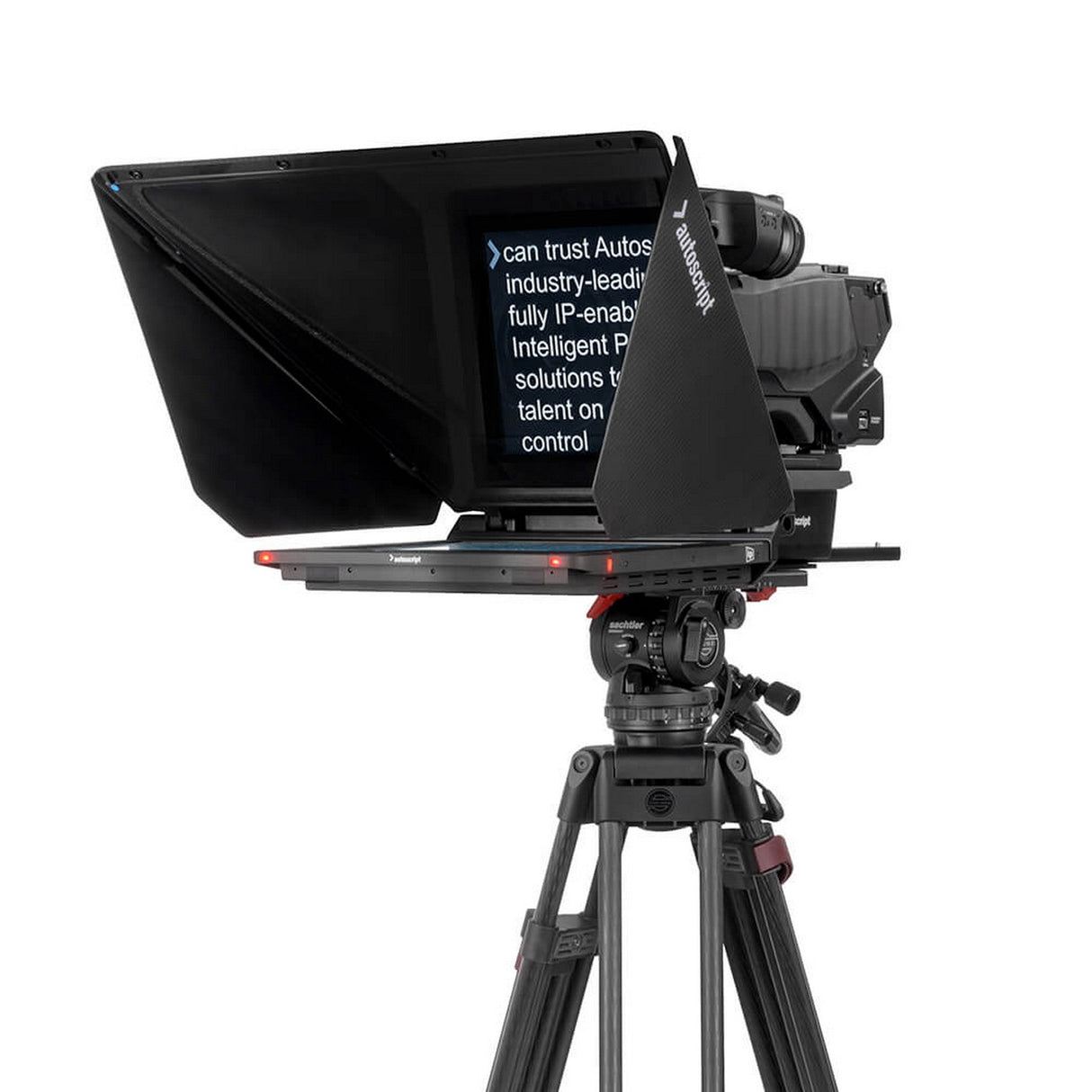

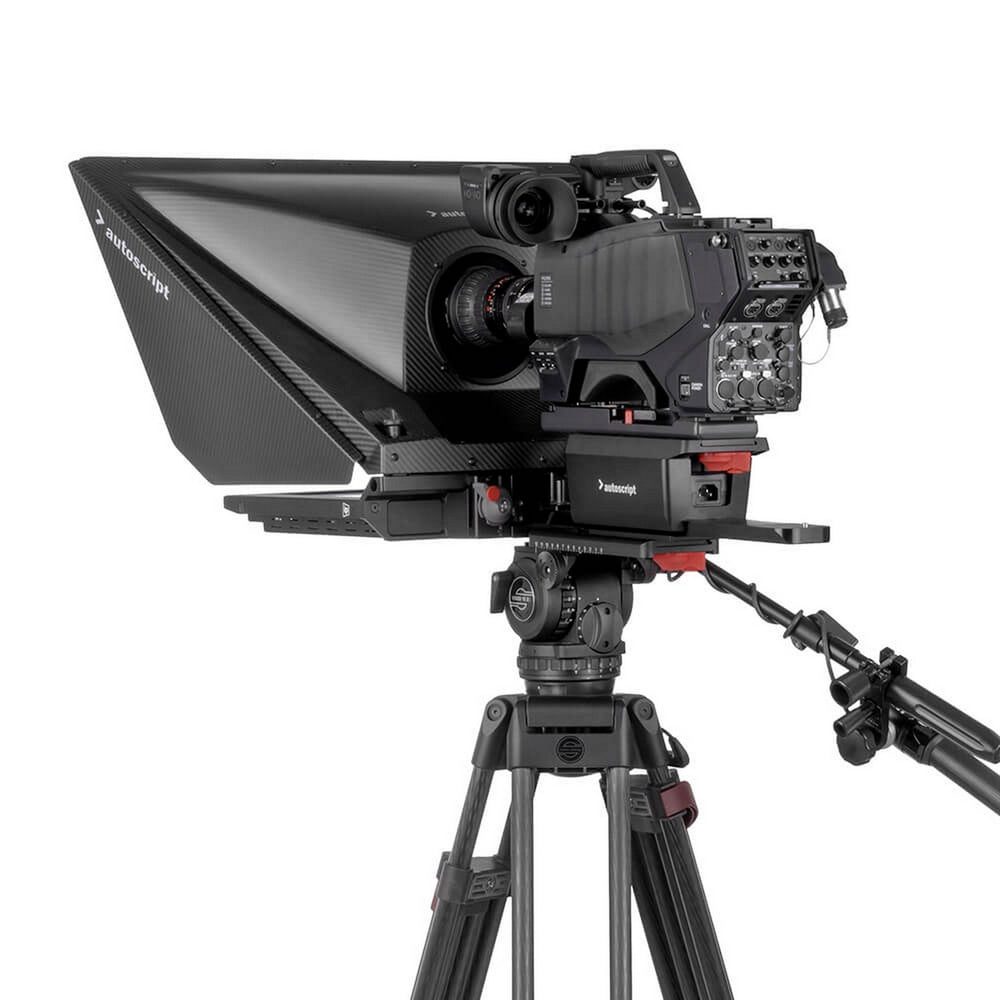

Autoscript EVO-IP15 On-Camera System Package with 15 Inch Prompt Monitor
The new EVO-IP prompt monitor is the slimmest broadcast prompt monitor available, with a depth of just 41.5mm. Its sleek, lightweight design is perfect for productions using even small robotic camera supports and the 15” version is the most compact in the range.
Key Features
- Size: 15 Inches
- Lightest on-camera system available, minimises camera support issues
- Networks directly to WinPlus-IP for simple integration and perfect synchronisation without a scroll box
- Folding hood design massively reduces setup for time-critical applications and protects glass during transportation
- Optimised mounting kit and hood geometry allowing use of widest lenses on the market (4.3mm)
- No counterbalance needed for almost all camera/lens configurations, further reducing the weight
- 4 integrated tally lights, giving 270 degrees of visibility around the teleprompter
- EVO-IP15: 15" high-bright prompt monitor (EVO-IP15M); carbon fibre hood and glass (HOOD-IP15); mounting system and camera carriage assembly to suit ENG cameras and camcorders; Tally sensor and cable (SNSR-IP); cable tray (MT-CABLE)
Technical Specifications
Size
15"
Monitor only weight
3.0 kg / 6.6 lb
On-camera package weight
10.5 kg / 23.1 lb
Aspect Ratio
4.3
Brightness
1500 nits
Resolution
1024 x 768 SXGA
Contrast 700:1

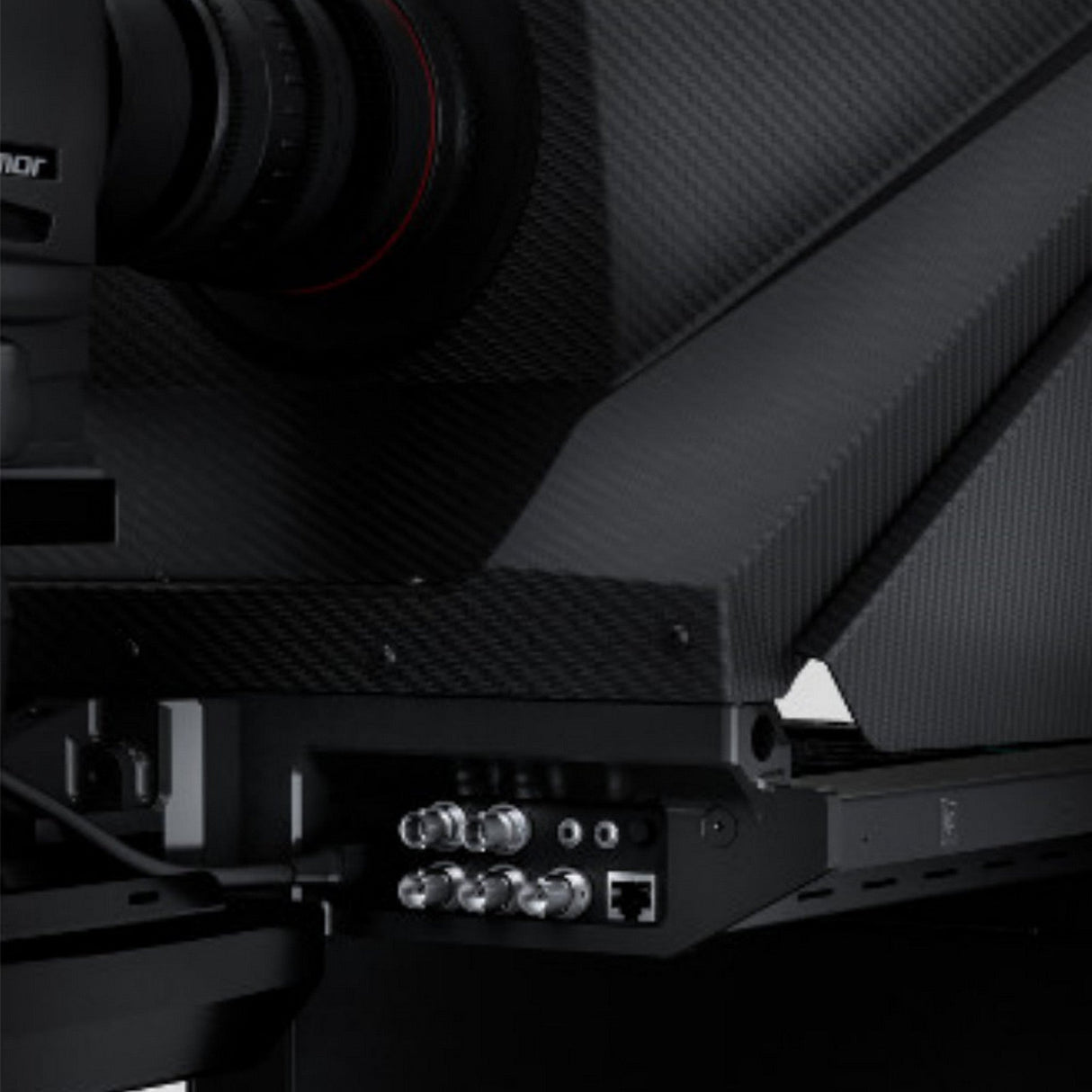

Script Inputs
LAN, 2x HD-SDI, 2x CVBS
Tally Input
Opto Sensor
Timecode Inputs
LTC, NTP (VITC, D-VITC optional)
Power consumption
25W
Power Input
4-pin XLR, 12-16.8VDC
Outputs
Repeat Tally Output inc. 12V DC Out
Viewing Angle
H/V 160 Degrees/120 Degrees
Dimensions
400 x 317 x 41mm / 15.7 x 12.5 x 1.6"
Mounting
On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket
