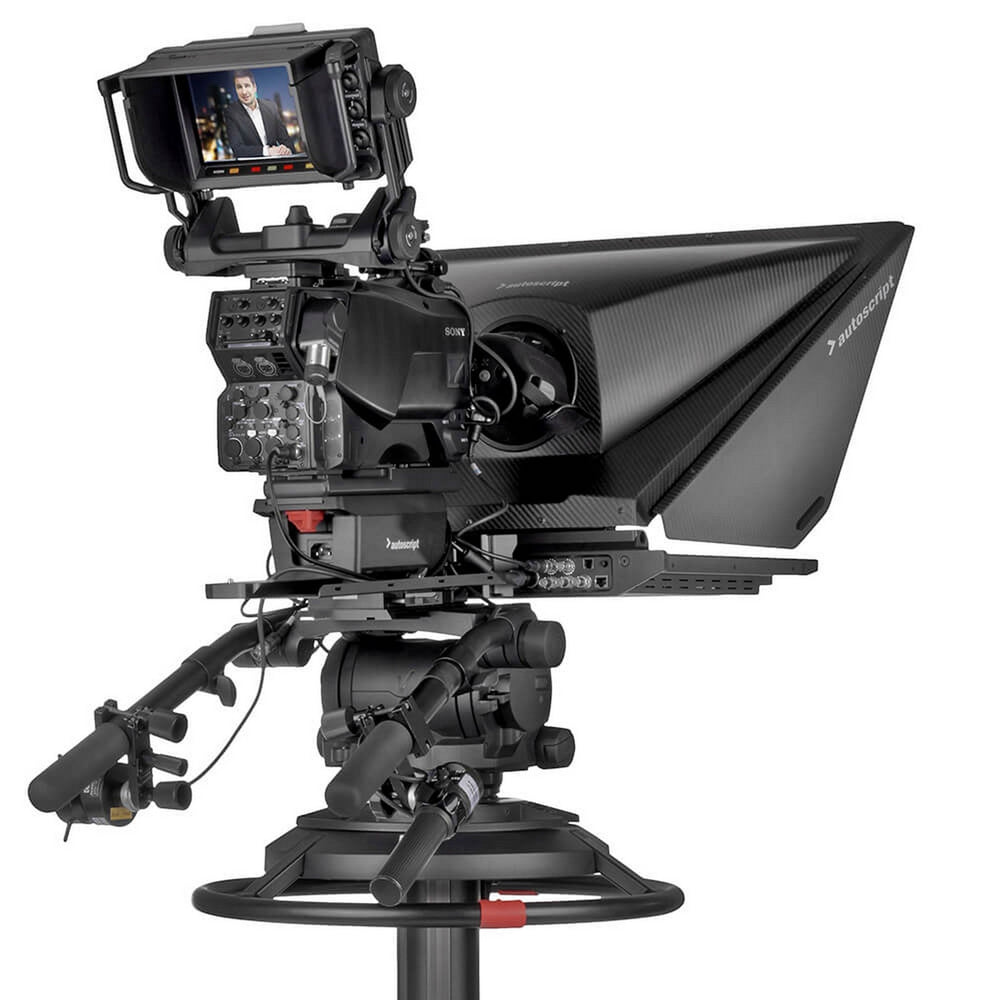

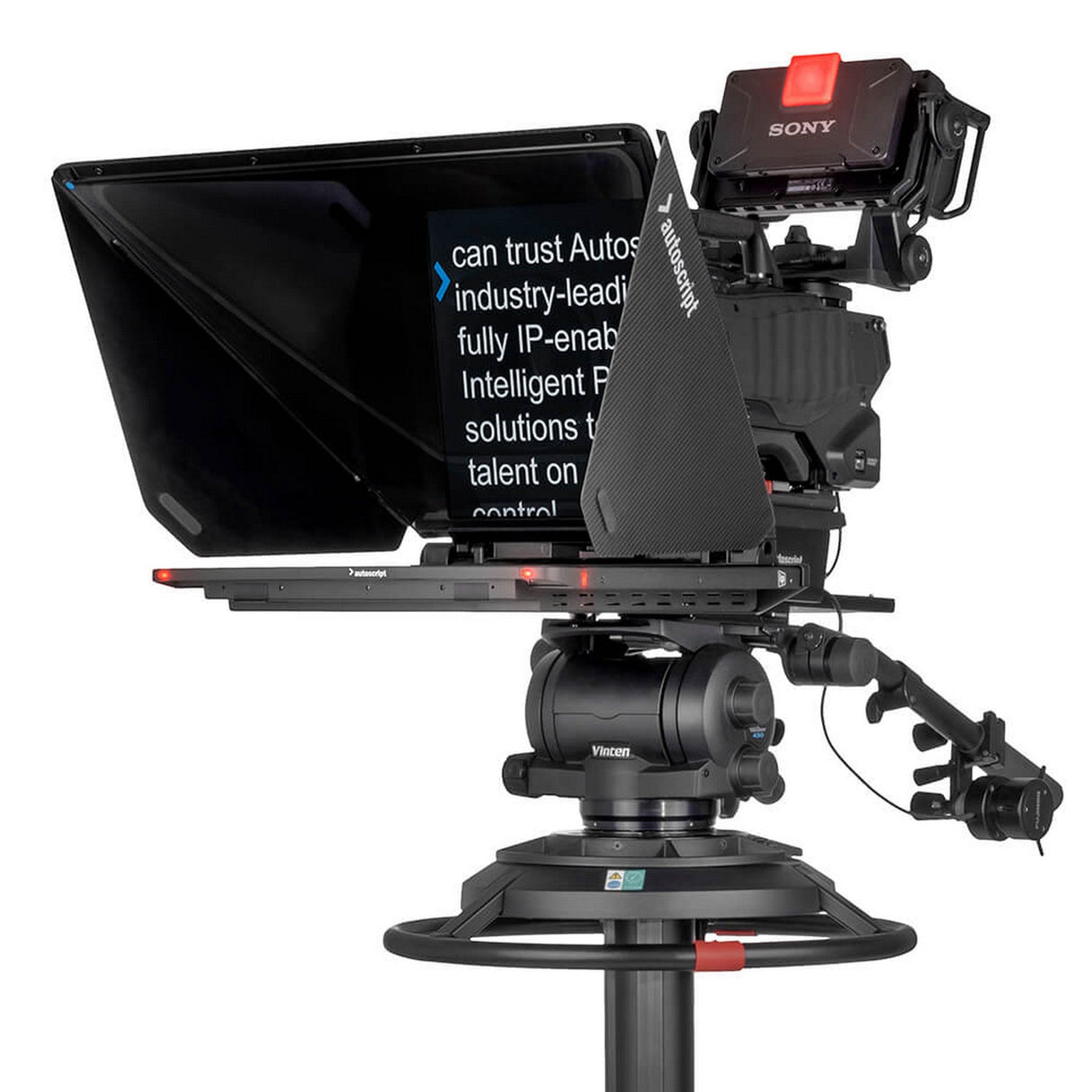

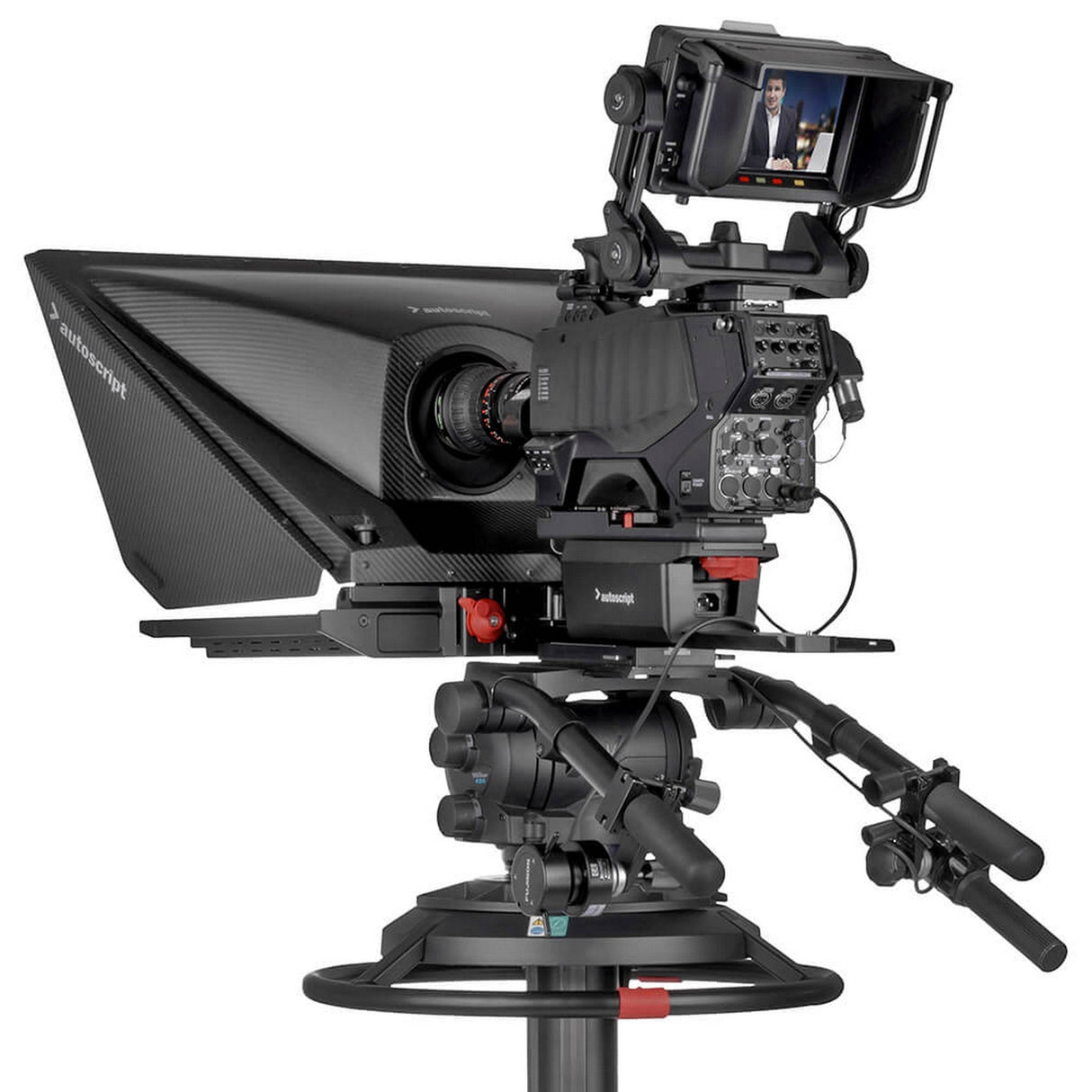

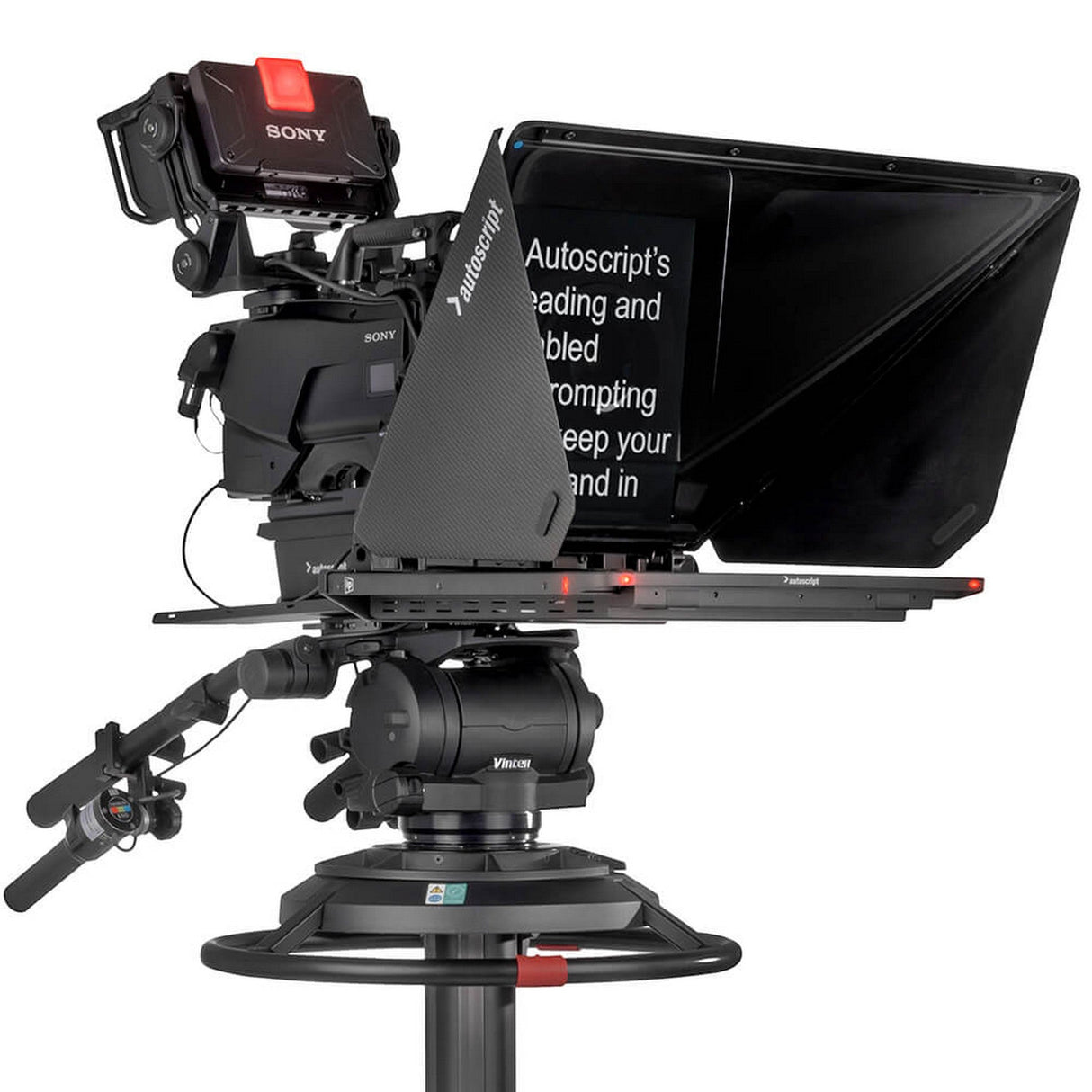

Autoscript EVO-IP19 On-Camera System Package with 19 Inch Prompt Monitor

The new EVO-IP prompt monitor is the slimmest broadcast prompt monitor available, with a depth of just 41.5mm. The sleek 19” monitor is perfect for productions looking for a large but still lightweight solution.

Key Features

• Size: 19 Inches
• Lightest on-camera system available, minimises camera support issues
• Networks directly to WinPlus-IP for simple integration and perfect synchronisation without a scroll box
• Folding hood design massively reduces setup for time-critical applications and protects glass during transportation
• Optimised mounting kit and hood geometry allowing use of widest lenses on the market (4.3mm)
• No counterbalance needed for almost all camera/lens configurations, further reducing the weight
• 4 integrated tally lights, giving 270 degrees of visibility around the teleprompter
• Integration of CLOCKPLUS-IP clock and camera ID display (not included) creates attractive time, tally, camera ID solution
• Upgrade to EPIC-IP with addition of ETM
• EVO-IP19: 19" high-bright prompt monitor (EVO-IP19M); carbon fibre hood and glass (HOOD-IP19); mounting system and camera carriage assembly to suit ENG cameras and camcorders; Tally sensor and cable (SNSR-IP); cable tray (MT-CABLE)

Technical Specifications

Size
19"
Monitor only weight
3.9 kg / 8.6 lb
On-camera package weight
11.5 kg / 25.4 lb
Aspect Ratio
4.3
Brightness
1500 nits
Resolution
1280 x 1024 SXGA
Contrast 1000:1
Script Inputs

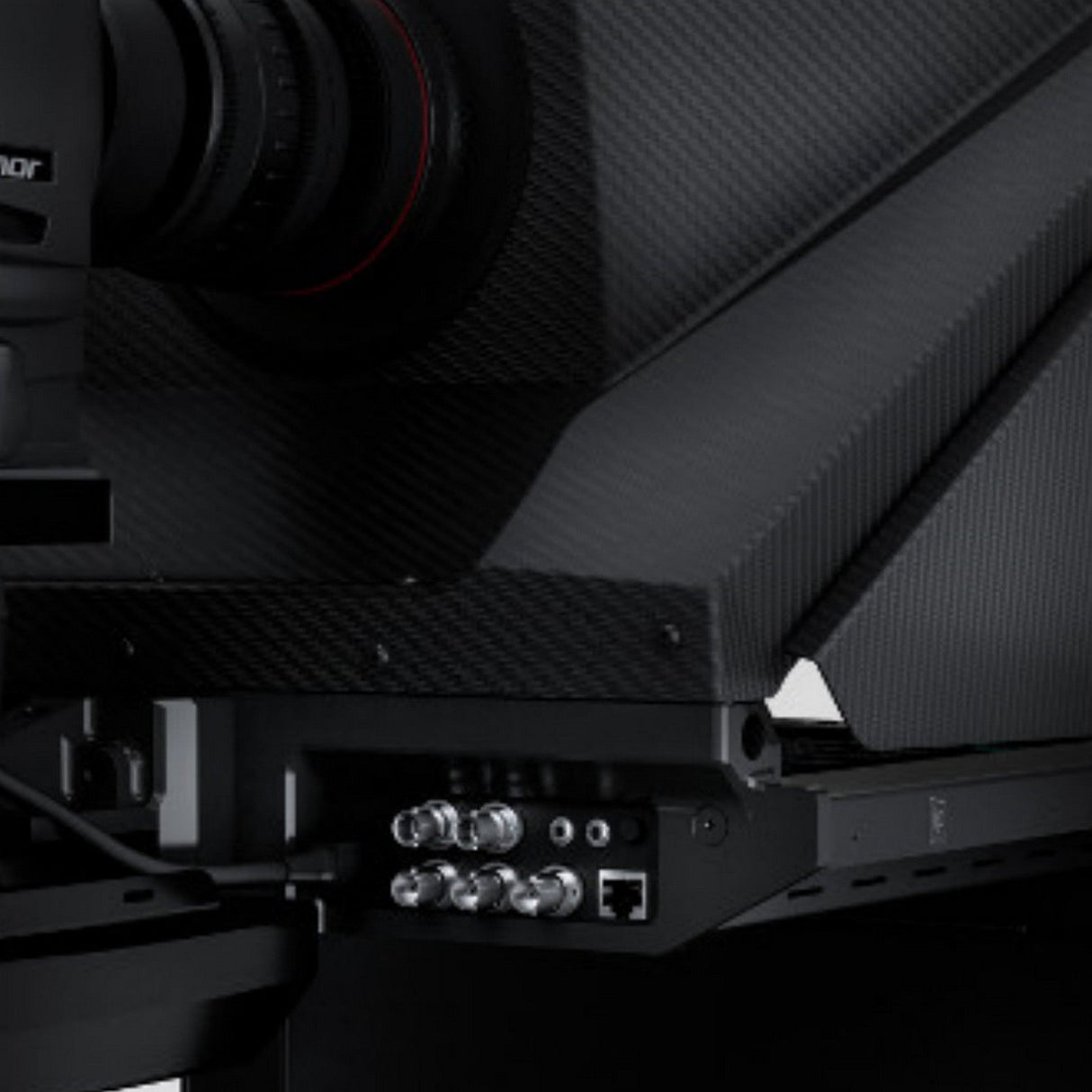

LAN, 2x HD-SDI, 2x CVBS
Tally Input
Opto Sensor
Timecode Inputs
LTC, NTP (VITC, D-VITC optional)
Power consumption
29W
Power Input
4-pin XLR, 12-16.8VDC
Outputs
Repeat Tally Output inc. 12V DC Out
Viewing Angle
H/V 170 Degrees/160 Degrees
Dimensions
467 x 399 x 41mm / 18.4 x 15.7 x 1.6"
Mounting
On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket
