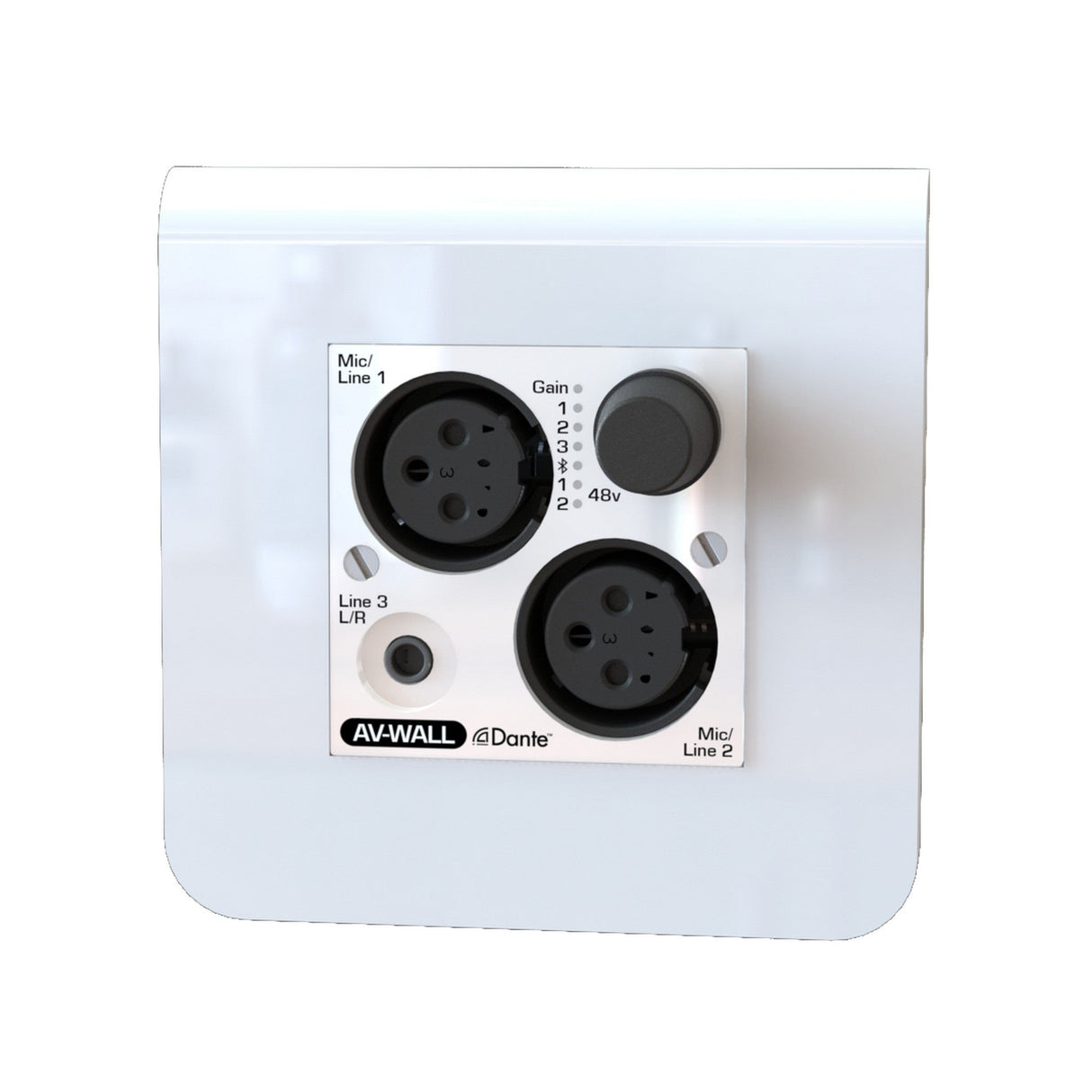

AuviTran AV-WALL-DT4i 2-XLR Mic and Stereo Mini Jack Inputs to Dante with Local Gain Control
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
AuviTran AV-WALL A4 - Advanced Audio & Video Wall Interface
The AuviTran AV-WALL A4 is a premier audio and video wall interface designed to offer unmatched performance and flexibility for various professional audio and video applications. Engineered for seamless integration with a range of audio and video systems, the AV-WALL A4 provides a robust and versatile solution that meets the needs of complex installations with ease. Its sophisticated features and high-quality construction make it an ideal choice for demanding environments where reliability and precision are essential.
Perfect for live events, broadcast studios, and extensive audio-visual setups, the AV-WALL A4 ensures smooth operation and excellent control through its user-friendly interface and diverse connectivity options. Its advanced design and comprehensive functionality make it an invaluable tool for professionals seeking high-quality audio and video management.
Key Features
- Advanced audio and video integration for professional use
- Flexible connectivity options for various system configurations
- Robust performance for live events and broadcast environments
- User-friendly interface for efficient control and management
- Compatible with multiple audio and video formats and systems
Technical Specifications
Dimensions

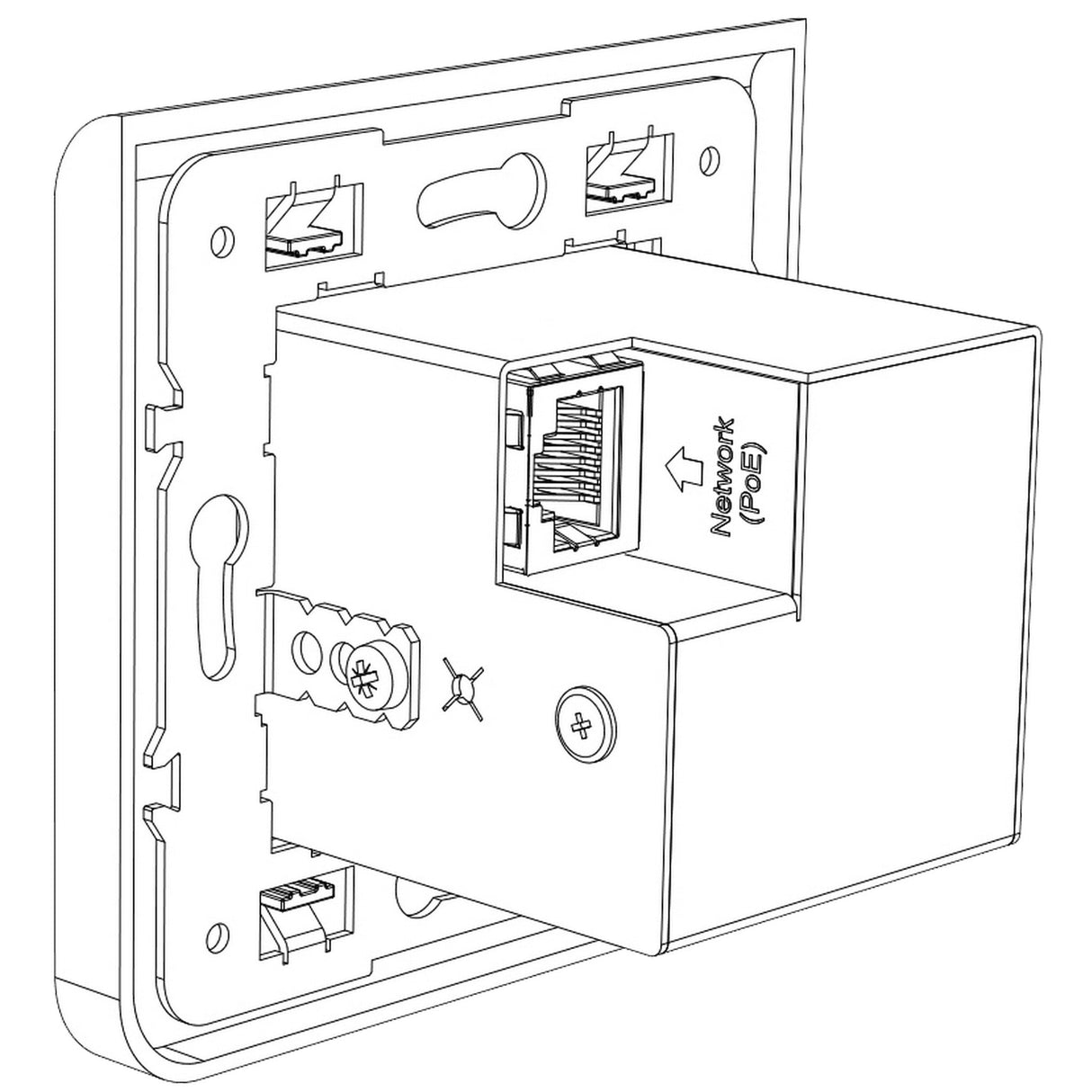

Depth in Wall (HxLxW): 49 x 47 x 46 mm - Central part: 45 x 45 x 50 mm
Fit in 1 gang box - Wall plate size may vary depending on the region.
Power Supply
PoE 802.3af compliant through RJ45. Maximum consumption 5.5W.
Sampling, A/D
44.1 / 48 / 88.2 / 96 kHz on 24 or 32 Bits
Inputs
2 XLR for line inputs 1-2, a stereo 3.5mm minijack for line inputs 3-4
An optional stereo Bluetooth can be connected to AV-WALL-DT4i
Local Control
Rotary push button on AV-WALL-DT4i only
Input Sensitivity
XLR (Balanced): +24dBu to -40dBu
Mini-Jack (Unbalanced): +12dBu to -28dBu
Input Impedance
XLR: 3.5 kΩ
Mini-Jack: 10 kΩ
E.I.N.
-111dBu @R=150Ω, G=+64dB
-97dBu @R=20Ω, G=+40dB
Dynamic Range
>101dB A-weighted
>100dB A-weighted
THD+N @1KHz, G=0dB
<-91dB (0.0028%)
<-89dB (0.0035%)
Frequency Response @G=0
20Hz-20kHz (+0 /-1.2dB)
20Hz-20kHz (+0 /-0.8 dB)
Phantom Power
+48V controlled per channel
