AuviTran AxC-AT32io 16 I/O ADAT Interface Card for Audio ToolBox
AuviTran AxC-AT32io 16 I/O ADAT Interface Card for Audio ToolBox
Free Shipping

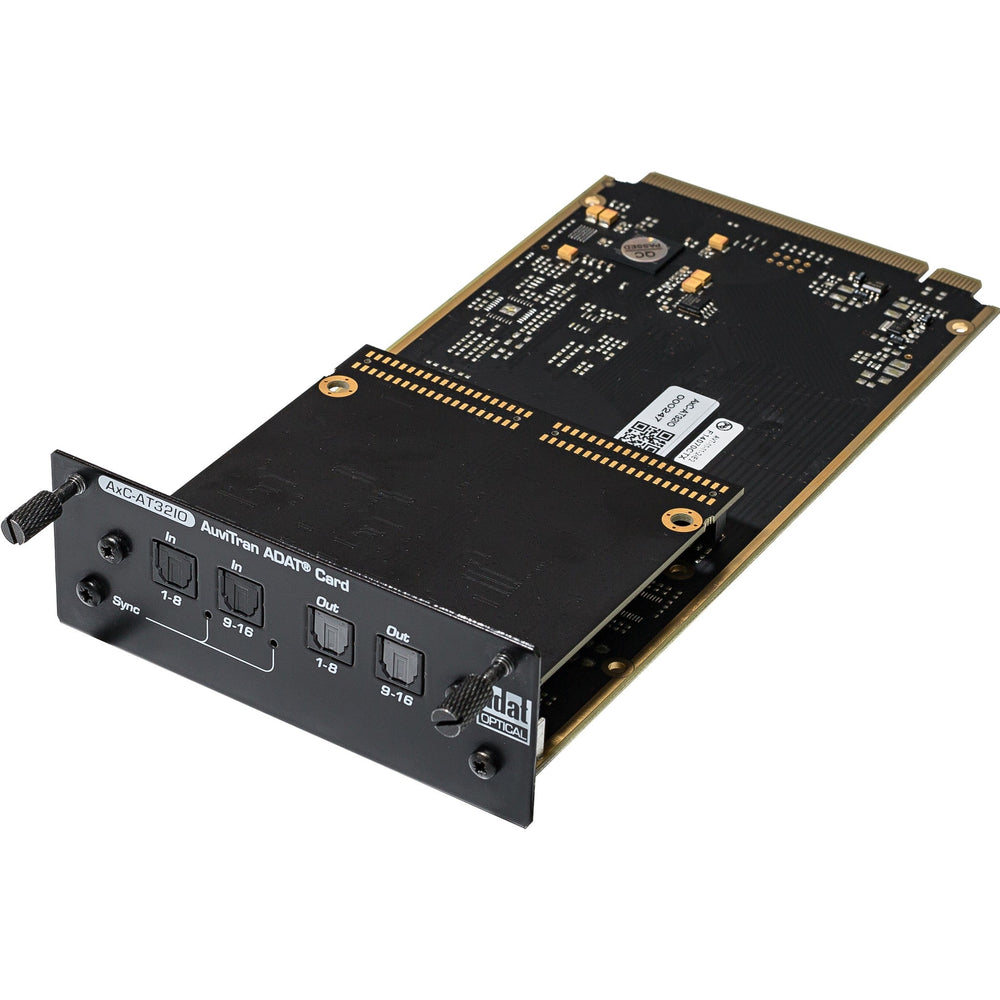

AuviTran AudioToolBox AxC-AT32IO
The AuviTran AudioToolBox AxC-AT32IO is a high-performance digital audio I/O module designed for professional audio applications. This advanced unit offers 32 channels of digital audio connectivity, making it ideal for complex audio setups in live sound, broadcast, and recording environments. Its integration with the AuviTran AudioToolBox platform ensures seamless operation and flexibility in managing audio signals.
Featuring both analog and digital connectivity, the AxC-AT32IO supports up to 16 ADAT inputs and 16 ADAT outputs, with the capability to handle double-speed modes at 88.1 kHz and 96 kHz. This allows for high-quality audio processing and routing across a variety of applications. The unit is designed with a compact form factor, fitting into the AuviTran Audio ToolBox platform and ensuring durability and reliability in demanding settings.
Key Features
- Up to 16 ADAT inputs and 16 ADAT outputs for comprehensive audio connectivity
- Supports double-speed modes at 88.1 kHz and 96 kHz for high-resolution audio
- Compact design compatible with the AuviTran Audio ToolBox platform
- Remote management via AVS-Monitor for enhanced control and monitoring
- Compatible with Windows operating systems including Windows 10, 8, 7, Vista, and XP
Technical Specifications
General
Dimensions: 200 mm x 100 mm x 40 mm ā AuviTran Audio ToolBox platform cards format
Power Supply: +12V / +3.3V Through AuviTran Audio ToolBox backplane
Storage Temperature/Humidity: 5Ā°C to 70Ā°C / 0% to 95% (non-condensing)
Operating Temperature/Humidity: 0Ā°C to 50Ā°C / 5% to 90% (non-condensing)
Connectors: 2 Optical TOSLINK connectors for 16 inputs (8 inputs per connector), 2 Optical TOSLINK connectors for 16 outputs (8 outputs per connector)
Audio Inputs
Number of Inputs: Up to 16 ADAT inputs routed through the AuviTran Audio ToolBox backplane from other cards, Up to 8 ADAT inputs in Double Speed mode (88.1 kHz and 96 kHz)
Sampling Frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
A/D Resolution: 24 bits
Inputs Specification: ADAT weave on Optical TOSLINK connector
Synchronization: Possibility of synchronization from each ADAT input
Audio Outputs
Number of Outputs: Up to 16 ADAT outputs routed through the AuviTran Audio ToolBox backplane from other cards, Up to 8 ADAT outputs in Double Speed mode (88.1 kHz and 96 kHz)
Sampling Frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
D/A Resolution: 24 bits
Output Specification: ADAT weave on Optical TOSLINK connector
Integration Environment
Audio ToolBox Platform: AxC-AT32IO is one of the cards of the AuviTran Audio ToolBox platform
AVS-Monitor: AVS-Monitor enables remote setting, control, and monitoring of an EtherSound network. It provides enhanced control pages to manage the specific parameters of the AxC-AT32IO card
OS Supported: Windows 10, 8, 7, Vista, XP 32 or 64 bit
