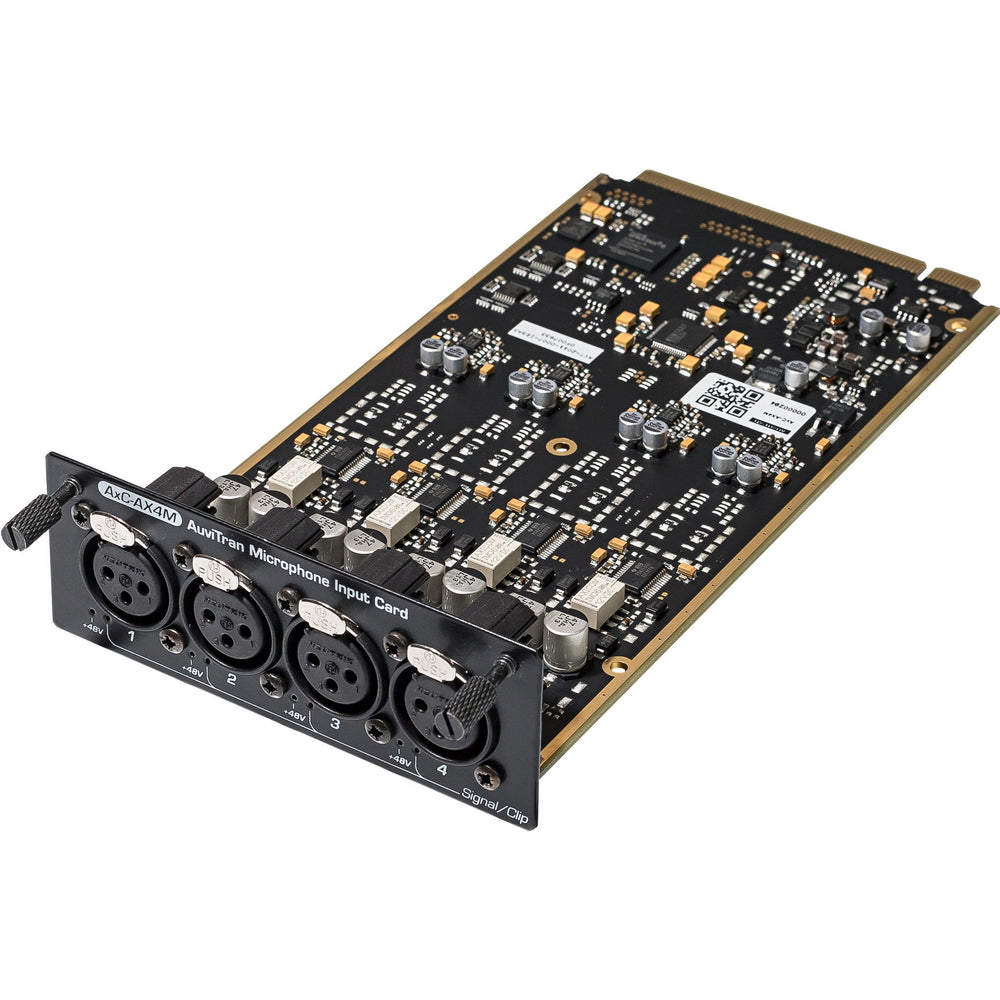

AudioToolBox AxC-AX4M - Advanced Audio Interface and Processor

The AudioToolBox AxC-AX4M from AuviTran is a cutting-edge audio interface and processor engineered to deliver superior performance and flexibility for demanding professional audio applications. This high-density card is an integral component of the AuviTran Audio ToolBox platform, offering a seamless integration of advanced audio features with robust construction. Ideal for live sound, broadcasting, and recording studios, the AxC-AX4M ensures high-quality audio management and processing in a variety of complex setups.

Designed with precision and versatility in mind, the AxC-AX4M provides high-resolution audio conversion and flexible routing options. The card supports multiple sampling frequencies and offers extensive control over audio parameters, making it an essential tool for audio engineers and technicians. Its durable design guarantees reliable performance in various environments, while the intuitive AVS-Monitor software enables comprehensive control and monitoring of audio networks.

Key Features

• High-resolution audio conversion with selectable sampling frequencies
• Flexible audio routing and processing capabilities
• Durable construction for dependable operation in diverse environments
• Comprehensive control and monitoring via AVS-Monitor software
• Supports various audio protocols including EtherSound

Technical Specifications

General
Size: 200 mm x 100 mm x 40 mm – AuviTran Audio ToolBox platform cards format
Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
Storage: Temp / Humidity - 5°C to 70°C / 0% to 95% (non-condensing)
Operating: Temp / Humidity 0°C to 50°C / 5% to 90% (non-condensing)
Connectors: 4 x female XLR connectors

Audio Inputs
Number of I/O: Up to 4 analog inputs routed through the AuviTran Audio ToolBox backplane to other cards

Audio Inputs Specifications
Sampling Frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
A/D Resolution: 24 bits
Input Specification: Balanced analog on XLR connectors
Input Maximum Level: +24 dBu

Audio Inputs MIC / Line Technical Specifications
Analog Gain Range: 0 to +79 dB (0.5 dB step)
Input Sensibility: +24 dBu to -55 dBu
Input Impedance: 2.7 kΩ (differential)
E.I.N. @ (Rs=150Ω G=+55dB): -127 dBu (fs=48KHz & BW 22KHz)
Dynamic Range: > 115 dB A-weighted (> 112.5 dB un-weighted) (fs=48KHz & BW 22KHz)
THD+N (1KHz / G=0dB or G=+25dB): < -101 dB (fs=48KHz & BW 22KHz)
Frequency Response: 20Hz – 20kHz ( -0.3 / 0 dB)
Phantom Power: +48 V (individually controllable for each channel)

Integration Environment
Audio ToolBox Platform: AxC-AX4M is one of the cards for the AuviTran Audio ToolBox platform
AVS-Monitor: AVS-Monitor enables remote setting, control, and monitoring of an EtherSound network and provides enhanced control pages to manage the AxC-AX4M card-specific parameters.
OS Supported: Windows Seven/Vista/XP for 32 or 64-bit versions
