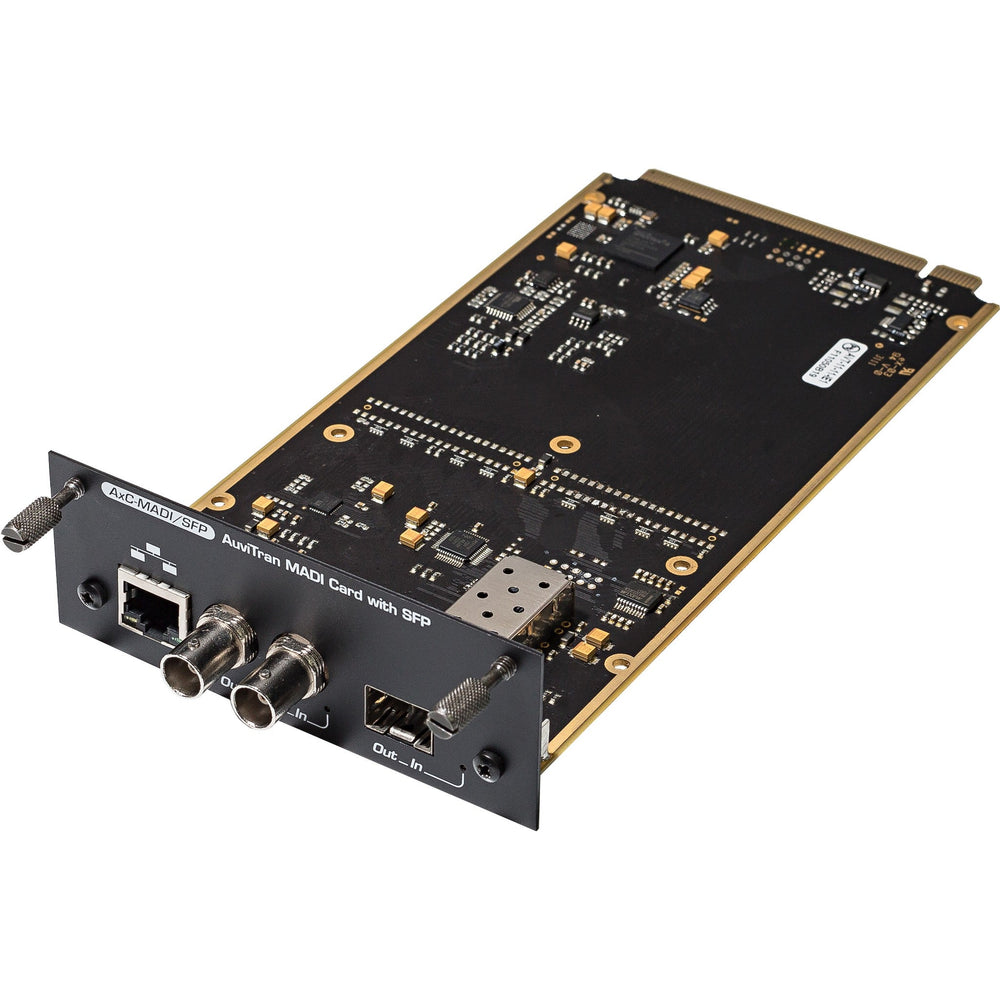

AxC-MADI/SFP MADI Interface Card for AuviTran Audio ToolBox
The AxC-MADI/SFP is a versatile MADI interface card designed for seamless integration with AuviTran's Audio ToolBox platform. This powerful card offers a convenient and popular solution for transmitting up to 128 audio channels (2x64) between devices using the MADI protocol. Compatible with both AVBx3 and AVBx7 platforms, the AxC-MADI/SFP provides a cost-effective gateway to MADI-connected devices.
One of the standout features of the AxC-MADI/SFP is its flexibility in optical transmission. Thanks to its SFP cage, users can choose between multimode and monomode optical transmission, allowing for adaptability in various professional audio setups. This card is ideal for live applications, fixed installations, broadcast centers, and any scenario requiring high-channel count digital audio routing.
The AxC-MADI/SFP supports both 64 and 56 channel modes, accommodating different MADI implementations. It offers pristine 24-bit audio quality at sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz, ensuring compatibility with a wide range of professional audio equipment. The card features both optical SFP and coaxial connectors, providing maximum connectivity options.
Key Features
- MADI interface on both SFP (optical) and coaxial connectors
- Support for 64 or 56 channel modes
- 24-bit audio at 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
- Remote management via AVS-Monitor software
- Dedicated control page for monitoring and adjusting card parameters
- Compact size: 200 x 100 x 40 mm (AuviTran Audio ToolBox platform card format)
Applications
- Dante-MADI bridges with extensive connectivity options
- MADI-based stage boxes when combined with AxC-AX4M high-class mic/line preamp cards
- Live applications using AVBx3/7 in Stage-box mode (MADI audio StageBoxes, MADI Dante bridges, MADI EtherSound bridges)
- Fixed installations using AVBx3/7 in Installation mode (MADI connected audio systems, broadcast centers)
Product Specifications
General:
Size: 200 mm x 100 mm x 40 mm
Power Supply: +12V / +3.3V (Through AuviTran Audio ToolBox backplane)
Storage Temperature / Humidity: -5Ā°C to 70Ā°C / 0% to 95% (non-condensing)
Operating Temperature / Humidity: 0Ā°C to 50Ā°C / 5% to 90% (non-condensing)
Audio Inputs:
Number of I/O: Up to 64 digital inputs/outputs routed through the AuviTran Audio ToolBox backplane
Sampling Frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
A/D Resolution: 24 bits
Input Specification: MADI 56 / 57 / 64 channels mode S-Mux or Multiple Rate
Integration Environment:
Platform: AuviTran Audio ToolBox
Software: AVS-Monitor for remote setting, control, and monitoring
OS Support: Windows 10/8/Seven/Vista/XP (32 or 64 bit versions)
Part Numbers:
AxC-MADI/SFP: AuviTran Audio ToolBox MADI interface card with SFP cage
AxP-FX: Optional SFP module with LC connector for Multimode Optical Fibers
AxP-LX: Optional SFP module with LC connector for Monomode Optical Fibers
