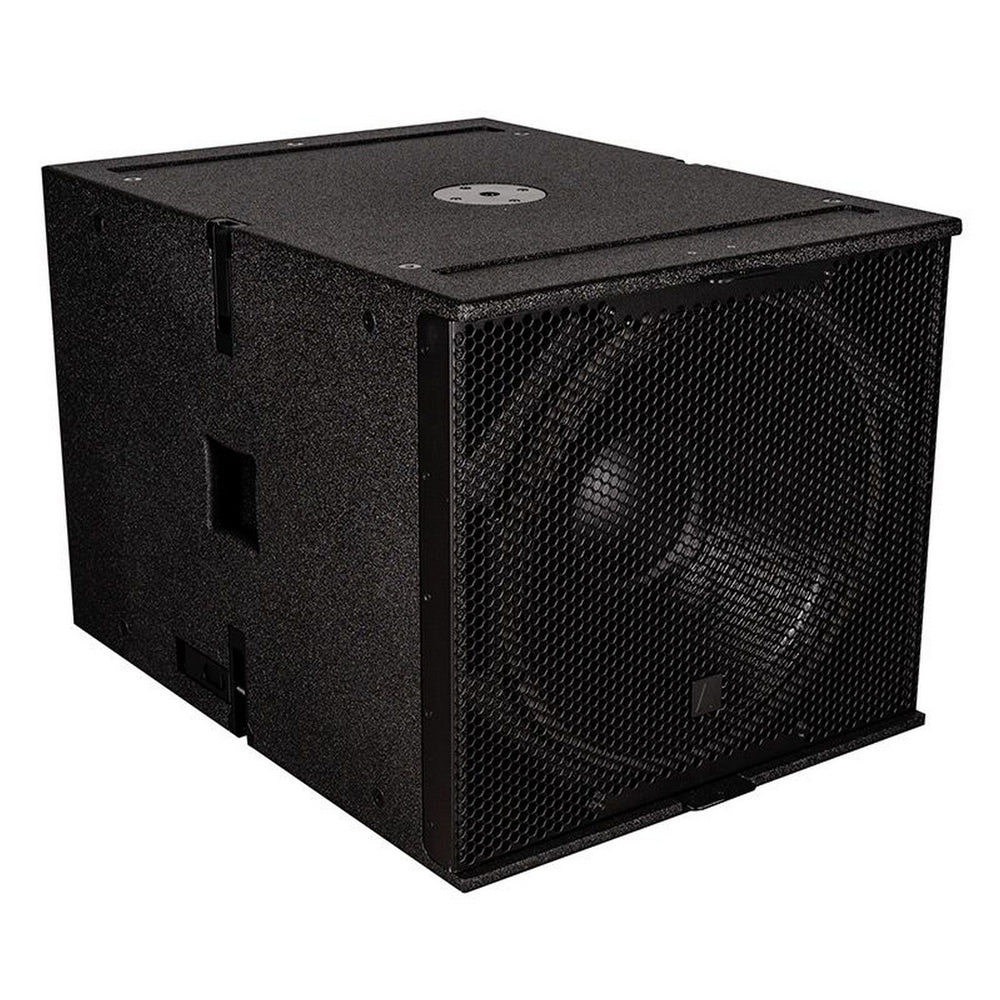

Avante Imperio Pro IMP118 18-inch Subwoofer
Avante Imperio Pro IMP118 18-inch Subwoofer
The Avante Imperio Pro IMP118 18-inch Subwoofer stands out as a sophisticated active subwoofer tailored for large-scale events, complementing the Avante Imperio Pro IMP205 mini line array seamlessly. Boasting an 18-inch woofer with a high-power 4-inch voice coil and a bass-reflex system design, this subwoofer produces a remarkable frequency response ranging from 32 Hz to 130 Hz (-10dB) and 38 Hz to 130 Hz (-3dB), ensuring a profound and impactful bass experience.
Its features include a selectable crossover frequency ranging from 60 Hz to 120 Hz with a slope of LR 24dB per octave, offering unparalleled control over sound output. The class-D 3800-watt peak power guarantees ample headroom and minimal distortion, while the variable input gain enables precise gain optimization.

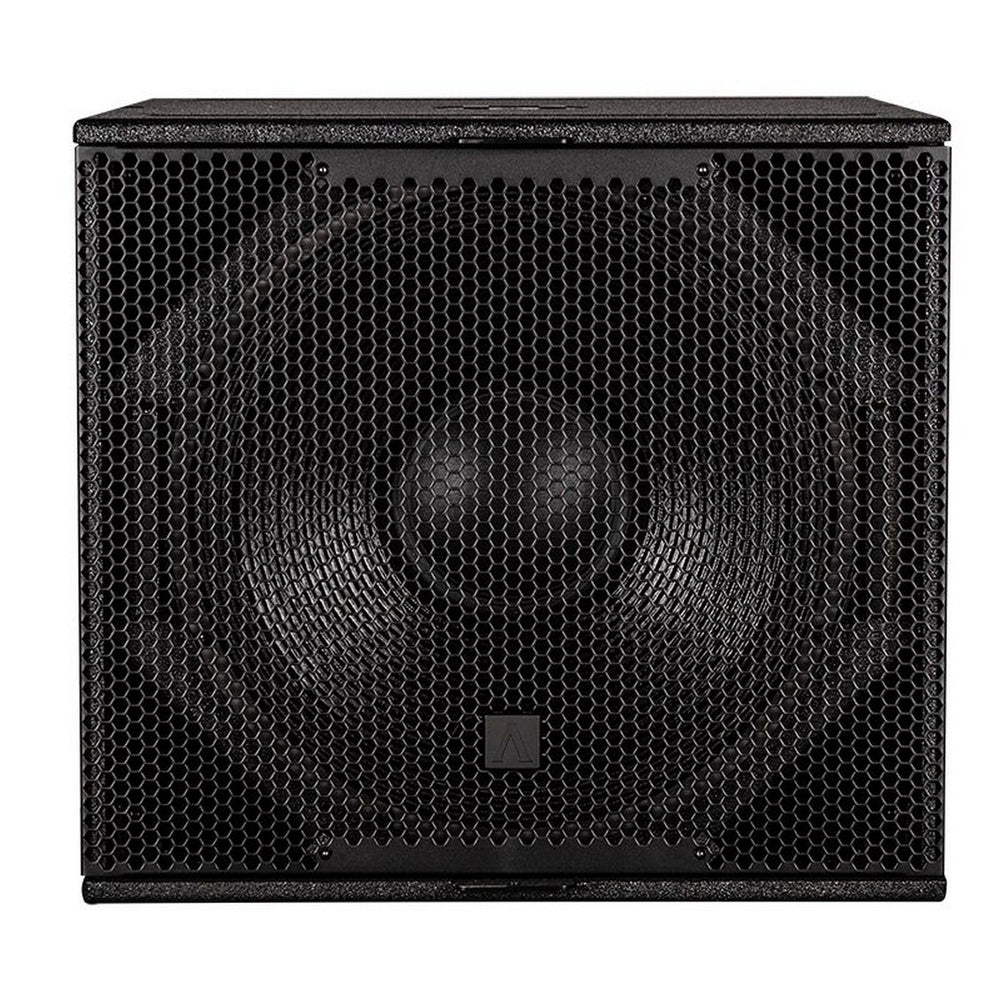

Crafted with a CNC machined Baltic birch plywood enclosure, this subwoofer is built to endure the demands of touring. The sleek black polyurea finish and black powder-coated steel grille not only enhance durability but also make it an ideal choice for professional sound applications such as live sound and mobile DJ setups.

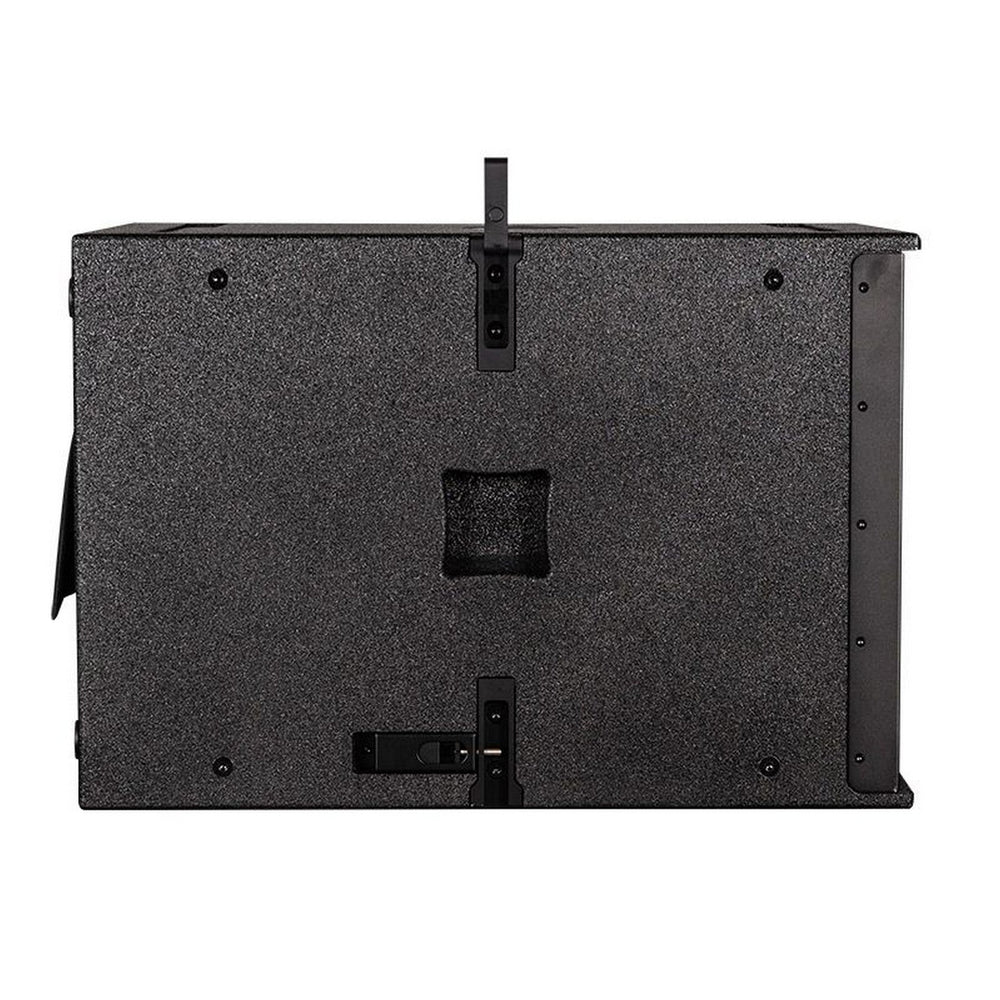

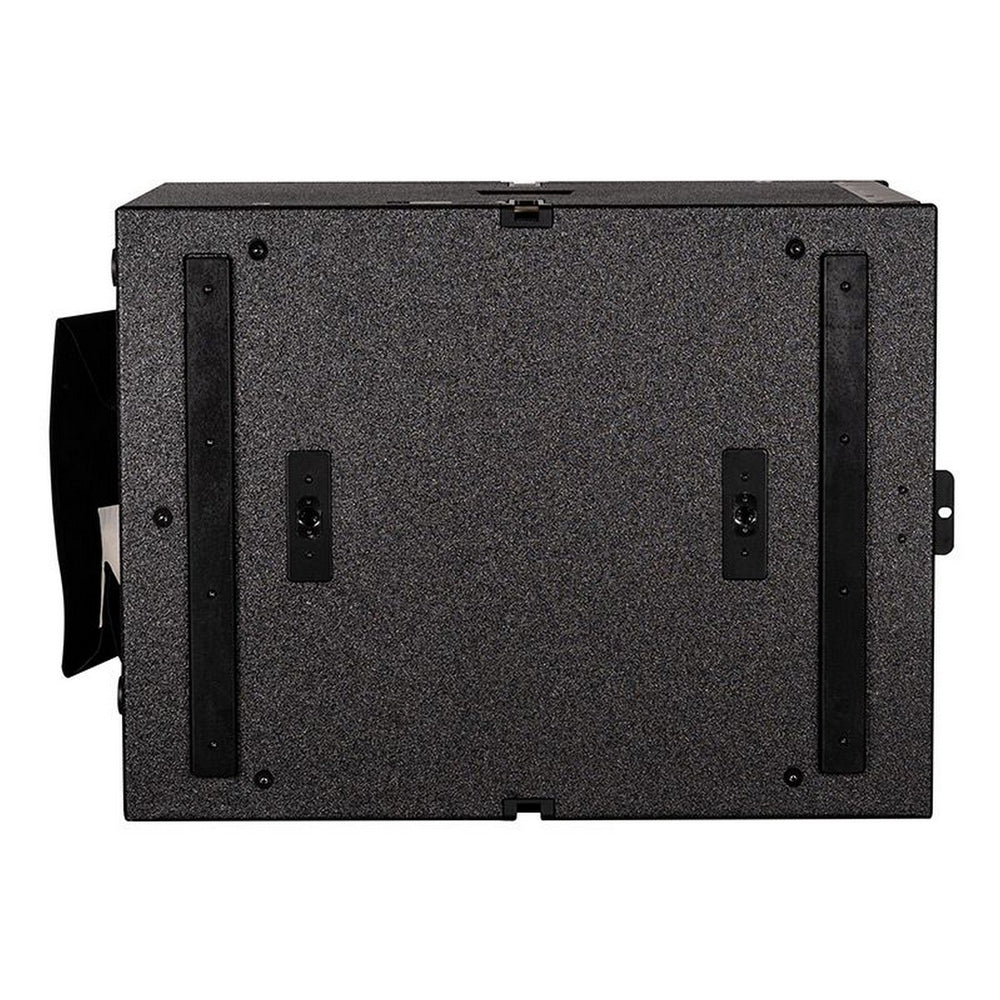

Facilitating installation flexibility, it features 20 captive-nut fly points (M10) and a pole mount (M20). Its design includes recessed handles, bottom nylon skids, and rear rubber feet for easy transportation and stacking.

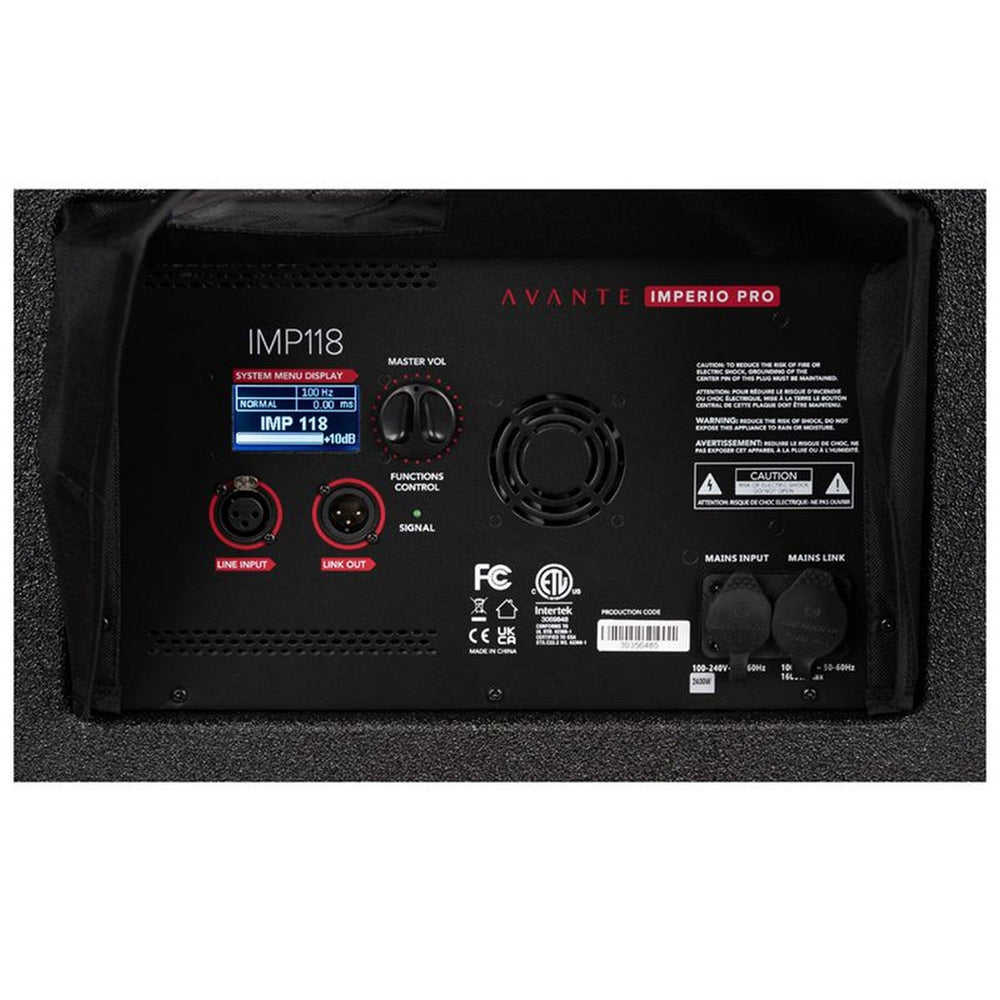

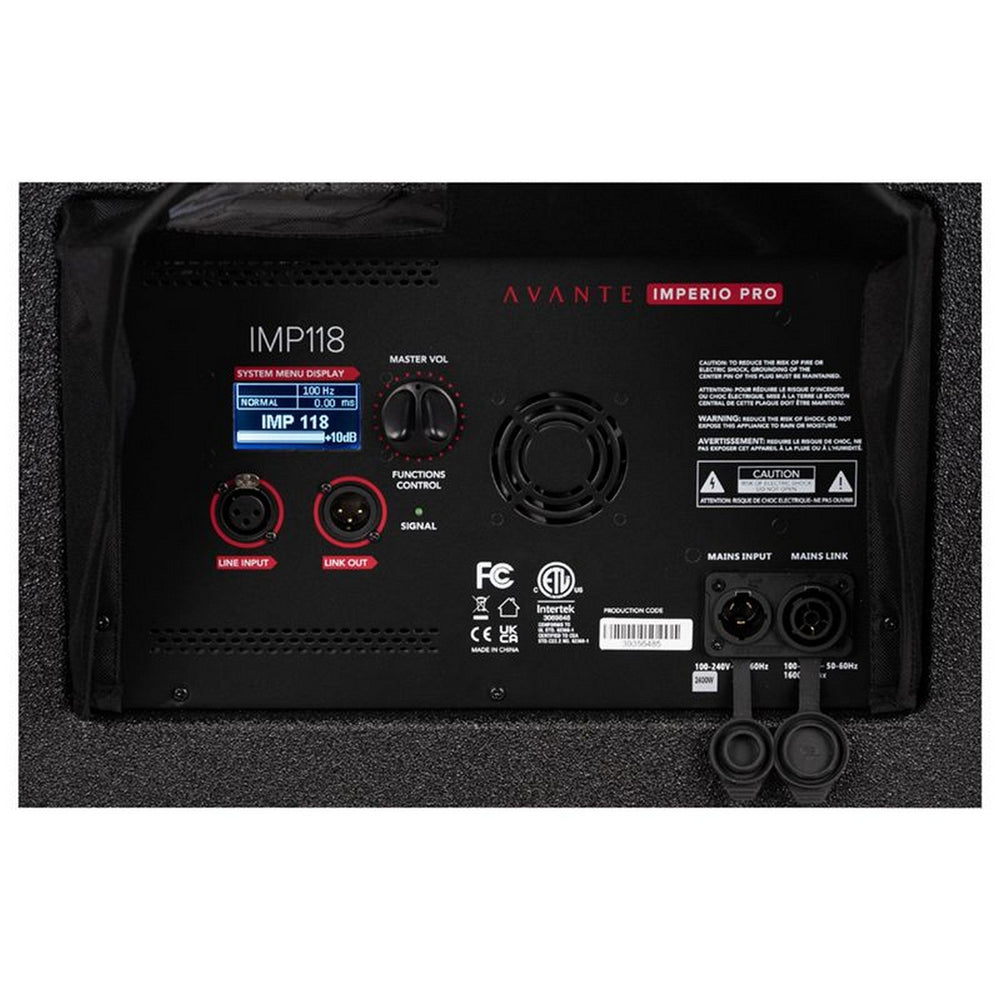

On the rear panel, you will find an XLR input socket along with an XLR output for linking multiple active speakers. The power connection is secured through a locking IP65-rated socket, ensuring a stable power supply during operation. Moreover, a locking IP65-rated output link socket allows for daisy-chaining power to multiple speakers from a single outlet. Global usage is facilitated by its compatibility with power supplies ranging from 100V to 240V AC at 50/60Hz. For added convenience, a protective rain cover is provided for the amplifier panel and connection sockets, enabling safe outdoor use in wet conditions.
With a resilient black polyurea finish and a black powder-coated steel grille, this subwoofer not only delivers exceptional performance but also exudes a visually appealing presence on stage. The IP-rated locking power connector ensures a secure connection that remains intact. Boasting an impressive maximum SPL of 136 dB peak, the Avante Audio Imperio Pro IMP118 subwoofer is the ultimate choice for enhancing your sound production to a superior level.
Technical Specifications
System Type
Active DSP Controlled 18-inch Sub, Bass-Reflex, Touring Subwoofer
DSP Features
Delay, Crossover, Cardioid
Frequency Response
32 Hz-130 Hz (-10dB) 38 Hz-130 (-3 dB)
Component
18-inch High-power. Voice Coil 4-Inch (100mm)
Coverage pattern
Selectable cardioid and end-fire settings.
Crossover Frequency (Selectable)
60 Hz, 70, Hz, 80 Hz, 90 Hz, 100 Hz, 120 Hz. Slope- LR 24dB per octave
Power
Active class-D amplifier, 1800-watts RMS, 3600-watts Peak
Input Gain
Variable
Maximum SPL
136 dB Peak
Enclosure
Premium Birch plywood
Suspension/Mounting
20 captiv- nut fly points (M10), Pole Mount (M20)
Transport

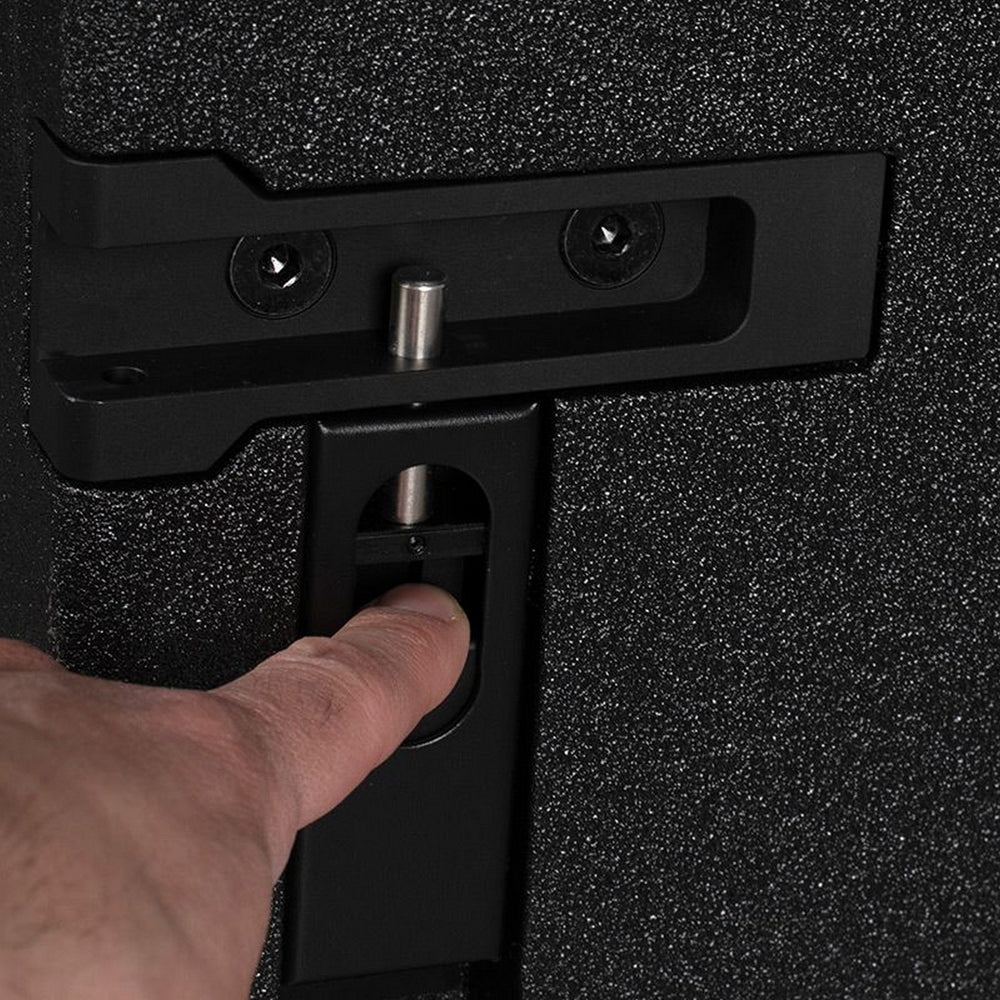

2 recessed handles, bottom nylon skids, rear rubber feet, interlocking stacking hardware
Finish
Black Polyuera
Grille
Black powder-coated steel
Connectors (Signal In/Thru)
XLRF/ XLRM
AC IN/OUT
IP65-Rated locking connector In/Thru. 100~240VAC 50/60Hz

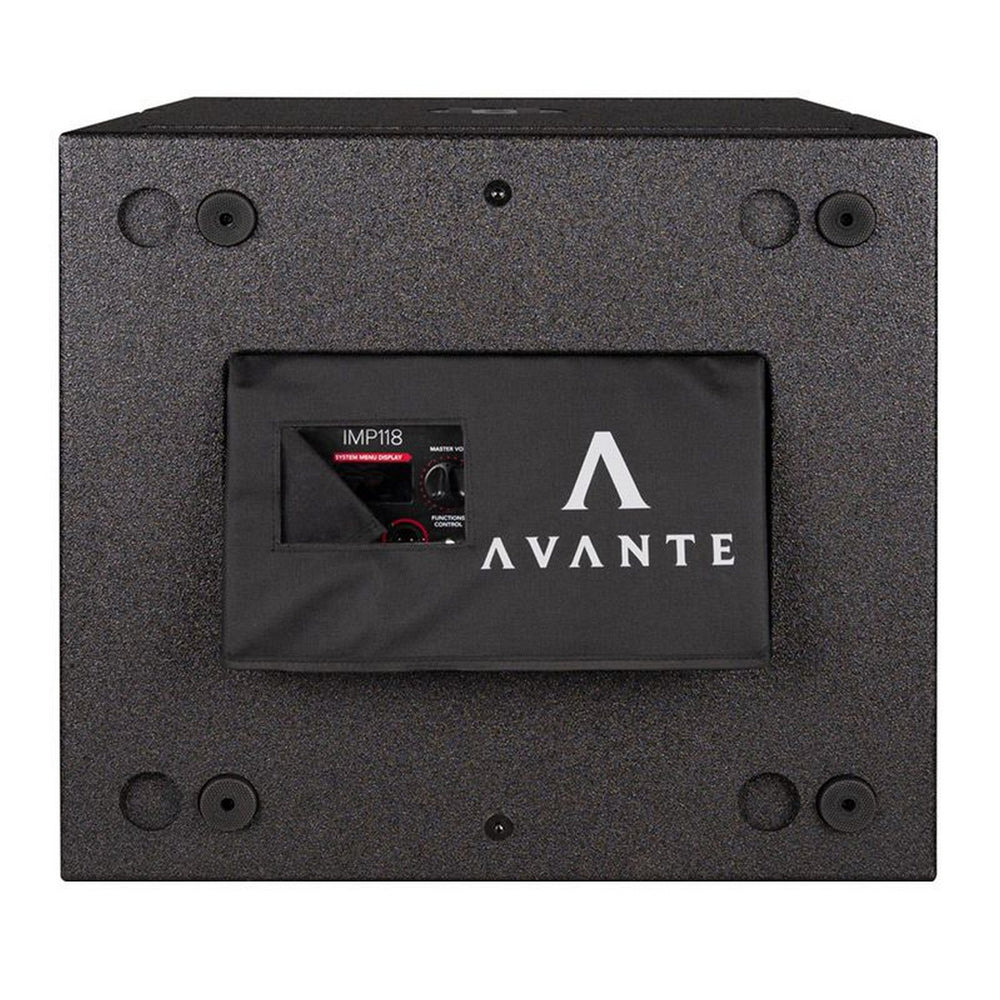

Protective rain cover on rear panel to protect sockets and DSP display
Dimensions
20.75ā H x 22.6ā W x 29 x 30ā D / (527mm H x 574mm W x 762mm D)
Net Weight
101 LBS. (45.8 KG)
Approvals
CD FCC, CETLus (Control #3069848)
Accessories (Sold Separately)

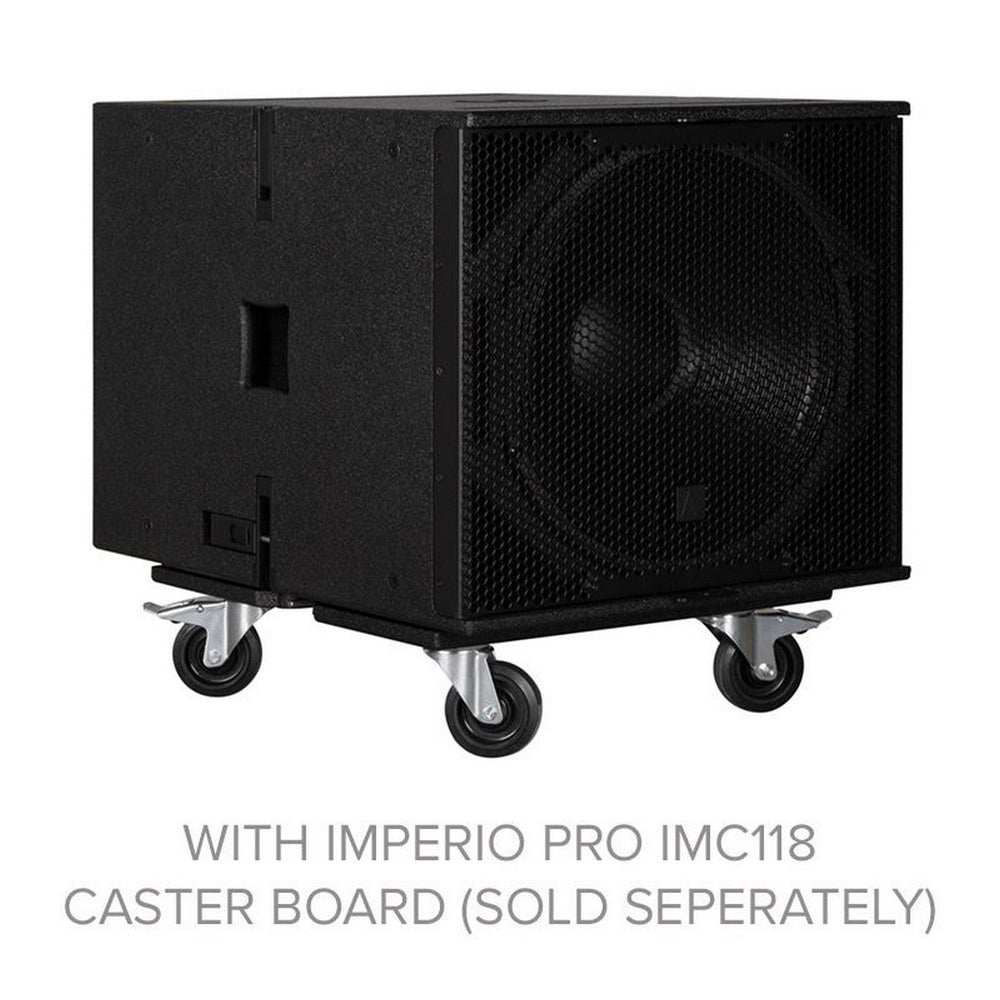

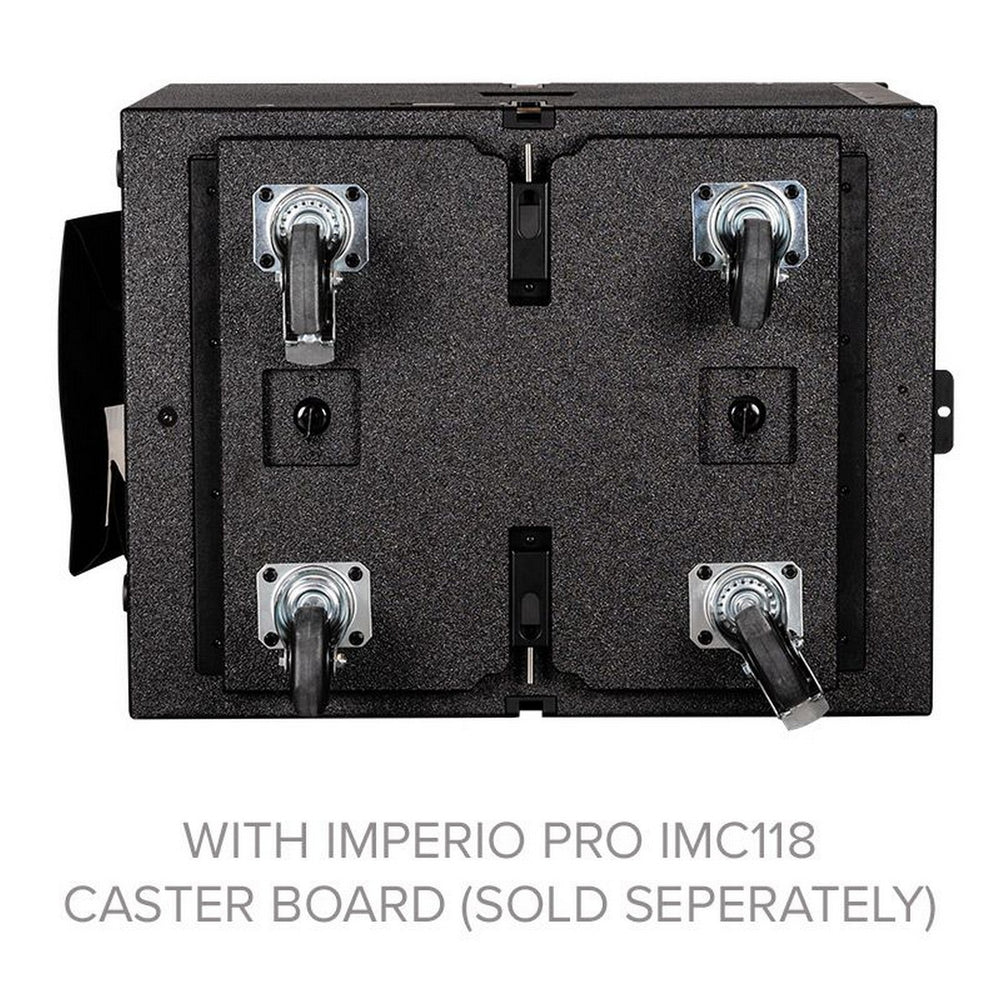

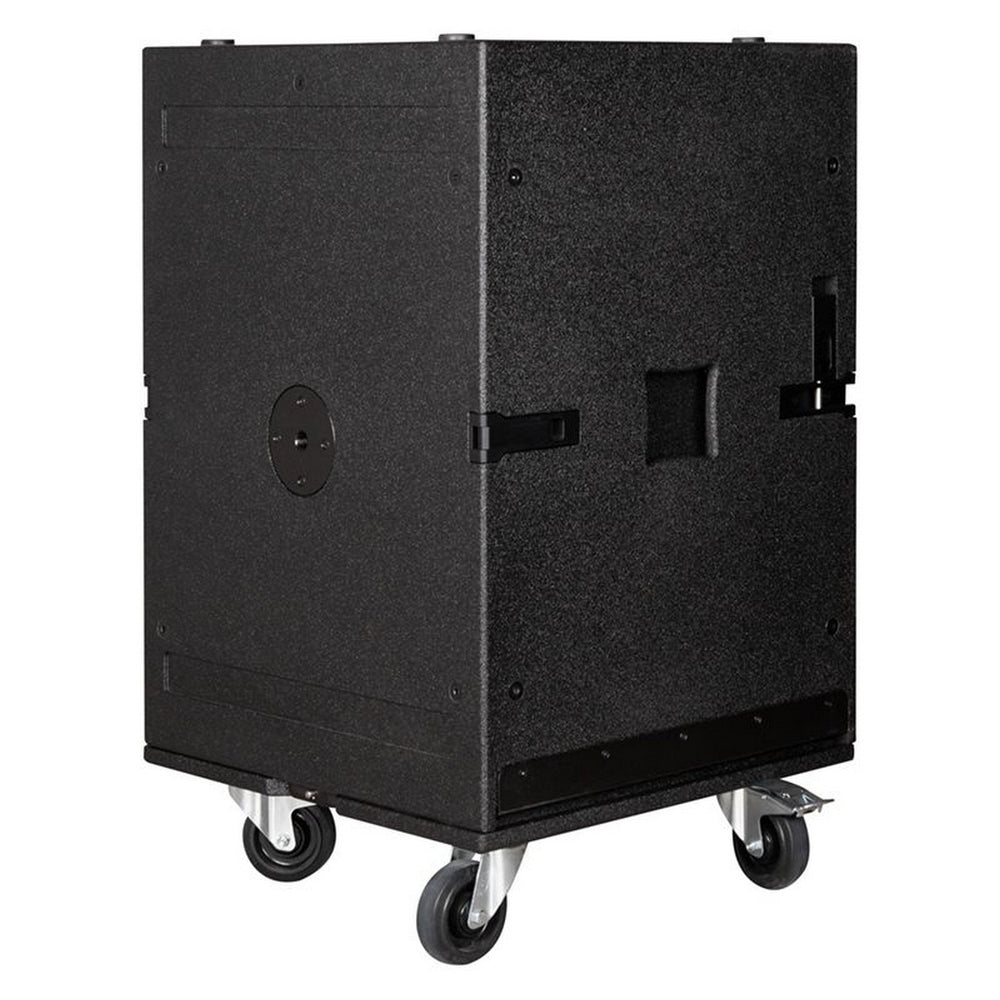

Imperio Pro IMC118 interlocking caster board, protective cover and speaker pole
